This is kind of an add on to the recent thermostat thread. I thought my stroked 440 was running too cool so I checked the thermostat and found it had a 160 in it. So I popped it out and replaced it with a 180. Thought it would run a bit warmer. I have a triple cored refreshed stock radiator too. I took the car for a good test run today and the gauge actually shows cooler than when I had the 160 stat in it. Dennis H recommended I get one of those laser temp guns which I picked up online. When I shoot the stat housing she reads a perfect 185 - 190. Pretty close to 185 mostly. The gauges were refreshed a few years ago and the temp has never run up to the normal operating range I would expect. I guess the car is running warm enough - so I’m left to think there’s something wrong with the gauge. Any thoughts or advice from anyone? I abhor the thought of taking that out - but how would I ever know if she is running to hot? What do you think?


gdrill

Just enjoying "B"-ing here
FBBO Gold Member
Local time
11:30 AM
Joined
May 29, 2013
Messages
4,465
Reaction score
7,546
Location
Stuck in the past, just North of Montana....
Well personally, if I owned an engine that I had serious money into and truly worried about, I would definitely run aftermarket gauges aside from the factory setup. My engines are all relatively cheapos but I do believe the backup info to be priceless.
I know, not everyone likes the look of the gauges under the dash, but for me it's not about looks at this point.


Ranger16

Well-Known Member
Local time
12:30 PM
Joined
Jun 27, 2016
Messages
4,294
Reaction score
5,375
Location
Woodstock Ill.
I would agree that the gauge is probably inaccurate and I think you have pretty much proved that with the IR thermometer.


GetX'd

Making Life Great Again!
FBBO Gold Member
Local time
10:30 AM
Joined
Jul 20, 2014
Messages
10,562
Reaction score
10,089
Location
Laguna Beach, CA
I would agree that the gauge is probably inaccurate and I think you have pretty much proved that with the IR thermometer.

Any way to fix those gauges? I’m not to swift with the elec part of the car. Are there wires running from the firewall to somewhere that I could double check?


PurpleBeeper

Well-Known Member
Local time
12:30 PM
Joined
Mar 20, 2011
Messages
4,896
Reaction score
3,630
Location
Chicago
Maybe start with the temperature sending unit? It's a lot cheaper & easier to install. There are probably some guys on this board (or online somewhere) who could help you rig up some type of "resistance adjuster" that would let you dial in your stock temp gage too (I've not seen this, but to me it makes sense).

Now that I think about it, maybe you could run a pipe thread tap up the temperature gage sending unit hole? I think that our gages work on resistance and that takes a good ground.

Any gage/electronic guru please jump in. I'm half guessing here.


PurpleBeeper

Well-Known Member
Local time
12:30 PM
Joined
Mar 20, 2011
Messages
4,896
Reaction score
3,630
Location
Chicago
Any way to fix those gauges? I’m not to swift with the elec part of the car. Are there wires running from the firewall to somewhere that I could double check?

yes, if you're running a big block, the temperature sending unit is screwed into the water pump housing, front of engine, passenger side (if I'm remembering correctly). It has one wire with an "L"-shaped push-on connector (white wire????) I believe it goes directly into its own connector in the bulkhead disconnect.


texas69bee

Well-Known Member
Local time
12:30 PM
Joined
Dec 3, 2013
Messages
1,650
Reaction score
1,083
Location
texas
Maybe start with the temperature sending unit? It's a lot cheaper & easier to install. There are probably some guys on this board (or online somewhere) who could help you rig up some type of "resistance adjuster" that would let you dial in your stock temp gage too (I've not seen this, but to me it makes sense).

Now that I think about it, maybe you could run a pipe thread tap up the temperature gage sending unit hole? I think that our gages work on resistance and that takes a good ground.

Any gage/electronic guru please jump in. I'm half guessing here.
^^^THIS^^^
Temp sending unit. I’m not sure what’s going on with them but I’ve had 2 fail already. I replace them, they work fine for a while then puke out. When new, temp is 190. When they fail, temp gauge barely moves.


GetX'd

Making Life Great Again!
FBBO Gold Member
Local time
10:30 AM
Joined
Jul 20, 2014
Messages
10,562
Reaction score
10,089
Location
Laguna Beach, CA
^^^THIS^^^
Temp sending unit. I’m not sure what’s going on with them but I’ve had 2 fail already. I replace them, they work fine for a while then puke out. When new, temp is 190. When they fail, temp gauge barely moves.
Where do you purchase a temp sending unit? Is that the one wire that goes from the water pump housing to the bulkhead that purple beeper is mentioning above?


miller

Well-Known Member
Local time
12:30 PM
Joined
Jan 5, 2014
Messages
4,081
Reaction score
2,009
Location
Tom Bean,Texas
Pretty much any parts house 'should' have the sending unit.

One little side note, like mentioned, the gauge works off of signal sent to it, AND ground.
The needed ground is where the sending unit threads into the pump housing. Use only a liquid type thread sealer, and still check for good ground contact, from sender to pump housing.

Gauge can be tested, by using the sending unit wire, simply to ground. Moves slow, but if good, the needle will move it's full range.


Ranger16

Well-Known Member
Local time
12:30 PM
Joined
Jun 27, 2016
Messages
4,294
Reaction score
5,375
Location
Woodstock Ill.
Is that the one wire that goes from the water pump housing to the bulkhead that purple beeper is mentioning above?

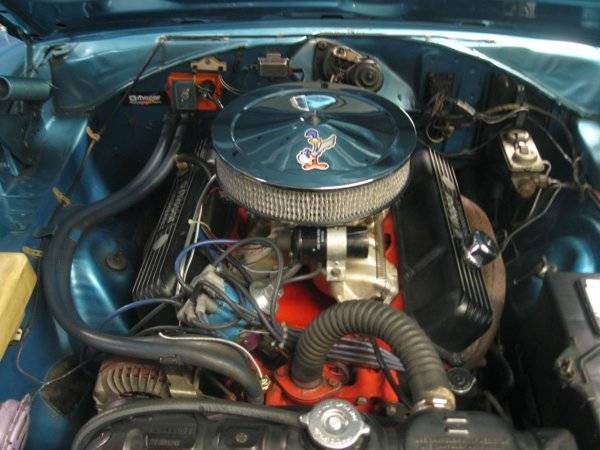

Yes. Here is the best picture I have of mine. It's a 383, but they are the same.

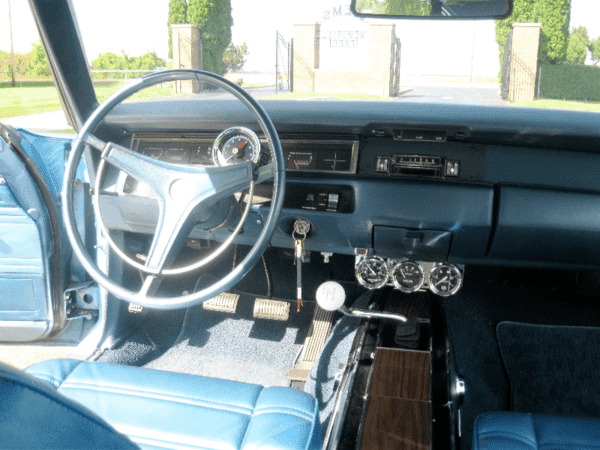

You can see the single (factory gauge) wire below the heater hose. The silver cable above the heater hose is for the more accurate aftermarket gauge installed below the dash.
Road Runner 2   383 Motor.JPG

Road Runner 2 Interior 2.png

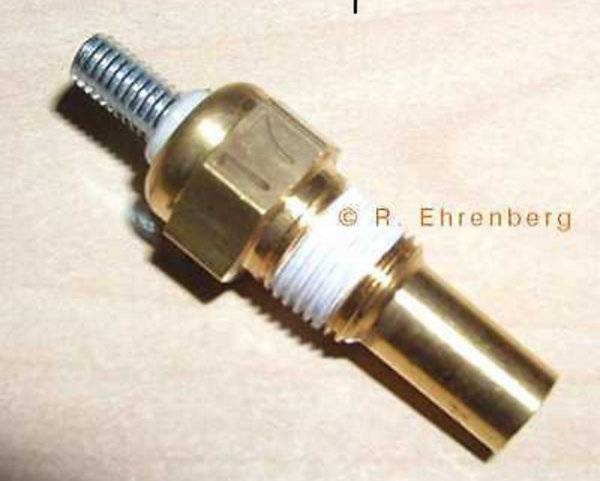

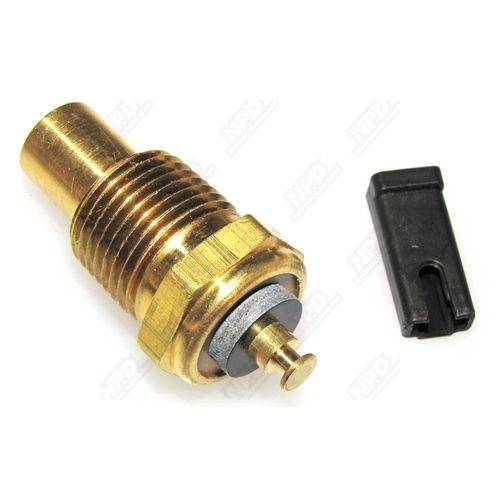

The factory sending unit will look something like this. The connector shown slides onto the nipple on top.


Any way to fix those gauges?
I doubt if there is any way to make them more accurate. I think they are just dampened down to show "normal range". Just the nature of the beast.
