Belt routing?

[1967coronet440]

Does anyone have pics of how my belts should be routed? 440 with power steering. I have a 2 groove crank pulley, single groove water pump and PS. I think the PS belt goes around water pump pulley and crank and the alternator goes to crank, can someone confirm this. Thanks



[Osyman]

The 3 necessities go on the first pulley, the option goes on the second.



[1967coronet440]

The 3 necessities go on the first pulley, the option goes on the second.

You mean the first groove? Can you perhaps add a bit more detail?



[1967coronet440]

Think i got it... alt, water pump, and crank on the inner groove of crank pulley, PS to the outer groove of crank pulley...



[5.7 hemi]

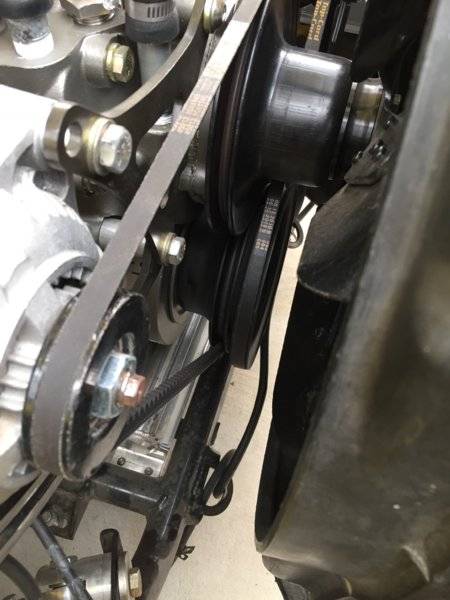

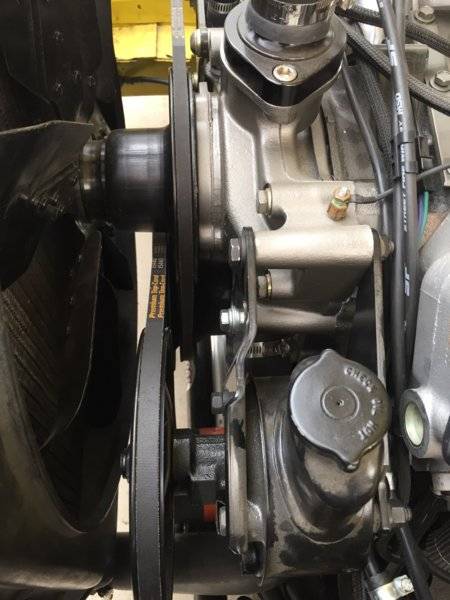

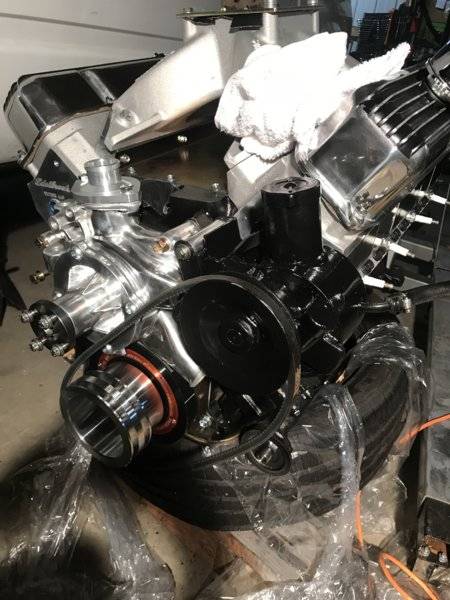

Here ya go!



[1967coronet440]

Here ya go!

View attachment 523347 View attachment 523348

Thanks buddy



[5.7 hemi]

Glad to help.



[1967coronet440]

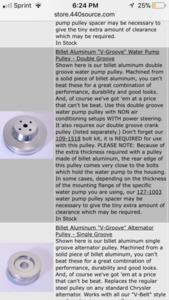

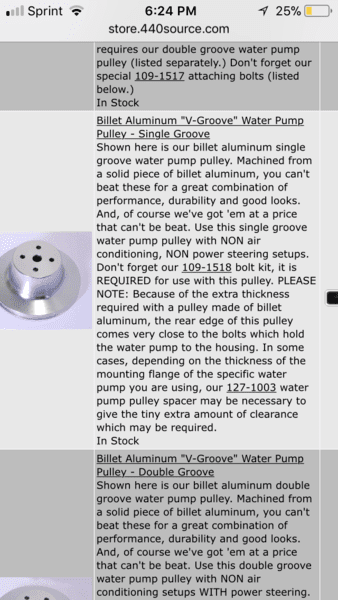

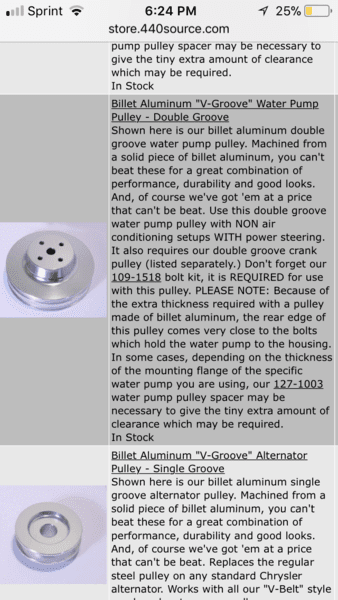

Looking at 440 source to order the right pulley since I have a 2 groove and it says use the 2 groove pulley for non ac with power steering? And use the single groove for non ps and non ac cars, what gives? should I disregard their notes and get the single groove



[Zeppelin264]

Also as a kicker. If the Alt has a double pulley it can be used with standard belt etc...



[1967coronet440]

Also as a kicker. If the Alt has a double pulley it can be used with standard belt etc...

I still have to order he alternator so I’ll most likely get a single groove



[5.7 hemi]

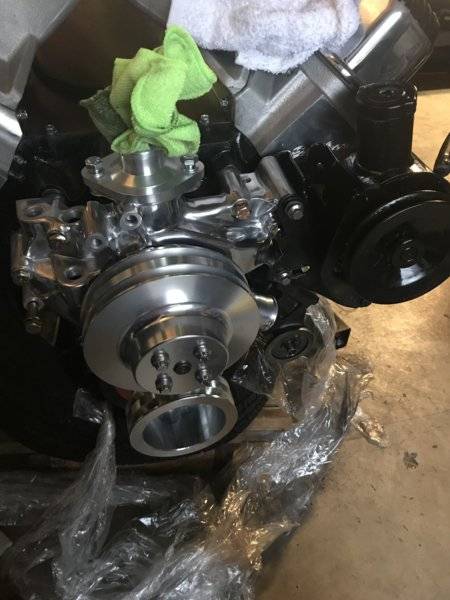

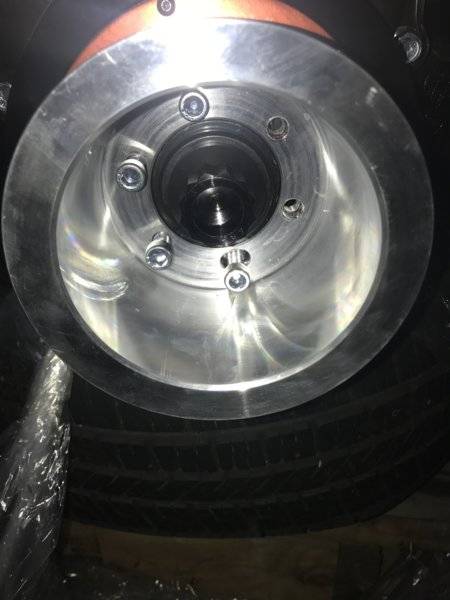

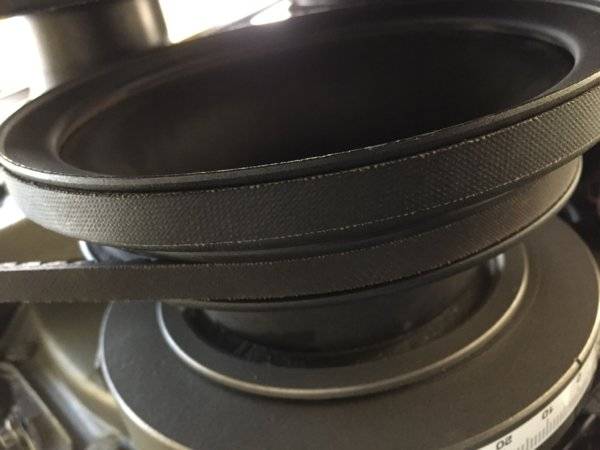

The crank pulley should look like this.



[5.7 hemi]

The water pump pulley should be a single groove and right at 7 inches across.



[1967coronet440]

The water pump pulley should be a single groove and right at 7 inches across.

I was going off what 440 source site said, guess that was a mistake I’ll order the single groove. My crank pulley is a bit smaller I think it’s 5.25 inches underdrive.



[mopar 3 B]

You will need the single groove water pump and alternator pulleys for the two groove crank pulley.
Do you have the 67 mounting brackets for the alternator?



[1967coronet440]

You will need the single groove water pump and alternator pulleys for the two groove crank pulley.
Do you have the 67 mounting brackets for the alternator?

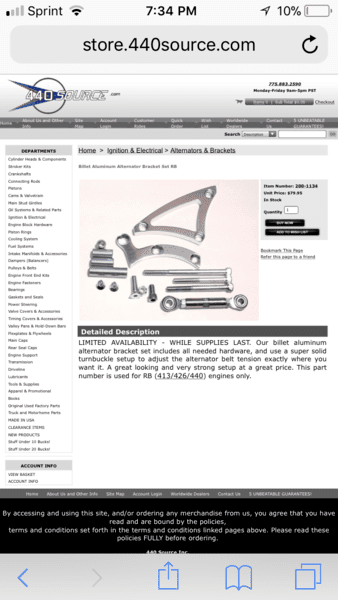

I have the 440 source billet mounting kit
