Bench testing my wiper motor

Exterior Body, Paint, Trim, Chrome

  1. Sahara

    Sahara FBBO Gold Member FBBO Gold Member

    Messages:
    462
    Likes Received:
    591
    Joined:
    Jan 18, 2017
    Location:
    Way North Canada. Polar Bear shaped license plates
    Local Time:
    5:05 PM
    Before I pull the trigger on a rebuilt unit I should at least bench test some of the cores I have on hand.
    My vehicle is a 1970 Coronet.
    My question is, what pins do I apply power to. I don’t want to just randomly apply voltage. Also, these are two speed, (I think) does the speed vary according to which pins I apply power to or do I vary the voltage?

  2. Mopars & Missiles

    Mopars & Missiles Well-Known Member

    Messages:
    1,398
    Likes Received:
    1503
    Joined:
    Nov 22, 2010
    Location:
    Northern Indiana
    Local Time:
    7:05 PM
    Test procedure in the FSM, as well as electrical schematics. Should be all you need.

  3. Bill Monk

    Bill Monk FBBO Gold Member FBBO Gold Member

    Messages:
    1,746
    Likes Received:
    1837
    Joined:
    Feb 27, 2017
    Location:
    West Virginia
    Local Time:
    7:05 PM
    (1) Disconnect motor leads at bulkhead disconnect. Connect jumper wire from battery positive terminal to brown and red leads in bulkhead disconnect. Connect a second jumper from the green lead to ground. (The ground circuit is completed through the car body). The motor should run continuously. Disconnect leads.

    (2) Connect jumper wire from green lead to brown lead. Connect red lead to ground. Connect third jumper wire from battery positive terminal to blue lead. The wiper should run to the park position.
    EDIT: THIS IS FOR A 3 SPEED MOTOR. I JUST NOTICED YOU ARE WORKING ON A 2 SPEED.
    I'll see if I can find the bench test for the 2 speed

    • Thanks! Thanks! x 1
    • Bill Monk

      Bill Monk FBBO Gold Member FBBO Gold Member

      Messages:
      1,746
      Likes Received:
      1837
      Joined:
      Feb 27, 2017
      Location:
      West Virginia
      Local Time:
      7:05 PM

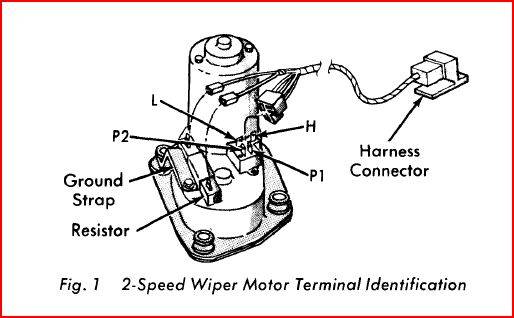

      Use a battery or battery charger for this procedure.

      Connect ground from battery or negative post of charger to brass ground strap on wiper motor.

      Jump the P2 terminal to the ground.

      Connect 12v positive to H terminal. Motor should run on high speed.

      Connect the L terminal to the resistor and positive to the other side of the resistor, motor should run on Low speed.

      Now, remove the ground from the P2 terminal and ground the L terminal and jumper positive to P1 and the motor should park.

      • Agree Agree x 1
      • Sahara

        Sahara FBBO Gold Member FBBO Gold Member

        Messages:
        462
        Likes Received:
        591
        Joined:
        Jan 18, 2017
        Location:
        Way North Canada. Polar Bear shaped license plates
        Local Time:
        5:05 PM
        Thank you all! Well, I did a lot to this thing and learned a lot about it.
        I did the basic test as outlined above. The motor ran fine. Not content to leave well enough alone I drilled the rivets, and disassembled and cleaned the gears, cam, and switch. I then added new grease, riveted it back together, and painted it. Works slick.
        One wiper pivot was locked solid.
        I mean solid. So I put the torch to it until it was HOT. That freed it up but can’t have done the grease any good. So I drilled a small hole and put a zerk fitting in. Pumped it full of grease until clean grease came out. Works slick, also.
        It and my car will never be concours perfect, but I’ll know how it all works.

        • Like Like x 3
