    Hey everyone. Just found out today that the passenger side of my tail light does not come on when braking (3 bulbs with the brown and black wires). The turn signal function works, bulbs are good and body harness is new. The driver side bulbs with the green and black wires operate as they should. Just started recently as I know they have worked fine until now. Any clues as where to look first? Don’t have access to my wire diagrams at the moment so to save time I thought I’d check with the community.

    Thanks for any help!

  2. TN Mopar

    TN Mopar Well-Known Member

    Messages:
    357
    Likes Received:
    295
    Joined:
    Dec 8, 2015
    Location:
    Cleveland TN
    Local Time:
    1:43 PM
    This is a typical issue when the Turn signal switch goes bad
    the TS switch is the only place that the brake lights are shut off when the turn signal is engaged
    Replace or repair the TS switch and your problems should be fixed

    • Agree Agree x 2
    • bcOH67

      bcOH67 Active Member

      Messages:
      40
      Likes Received:
      12
      Joined:
      Jul 25, 2019
      Location:
      OH
      Local Time:
      1:43 PM
      Thanks for your help!

      I just put in a new switch a couple months ago and everything was working fine since I replaced it- so would I be looking for a broken wire or something? I checked the connector and it is good. Or is there another less likely issues to look for before I go into the column again?

    • TN Mopar

      TN Mopar Well-Known Member

      Messages:
      357
      Likes Received:
      295
      Joined:
      Dec 8, 2015
      Location:
      Cleveland TN
      Local Time:
      1:43 PM
      Yes broken or pinched wire
      it could be that a pin came loose in the connector
      However I never got that lucky
      I got sick of replacing cheap turn signal switches and ponied up for NOS
      There is a guy on this site that come highly recommended but I have not personally used him
      you might message him @Slantsixdan

      • Agree Agree x 1
      • Billccm

        Billccm FBBO Gold Member FBBO Gold Member

        Messages:
        2,698
        Likes Received:
        2319
        Joined:
        Aug 3, 2016
        Location:
        Tucson
        Local Time:
        10:43 AM
        Agree about the poor quality turn signal switch and probable cause of your issues. I also second the @Slantsixdan turn signal switches.

        • Agree Agree x 2
        • QOTHL

          QOTHL FBBO Gold Member FBBO Gold Member

          Messages:
          3,323
          Likes Received:
          3962
          Joined:
          Sep 13, 2017
          Location:
          Kentucky
          Local Time:
          1:43 PM
          Only when braking? I had this problem and performed a process of elimination. Turn signal, hazard lights, park lights. All three bulbs on that side were burnt on one of the two filaments. I wanted to eliminate the simplest problem, bulbs, before I went crazy looking for electrical issues somewhere else. I had the same problem with brand new in hood turn signals. Thought it couldn't possibly be the bulbs, they were new. Power was getting to the socket, brand new bad bulbs. Just my opinion.

        • bcOH67

          bcOH67 Active Member

          Messages:
          40
          Likes Received:
          12
          Joined:
          Jul 25, 2019
          Location:
          OH
          Local Time:
          1:43 PM
          Yeah just when braking. Turn signals and flashers work. I pulled one of the bulbs and tested it and both filaments lit up. I checked but I’m not able to send slantsixdan a message because his inbox is full. I’d have to get on from somewhere else. I bought the one I just put in from classic industries.

          Any way I could disconnect the connector for the switch and put power to the harness side connector to test and make sure it is the switch? Bypass the turn signal switch just to see if the lights come on when I brake

        • QOTHL

          QOTHL FBBO Gold Member FBBO Gold Member

          Messages:
          3,323
          Likes Received:
          3962
          Joined:
          Sep 13, 2017
          Location:
          Kentucky
          Local Time:
          1:43 PM

          His mailbox is full. Tell him to empty it out.

        • TN Mopar

          TN Mopar Well-Known Member

          Messages:
          357
          Likes Received:
          295
          Joined:
          Dec 8, 2015
          Location:
          Cleveland TN
          Local Time:
          1:43 PM
          You could test the switch at the connector with a digital volt ohm meter
          the brake light switch should provide 12 volts to the TS switch connector on the column
          This should come out in two places one each for the left and right side lights
          If it only comes out on one side the short is in the column

        • Billccm

          Billccm FBBO Gold Member FBBO Gold Member

          Messages:
          2,698
          Likes Received:
          2319
          Joined:
          Aug 3, 2016
          Location:
          Tucson
          Local Time:
          10:43 AM
          Try Daniel Stern Lighting on the web.

          • Agree Agree x 1
          • 64BEL

            64BEL Well-Known Member

            Messages:
            4,297
            Likes Received:
            5126
            Joined:
            Feb 25, 2010
            Location:
            Wisconsin
            Local Time:
            12:43 PM
            Yes, @Slantsixdan makes quality stuff.

          • onlyone

            onlyone Bird of Pray FBBO Gold Member

            Messages:
            2,532
            Likes Received:
            1973
            Joined:
            Jun 24, 2013
            Location:
            State of Denial
            Local Time:
            12:43 PM

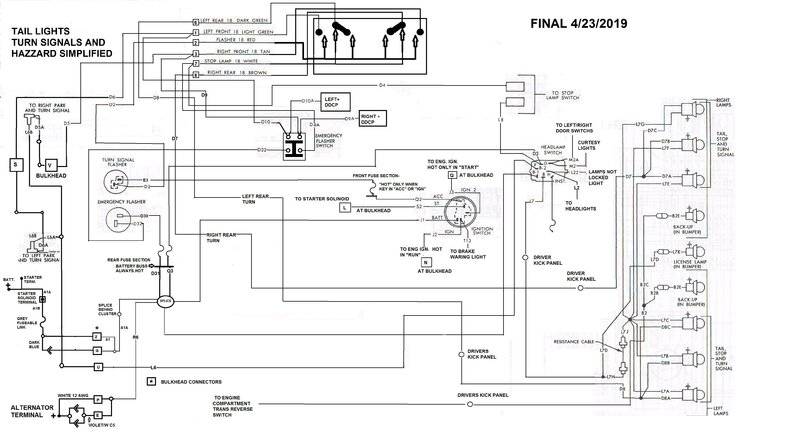

            Here's my "simplified" drawing.
            Since the site reduces the quality, I'm afraid they won't be too much help.
            Here anyway.
            I drew it from the 67 Charger factory and from the better factory 73 A body prints because these things can get confusing.
            The "DDCP" would translate to your cluster indication bulbs.
            And don't rely on my redrawn connection points to the engine and forward bulbs. Those are modifications.
            But the turn signal switch function works the same on all cars.
            As you can see IF the turn signal/brake filaments work on the braking function the bulb and wires are "good" for the turn signal function.
            It's the same circuit for the same filaments.
            So you have to look somewhere other than the wiring after you get past the switch to bulbs.

            Simplified turn hazzard tail lights FINAL.jpg

            • Thanks! Thanks! x 1
            • onlyone

              onlyone Bird of Pray FBBO Gold Member

              Messages:
              2,532
              Likes Received:
              1973
              Joined:
              Jun 24, 2013
              Location:
              State of Denial
              Local Time:
              12:43 PM
              NOTE!
              The only turn signal switches I have been able to find for A bodies have a solid "finger" spring pick up for the horn ring instead of the correct "wheel" spring loaded pick up.
              I can hear it rubbing as I turn the steering wheel.
              But I WAS able to find a 67 B body switch assembly with the OE style "wheel" pickup easily online.
              Before covid anyway.
