Brake wiring with Ron francis kit

[Josephevers86]

Trying to finish wiring my 69 charger. I'm stuck on the rear lights. Specifically the brake lights. I have a big 18 x 24 scematic from classic car wiring. I'm using a ron francis xp777 kit. On the schematic it shows the brake wire coming from the brake light switch to the reverse lights. Is that correct?



[pnora]

No. Power through the brake light switch is sent to the turn signal switch. The turn signal switch then sends it to the rear bulbs right and left side respectively.



[Josephevers86]

Thank you that helps out



[Xp29h]

Trying to finish wiring my 69 charger. I'm stuck on the rear lights. Specifically the brake lights. I have a big 18 x 24 scematic from classic car wiring. I'm using a ron francis xp777 kit. On the schematic it shows the brake wire coming from the brake light switch to the reverse lights. Is that correct?

When I rewired mine, RF kits stated use the new schematic they provided. I found the old original schematic was very helpful too! Good to compare the differences so you can adjust accordingly!



[Josephevers86]

When I rewired mine, RF kits stated use the new schematic they provided. I found the old original schematic was very helpful too! Good to compare the differences so you can adjust accordingly!

do you have a picture of the new sche.atic. I bout this kit a couple years ago so I'm not sure what version I'm using.



[Xp29h]

do you have a picture of the new sche.atic. I bout this kit a couple years ago so I'm not sure what version I'm using.

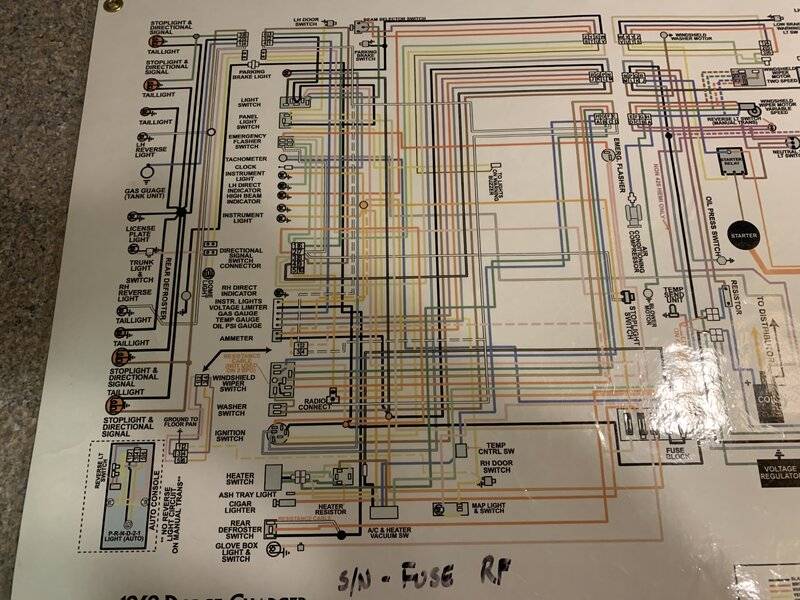

It’s a blown up color version. I got from classic car wiring. Here’s the link..

https://classiccarwiring.com/produc...or-wiring-diagram-includes-r-t-se-500-daytona

I’ll see if I can get a pic or 2 that can help you out.. they’re not great and really would take a good whole pic.. hope these can help..
