budget 5.7 hemi tr6060 six speed trans swap

New Hemi Engine Swap

  1. smb03

    smb03 Well-Known Member

    Messages:
    202
    Likes Received:
    247
    Joined:
    Sep 20, 2012
    Location:
    las vegas
    Local Time:
    5:55 AM

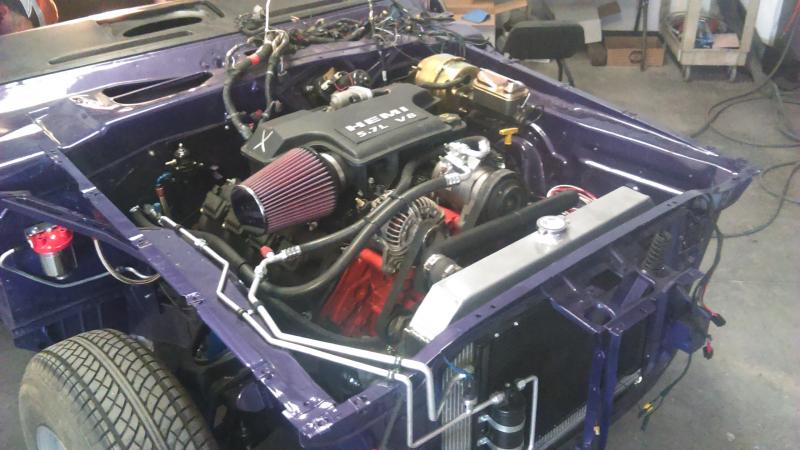

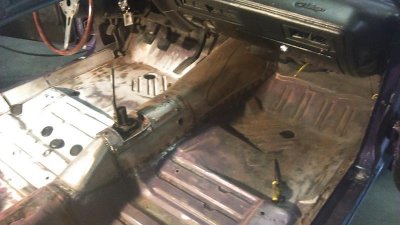

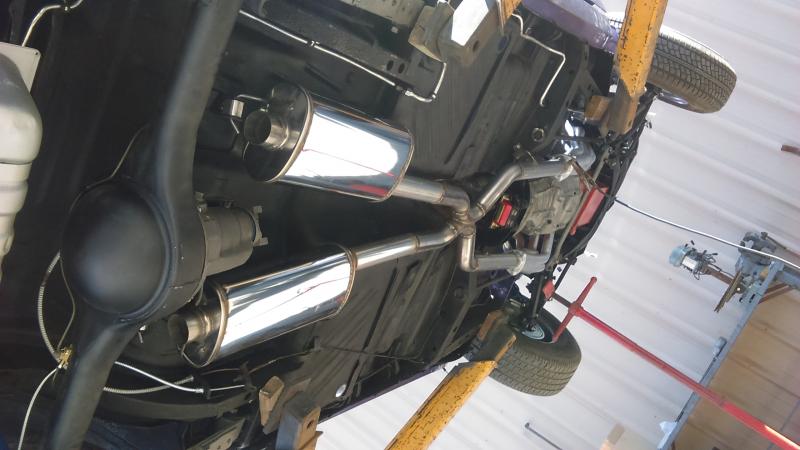

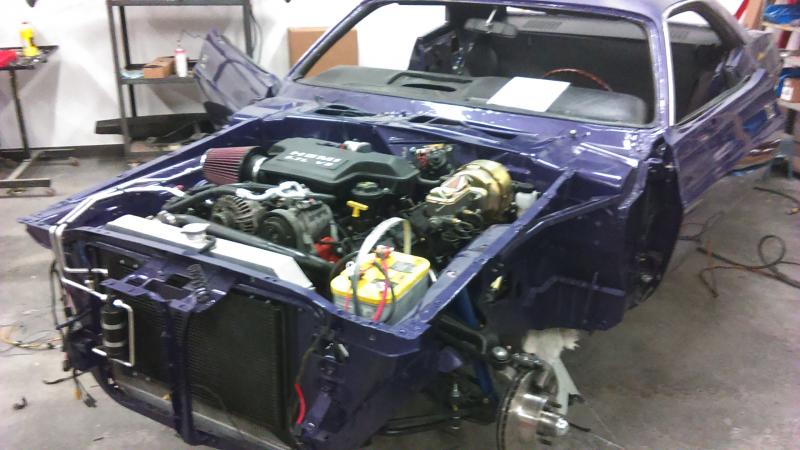

    built for just a good cruiser with a cammed 5.7 hemi, tr6060 six speed trans, 3.91 suregrip, 4 wheel discs and vintage air. 5.7 hemi swap is common but the tr6060 is not. no one made headers so had to cut all the tubes off the doug 5.7 conversion header and re-route them to make work with the six speed due to the starter is on passenger side with this trans, was not aware the starter location changed. also had to make a tall tunnel that has a removable lid for shifter linkage, fab up trans mount and get a 1 piece drive shaft made to convert the trans from a 2 piece.

    hemi.jpg exhaust.jpg tunnel.jpg

  2. JHCain

    JHCain Active Member

    My Photo Garage
    Messages:
    37
    Likes Received:
    20
    Joined:
    Oct 30, 2012
    Location:
    Atlanta, GA
    Local Time:
    6:55 AM
    Wow. Impressive work, there. The engine really looks like it belongs - and that trans tunnel came out nice, especially for a part that's going to be completely covered up!

  3. 5wndwcpe

    5wndwcpe Huge Member FBBO Gold Member

    My Photo Garage
    Messages:
    4,063
    Likes Received:
    1516
    Joined:
    Jul 17, 2008
    Location:
    Southeastern, PA
    Local Time:
    6:55 AM
    Nice. Have any more pics ?

  4. Riverdawg

    Riverdawg FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    2,826
    Likes Received:
    2185
    Joined:
    Mar 29, 2013
    Location:
    Lansing Michigan
    Local Time:
    6:55 AM
    Wow, very impressive work. Need to hit the lottery so I can do this to my Coronet.

  5. nstyle73

    nstyle73 Well-Known Member

    My Photo Garage
    Messages:
    361
    Likes Received:
    83
    Joined:
    Jan 17, 2012
    Location:
    Illinois
    Local Time:
    5:55 AM
    Very impressive, as that is my dream swap, especially with challengers starting to trickle into the salvage yards. Two things, that kind of looks like an E body to me and my untrained eye, and was there significant crossmember fabrication?

  6. smb03

    smb03 Well-Known Member

    Messages:
    202
    Likes Received:
    247
    Joined:
    Sep 20, 2012
    Location:
    las vegas
    Local Time:
    5:55 AM
    yes there was alot of trans crossmember fab, had to widen the tunnel where the tail housing is alot...also make a new hoop over the trans for strength. fab up a trans support bracket, get a 1 piece driveshaft conversion done on tr6060 ($800). tr6060 doesnt have a bleeder for the clutch, had to make a clutch line that tee'd off with a riser to push out air wich worked awesome, did "not" even need to pump the pedal 1 time to bleed the clutch. im now having to make a wheel speed sensor that clamps onto the axle flange behind the disc rotor because a tr6060 has no speed sensor, will have to convert the car to wheel speed sensor and a cable x box to drive the mechanical speedo

    - - - Updated - - -

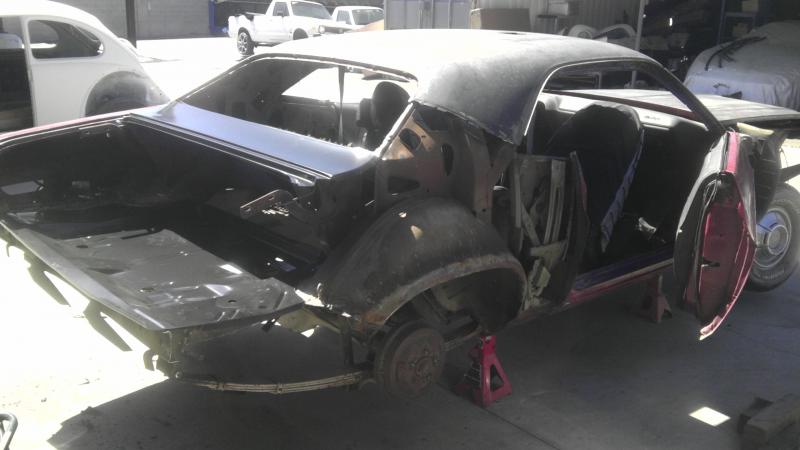

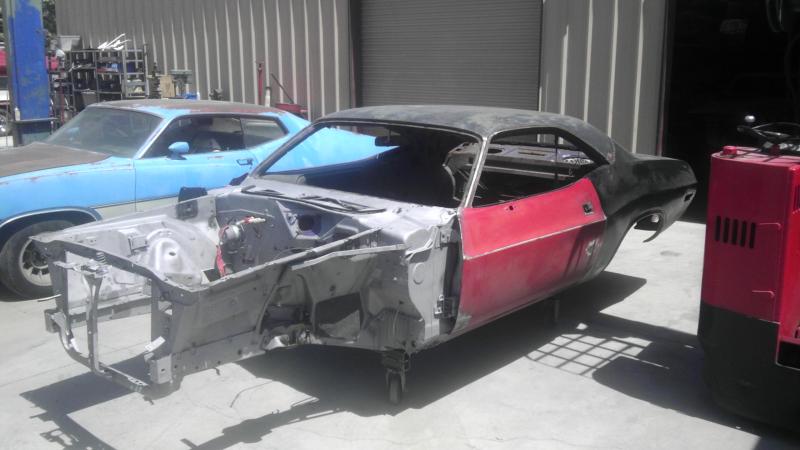

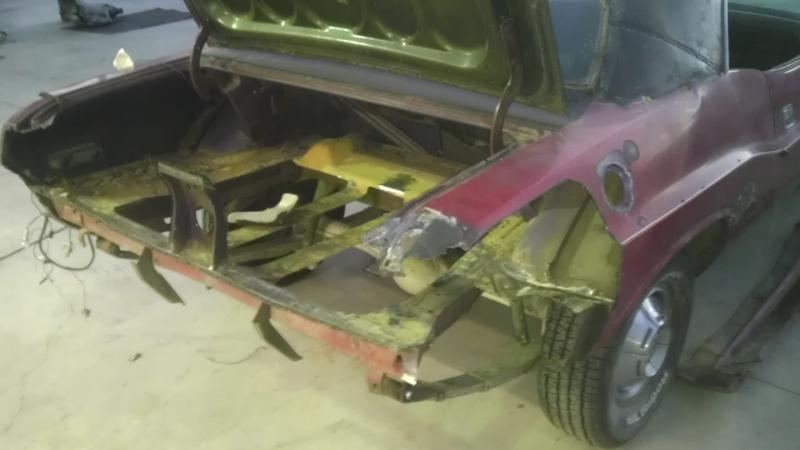

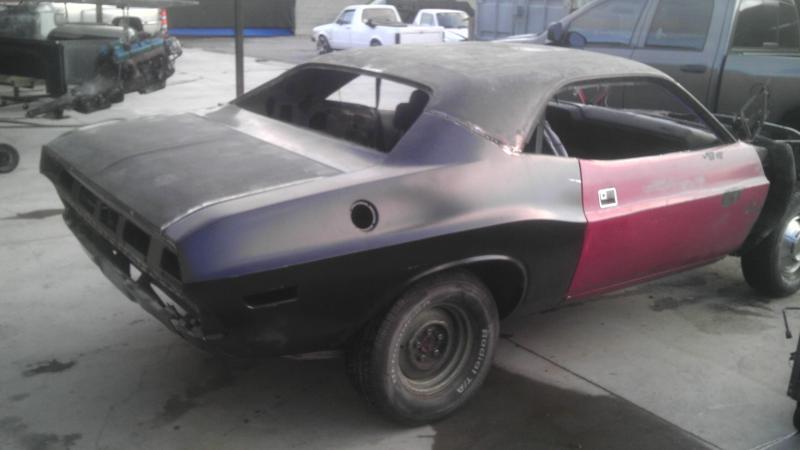

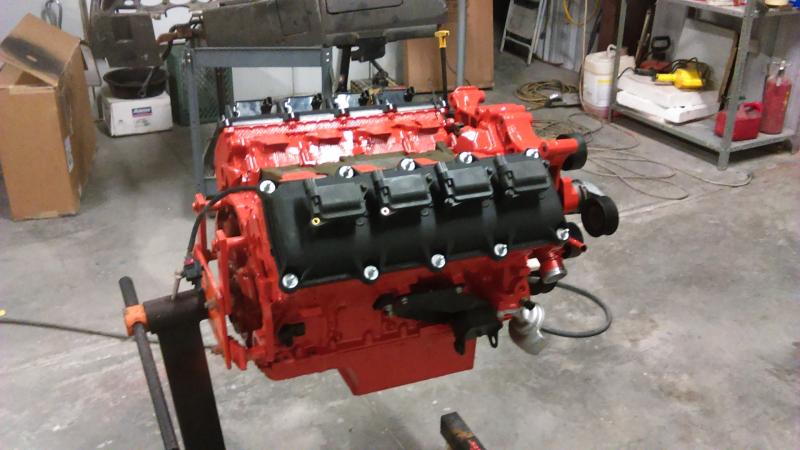

    here are a few older pics, i need to be better at taking pictures during a build. we are building this challenger for a customer. 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg

    • Like Like x 1
    • smb03

      smb03 Well-Known Member

      Messages:
      202
      Likes Received:
      247
      Joined:
      Sep 20, 2012
      Location:
      las vegas
      Local Time:
      5:55 AM

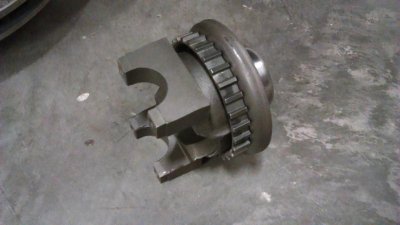

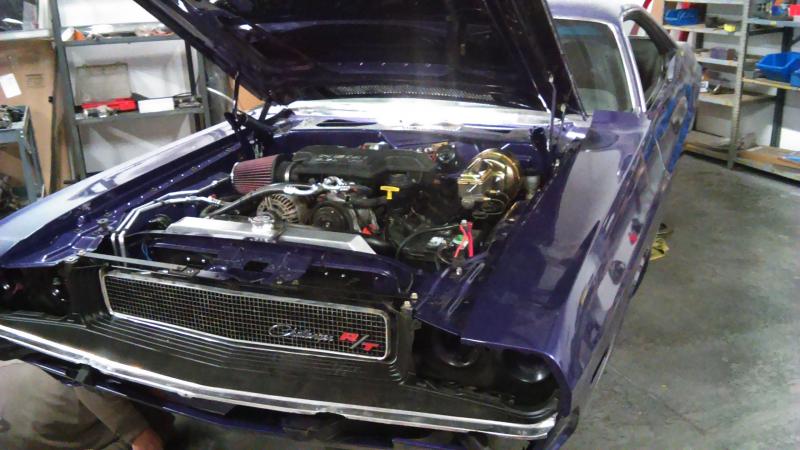

      figured out a fix for the tr6060 not having a vss, went to the wrecking yard and found a reluctor wheel that will fit over the rear yoke. now ill have a speed signal to run the x-box electric to mechanical cable conversion for the speedometer
      yoke reluctor.jpg front on.jpg

    • kb67mopar

      kb67mopar Well-Known Member

      Messages:
      2,937
      Likes Received:
      886
      Joined:
      Sep 28, 2011
      Location:
      Luxemburg, Wi
      Local Time:
      5:55 AM
      What was the reluctor off of? I've been thinking about that for a while.

    • smb03

      smb03 Well-Known Member

      Messages:
      202
      Likes Received:
      247
      Joined:
      Sep 20, 2012
      Location:
      las vegas
      Local Time:
      5:55 AM
      i used a reluctor and sensor off a mid 90's bmw, but anything will work aslong as it fits over the yoke, just fix it to the dust shield and make a bracket off the pinion snubber

    • kb67mopar

      kb67mopar Well-Known Member

      Messages:
      2,937
      Likes Received:
      886
      Joined:
      Sep 28, 2011
      Location:
      Luxemburg, Wi
      Local Time:
      5:55 AM
      Yep pretty much what i had been thinking about. I went with a GPS speedo anyway but I had been thinking about doing one of these just to see if I could get my cruise control working.

    • smb03

      smb03 Well-Known Member

      Messages:
      202
      Likes Received:
      247
      Joined:
      Sep 20, 2012
      Location:
      las vegas
      Local Time:
      5:55 AM
      tested the cable x box today with the reluctor wheel. its works...only problem is the cable x box's electric motor that drives the mechanic speedo doesnt have that much torque at low speeds under 20mph, it works but just not steady. if i spin the cable with a drill the speedo is steady even at 3mph but the electric motor doesnt have the low rpm torque to give a steady spin and the cable has to have as little bend in it as possible to even get it to work correctly at low speeds.

    • JHCain

      JHCain Active Member

      My Photo Garage
      Messages:
      37
      Likes Received:
      20
      Joined:
      Oct 30, 2012
      Location:
      Atlanta, GA
      Local Time:
      6:55 AM
      Could you move the cable x box up under the dash, to minimize the length of speedo cable that has to be driven? Or even mount it directly to the speedo? I've never used one of those boxes, so I have no idea how large it even is...

    • smb03

      smb03 Well-Known Member

      Messages:
      202
      Likes Received:
      247
      Joined:
      Sep 20, 2012
      Location:
      las vegas
      Local Time:
      5:55 AM
      no, its about a 3"x5" box. you could probly order a shorter cable. if you used a 2 or 3" cable it might work under the dash but i only have 1 smooth 90 degree bend in mine. it works at 10mph steady now.

    • nstyle73

      nstyle73 Well-Known Member

      My Photo Garage
      Messages:
      361
      Likes Received:
      83
      Joined:
      Jan 17, 2012
      Location:
      Illinois
      Local Time:
      5:55 AM
      Did you use the new Challenger clutch master cylinder and pedals or did you go with an aftermarket setup? I thought that you may have used the factory one since you mentioned the bleeder T.

    • smb03

      smb03 Well-Known Member

      Messages:
      202
      Likes Received:
      247
      Joined:
      Sep 20, 2012
      Location:
      las vegas
      Local Time:
      5:55 AM
      no, i just used a tilton aftermarket clutch master
