Catastrophic clutch disc failure

Engine, Trans & Driveline

  1. Mike Szadaj

    Mike Szadaj Well-Known Member

    Messages:
    391
    Likes Received:
    537
    Joined:
    Jan 17, 2019
    Location:
    St. Clair Shores, Mi
    Local Time:
    5:49 PM

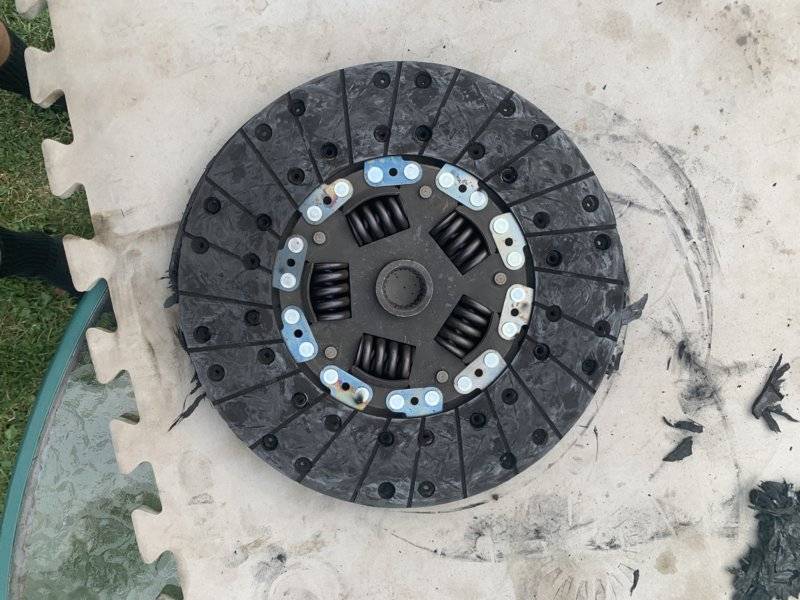

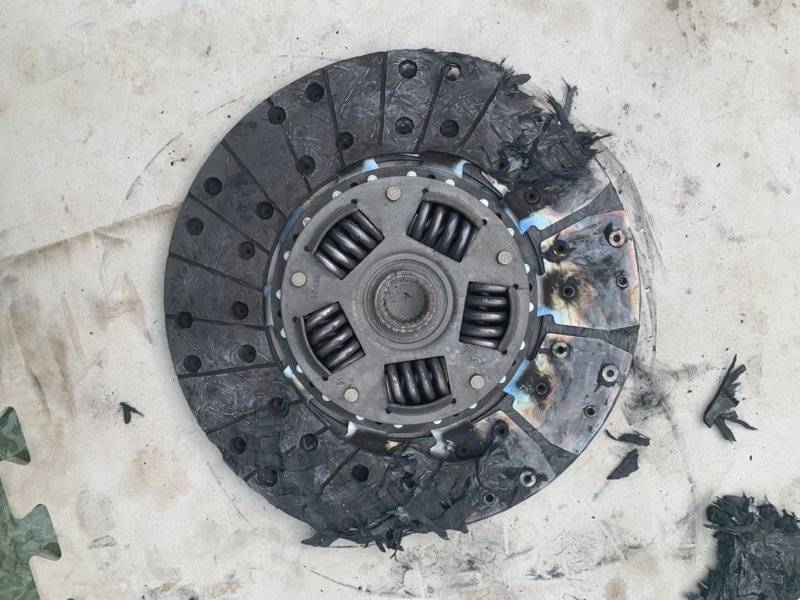

    Any one ever seen a clutch disc come apart like this? The tore up side was against the pressure plate. clutch pad 1.JPG clutch pad 2.JPG

    Last edited: Aug 20, 2019
  2. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    12,092
    Likes Received:
    8632
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    5:49 PM
    Damn! Miss a shift?

  3. tnfastback

    tnfastback FBBO Gold Member FBBO Gold Member

    Messages:
    807
    Likes Received:
    1335
    Joined:
    Jul 4, 2016
    Location:
    East Tennessee
    Local Time:
    6:49 PM
    Drive it like you stole it :)

    • Like Like x 2
    • Gus

      Gus Active Member

      Messages:
      34
      Likes Received:
      9
      Joined:
      Jul 23, 2014
      Location:
      Alabama
      Local Time:
      5:49 PM
      looks like driver error but i wasn't there .

    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,364
      Likes Received:
      2145
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      3:49 PM
      Yes... Where did the clutch come from? Doubt they'll warranty it but they should.... Making it hard to get out on Woodward.... Good Luck getting it back together...

    • dukeboy_318

      dukeboy_318 Well-Known Member

      Messages:
      514
      Likes Received:
      290
      Joined:
      Nov 4, 2016
      Location:
      usa
      Local Time:
      6:49 PM
      yep. Not on a mopar muscle car though. I had my 99 cummins do that too a Twin Disc South Bend Clutch rated for 550 hp and 1200 ft ft lbs. I thought I was under that limited, come to find out, on the dyno I was making 1325 ft lbs and 467 hp at the rear wheels under full boost, figure in a 15% driveline loss and well, I was over that limit. It literally shredded my clutch discs.

    • BeepBeepRR

      BeepBeepRR Well-Known Member

      Messages:
      3,870
      Likes Received:
      4081
      Joined:
      Oct 16, 2016
      Location:
      Atlanta,Ga
      Local Time:
      6:49 PM
      I had one do something like this. I installed one in my old street ported 12a Rx7 I stabbed the gas and hit second I heard what sounded like gravel and then it stopped pulling.. Just made a loud racket. I took it apart found my disc blew apart and I put all the chunks in a bag and took it to autozone. They told me I installed it backwards.. I showed them it says engine side on the damn disc, reluctantly they refunded my money.

    • moparedtn

      moparedtn Ed on the Ridge FBBO Gold Member

      Messages:
      5,768
      Likes Received:
      8271
      Joined:
      May 14, 2011
      Location:
      On the Ridge, TN
      Local Time:
      6:49 PM
      Is all that bluing from heat or did it come that way? What brand is that?
      Diaphragm or B&B?

    • Mike Szadaj

      Mike Szadaj Well-Known Member

      Messages:
      391
      Likes Received:
      537
      Joined:
      Jan 17, 2019
      Location:
      St. Clair Shores, Mi
      Local Time:
      5:49 PM
      From heat I think. Luk. Diaphram.

    • AR67GTX

      AR67GTX Well-Known Member

      Messages:
      1,222
      Likes Received:
      592
      Joined:
      Jan 28, 2012
      Location:
      Arkansas
      Local Time:
      5:49 PM
      What does the clutch surface look like? Did it chatter?

    • Ironbuilt

      Ironbuilt FBBO Gold Member FBBO Gold Member

      Messages:
      10,955
      Likes Received:
      20740
      Joined:
      Jul 1, 2017
      Location:
      North Carolina
      Local Time:
      6:49 PM
      We would see that in Mack trucks quite often in the 80's and 90's. Mostly roll-offs and dump trucks. Overload the piss out of them, then give them to drivers that can't drive. Mostly driver error and abuse.

    • steve340

      steve340 Well-Known Member

      Messages:
      427
      Likes Received:
      337
      Joined:
      Jul 7, 2018
      Location:
      New Zealand
      Local Time:
      12:49 PM
      I have had a clutch plate blow the lining off one side like that. I revved the engine quite high and shifted and let the clutch go. It shuddered and I lost most of the clutch pedal pretty much instantly. The clutch had given no sign anything was wrong prior to coming apart.
      Shit happens man.
      Surface the flywheel and fit a new clutch kit and you should be OK.

    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,364
      Likes Received:
      2145
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      3:49 PM
      Put a McLeod in it...

    • Ironbuilt

      Ironbuilt FBBO Gold Member FBBO Gold Member

      Messages:
      10,955
      Likes Received:
      20740
      Joined:
      Jul 1, 2017
      Location:
      North Carolina
      Local Time:
      6:49 PM
      Doesn't do any good if the driver can't DRIVE!!!!

      • Like Like x 1
      • 1 Wild R/T

        1 Wild R/T Well-Known Member

        Messages:
        1,364
        Likes Received:
        2145
        Joined:
        Jul 9, 2019
        Location:
        California
        Local Time:
        3:49 PM
        Pretty harsh when we don't know what caused the failure... Yes what he did likely contributed to the failure but since at this point we don't know what he did unless I missed it somewhere...

        I've dumped the clutch, side stepped the clutch.. Acted like a complete idiot... Never had a clutch come apart like that....

        I took a S10 pickup apart that had a clutch like that, it was a part failure, the lining looked good, kinda like the lining here... But a few rivets let go... The clutch was less than a month old... Kinda like this clutch....

        So maybe it's just a part failure.... LUK makes lots of clutches but how many do they make for big block Mopar's? McLeod has specialized in Muscle car clutches for at least fifty years.... I say put a known quality part in there & see what happens...

      • MoparMur

        MoparMur Well-Known Member

        Messages:
        54
        Likes Received:
        72
        Joined:
        Apr 21, 2018
        Location:
        Lethbridge, Alberta, Canada
        Local Time:
        4:49 PM
        Back in the mid-70's I had a 4-gear '71 340 Duster. I was about 17 and needless to say was pretty hard on the car. Had milled heads, a dual-point distributor, and fenderwell headers. Actually was a pretty hot little car back in the day. Of course leaning hard on the car was tough on the clutch. I was a lot lizard at the Chrysler dealer in town, so it wasn't a problem to get parts. Except -- being young I was always broke. Spent all my money on gas and burgers. So first clutch decides it's had enough, beginning to slip. No problem, I'll just purchase one of these inexpensive rebuilt clutch kits for $40 through the parts dept. Then another, and another, etc. etc. Last one that failed lost every bit of the facing on the disc, both sides. So my solution? Pull the 4-gear out and throw in an auto wreckers automatic. And so was the demise of another muscle car by another dumb kid...

      • AR67GTX

        AR67GTX Well-Known Member

        Messages:
        1,222
        Likes Received:
        592
        Joined:
        Jan 28, 2012
        Location:
        Arkansas
        Local Time:
        5:49 PM
        I also think criticizing the owner is off base. We don't know the circumstances. Sometimes the line between performance driving and abuse is very fine. Lux clutches are pretty highly recommended as an OE type replacement for C2/C3 Corvettes (I own a 66) but they are pretty much a standard duty clutch and may not be up to the HP of his engine or some aggressive driving. We don't even know what he has for an engine in his car.

        • Agree Agree x 1
        • Dipstick

          Dipstick Well-Known Member

          Messages:
          559
          Likes Received:
          518
          Joined:
          Oct 26, 2018
          Location:
          Out West
          Local Time:
          3:49 PM
          Avalanche failure, a small chunk failed and took out the rest. Not necessarily driver's fault.

        • dvw

          dvw Well-Known Member

          Messages:
          4,541
          Likes Received:
          6258
          Joined:
          Feb 16, 2010
          Location:
          waterford mi
          Local Time:
          6:49 PM
          The engine made more power than the clutch could transfer. My bet is it is a rebuilder style clutch. I'm assuming it's a hot rodded street car. Put a Centerforce dual friction in it and don't look back. Reasonably priced and stout enough to contain close to 450lb/ft.
          Doug

        • yella71

          yella71 Well-Known Member

          Messages:
          399
          Likes Received:
          594
          Joined:
          Dec 18, 2018
          Location:
          nj
          Local Time:
          6:49 PM
          I think the question was has anyone ever seen a clutch do that> yes I have seen hundreds of bad/broken clutches. lots do that.
