Combination Warning Light and Oil Gauge sender?

Electrical & Ignition

  1. Dan Powers

    Dan Powers Member

    Messages:
    6
    Likes Received:
    0
    Joined:
    Dec 2, 2017
    Location:
    Austin TX
    Local Time:
    9:15 PM
    I want to use a mechanical oil gauge simultaneously with the built in dash warning light.

    The internet has nothing on a sender split configuration or "T".

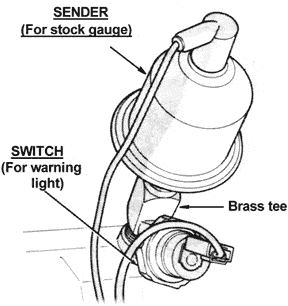

    However this image shows it was stock for the Rallye dash.
    I have the gray wire for the sender to warning light, but want to make a T out of fittings so that I can send oil to my gauge and also have a sending switch to trigger the in dash warning llight. Any reason this wont work? Why is it so rare?


  2. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    1,246
    Likes Received:
    1967
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    10:15 PM
    .. or you can just use the other NPT port beside the current one in use.

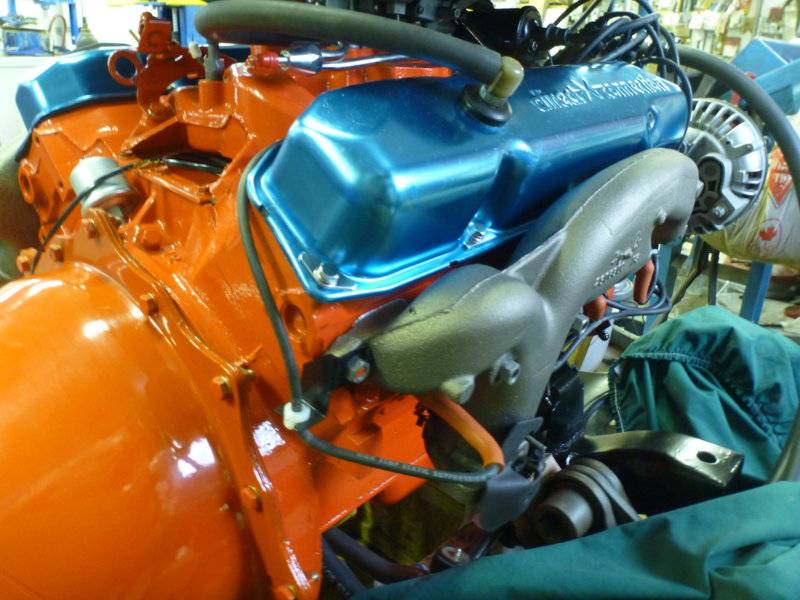

    beerestoration2017 755.JPG

    • Agree Agree x 3
    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      My Photo Garage
      Messages:
      15,098
      Likes Received:
      19554
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      10:15 PM
      Nothing wrong with doing this. Just try to keep fittings short so there's no vibration taking place that could break a fitting.

      Big blocks have two ports at the rear of the block and each can be used.

      • Agree Agree x 4
      • moparedtn

        moparedtn FBBO Gold Member FBBO Gold Member

        My Photo Garage
        Messages:
        3,747
        Likes Received:
        4261
        Joined:
        May 14, 2011
        Location:
        Northeast TN Foothills
        Local Time:
        10:15 PM

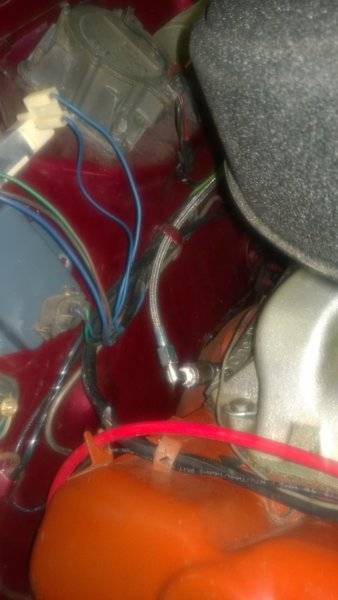

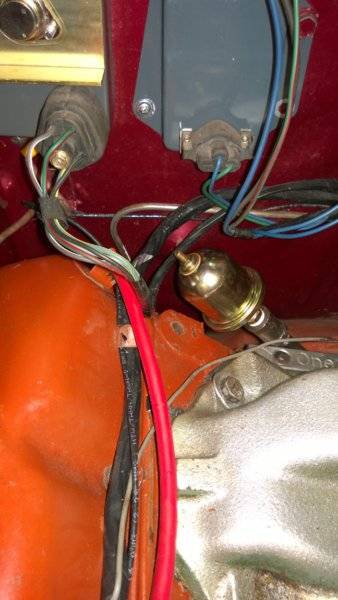

        Yep, what they said. I've run both electric and mechanical gauges out of the 1/4" NPT outlet in the rear of my 440
        (the opposite outlet has the factory idiot gauge sender in it).
        I ran a pipe nipple out of it to get clearance for the sender; a shorter one was all that was needed for the mechanical
        line later.

      • Ranger16

        Ranger16 Well-Known Member

        Messages:
        2,797
        Likes Received:
        3184
        Joined:
        Jun 27, 2016
        Location:
        Woodstock Ill.
        Local Time:
        9:15 PM
        No reason at all. That's how I did mine because I didn't realize that there was another port available, but
        either way will work. Damn I need to clean that up. hide.gif

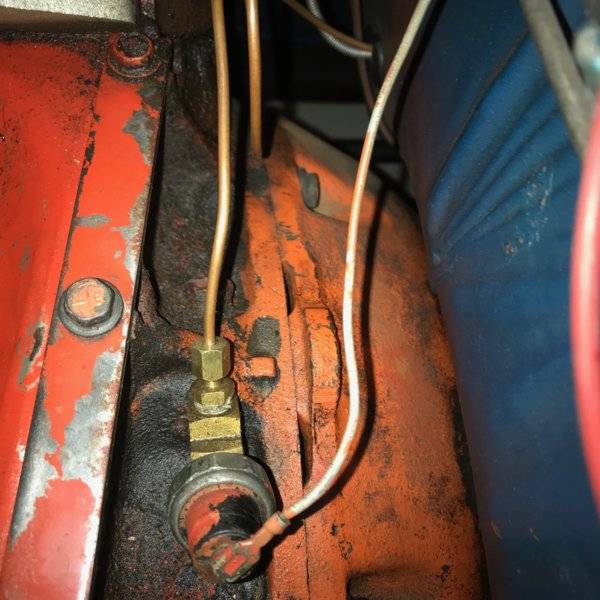

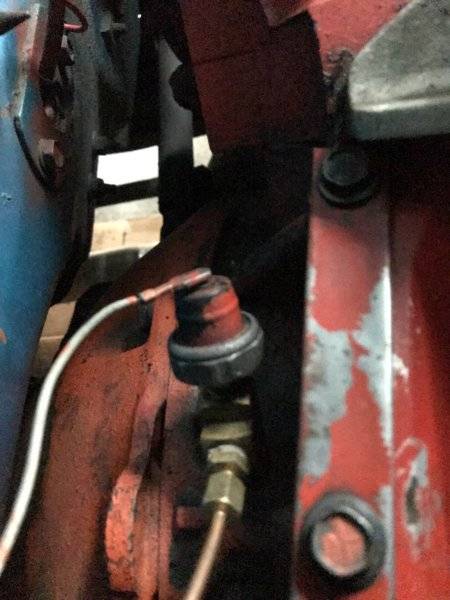

        Oil Pressure Sender 2 .jpg Oil Pressure Sender.JPG

      • PurpleBeeper

        PurpleBeeper Well-Known Member

        Messages:
        3,856
        Likes Received:
        2675
        Joined:
        Mar 20, 2011
        Location:
        Chicago
        Local Time:
        9:15 PM
        Mine is set up like Ranger's, but my factory sending unit is quite a bit larger (maybe due to rally dash?). I found an aftermarket gauge extension with a hole on the side where I connected my mechanical gauge.

      • mopar 3 B

        mopar 3 B Well-Known Member

        Messages:
        7,312
        Likes Received:
        4849
        Joined:
        Aug 25, 2014
        Location:
        Kingsville, MO
        Local Time:
        9:15 PM
        Small block only has one hole. I use the tee to run factory gauge and after market.

        • Agree Agree x 1
        • YY1

          YY1 Well-Known Member

          My Photo Garage
          Messages:
          11,799
          Likes Received:
          4494
          Joined:
          Jun 26, 2010
          Location:
          FL
          Local Time:
          10:15 PM
          5.2 and 5.9 engines have this part from the factory.

          $2 at U-pull.

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          1,427
          Likes Received:
          970
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          8:15 PM
          There is some switches that can shutdown the engine for to low of oil pressure, coolant etc. They are 12volt and will protect the engine before real bad things happen. They are used in diesel engines all the time. But I really like the double duty. Let's face it all we need is to loose a coolant hose etc then have to rebuild a engine. Just a thought

        • mopar 3 B

          mopar 3 B Well-Known Member

          Messages:
          7,312
          Likes Received:
          4849
          Joined:
          Aug 25, 2014
          Location:
          Kingsville, MO
          Local Time:
          9:15 PM
          What you can not see the steam and temp gauge rising?

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          1,427
          Likes Received:
          970
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          8:15 PM
          You can put a sensor for coolant in the rad overflow tank or the radiator tank. If it gets below the sensor will turn on dash light or you can wire it up for engine shut down. Do the same for over temp also.

        • mopar 3 B

          mopar 3 B Well-Known Member

          Messages:
          7,312
          Likes Received:
          4849
          Joined:
          Aug 25, 2014
          Location:
          Kingsville, MO
          Local Time:
          9:15 PM
          Just something else to go wrong and cause problems.

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          1,427
          Likes Received:
          970
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          8:15 PM
          Yep they could but also helpful to some people.

        • Dan Powers

          Dan Powers Member

          Messages:
          6
          Likes Received:
          0
          Joined:
          Dec 2, 2017
          Location:
          Austin TX
          Local Time:
          9:15 PM
          Thanks for all the feedback. It is surprisingly hard to find the AN size fittings. The guy at ORiley auto parts looked at me like I was crazy. "You have a dual female, single male -4 AM block fitting? No, seriously AN is a type of fuel grade fitting with the name devised by the military about 60 years ago. The A stands for Army, and the N for Navy. No?" Beuhler?

        • khryslerkid

          khryslerkid FBBO Gold Member FBBO Gold Member

          My Photo Garage
          Messages:
          15,098
          Likes Received:
          19554
          Joined:
          Mar 10, 2010
          Location:
          Hanover, Pennslyvania
          Local Time:
          10:15 PM
          Try Summit for your fittings.
