Compression test fustration

General Mopar Tech Discussions

  1. Davidrad

    Davidrad Active Member

    Messages:
    43
    Likes Received:
    5
    Joined:
    Jul 17, 2017
    Location:
    Vancouver, wa
    Local Time:
    8:42 PM
    I have a 67 belvedere with a 383 and the HP exhaust manifolds. How the frick do I manage to get a compression tester into the spark plug holes. Do you have a recommendation on testers that allow for almost 0 clearance and can be done blind since the manifold is in the way. My testers all have about 8 inches of hose connected. Basically I need a fitting that threads in to the spark if holes and then I can connect a qd to.

  2. Kern Dog

    Kern Dog FBBO Gold Member FBBO Gold Member

    Messages:
    21,220
    Likes Received:
    56117
    Joined:
    Apr 13, 2012
    Location:
    Granite Bay CA
    Local Time:
    8:42 PM
    Every tester that I have seen uses a black hose with a brass or steel threaded fitting at one end and a quick disconnect for the gauge at the other end.

  3. BB BELLA

    BB BELLA Well-Known Member

    Messages:
    481
    Likes Received:
    491
    Joined:
    Jul 27, 2018
    Location:
    Severn Bridge
    Local Time:
    11:42 PM
    as kern dog stated the black hose with fitting on the end is smaller and more pliable than anything else your going to come up with! It's definately a 2 handed job, maybe use the phone a friend option if your not ambidextrous! consider yourself lucky your not trying to do it on a side by side marine engine setup,standing on your head!

  4. 69L48Z27

    69L48Z27 Well-Known Member

    Messages:
    3,341
    Likes Received:
    3492
    Joined:
    Nov 19, 2015
    Location:
    York, Pa
    Local Time:
    11:42 PM
    I’ve found working from under the car helps being able to see the plug holes. The right bank is challenging, also try standing in front of the car and reaching back under the manifolds, I can get to the first three plugs that way.

    • Agree Agree x 1
    • Bee1971

      Bee1971 Well-Known Member

      Messages:
      1,039
      Likes Received:
      1005
      Joined:
      Jun 22, 2017
      Location:
      Sobieski
      Local Time:
      10:42 PM
      Top or Bottom

      Bottom is best by far

      • Agree Agree x 1
      • Davidrad

        Davidrad Active Member

        Messages:
        43
        Likes Received:
        5
        Joined:
        Jul 17, 2017
        Location:
        Vancouver, wa
        Local Time:
        8:42 PM
        I had exhaust leaks anyway so I just took the HP manifolds off. Life got much easier then. But the test didn't give me good news.


      • Fran Blacker

        Fran Blacker FBBO Gold Member FBBO Gold Member

        Messages:
        9,735
        Likes Received:
        9327
        Joined:
        Sep 23, 2016
        Location:
        Connecticut
        Local Time:
        11:42 PM
        Think KD meant a tester that screws into spark plug hole.

      • Don Frelier

        Don Frelier FBBO Gold Member FBBO Gold Member

        Messages:
        4,122
        Likes Received:
        4676
        Joined:
        Oct 11, 2016
        Location:
        Ionia, NY
        Local Time:
        11:42 PM
        Put some oil in #5 and test again. If it stays low you may be able to get away with re-working the heads.
        If it comes up...
        Well then you are in for a rebuild.

        • Agree Agree x 3
        • BSB67

          BSB67 Well-Known Member

          Messages:
          1,627
          Likes Received:
          1325
          Joined:
          Jan 18, 2018
          Location:
          PA
          Local Time:
          11:42 PM
          Unfortunate. The "better" numbers are bad, and the bad number is worse.

          • Agree Agree x 3
          • Davidrad

            Davidrad Active Member

            Messages:
            43
            Likes Received:
            5
            Joined:
            Jul 17, 2017
            Location:
            Vancouver, wa
            Local Time:
            8:42 PM
            I forgot to say. I did the oil trick and it didn't come up. I'll be removing the heads once I get back in town and taking them to a shop. Or buying a cheap 440 on CL and taking my chances. Can't go wrong with more displacement.

          • Davidrad

            Davidrad Active Member

            Messages:
            43
            Likes Received:
            5
            Joined:
            Jul 17, 2017
            Location:
            Vancouver, wa
            Local Time:
            8:42 PM
            Agreed. Pretty sure the valves have sunken into the head.it does explain why it didn't pull very hard.

          • dadsbee

            dadsbee FBBO Gold Member FBBO Gold Member

            Messages:
            9,513
            Likes Received:
            22799
            Joined:
            Jan 29, 2018
            Location:
            Midland Ontario, Canada
            Local Time:
            11:42 PM

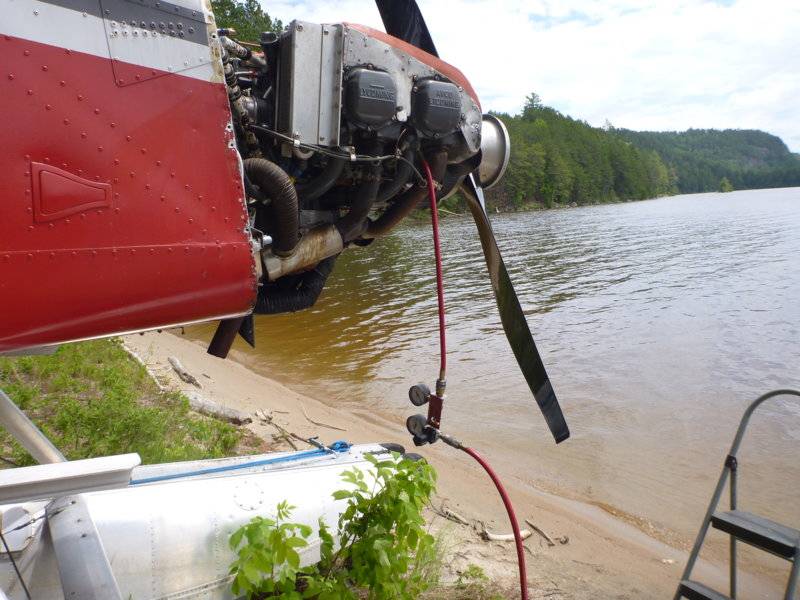

            I do it all the time.. but I'd have to explain what XX/80 determines most likely.. summer2018 438.JPG
