Connection to vacuum switch at 62 Plymouth

Heating, Cooling & AC

  1. Schumi

    Schumi New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    May 1, 2019
    Location:
    Germany
    Local Time:
    2:36 PM
    Dear experts,

    I own a 1962 Plymouth Savoy, most recently I repaired the vacuum switch to my heater control. A test with an electric pump was successful. Unfortunately I found out that the vacuum supply line to the switch hangs open in the engine compartment and is not connected to anything (see pictures). Now the question arises where must the supply line be connected? I have checked the service manual but it's not mentioned.
    Who can help?

    BR
    Schumi

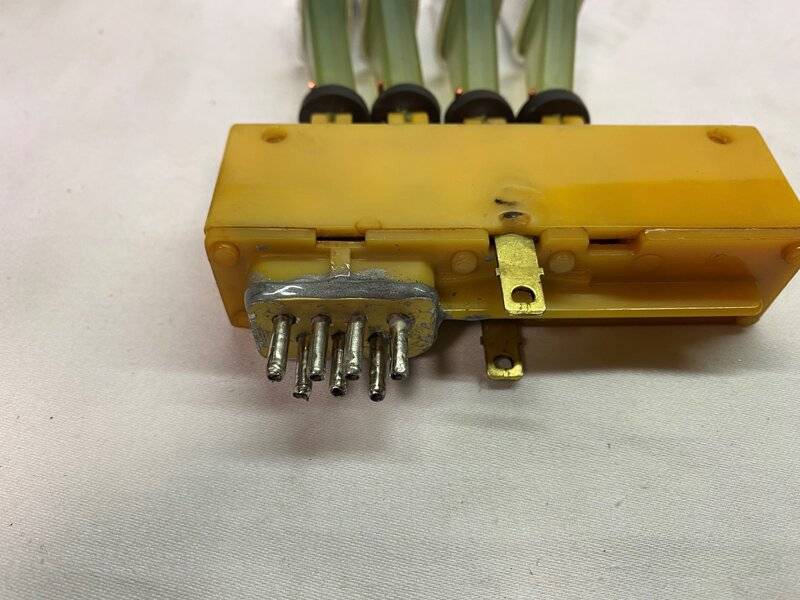

    Heater Switch Repaired.jpg Vacuum Supply.jpg

  2. Darter6

    Darter6 FBBO Gold Member FBBO Gold Member

    Messages:
    5,972
    Likes Received:
    6997
    Joined:
    Dec 29, 2009
    Location:
    Nevada
    Local Time:
    2:36 PM
    Manifold vacuum.I see you have power brakes check the port to see if it has a extra nipple.
    Or possible a unused port off the base of the carb.
    If not multiple nipple manifold plugs are easy to come by.
    My 64 Poly Belvedere didn't have power brakes but had a single nipple in the manifold for the hose.

    • Like Like x 1
    • Agree Agree x 1
    • Schumi

      Schumi New Member

      Messages:
      2
      Likes Received:
      0
      Joined:
      May 1, 2019
      Location:
      Germany
      Local Time:
      2:36 PM
      Great! Thanks for the quick reply. I already figured I would have to tap into the supply line from the brake booster. What about a check valve? The maintenance manual states that there is a check valve in the brake booster, but I need to get into the line before the valve.

    • Darter6

      Darter6 FBBO Gold Member FBBO Gold Member

      Messages:
      5,972
      Likes Received:
      6997
      Joined:
      Dec 29, 2009
      Location:
      Nevada
      Local Time:
      2:36 PM
      No check valve needed for the heater vacuum hook up.
      Yes brake boosters have the check valve where the rubber hose hooks up to the booster.

      • Thanks! Thanks! x 1
      • Darter6

        Darter6 FBBO Gold Member FBBO Gold Member

        Messages:
        5,972
        Likes Received:
        6997
        Joined:
        Dec 29, 2009
        Location:
        Nevada
        Local Time:
        2:36 PM
        Now you need to go to the welcome wagon forum and send us the story and photos of your 62.
        Was it a real Police Car ?

      • matthon

        matthon Well-Known Member

        Messages:
        1,055
        Likes Received:
        765
        Joined:
        Mar 3, 2018
        Location:
        New York
        Local Time:
        3:36 PM
        There is a tiny nipple next to the larger one for the brake booster, within the same fitting.

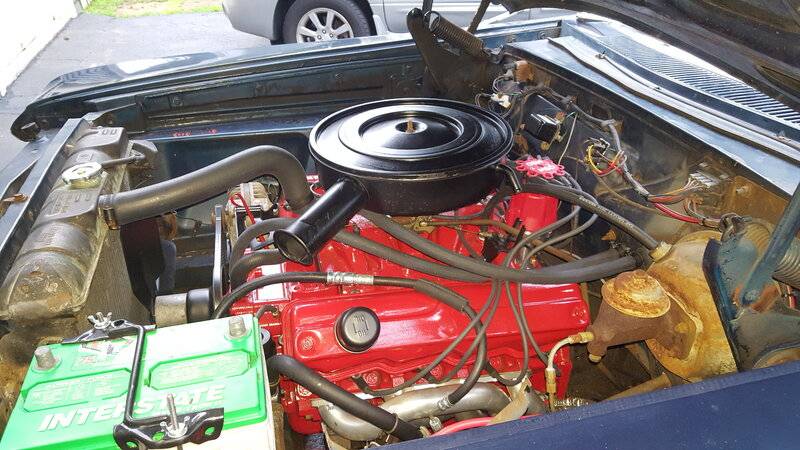

        Here's a pic of my poly that shows the booster line but the small nipple is hidden.
        Sorry, best pic on my phone.
