    Anyone know about shoulder belts for a b body convertible. I know I saw a picture of one but forgot we’re.
    The passenger seat on the lower bottom part of seat has a seatbelt receiver end. I doubt it was added on, looks factory
    Thanks

  2. PLMHEMI

    PLMHEMI FBBO Gold Member FBBO Gold Member

    Messages:
    249
    Likes Received:
    460
    Joined:
    Oct 31, 2019
    Location:
    Romeo, Michigan
    Local Time:
    3:03 PM
    What year vert? None of my '70 verts had/have shoulder belts...

  3. 69Coronetrt

    69Coronetrt Well-Known Member

    Messages:
    2,680
    Likes Received:
    1579
    Joined:
    Jul 17, 2008
    Location:
    Harlan, IA
    Local Time:
    2:03 PM
    What year? Shoulder belts are a, truly, rare option in 68-70 B body convertibles. Here are the numbers I have handy:

    ~11 of the 68 Coronet R/T convertibles had them.
    ~10 69 GTX convertibles
    ~10 69 Coronet R/T convertible
    ~13 69 RR convertibles
    ~1 70 R/T Convertible

    So if you found one, you found a rare one.....

    • Thanks! Thanks! x 1
    • NJRR

      NJRR FBBO Gold Member FBBO Gold Member

      Messages:
      4,058
      Likes Received:
      4412
      Joined:
      Apr 17, 2011
      Location:
      NJ
      Local Time:
      3:03 PM
      I've owned 3 70 Satellite convertibles, all originally bench seat, none had shoulder belts. I imagine the shoulder belt has to be anchored on the top of the seat back since there's no other point high enough. Even then, the top of the bench is pretty low, even for a shorter guy like me. If someone 6ft+ tried to use it, I don't see how it would be comfortable or even functional. If it was on bucket seats, they are definitely higher, but how does it mount?

    • steve from staten island

      steve from staten island FBBO Gold Member FBBO Gold Member

      Messages:
      6,282
      Likes Received:
      7642
      Joined:
      Sep 24, 2012
      Location:
      staten island,ny
      Local Time:
      3:03 PM
      I don't have one and im trying to find one. Thank you for your post as now I know they do exist. As I said the passenger side has the male part of were the belt would latch into but the drivers side does not

    • chtampa

      chtampa FBBO Gold Member FBBO Gold Member

      Messages:
      1,162
      Likes Received:
      1284
      Joined:
      Nov 24, 2013
      Location:
      Tampa, FL
      Local Time:
      3:03 PM
      Perhaps for center passenger on a bench seat or buddy seat.

    • Jim 68cuda

      Jim 68cuda Well-Known Member

      Messages:
      223
      Likes Received:
      188
      Joined:
      Jul 4, 2010
      Location:
      Virginia
      Local Time:
      3:03 PM
    • 69Coronetrt

      69Coronetrt Well-Known Member

      Messages:
      2,680
      Likes Received:
      1579
      Joined:
      Jul 17, 2008
      Location:
      Harlan, IA
      Local Time:
      2:03 PM

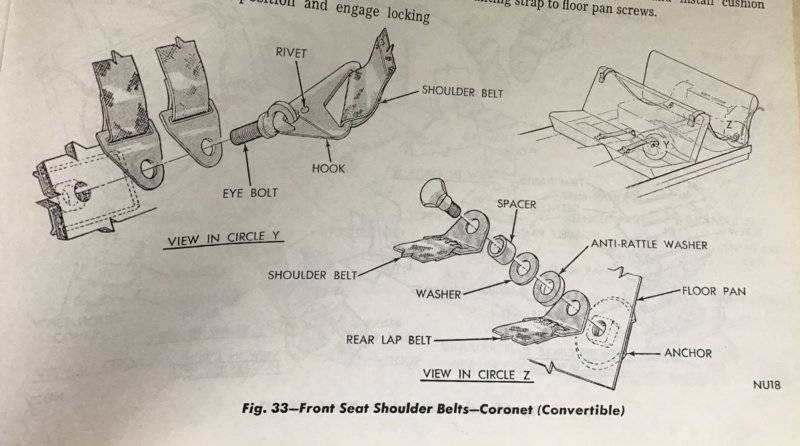

      From 69 Dodge FSM showing Coronet install


      • Thanks! Thanks! x 2
      • coloradodave

        coloradodave FBBO Gold Member FBBO Gold Member

        Messages:
        3,444
        Likes Received:
        2770
        Joined:
        Jun 1, 2011
        Location:
        Lincoln, CA
        Local Time:
        12:03 PM

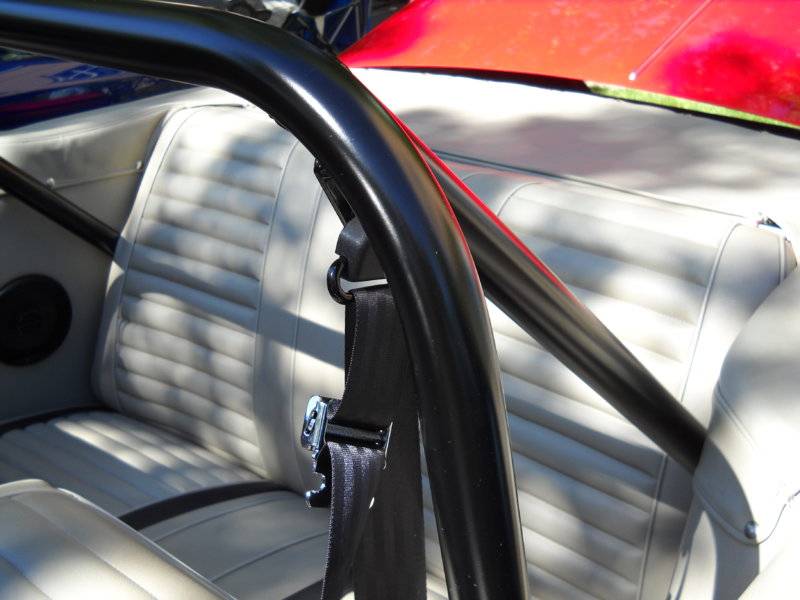

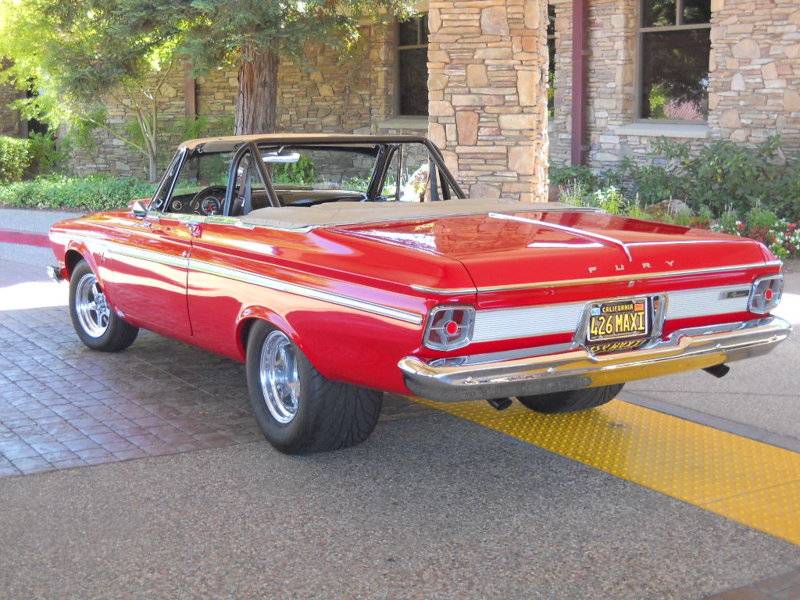

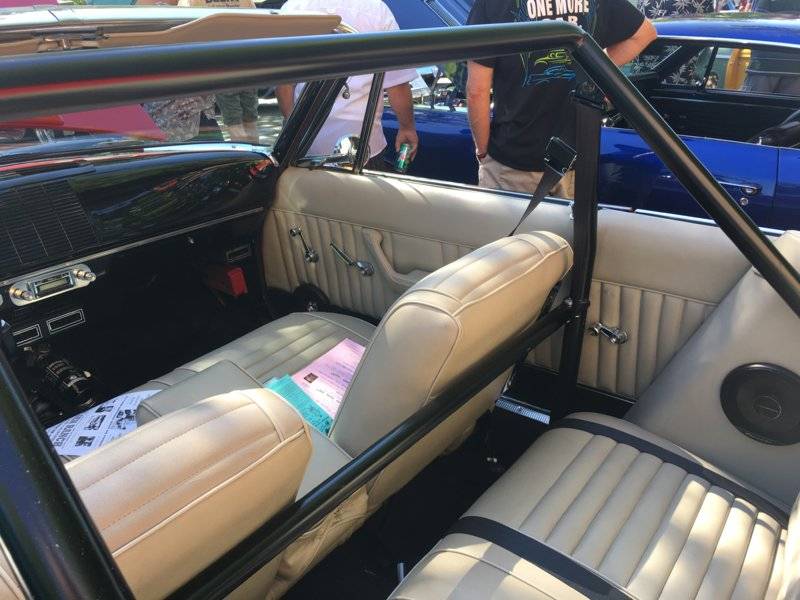

        Probably a little more than you'd want to do but it was a solution for me. And yes, I always wear a crash helmet when I drive my car... DSCN0205.JPG IMG_0244.JPG DSCN0013.JPG

        • Like Like x 2
        • NJRR

          NJRR FBBO Gold Member FBBO Gold Member

          Messages:
          4,058
          Likes Received:
          4412
          Joined:
          Apr 17, 2011
          Location:
          NJ
          Local Time:
          3:03 PM
          Your picture explains it clearly. I don't think they would be comfortable, especially for taller people up front. Looks like the belt coming from the back seat would cut into the neck and shoulder. I like Coloradodave's setup. Double safety with the roll bar and 3 point belt. @coloradodave Are your rollbars custom made?

          • Thanks! Thanks! x 1
          • Cranky

            Cranky Banned Staff Member FBBO Gold Member

            Messages:
            19,986
            Likes Received:
            16111
            Joined:
            Dec 4, 2009
            Location:
            Pasa-getdown-dena Texas
            Local Time:
            2:03 PM
            Had a 70 440 Challenger RT rag top with no shoulder belts.....

          • coloradodave

            coloradodave FBBO Gold Member FBBO Gold Member

            Messages:
            3,444
            Likes Received:
            2770
            Joined:
            Jun 1, 2011
            Location:
            Lincoln, CA
            Local Time:
            12:03 PM
            Purchased from ChassisWorks without rear bars welded on. Added straight rear bars as it's a convertible.
            https://www.cachassisworks.com/c-1674-roll-bars-roll-cages.aspx

            • Thanks! Thanks! x 1
            • dart4forte

              dart4forte Well-Known Member

              Messages:
              1,152
              Likes Received:
              815
              Joined:
              Apr 29, 2009
              Location:
              Mesa, AZ
              Local Time:
              2:03 PM
              We’ve been trying to acquire the hardware to repop the vert shoulder belts.. FYI, rear shoulder belts for verts were available as far back as 67. Mainly C bodies and B bodies. We have two local 67 Hemi GTX verts and both were optioned with the shoulder belts. They had the broadcast sheet to prove it.
