Correct fan spacer length?????

Heating, Cooling & AC

  1. maxwell1

    maxwell1 Active Member

    Messages:
    38
    Likes Received:
    39
    Joined:
    Oct 29, 2014
    Location:
    iowa
    Local Time:
    11:44 AM
    Hi all, I've got 26" rad no a/c 7 blade fan w/visc clutch . What length spacer is correct, thanx Max p.s. 1970 440

    Last edited: Jun 12, 2017
  2. PurpleBeeper

    PurpleBeeper FBBO Gold Member FBBO Gold Member

    Messages:
    4,190
    Likes Received:
    3003
    Joined:
    Mar 20, 2011
    Location:
    Chicago
    Local Time:
    11:44 AM
    I've got a similar setup & I had to use the "Jaguar" fan clutch (shorter shaft) with no additional fan spacer.

  3. Daves69

    Daves69 Well-Known Member

    Messages:
    1,353
    Likes Received:
    1082
    Joined:
    Jan 24, 2014
    Location:
    ChiWest
    Local Time:
    11:44 AM

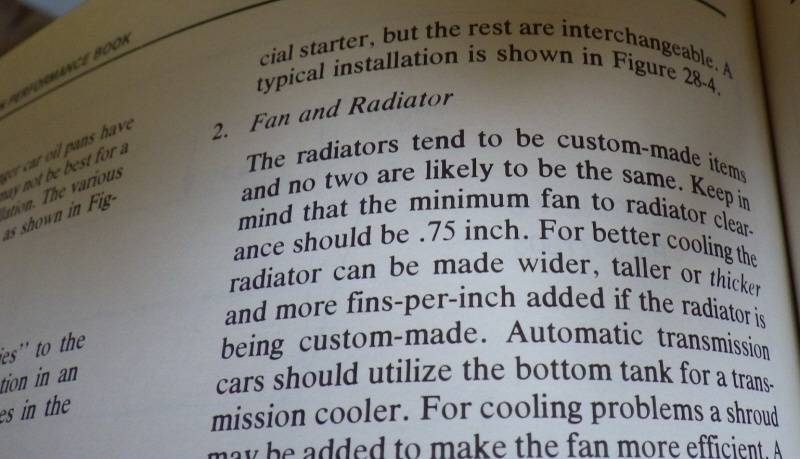

    A little guideline from the MP book..............

  4. Belle66

    Belle66 Well-Known Member

    Messages:
    243
    Likes Received:
    147
    Joined:
    Aug 26, 2010
    Location:
    Newport News, VA
    Local Time:
    12:44 PM
    If you have a fan shroud, it is best to place the fan so that mid point of the fan tip (from leading edge to trailing edge) is aligned with the shroud.
