Crazy or brilliant idea for Front Frame Rail replacement

Exterior Body, Paint, Trim, Chrome

  1. Robliepse

    Robliepse FBBO Gold Member FBBO Gold Member

    Messages:
    461
    Likes Received:
    265
    Joined:
    Apr 13, 2014
    Location:
    Buford ga
    Local Time:
    5:56 PM
    getting around to replacing both front frame rails on my 72 Roadrunner GTX and both rails on my donor Satellite are in really good shape. The K frame, radiator support are still in place. One thought is to remove both rails at the same time leaving the k frame and support in place and install it as one assembly which would keep them square. My concern is that this would be to heavy and difficult to align and would be a pain in the butt.

    Second thought is to do it like 99% of the rest of the population does and block the car measure, measure , measure and replace them one at a time. I searched all the frame rail post on the forum and I've never seen anyone mention doing both at once. Even if I do move both at once I'd still have to document and move the frame rail because it has the 72 GTX VIN stamp.

    Has anyone had any experience or similar thoughts about doing both at once?

  2. Norwaycharger

    Norwaycharger Member

    Messages:
    19
    Likes Received:
    3
    Joined:
    Jun 4, 2010
    Location:
    Norway
    Local Time:
    11:56 PM
    You have to build your self a jig before you hack it off ;-)

    • Like Like x 1
    • Robliepse

      Robliepse FBBO Gold Member FBBO Gold Member

      Messages:
      461
      Likes Received:
      265
      Joined:
      Apr 13, 2014
      Location:
      Buford ga
      Local Time:
      5:56 PM
      a jig or the good one? To move it or keep it in tact? A friend of mine is doing the work in his shop and he's a Chevy guy and we are having a friendly debate on the best way.
      besides weight I'm also concerned with factory tolerances of donor car torsion bar mount and the GTX mounts. I would think a lot of different tolerances will be stacking

    • Rodney

      Rodney Well-Known Member

      Messages:
      124
      Likes Received:
      67
      Joined:
      Feb 19, 2010
      Location:
      Central Or.
      Local Time:
      3:56 PM
      I is not a crazy idea at all. I've built and repaired may cars and trucks using salvaged parts.
      these are some images of a 1973 Cuda. the frame rails needed to be replaced due to some old repairs that was not good.
      since the car we were repairing was not in a recent collision we measured the body and took notes of the dimensions for later reference.
      If you have a service manual or body manual that may have dimensions use it also as a reference but the final results are how the sheet metal fits. A tape measure, tram gauge and level are your best tools and or a good measuring system like I used.
      I have access to a Kansas Jack frame rack which is what the car is fastened to in the images.
      First thing would be to set up the car as level as possible and so it won't move and take your measurements.

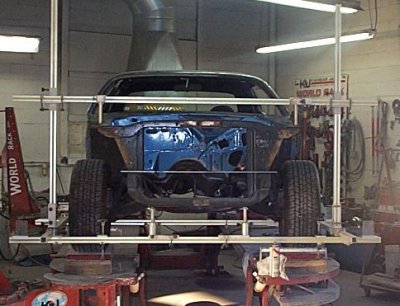

      for this I used our Kansas Jack measuring system which fastens to control points on the under body of the car.
      Use the rocker panels as a place to start making a datum line measuring since these cars are a uni body and have no frame rails.
      Before you start taking your car apart take note how the doors, fenders and hood fit. If any things doesn't look right decide why and how to fix it when doing your repairs. You don't want to weld before you know you have a straight and true body.
      It is time consuming using old weld on parts due to the fact that you need to take apart and prep the parts to be used.
      take note of where and how many spot welds were used when built OEM and try and reproduce how it was done.
      I replaced one apron at a time then welded in the core support but I did not weld anything until I mocked up and fit the fenders to the doors that were already fit to the 1/4 panels. It takes many vise grips and I use self tapping screws to hold the parts in place while doing this.
      building a jug as mentioned for the parts is also a must. You can use metal and or wood or a combination of both to hold the parts in place.
      There is a lot more info to doing this kind of job than could be described in a few paragraphs so feel free to ask questions as you go.
      sorry for the small fuzzy images this was back when I didn't have a very good digital camera.

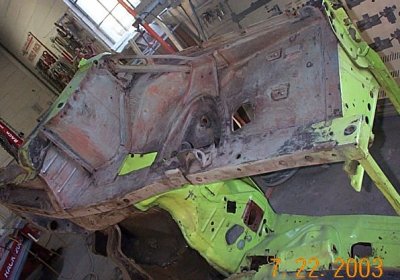

      used parts ready to prep

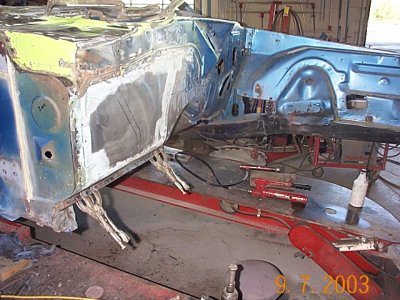

      right side fire wall repair and prep.

      I prepped primed and base coat the aprons before welding in place. once the job was completed I seam sealed and painted the entire engine compartment.

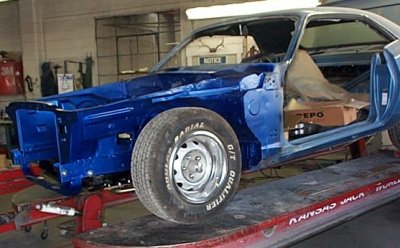

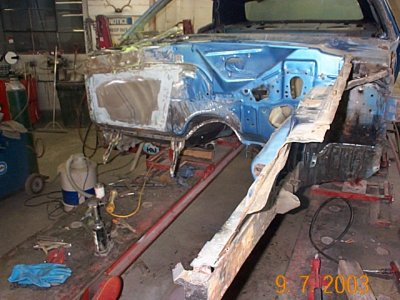

      I should have taken more images when doing this job, here is it finished.
      fast forward to the K member installed after seam sealer and some more paint and clear.
      hope this helps, good luck and keep us posted on your progress.

      73cudafront.JPG 73cudaclip.JPG 73firewall.JPG DCP02835.JPG DCP02810.JPG 451.JPG

      • Like Like x 3
      • flypaper

        flypaper Well-Known Member

        Messages:
        16,870
        Likes Received:
        26922
        Joined:
        Jul 17, 2008
        Local Time:
        6:56 PM
        just get yourself some help
        i replaced the front end on my car
        the exact same way all in one unit with the k frame still bolted on
        with the rails,inner fenders and rad support still attached.
        leaving the kframe on is key because it keeps the whole unit square
        if you measure it correctly, there is no need for a jig.
        i also have done rear rails,shock support,rear x member, inner rockers and wheelhouses
        as one unit in the rear of the car.
        when you do it in a section/clip,you will be very suprised that the parts alsmost fall into place and
        are very close to spec when you do the first measure.

      • eldubb440

        eldubb440 more miracles than Jesus FBBO Gold Member

        Messages:
        6,724
        Likes Received:
        15222
        Joined:
        Jul 17, 2008
        Location:
        South Jersey USA
        Local Time:
        6:56 PM
        i agree with flypaper....... no jig necessary......... not alot of measuring either............it will only fit one way and the fenders, doors and hood will dial it in

        just do it........ you will be surprised how it happens

        • Like Like x 1
        • Agree Agree x 1
        • flypaper

          flypaper Well-Known Member

          Messages:
          16,870
          Likes Received:
          26922
          Joined:
          Jul 17, 2008
          Local Time:
          6:56 PM
          imo
          alot of the time, jigs are just simply overkill
          i have a single front rail to replace and
          i will leave the k frame still bolted to the opposite side and
          then bolt the replacement rail right back into it when i go to fit it in.
          after i do that, it will be in the exact place where i want it to be.
          no fuss,no muss,no jig.

          • Like Like x 1
          • eldubb440

            eldubb440 more miracles than Jesus FBBO Gold Member

            Messages:
            6,724
            Likes Received:
            15222
            Joined:
            Jul 17, 2008
            Location:
            South Jersey USA
            Local Time:
            6:56 PM
            lol...... right again....... let the car be your jig

            time spent building jigs is time lost building the car

            • Like Like x 1
            • Agree Agree x 1
            • Robliepse

              Robliepse FBBO Gold Member FBBO Gold Member

              Messages:
              461
              Likes Received:
              265
              Joined:
              Apr 13, 2014
              Location:
              Buford ga
              Local Time:
              5:56 PM
              Thanks guys, great information

            • flypaper

              flypaper Well-Known Member

              Messages:
              16,870
              Likes Received:
              26922
              Joined:
              Jul 17, 2008
              Local Time:
              6:56 PM
              exactly and i don't have enough time as it is..
              if you are splicing in larger sections then you might need one
              i have seen cars done that way
              like the barrelcuda for example.
              that car was quartered with a splice going right down the middle
              and when i asked the owner why it was done that way
              and the cons about it
              he got really pizzed off at me..lol
              i do not like that method at all.
              i would rather replace the whole panel or do a clip as a unit.
              as the more splicing you have in the car,
              the more chance of it biting you in the azz down the road.
              i keep the splicing of parts to a minumum..

            • Barracuda Jake

              Barracuda Jake Member

              Messages:
              16
              Likes Received:
              2
              Joined:
              Feb 28, 2021
              Location:
              Fort Collins, CO
              Local Time:
              4:56 PM

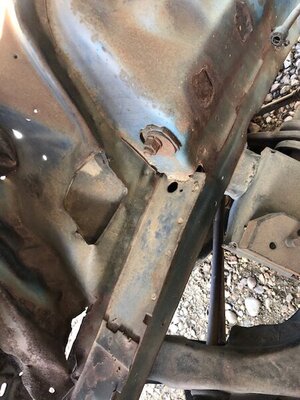

              I have a 1968 J Code Road Runner that was hit very hard in the front passenger side. The inner fender will need to be be replaced regardless. I am not sure about the shock tower. The frame has a little tweak to it but other than that it is very solid i.e. there is virtually no rust. I was thinking of either replacing the frame rail, shock tower, inner fender and radiator support from a donor B Body in one piece or try and straighten the frame and replace the shock tower, inner fender and radiator support in one piece from a donor car. If possible I would also like to try and preserve the matching Order Number from my original upper radiator support as well.

              I would love to get thoughts from folks who have done this type of work before.

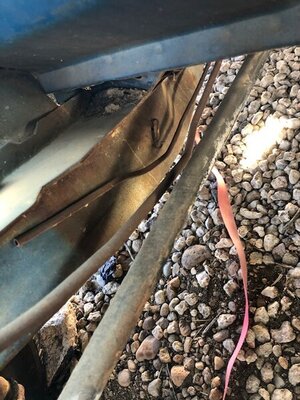

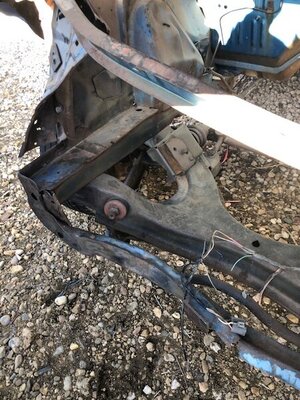

              1968 RR IMG_7814.jpg 1968 RR IMG_7815.jpg 1968 RR IMG_7816.jpg

              Last edited: Feb 28, 2021
            • RGAZ

              RGAZ Well-Known Member

              Messages:
              373
              Likes Received:
              155
              Joined:
              Jan 12, 2010
              Location:
              Greenwood, SC
              Local Time:
              6:56 PM
              I did as they suggested, but used a jig as well and had the body mounted on a frame. I replaced the entire front section in one piece with K-frame jig. First pic is the donor clip sandblasted.

              I used scrap metal and a bunch of steel I welded together. (Ignore the small car in last picture.) The green part is the k-frame jig.

              You get the idea.

              RGAZ

              IMG_2328.JPG front clip.JPG IMG_0437.JPG

              • Thanks! Thanks! x 1
              • Barracuda Jake

                Barracuda Jake Member

                Messages:
                16
                Likes Received:
                2
                Joined:
                Feb 28, 2021
                Location:
                Fort Collins, CO
                Local Time:
                4:56 PM
                That looks amazing. There hope yet for my project. Thank you for sharing.

              • eldubb440

                eldubb440 more miracles than Jesus FBBO Gold Member

                Messages:
                6,724
                Likes Received:
                15222
                Joined:
                Jul 17, 2008
                Location:
                South Jersey USA
                Local Time:
                6:56 PM
                i replied in you other thread...... check the link I posted

              • 1 Wild R/T

                1 Wild R/T FBBO Gold Member FBBO Gold Member

                Messages:
                3,672
                Likes Received:
                7116
                Joined:
                Jul 9, 2019
                Location:
                California
                Local Time:
                3:56 PM
              • Barracuda Jake

                Barracuda Jake Member

                Messages:
                16
                Likes Received:
                2
                Joined:
                Feb 28, 2021
                Location:
                Fort Collins, CO
                Local Time:
                4:56 PM
                That is so great. Thank you. I am new to the site and didn't think to search for other postings. I love the attention to detail with regard to maximizing the number of factory spot welds in a repair. It still scares me a little bit to replace a frame rail but I am going to give this some serious thought and consideration. P.S. I know of a rust free 66 coronet with a frame rail, inner fender, shock tower and radiator support that just wants to be put to good use.

              • eldubb440

                eldubb440 more miracles than Jesus FBBO Gold Member

                Messages:
                6,724
                Likes Received:
                15222
                Joined:
                Jul 17, 2008
                Location:
                South Jersey USA
                Local Time:
                6:56 PM
                @Kern Dog is a carpenter by trade, I pretty much walked him through it from 3000 miles away, and he pretty much nailed it....... these cars are all the same, and there is a TON of wisdom in those posts........especially mine :D

                pay close attention to why both rails were replaced........A) it was easier and B) it was necessary

                • Thanks! Thanks! x 1
                • Barracuda Jake

                  Barracuda Jake Member

                  Messages:
                  16
                  Likes Received:
                  2
                  Joined:
                  Feb 28, 2021
                  Location:
                  Fort Collins, CO
                  Local Time:
                  4:56 PM
                • 1 Wild R/T

                  1 Wild R/T FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,672
                  Likes Received:
                  7116
                  Joined:
                  Jul 9, 2019
                  Location:
                  California
                  Local Time:
                  3:56 PM
                  Greg is really good at documenting & a few semi-smart guys seem to be willing to offer advise...:lol:

                  • Agree Agree x 1
                  • eldubb440

                    eldubb440 more miracles than Jesus FBBO Gold Member

                    Messages:
                    6,724
                    Likes Received:
                    15222
                    Joined:
                    Jul 17, 2008
                    Location:
                    South Jersey USA
                    Local Time:
                    6:56 PM
                    I edited my above post as you were posting..... the last sentence I added is important
