Creative Trans Cooler Mounting

Engine, Trans & Driveline

  1. Superbeemike

    Superbeemike Active Member

    Messages:
    43
    Likes Received:
    157
    Joined:
    Oct 19, 2019
    Location:
    Sparks, Nevada
    Local Time:
    11:55 PM
    Hey FBBO, I need some ideas......

    I'm looking to add a transmission cooler to my Bee since I'm cooking the fluid on track days at the road course. Currently I have a deep pan with the factory radiator cooler and it is absolutely inadequate. I'd love to mount one or two under the car, maybe behind the torsion bar crossmember, or up in the rear diff tunner. It would be nice to get some weight out back instead of over the nose. At a minimum, I'll add something up front if I can't get one mounted under the car.

    I'd love to hear about where/how you mounted your cooler or ideas on where/how to mount one.

    Thanks


    • Like Like x 1
    • Jeff Peterson

      Jeff Peterson Platinum Member FBBO Gold Member

      Messages:
      245
      Likes Received:
      862
      Joined:
      Oct 7, 2018
      Location:
      Moline,IL.
      Local Time:
      1:55 AM
      I mounted a fan cooled, stacked plate, about 10"x 10" in front of the gas tank on the bottom of the trunk floor, I put 3/4" spacers so it could pull air from the top, works great but you'll have to move your rear axle ahead 15"s :D
      It would probably work on the back side differential hump

      • Like Like x 1
      • 493 Mike

        493 Mike FBBO Gold Member FBBO Gold Member

        Messages:
        3,337
        Likes Received:
        3671
        Joined:
        Dec 25, 2011
        Location:
        White Cloud, MI
        Local Time:
        2:55 AM

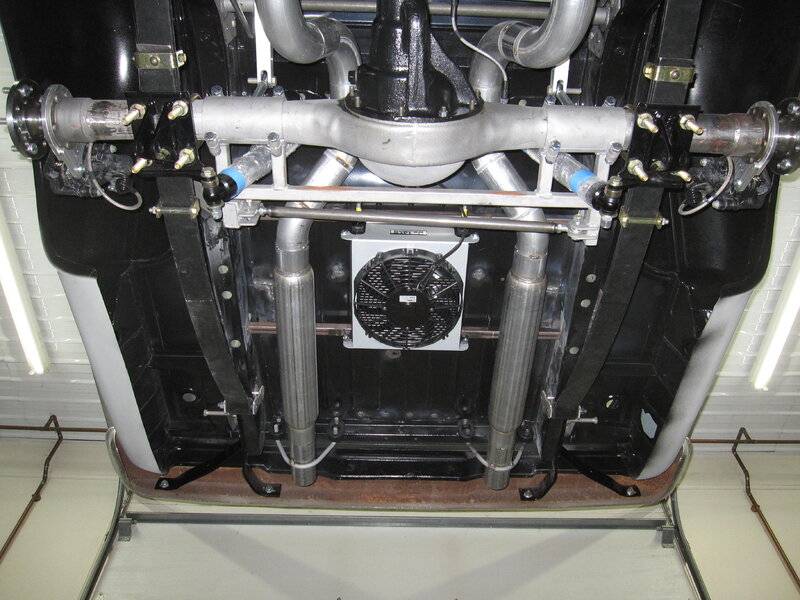

        I mounted mine in the space left from the fuel tank removal (cell in trunk).
        Mike

        • Like Like x 5
        • Superbeemike

          Superbeemike Active Member

          Messages:
          43
          Likes Received:
          157
          Joined:
          Oct 19, 2019
          Location:
          Sparks, Nevada
          Local Time:
          11:55 PM
          Any issues with it cooling back there? And what brand / size cooler are you using?

          Looks great back there!

        • multimopes

          multimopes FBBO Gold Member FBBO Gold Member

          Messages:
          2,024
          Likes Received:
          2557
          Joined:
          May 6, 2015
          Location:
          Columbia ,NJ
          Local Time:
          2:55 AM
          I am using a deep Derale Pan with flow through cooling in addition to a small cooler in front of the radiator.

          • Like Like x 1
          • 493 Mike

            493 Mike FBBO Gold Member FBBO Gold Member

            Messages:
            3,337
            Likes Received:
            3671
            Joined:
            Dec 25, 2011
            Location:
            White Cloud, MI
            Local Time:
            2:55 AM
            I haven't finished the build yet. Cooler is Derale.
            Mike

          • Paul_G

            Paul_G Well-Known Member

            Messages:
            1,726
            Likes Received:
            2714
            Joined:
            Dec 24, 2013
            Location:
            Surprise, Arizona
            Local Time:
            11:55 PM
            If your fighting heat, run metal tubing from the trans back to the cooler. The bigger the tubing the better, 1/2" or bigger. It will put more fluid in the system, and the metal will help with heat dissipation.

            • Like Like x 1
            • Jeff Peterson

              Jeff Peterson Platinum Member FBBO Gold Member

              Messages:
              245
              Likes Received:
              862
              Joined:
              Oct 7, 2018
              Location:
              Moline,IL.
              Local Time:
              1:55 AM
              If you end up mounting it underneath, I would put it inline, still using your radiator, with it out of forced airflow you pretty much have to run the fan all the time as a stand alone cooler.

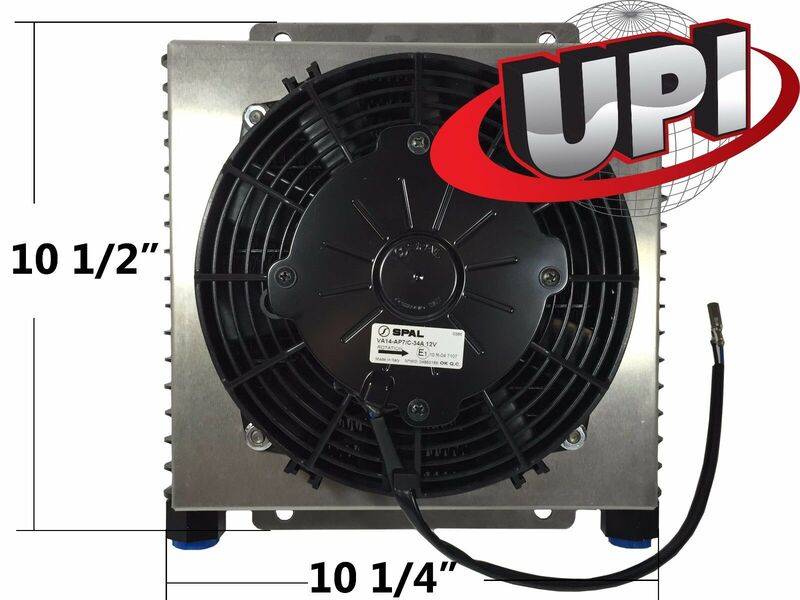

              This is the one I used, high quality, stacked plate, 1/2 npt fittings, puller Spal fan, never gets above 160, with the sensor on the outlet line.


              https://www.ebay.com/itm/STACKED-PL...683709?hash=item43f7f2a73d:g:vDAAAOSwHsRYD6Zf

              • Like Like x 2
              • Superbeemike

                Superbeemike Active Member

                Messages:
                43
                Likes Received:
                157
                Joined:
                Oct 19, 2019
                Location:
                Sparks, Nevada
                Local Time:
                11:55 PM
                I didn't consider the lines until you mentioned this. Upgrading to 1/2" sounds like a great idea but I'm unsure of fittings and all at the trans. Is it easy enough to upgrade to the 1/2" lines at the trans?

              • Paul_G

                Paul_G Well-Known Member

                Messages:
                1,726
                Likes Received:
                2714
                Joined:
                Dec 24, 2013
                Location:
                Surprise, Arizona
                Local Time:
                11:55 PM
                Easy to do, yes, finding the correct fittings at the hardware store may be a challenge. When I put the 48RH trans in my 72 I had to upsize the trans lines, I did find fittings at the Ace hardware to go from the larger line to the smaller fittings on the trans cooler inside the radiator.

                • Like Like x 1
                • 493 Mike

                  493 Mike FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,337
                  Likes Received:
                  3671
                  Joined:
                  Dec 25, 2011
                  Location:
                  White Cloud, MI
                  Local Time:
                  2:55 AM
                  Transmission cooler openings are 1/8" pipe thread.
                  Mike

                  • Like Like x 1
                  • dvw

                    dvw Well-Known Member

                    Messages:
                    5,670
                    Likes Received:
                    8203
                    Joined:
                    Feb 16, 2010
                    Location:
                    waterford mi
                    Local Time:
                    2:55 AM

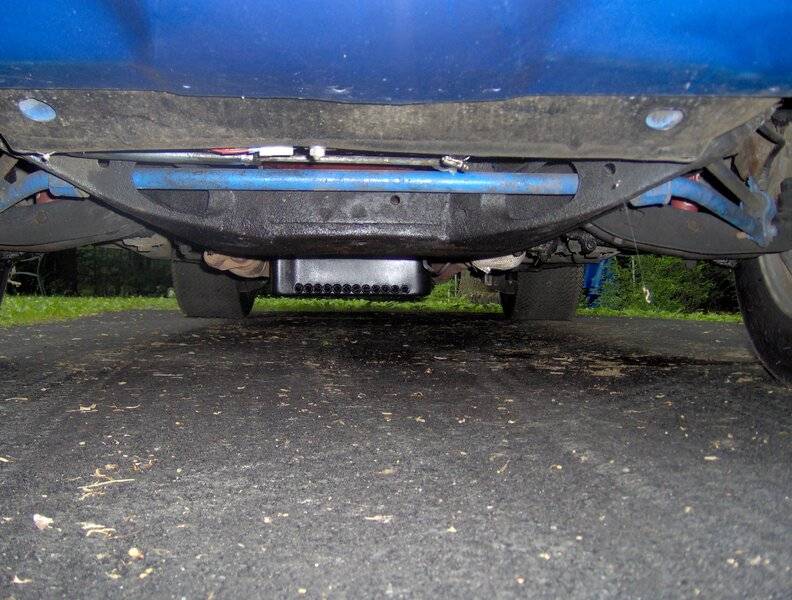

                    Mines under the drivers seat. I didnt put it outside the subframe due to fact it's a dragcar. Trying to keep any potential leaks away from the slicks. Works great even back to back. I'm sure for road racing a fan could be added for additional cooling
                    Doug 0722122130.jpg

                    • Like Like x 1
                    • transman

                      transman Active Member

                      Messages:
                      39
                      Likes Received:
                      23
                      Joined:
                      Sep 3, 2012
                      Location:
                      Western Canada
                      Local Time:
                      11:55 PM
                      I know this might bring up a lot of controversy, but coolers mounted in the rear, under the car etc. are not in the air flow. Any cooler maker will tell you to mount it behind the grille, in front of the rad, as they are designed to have air pass through them. Rear mounted, or under the car mounted may be OK for racing as in your case, but definitely not for the street.

                    • dvw

                      dvw Well-Known Member

                      Messages:
                      5,670
                      Likes Received:
                      8203
                      Joined:
                      Feb 16, 2010
                      Location:
                      waterford mi
                      Local Time:
                      2:55 AM
                      When I mounted mine under the car it was an experiment. After 8 years and 700+ passes it works fine. We also have an engine oil cooler mounted under the fender behind the head light of my sons turbo 62 Plymouth. The blocks water jackets are filled to the bottom of the water pump inlet. Since installing it there it'll cruise anywhere with the oil temp below 200.
                      Doug

                      • Like Like x 1
                      • Jeff Peterson

                        Jeff Peterson Platinum Member FBBO Gold Member

                        Messages:
                        245
                        Likes Received:
                        862
                        Joined:
                        Oct 7, 2018
                        Location:
                        Moline,IL.
                        Local Time:
                        1:55 AM

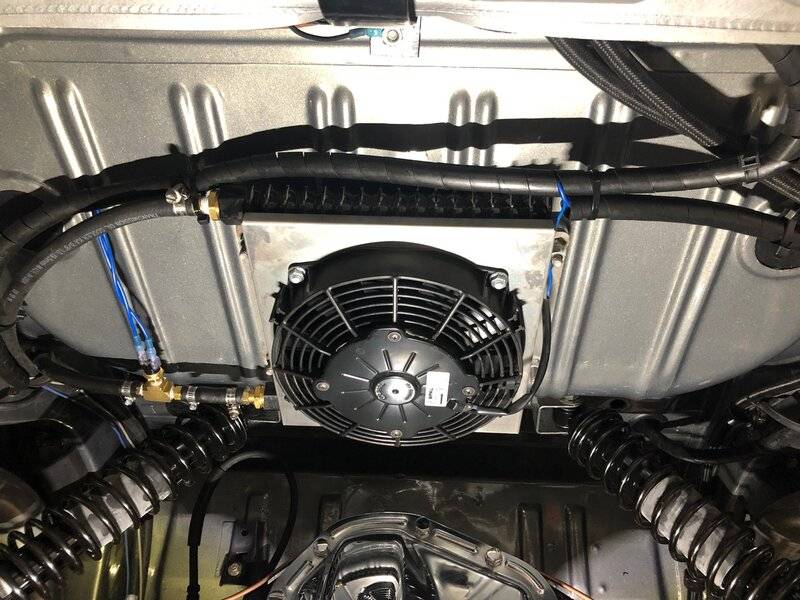

                        Finally got a picture of mine.

                        • Like Like x 2
                        • Superbeemike

                          Superbeemike Active Member

                          Messages:
                          43
                          Likes Received:
                          157
                          Joined:
                          Oct 19, 2019
                          Location:
                          Sparks, Nevada
                          Local Time:
                          11:55 PM
                          Yeah, I like that. How much clearance do you have between the cooler and the floor of the trunk?

                        • Jeff Peterson

                          Jeff Peterson Platinum Member FBBO Gold Member

                          Messages:
                          245
                          Likes Received:
                          862
                          Joined:
                          Oct 7, 2018
                          Location:
                          Moline,IL.
                          Local Time:
                          1:55 AM
                          3/4" and it's plenty, the fan will blow dust up! and I just put a temp switch in to cycle the fan so it isn't running all the time.

                          • Like Like x 1
                          • ckessel

                            ckessel Well-Known Member

                            Messages:
                            1,435
                            Likes Received:
                            1238
                            Joined:
                            Apr 23, 2015
                            Location:
                            Los Osos Ca.
                            Local Time:
                            11:55 PM

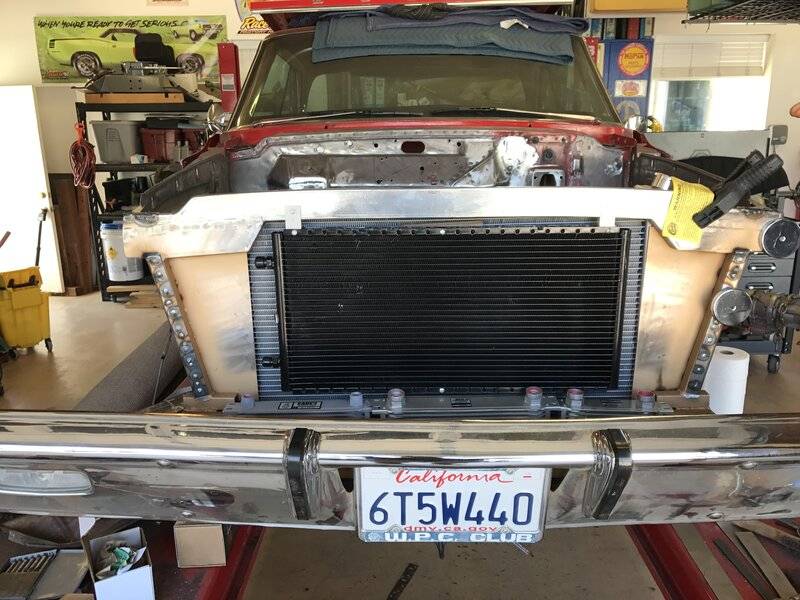

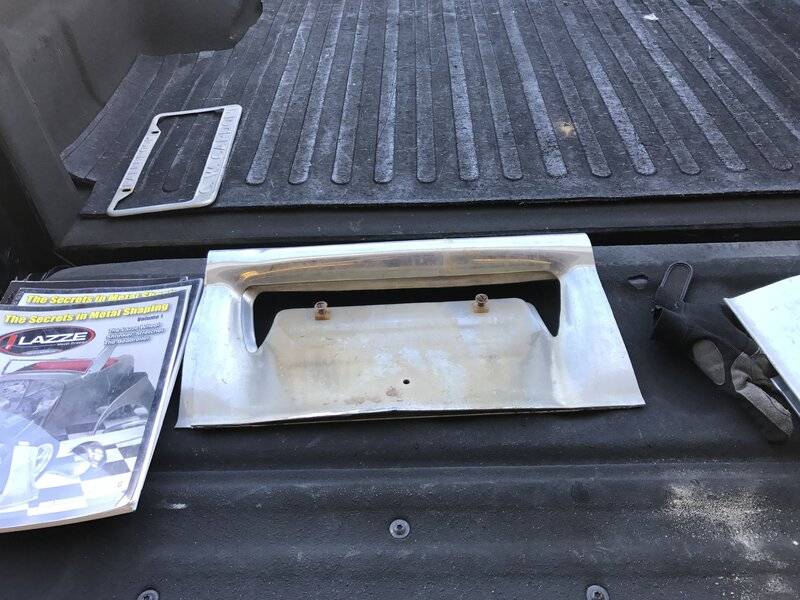

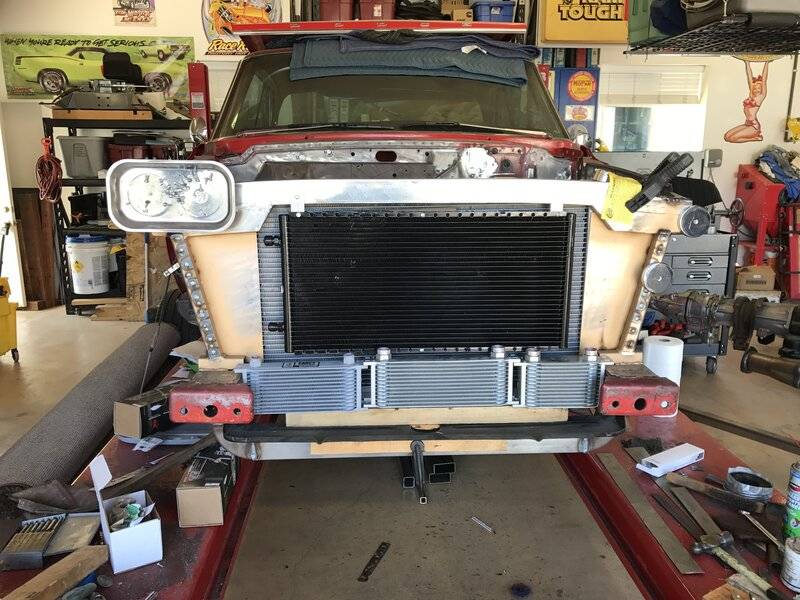

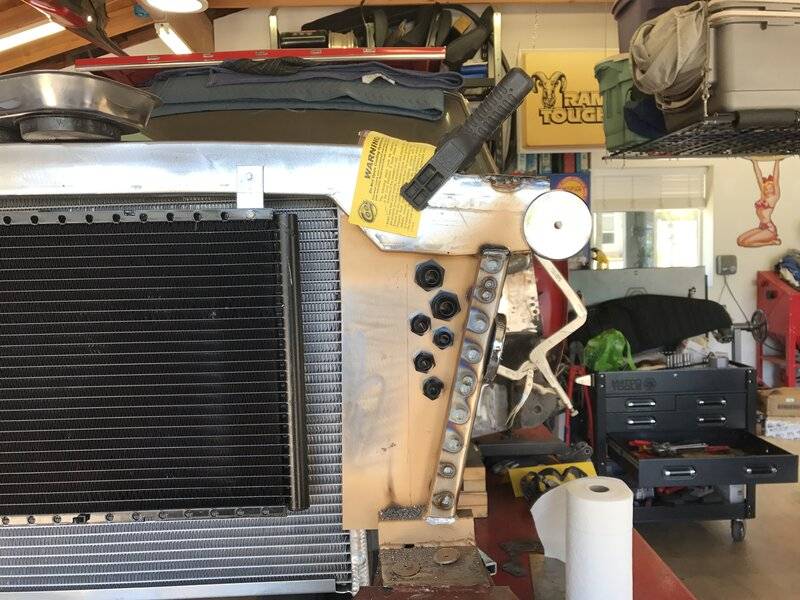

                            Here is my setup. Engine, trans, p/s. I picked up two core bumpers for material to enlarge the opening behind the license plate. The coolers are mounted on top of the stone/splash shield thats behind the bumper. The enlarged opening will take care of the coolers so they have their own air flow.

                            E8E0F6F8-220D-4782-8AEA-4A2F7DD460A5.jpeg DD147462-DD8A-43E3-99F4-AE6454B573D5.jpeg 8712553F-0D33-4EBD-8762-D3AAC8740DBB.jpeg 42F640BF-101A-4DDF-9FDF-0290488F0C9B.jpeg

                            • Like Like x 1
