Cutting torsion bar aft mount bracket

Frankb

Well-Known Member
Local time
10:50 AM
Joined
Jul 14, 2012
Messages
184
Reaction score
67
Location
Tucson
I would like to cut a 3/4 inch hole, on forward and aft side, of passenger side torsion bar mount bracket to run a fuel line. Currently my lines are in the factory positions. Car is Sniper EFI so there are two metal lines. I have AN fittings with -6 steel hose for connections at tank and at carb. Car has subframe connectors and torque box, front and rear. Forward end of passenger sub frame connector is welded to torsion bar aft mount bracket. New lines would run down inboard side of passenger frame connector but I need a hole in the torsion bar mount bracket to make this work so new line could go through the torsion bar mount bracket. Will doing this weaken the mount bracket to any noticeable degree? Any at all? Or will the mount buckle at the first burn out??Car has 512 wedge and makes a lot of torque. I want to do this for a cleaner install of the fuel lines.
Frank


Jeremiah

Well-Known Member
Local time
8:50 AM
Joined
Feb 7, 2012
Messages
1,386
Reaction score
549
Location
Rogue River, OR
I have done that on many cars without issue (or frame ties) i run the fuel lines outside of the frame rail and through the fenderwell to avoid the bellhousing area. This also keeps them away from the headers and exhaust system.


451Mopar

Well-Known Member
Local time
9:50 AM
Joined
Oct 25, 2011
Messages
3,213
Reaction score
2,527
Location
Aurora, CO
I would sleeve the hole. Having a tube welded in would add strength and protect the lines better.
On my convertible with EFI, running the hard lines like original along inside of frame. Not racing, so don't need to have lines outside of bellhousing area.
If I was racing, I would likely just weld in a protective plate or tube for the lines around the bellhousing.


dvw

FBBO Gold Member
FBBO Gold Member
Local time
11:50 AM
Joined
Feb 16, 2010
Messages
6,542
Reaction score
10,040
Location
waterford mi

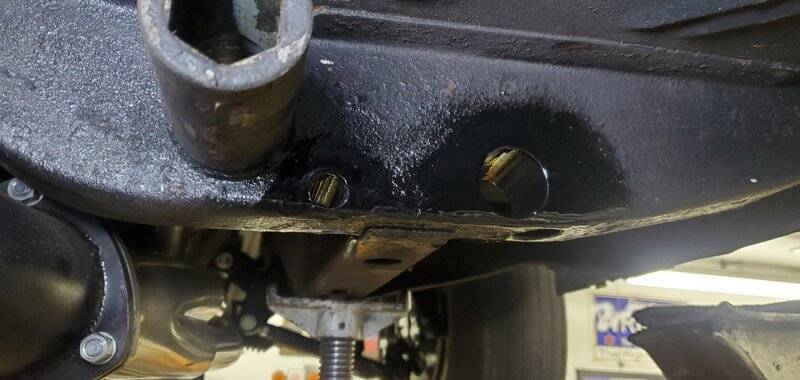

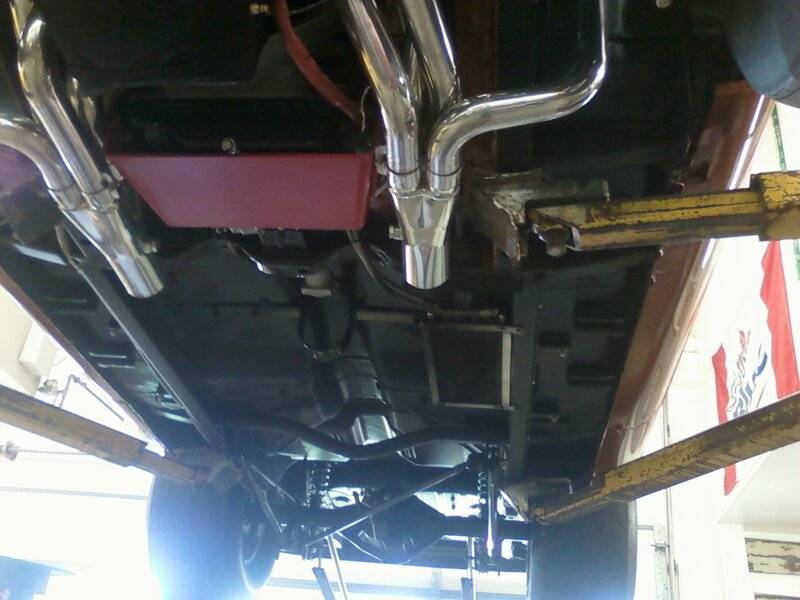

Just did this for a customer. Sub frame connectors are going in next. If you look closely outside the passenger header on the racecar you'll see the fuel line cutout. The racecar has the line outside of the subframe connector in pic #3. Both had a tube welded in. The racecar section was cutout so line could be removed. The street car hole was big enough to slip a -10 thru. The smaller hole is for the battery cable.
Doug



Last edited:

Jc cooper

Second gear fun!
FBBO Gold Member
Local time
10:50 AM
Joined
Jan 2, 2017
Messages
655
Reaction score
366
Location
Houston tx
Agree , good advice, open hole just enough for sleeve to slip through, weld it in and your good to go!


Jeremiah

Well-Known Member
Local time
8:50 AM
Joined
Feb 7, 2012
Messages
1,386
Reaction score
549
Location
Rogue River, OR
I use grommets through the holes. That sheet metal box is not going to deflect in the direction the torsion bars are loading it. Having a feed and return line in the area of the torsion bar/header area gets too cluttered for my taste.


Frankb

Well-Known Member
Local time
10:50 AM
Joined
Jul 14, 2012
Messages
184
Reaction score
67
Location
Tucson
Thanks for info guys. I like the idea of welding a tube in.
Frank
