Direct Drive Or Clutch Fan On 440 Mag

Heating, Cooling & AC

  1. turbine68rt

    turbine68rt Turbine Bronze Member FBBO Gold Member

    Messages:
    1,431
    Likes Received:
    2087
    Joined:
    Dec 1, 2019
    Location:
    PA
    Local Time:
    4:23 PM
    1968 440 mag, 22" rad, 727, no A/C. I purchased this car in 1987 and it had an oem clutch fan before I bought it with 77k miles. I recently talked a very knowledgeable Mopar guy who has been working on these cars for 60 years. He informed me that my car should have a direct drive fan. I said I thought all 440 mags had the clutch fan for performance reasons and I wouldn't know why a po would make the effort to locate an oem fan setup in the 70's when they could have just put on an aftermarket piece. Did this setup come with a clutch fan or direct drive? Anything is possible, just wondering what the typical setup was back then.

  2. R413

    R413 Well-Known Member

    Messages:
    2,171
    Likes Received:
    4415
    Joined:
    Feb 4, 2019
    Location:
    NW USA
    Local Time:
    1:23 PM
    Do you have a broadcast sheet? There is a spot for fan, spacer and clutch.

    I’m generally seeing that 727 cars with 3.23 gears got a solid fan.

    Previous owners did anything they wanted and our justification of why means very little today.

    • Agree Agree x 2
    • turbine68rt

      turbine68rt Turbine Bronze Member FBBO Gold Member

      Messages:
      1,431
      Likes Received:
      2087
      Joined:
      Dec 1, 2019
      Location:
      PA
      Local Time:
      4:23 PM
      I looked everywhere possible for a sheet and couldn't find anything.

      • Thanks! Thanks! x 1
      • Darter6

        Darter6 FBBO Gold Member FBBO Gold Member

        Messages:
        5,147
        Likes Received:
        5715
        Joined:
        Dec 29, 2009
        Location:
        Nevada
        Local Time:
        3:23 PM
        Original owner guy had his 68 440 R/T Charger restored at a near by shop. His did not have a clutch fan.

        • Thanks! Thanks! x 1
        • 493 Mike

          493 Mike FBBO Gold Member FBBO Gold Member

          Messages:
          3,612
          Likes Received:
          4044
          Joined:
          Dec 25, 2011
          Location:
          White Cloud, MI
          Local Time:
          4:23 PM
          Fan clutches are quieter in operation if that is a concern.
          Mike

          • Agree Agree x 2
          • famous bob

            famous bob Well-Known Member

            Messages:
            58
            Likes Received:
            28
            Joined:
            May 31, 2021
            Location:
            okla
            Local Time:
            3:23 PM
            they are quieter, and dont have as much drag on the engine , on my 505 , the direct drive fan appears to run 7-8 degrees cooler than the clutch type. that being said , my ex 1968 426 street hemi came out w/ a clutch type fan.

          • WileERobby

            WileERobby Well-Known Member

            Messages:
            8,126
            Likes Received:
            10968
            Joined:
            Sep 15, 2009
            Location:
            State of insanity
            Local Time:
            4:23 PM
            If so, the p.o. installed the OEM fan setup because it works ! Are you concerned with originality or functionality ?

          • 68BabyBlue

            68BabyBlue FBBO Gold Member FBBO Gold Member

            Messages:
            256
            Likes Received:
            601
            Joined:
            Aug 9, 2020
            Location:
            State College, Pennsylvania
            Local Time:
            4:23 PM
            Baby Blue is virtually untouched original in the engine compartment, and I also have her broadcast sheet. Factory original direct drive fan with 22 inch radiator, 440 and 727 automatic. My third GTX, with A/C , was also direct drive, even though the A/C cars came standard with clutch fan. A one owner survivor car, with broadcast sheet, it was ordered with a spacer and fixed drive fan. The original owner lived in Richmond, VA, and wanted maximum cooling. The broadcast sheet will tell the story. In the absence of the sheet, it's your preference.

            • Thanks! Thanks! x 1
            • turbine68rt

              turbine68rt Turbine Bronze Member FBBO Gold Member

              Messages:
              1,431
              Likes Received:
              2087
              Joined:
              Dec 1, 2019
              Location:
              PA
              Local Time:
              4:23 PM
              Originality

              • Like Like x 2
              • ckessel

                ckessel Well-Known Member

                Messages:
                1,708
                Likes Received:
                1537
                Joined:
                Apr 23, 2015
                Location:
                Los Osos Ca.
                Local Time:
                1:23 PM
                Clutch type fans pull more air as they don't rotate as fast as direct drive which means the blades don't flatten out like DD units. Plus quieter. Just make sure you get a "thermal" style clutch which as a spring on the front as opposed to a non thermal which has no spring. Thermal units work better.

                • Disagree Disagree x 1
                • turbine68rt

                  turbine68rt Turbine Bronze Member FBBO Gold Member

                  Messages:
                  1,431
                  Likes Received:
                  2087
                  Joined:
                  Dec 1, 2019
                  Location:
                  PA
                  Local Time:
                  4:23 PM
                  Been running a non thermal for over 30 years and it tops out at 180 even sitting in traffic. Love it. I was just curious if cars like mine came with them or the DD.

                  • Agree Agree x 1
                  • ckessel

                    ckessel Well-Known Member

                    Messages:
                    1,708
                    Likes Received:
                    1537
                    Joined:
                    Apr 23, 2015
                    Location:
                    Los Osos Ca.
                    Local Time:
                    1:23 PM
                    I tried the non on my Duster years ago, had issues. Went with thermal, no issues. Could have been a defective unit. On the DD fans, you'll need some extra fan to radiator clearance as when the RPM's go up, the blade tips pull forward. Potential disaster if not taken care of.

                    • Thanks! Thanks! x 1
                    • famous bob

                      famous bob Well-Known Member

                      Messages:
                      58
                      Likes Received:
                      28
                      Joined:
                      May 31, 2021
                      Location:
                      okla
                      Local Time:
                      3:23 PM
                      I tested fan combinations all last summer , a clutch type fan ''does not'' pull more air than a direct drive fan, on mine its about 6-8 degrees better w/ a direct drive , I only stuck w/ the clutch type for the small perf. gain . Noise is of no concern on mine ------------

                    • ckessel

                      ckessel Well-Known Member

                      Messages:
                      1,708
                      Likes Received:
                      1537
                      Joined:
                      Apr 23, 2015
                      Location:
                      Los Osos Ca.
                      Local Time:
                      1:23 PM
                      Nice to get feedback from a real world test.

                    • moparedtn

                      moparedtn Ed on the Ridge FBBO Gold Member

                      Messages:
                      11,565
                      Likes Received:
                      19110
                      Joined:
                      May 14, 2011
                      Location:
                      On the Ridge, TN
                      Local Time:
                      4:23 PM
                      So many factors determine how much cfm a given fan will potentially flow - some of
                      the aftermarket will actually advertise that cfm on their stuff, in fact.
                      Size, blade pitch, number of blades, shape of fins - so many factors.
                      I only run a direct drive on Fred because there simply isn't the room for a clutch setup
                      (Griffin fat-ass radiator).

                      • Thanks! Thanks! x 1
                      • RJRENTON

                        RJRENTON FBBO Gold Member FBBO Gold Member

                        Messages:
                        1,921
                        Likes Received:
                        1762
                        Joined:
                        Jul 1, 2015
                        Location:
                        South Shores area of Decatur, Illinois
                        Local Time:
                        3:23 PM
                        Not necessarily accurate information.....the amount of air moved is in direct proportion to the number of blades, the diameter of the fan assembly, the pitch angle of the blades, if the individual blade is an air foil design and the RPM of the blade assembly at a specific RPM. Torque drive fan clutches tend to stay engaged for a longer time b4 achieving the limiting RPM. Thermal drive fan clutches sense air flow temperature and, depending on the calibrated RPM and temperature relationship, usually, dis-engage at a lower RPM than the torque drive fan clutch. IF Actual AIRFLOW is measured, then the torque drive fan clutch will likely move more air flow, becsuse it remains engaged at lower RPM level. For example, Mopar's HP engines, 426 Hemi and the 440 +6 engine and the 340 HP, had torque drive fan clutches as origional equipment. Just my opinion of course.
                        BOB RENTON

                      • ricks_RR

                        ricks_RR Well-Known Member

                        Messages:
                        437
                        Likes Received:
                        1006
                        Joined:
                        Nov 1, 2019
                        Location:
                        rindge n.h.
                        Local Time:
                        4:23 PM
                        i like DD fans they work a cluch fan if is dont work right you start to over heat . DD fan works all the time

                        • Agree Agree x 1
                        • RJRENTON

                          RJRENTON FBBO Gold Member FBBO Gold Member

                          Messages:
                          1,921
                          Likes Received:
                          1762
                          Joined:
                          Jul 1, 2015
                          Location:
                          South Shores area of Decatur, Illinois
                          Local Time:
                          3:23 PM

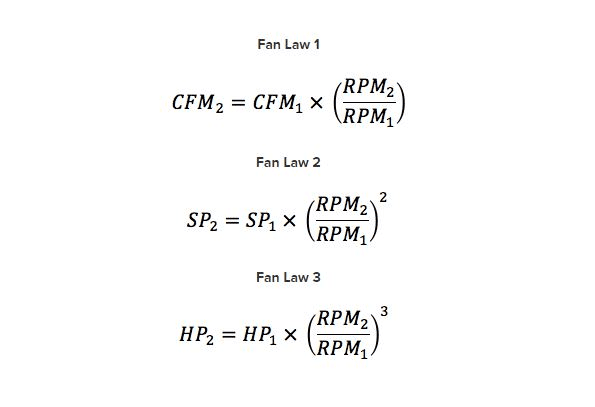

                          True.....but as RPM's increase, the direct drive fan's horsepower requirements increase as a cube function of the rpm differences. See fan law #3 below. Both the torque drive and the thermal drive clutches limit the fan's RPM and therefore the horsepower required to turn the fan. Its sort of equilivant to waisting HP.
                          Just my opinion of course. But do the math for yourself.
                          BOB RENTON

                          • Like Like x 1
                          • Thanks! Thanks! x 1
                          • Agree Agree x 1
                          • ricks_RR

                            ricks_RR Well-Known Member

                            Messages:
                            437
                            Likes Received:
                            1006
                            Joined:
                            Nov 1, 2019
                            Location:
                            rindge n.h.
                            Local Time:
                            4:23 PM
                            i see but i want that motor to run cool all the time . my 69 383 runner runs 180 and 190 going up hill and right back to 180 when running on flat ground no matter how hot it is out side

                            • Like Like x 1
                            • 62 Dart Convertible

                              62 Dart Convertible Well-Known Member

                              Messages:
                              1,050
                              Likes Received:
                              480
                              Joined:
                              Feb 1, 2011
                              Location:
                              Australia
                              Local Time:
                              5:53 AM
                              This is not true at all.

                              • Agree Agree x 1
