Does any one know the length of a 69 A 12 dana 60

Black HP2

Well-Known Member
Local time
9:00 AM
Joined
Dec 22, 2012
Messages
96
Reaction score
30
Location
victoria bc
Hi does anyone know the exact length of a 1969 A12 dana 60 ? and are they the same length as a 1970 Dana 60? thanks for your help.


Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
9:00 AM
Joined
Dec 4, 2009
Messages
26,882
Reaction score
27,133
Location
Down southeast Taxas
The 8 3/4 is the same width as the 68-70.....I would think the 60 would be too.


hashmaker

Well-Known Member
Local time
7:00 AM
Joined
Jun 8, 2012
Messages
219
Reaction score
224
Location
Central, Oregon

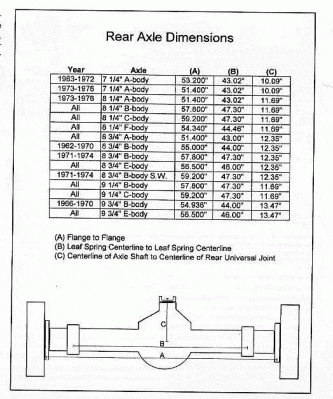

Axle flange to axle flange should be 60 1/8 inches, Cranky is right the 8 3/4 for those years have the same dimensions. Some may have 10.5 brakes while others I have seen have 11 inch. The scat pack was 3:54 ratio and the super scat Pack meant 4:10's. The spring perches should be 44 inches center to center. I pretty sure all B bodies from 66 to 70 have the same differential dimensions no matter what engine it had.


62MAX

Well-Known Member
Local time
10:00 AM
Joined
Jul 21, 2008
Messages
1,573
Reaction score
1,108
Location
PA
Everything.
