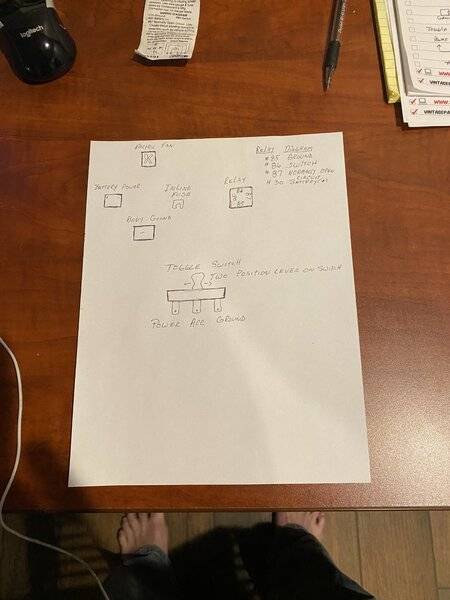

    Ok here we go. First of all you need to know that I am dumb as a post when it comes to electrical work. My 64 Savoy has a custom built aluminum radiator with an electrical fan. I want to regulate the fan manually with a togle switch. I bought all the new parts I was told I needed to acomplish this task. I installed the parts to no avail, I seem to be wiring it wrong. I first checked to make sure the fan is working manually and it is. I have attached a picture of the circuit I have installed and am hoping one of you guy's can explain to me how to wire it properly. Circuit.jpg

  2. Rockland71GTX

    Rockland71GTX Well-Known Member

    Messages:
    241
    Likes Received:
    435
    Joined:
    Apr 29, 2016
    Location:
    South Florida
    Local Time:
    8:42 AM
    Why wouldn't you want to run a thermostatic switch? It will save you the aggravation of switching on/off all the time

    • Agree Agree x 1
    • Mike67

      Mike67 FBBO Gold Member FBBO Gold Member

      Messages:
      6,538
      Likes Received:
      10472
      Joined:
      Nov 23, 2014
      Location:
      Woodlands Tx
      Local Time:
      7:42 AM
      You just need a constant hot from any circuit really to run through your switch to the coil on the relay. If you use a circuit that is only live when the key is on that's ok too, you just wont be able to run it with the key off.
      Take a fused lead from the battery and connect it to one side of the open contact, then from the other side go to your fan.
      Make sure your relay is a 40a and depending on how many apps the fan pulls, I would run a #10awg min.
      The switch can be a 14awg. Dont use solid wire!
      The switch only controls the relay, the fan gets its power from the battery.
      Pretty simple.

    • 747mopar

      747mopar FBBO Gold Member FBBO Gold Member

      Messages:
      12,860
      Likes Received:
      16594
      Joined:
      Oct 30, 2012
      Location:
      ohio
      Local Time:
      7:42 AM
      Run your wire from the switch that turns it on and off to terminal 85 and ground 86, your fused power from the battery goes to 30 and the fan on 87 not 87a.. other fan wire is grounded.

      You can also reverse it and wire the relay with 12V to 85 all the time and use your switch to provide the ground to 86 instead like they do in horns.. eliminates the possibility of getting a tingle or shorting it out in close confines.



      Last edited: Apr 12, 2021
      • Agree Agree x 1
      • 1964 b body

        1964 b body FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        68
        Joined:
        Jul 25, 2014
        Location:
        Arizona
        Local Time:
        6:42 AM

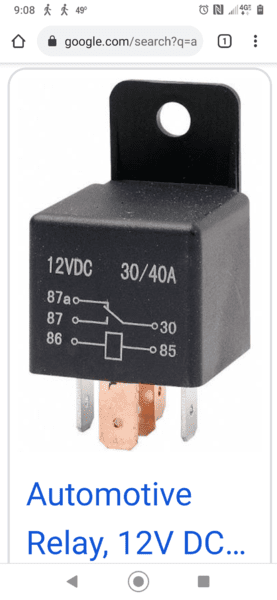

      • 1964 b body

        1964 b body FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        68
        Joined:
        Jul 25, 2014
        Location:
        Arizona
        Local Time:
        6:42 AM

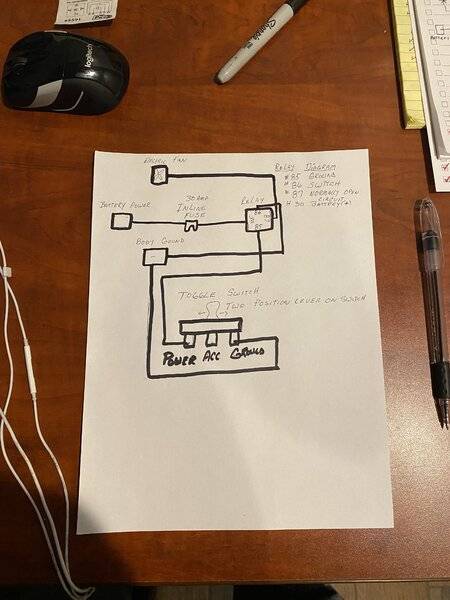

        Does this look right? IMG_1186.jpg

      • 1964 b body

        1964 b body FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        68
        Joined:
        Jul 25, 2014
        Location:
        Arizona
        Local Time:
        6:42 AM
        Thats what I am replacing I want it manual. just my preferance!

      • pnora

        pnora FBBO Gold Member FBBO Gold Member

        Messages:
        898
        Likes Received:
        778
        Joined:
        Apr 21, 2020
        Location:
        Ishpeming, Mi.
        Local Time:
        8:42 AM
        You should run it off a thermostatic switch. You can add the manual switch and be able to by pass the automatic function if desired.

        • Like Like x 1
        • Agree Agree x 1
        • 747mopar

          747mopar FBBO Gold Member FBBO Gold Member

          Messages:
          12,860
          Likes Received:
          16594
          Joined:
          Oct 30, 2012
          Location:
          ohio
          Local Time:
          7:42 AM

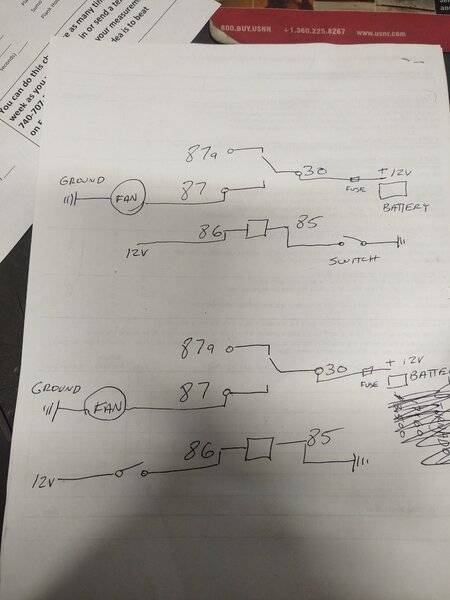

          Hard to make out the drawing on my phone but it looks like you've got both 85 and 86 grounded, you have to have one side grounded and the other with 12V. Doesn't really matter if your switching the ground or the 12V on and off but you still have to have both present. Here's the 2 options IMG_20210412_102225297.jpg

          Last edited: Apr 12, 2021
          • Like Like x 1
          • Mike67

            Mike67 FBBO Gold Member FBBO Gold Member

            Messages:
            6,538
            Likes Received:
            10472
            Joined:
            Nov 23, 2014
            Location:
            Woodlands Tx
            Local Time:
            7:42 AM
            86 and 85 is your coil that activates the relay and typically are not polarity sensitive.
            A thermostatic switch can be implemented easily, they make adjustable ones that have a sensor that goes against the radiator or you can buy one that goes in your cooling system but is not adjustable.

          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,636
            Likes Received:
            1578
            Joined:
            Oct 8, 2012
            Location:
            Valencia, EspaƱa
            Local Time:
            2:42 PM
          • 1964 b body

            1964 b body FBBO Gold Member FBBO Gold Member

            Messages:
            93
            Likes Received:
            68
            Joined:
            Jul 25, 2014
            Location:
            Arizona
            Local Time:
            6:42 AM
            THANKS to everybody that replied to my post. I finally figured it out yesterday and gotter done.

            • Like Like x 1
