    Any experts around on this topic? This is in reference to the 69 GTX lower body side trim on the rocker area. Looking for the proper way to tackle this task and any in's and out's one may have to share.

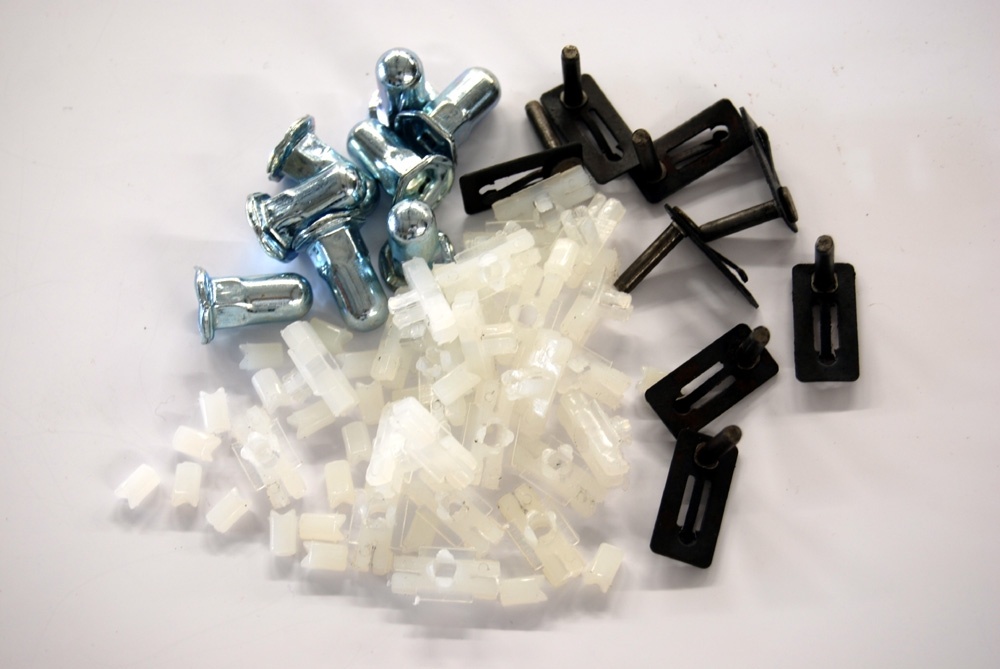

    I am working with the original trim and a hardware kit from B/E....

    Any advise is appreciated

    Justin

  2. thomas patti

    thomas patti Well-Known Member

    Messages:
    289
    Likes Received:
    30
    Joined:
    Mar 11, 2012
    Location:
    texas
    Local Time:
    8:07 AM
    HAVE A `69 HEMI GTX HERE IN DENISON,TX.no real gool way `cept for VERY SLOWLY!!!!!!!!!!! measure 15 times & drill once. takes a lone time,patti

  3. Dennis H

    Dennis H FBBO Gold Member FBBO Gold Member

    Messages:
    15,155
    Likes Received:
    19236
    Joined:
    Jul 11, 2010
    Location:
    San Jose
    Local Time:
    9:07 AM
    This is not timely but, when I did similar install on a 69 Coronet years ago...
    This is the wide rocker molding right? The retainer clips purchased from YO, the material was too pliable. This allowed the molding to pull away from the body and make gaps. This pisses me off everytime I approach the car. Eyes are drawn to this. Hopefully B/E makes a more faithful reproduction. Idiot body man (Shelly, Danielsville, Pa) tossed the orginals. FYI.

  4. moparnation74

    moparnation74 Well-Known Member

    Messages:
    10,506
    Likes Received:
    18015
    Joined:
    Mar 27, 2014
    Location:
    OHIO
    Local Time:
    9:07 AM
    Dennis...

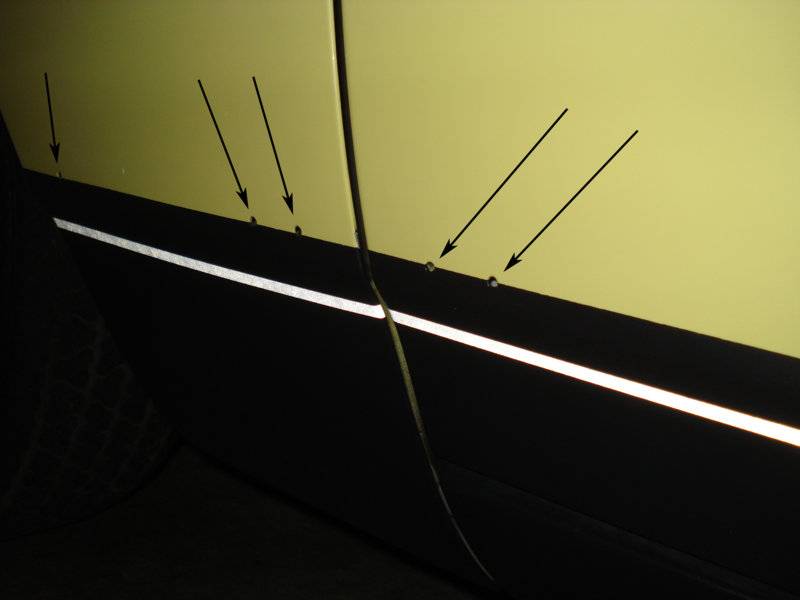

    This is not that wide rocker trim, X's in 69 did not have that. See attached pics. What I am trying to figure out is how the trim attaches using the plastic clips with plastic push pins...
    1969-plymouth-gtx.jpg 192-69TC.jpg

  5. gdrill

    gdrill Just enjoying "B"-ing here FBBO Gold Member

    Messages:
    3,573
    Likes Received:
    5928
    Joined:
    May 29, 2013
    Location:
    Stuck in the past, just North of Montana....
    Local Time:
    8:07 AM
    Just a question for my learning. Do those little plugs push into the T shaped piece from behind the steel? That would be a pain.

  6. moparnation74

    moparnation74 Well-Known Member

    Messages:
    10,506
    Likes Received:
    18015
    Joined:
    Mar 27, 2014
    Location:
    OHIO
    Local Time:
    9:07 AM
    Same question I am pondering but I do not think they do. It wouldn't make sense to do that on the factory line back in the day.

    My trim and clips are at the body shop and they are unsure as well. They want to make sure first before trying to tackle a learning experience on a painted car. It is an area I am not familiar with, obviously.

    So do they go on the car first and the trim snaps on over them? Or do the push pin and clip slide in the trim and you snap on as one piece? Or do they go in from the backside?

  7. threewood

    threewood FBBO Gold Member FBBO Gold Member

    Messages:
    4,987
    Likes Received:
    6488
    Joined:
    May 30, 2014
    Location:
    Yuma, AZ
    Local Time:
    7:07 AM
    Never done it, but what it looks like is the plastic clip goes in the hole, plastic pin goes in hole in clip pushing out the ears to keep it in place. Trim clips on to it.

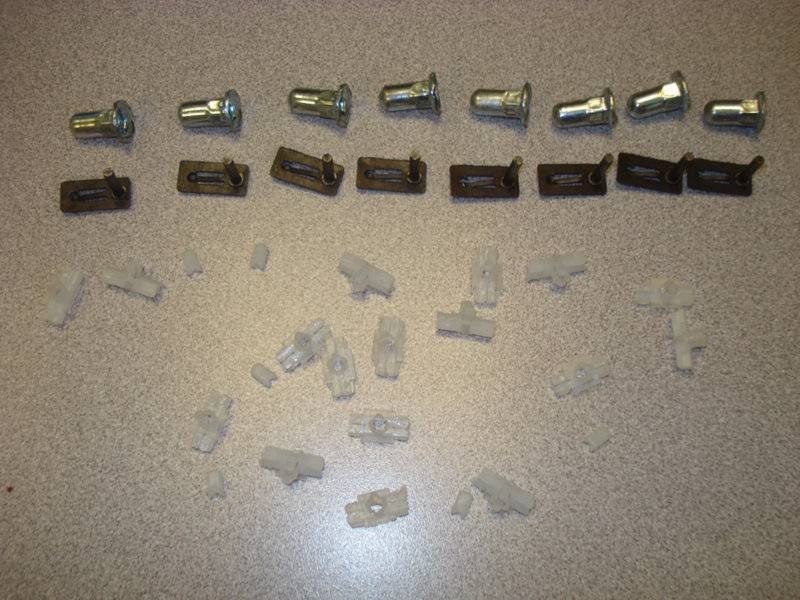

    You have 8 with studs and acorn nuts. Are these for the trunk / rear fender section. 4 per side?

    • Agree Agree x 1
    • moparnation74

      moparnation74 Well-Known Member

      Messages:
      10,506
      Likes Received:
      18015
      Joined:
      Mar 27, 2014
      Location:
      OHIO
      Local Time:
      9:07 AM
      Threewood,

      Thanks for the reply....The studs with nuts are 4 per side and appear to be used on the 2 long pieces(door, trunk). The other ones use the plastics clips only. I think that once all plastic clips are installed onto the body, you line up the trim with the stud hole and the trim snaps over the clips and the other pieces snap over the plastic clips only.....A very tricky situation with shiny paint and I have asked the resto shops about it and they all say, "been so long since we have done a 69 GTX, I cannot tell you, lol"

      The original trim from door forward was never removed from the car but the 2 1/4 pieces were and were glued on back in the day. So the stub with acorn was only on the front and rear end of the door in the latch/hinge area. Hence, is why The other 4 I believe were on the 1/4 pieces.....What is irritating is there is no reference to be found that shows this and why offer a kit with no reference? If you didnt have a reference how in the he## did you make a kit?

      Justin

    • dieseldazzle

      dieseldazzle Well-Known Member

      Messages:
      2,665
      Likes Received:
      1929
      Joined:
      Aug 31, 2014
      Location:
      California
      Local Time:
      9:07 AM
      Those plastic pins look like the fasteners used to attach the chrome strip at the top of cuda doors. You set them in the holes push the little barrel plastic pieces through and that spreads the tabs to allow the plastic piece to hold to the body. Then using light pressure you snap the chrome over them in increments.

      I've never done a gtx so I'm no expert but I've done tons and tons of mopar chrome using these attachments from cuda trim to first gen chargers.

      Make sure that the chrome is straight and flush first. On cudas, especially repop, the top door chrome has to be bent to shape perfectly of it will bow up, prior to locking in the clips.

      If patti don't have a trick for gtx then no one does FYI

      • Agree Agree x 1
      • moparnation74

        moparnation74 Well-Known Member

        Messages:
        10,506
        Likes Received:
        18015
        Joined:
        Mar 27, 2014
        Location:
        OHIO
        Local Time:
        9:07 AM
        DD,

        I agree completely! Thank you for the information and that was very helpful.....I just dread dealing with this....Want to cover all bases before I start the "snapping" process....

      • dieseldazzle

        dieseldazzle Well-Known Member

        Messages:
        2,665
        Likes Received:
        1929
        Joined:
        Aug 31, 2014
        Location:
        California
        Local Time:
        9:07 AM
        the best repops of these plastic clips are the ones that came from indydoc I believe and for the 66-67 charger peak mouldings. The smaller ones

        • Thanks! Thanks! x 1
        • dieseldazzle

          dieseldazzle Well-Known Member

          Messages:
          2,665
          Likes Received:
          1929
          Joined:
          Aug 31, 2014
          Location:
          California
          Local Time:
          9:07 AM
          • Thanks! Thanks! x 1
          • BeepBeepRR

            BeepBeepRR Well-Known Member

            Messages:
            6,440
            Likes Received:
            8995
            Joined:
            Oct 16, 2016
            Location:
            Atlanta,Ga
            Local Time:
            10:07 AM
            Found these pictures on the web. However they do not show how the clips are installed. But It does give placement. If you already have the holes the little rectangle clips pop into the hole. Then you install the pins to spread them out inside the body. From what I was told the metal posts with the speed nuts are for the tail end of the door and the piece below the GTX They have to be inserted into the chrome then pushed through the hole. And the speed nut goes on from inside the rear panel behind the regulator. I am about to install this on a friends car I will take pictures of how it is supposed to be installed. This set of pictures are for placement of the clips. The next post will have pictures of them installed when I do it.
            7712636-DSC02742rswarwscopy.jpg 7712689-DSC02697leftdoorandfender.jpg 7713589-DSC04180rs.jpg

          • moparnation74

            moparnation74 Well-Known Member

            Messages:
            10,506
            Likes Received:
            18015
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            9:07 AM
            Lol......thanks for the input but they have been installed and I detalied this in my build thread....

          • BeepBeepRR

            BeepBeepRR Well-Known Member

            Messages:
            6,440
            Likes Received:
            8995
            Joined:
            Oct 16, 2016
            Location:
            Atlanta,Ga
            Local Time:
            10:07 AM
            Ahh ok I searched everywhere on the web.. What a pain in the ass to try and find some instructions or pictures.

          • moparnation74

            moparnation74 Well-Known Member

            Messages:
            10,506
            Likes Received:
            18015
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            9:07 AM
            True....
            I vendors called experts and go the idunno.....

            This was the hardest thing to install on the X,.....

          • bearman

            bearman FBBO Gold Member FBBO Gold Member

            Messages:
            4,343
            Likes Received:
            4097
            Joined:
            Jan 9, 2018
            Location:
            Phoenix
            Local Time:
            7:07 AM
            I have been looking for those clips for my 64 and talk about alot of trim. But thats why i love it mega parts has them for your car now maybe the same or not but will give them a shot. I can only believe they must go on they body first then snap trim over it. Thanks for your help in understanding and were to get them.

          • moparnation74

            moparnation74 Well-Known Member

            Messages:
            10,506
            Likes Received:
            18015
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            9:07 AM
            I sent you a PM on where I purchased them.....

            They are an adventure to install.....Glad I could help my friend!

          • bearman

            bearman FBBO Gold Member FBBO Gold Member

            Messages:
            4,343
            Likes Received:
            4097
            Joined:
            Jan 9, 2018
            Location:
            Phoenix
            Local Time:
            7:07 AM
            Got it. I could take off my trim pretty easy im sure it was because it is 40 plus yrs old. I new a body man that always used vasiline on all clips and nuts when he put on trim. Said it made it easy ti install and i i ha to say he made it look easy. But when i get to that point i will just have to be real careful

          • JakeMA33

            JakeMA33 Member

            Messages:
            18
            Likes Received:
            28
            Joined:
            Sep 23, 2020
            Location:
            Minnesota
            Local Time:
            9:07 AM
            Hello, Can someone share where to get the side moulding clip set? Please..:)
