Fan shroud installation

Heating, Cooling & AC

  1. 66four40

    66four40 Well-Known Member

    Messages:
    89
    Likes Received:
    26
    Joined:
    Nov 18, 2013
    Location:
    Langley, BC
    Local Time:
    6:36 PM
    I enjoy seeing threads on installation ideas, so I thought I would show my fan shroud install. While I had it ripped apart I put a new 180 deg themostat, upper rad hose, lower rad hose, Alternator belt, P/S Belt and resealed the back exhaust manifold bolts. Here are the details;

    66 Belvedere I
    440, 727 TF
    No A/C
    Power steering
    External trans cooler
    Unknown aluminum rad
    7 blade mopar fan with 1" spacer
    Plastic Mopar shroud

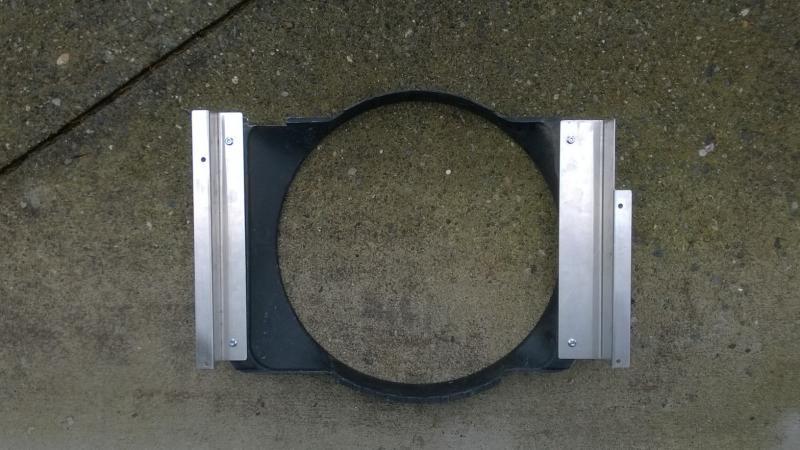

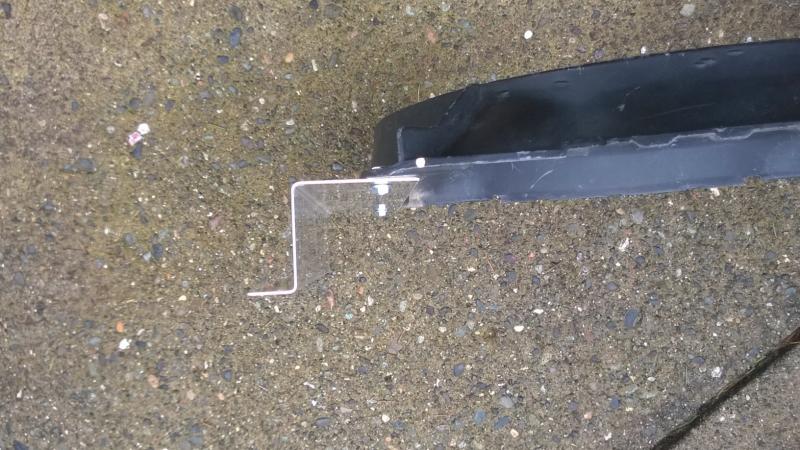

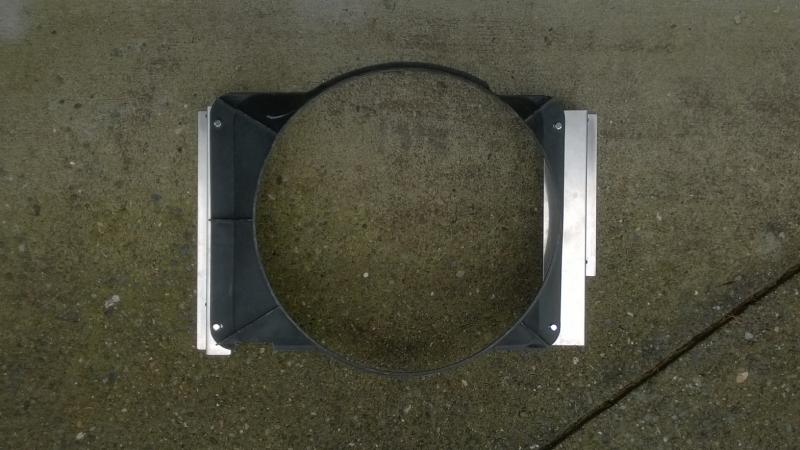

    Custom bent aluminum mounting brackets for shroud

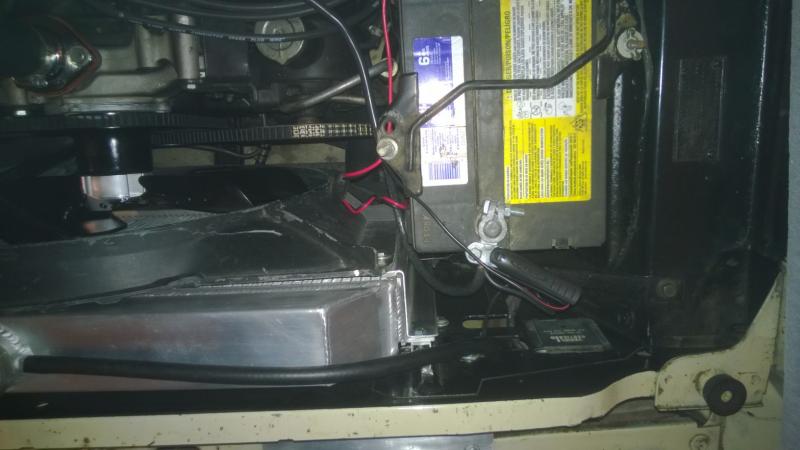

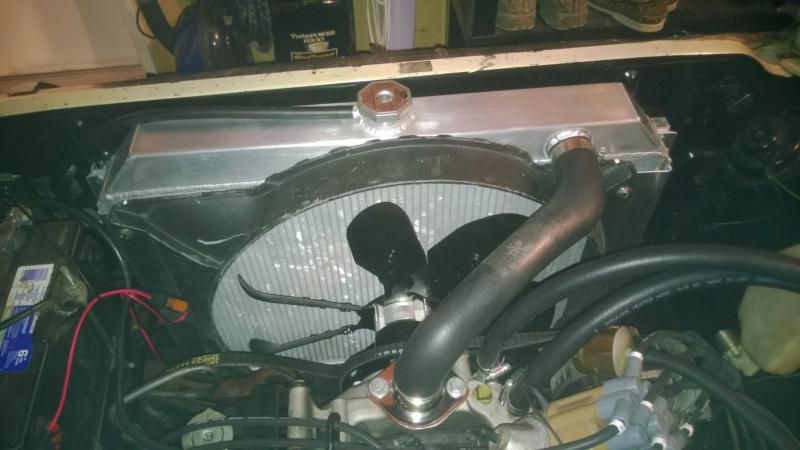

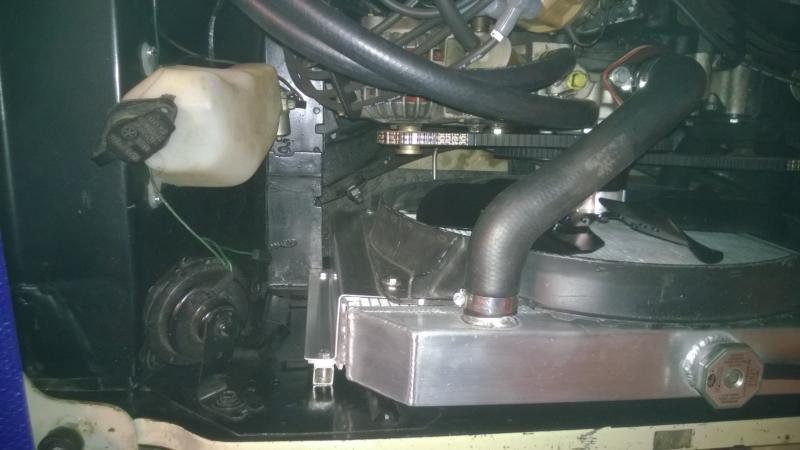

    Let me know if you have any questions. WP_20150117_001.jpg WP_20150117_002.jpg WP_20150117_003.jpg WP_20150117_006.jpg WP_20150117_007.jpg WP_20150117_010.jpg

    WP_20150117_001.jpg WP_20150117_002.jpg WP_20150117_003.jpg WP_20150117_006.jpg WP_20150117_007.jpg WP_20150117_010.jpg

    • Like Like x 4
    • 5.7 hemi

      5.7 hemi FBBO Gold Member FBBO Gold Member

      Messages:
      10,987
      Likes Received:
      6839
      Joined:
      Dec 21, 2008
      Location:
      ca
      Local Time:
      8:36 PM
      Good Job!

      • Like Like x 1
      • aldal

        aldal FBBO Gold Member FBBO Gold Member

        Messages:
        1,826
        Likes Received:
        902
        Joined:
        Feb 14, 2012
        Location:
        Al's World
        Local Time:
        8:36 PM
        Well done. :headbang:

        • Like Like x 1
        • 69redrunner

          69redrunner Well-Known Member

          Messages:
          614
          Likes Received:
          189
          Joined:
          Aug 9, 2011
          Location:
          Prescott, Wi
          Local Time:
          8:36 PM
          Nice.

          • Like Like x 1
          • hsorman

            hsorman FBBO Gold Member FBBO Gold Member

            Messages:
            3,011
            Likes Received:
            2775
            Joined:
            Aug 8, 2011
            Location:
            Lansdale, PA
            Local Time:
            9:36 PM
            Nice! It will be a huge help to ensure your car stays cool. Good Idea!

            • Like Like x 1
            • 68 Sport Satellite

              68 Sport Satellite FBBO Gold Member FBBO Gold Member

              Messages:
              1,150
              Likes Received:
              264
              Joined:
              Feb 10, 2010
              Location:
              San Jose, CA
              Local Time:
              6:36 PM
              I know this is an older post, but I like that shroud you've got there. Can you please tell us what size rad that is for (22" or 26")? And if you have an order part # that would be great. I have a '68 b body and the stock replacement shroud is so shallow (only about 1.25"). I'm after something that shrouds with more depth like the one you've installed. How deep is that shroud? Looks like at least 2 inches.

            • Hamid

              Hamid The queen of the 60's Mopar

              Messages:
              53
              Likes Received:
              16
              Joined:
              May 25, 2017
              Location:
              Saudi Arabia
              Local Time:
              4:36 AM
              I like the shroud, all other parts are not obsolete.

            • 66four40

              66four40 Well-Known Member

              Messages:
              89
              Likes Received:
              26
              Joined:
              Nov 18, 2013
              Location:
              Langley, BC
              Local Time:
              6:36 PM
              For some reason, I didn't see your questions originally. I will bust out the measuring tape this weekend and reply with the part numbers as well. I apologize for not getting back to you.

            • 66four40

              66four40 Well-Known Member

              Messages:
              89
              Likes Received:
              26
              Joined:
              Nov 18, 2013
              Location:
              Langley, BC
              Local Time:
              6:36 PM
              26" rad, the shroud is 2 1/4" deep. Again, sorry for the delay in getting back to you. It looks like the shroud part number is 2828288.

              • Like Like x 1
              • 68 Sport Satellite

                68 Sport Satellite FBBO Gold Member FBBO Gold Member

                Messages:
                1,150
                Likes Received:
                264
                Joined:
                Feb 10, 2010
                Location:
                San Jose, CA
                Local Time:
                6:36 PM
                Thanks!
