Front OE disc's on a 70 Roadrunner

[Travis Jones]

Hey guys! I was wondering if any of you guys can snap me a pic of your front OE disc brake set up. I'm in the process of building my car and have just now got back around to working on it. It's been down and apart for about a year. I'm going back together with the front brakes and can't seem to figure out how the outer pad retaining wire should be installed. Every way I've tried doesn't seem right. It took a picture of the caliper from the top side to have a reference but can't see the retainer. See pic for reference. Thanks!



[WileERobby]

Do you have a FSM ?



[Travis Jones]

Do you have a FSM ?

FSM...?



[dadsbee]

Factory Service Manual..

Best I've got for ya..



[Travis Jones]

Factory Service Manual..

Ah.. I do not...



[Travis Jones]

I see where some use them and some don't. Basically anti rattle retainers. Just trying to go back together with it like it was originally. I've searched everywhere and no luck on an image.



[WileERobby]

It's a good thing to have.



[dadsbee]

I see where some use them and some don't. Basically anti rattle retainers. Just trying to go back together with it like it was originally. I've searched everywhere and no luck on an image.

I guess you're not looking hard enough...



[Travis Jones]

‍♂️ Spent about an hour searching Google. All I found were conversion set up's. I searched the forum for all key words that may pull old threads up and only came across a guy with a 73 satellite wondering about the same retainer. ‍♂️‍♂️



[Travis Jones]

Factory Service Manual..

Best I've got for ya..

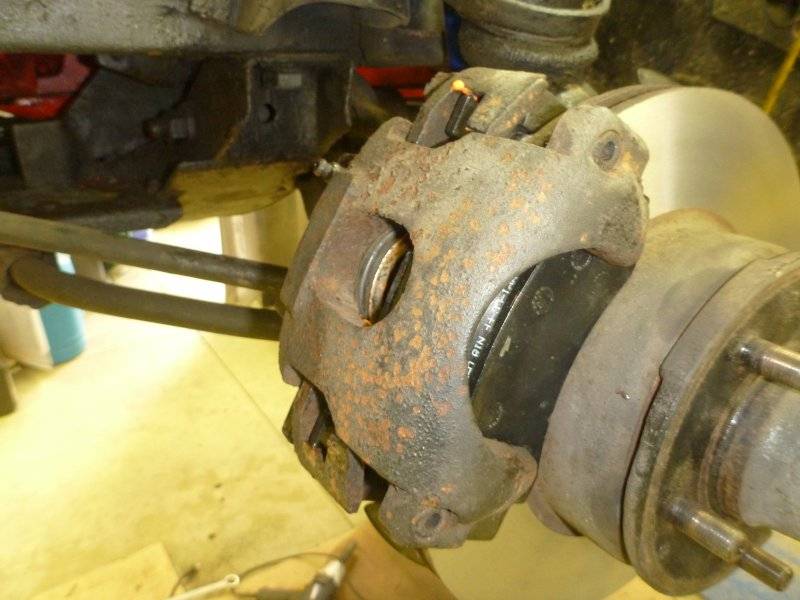

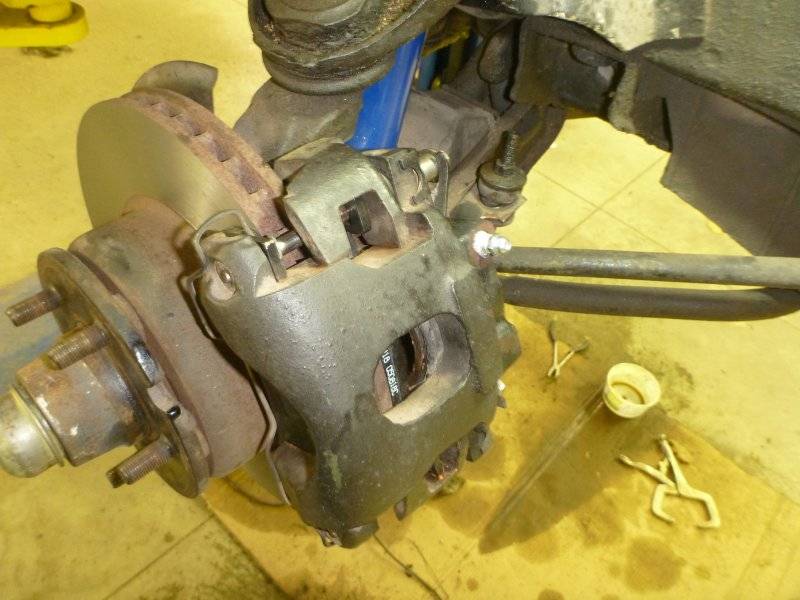

View attachment 1368923View attachment 1368924View attachment 1368925

Thanks dadsbee



[Travis Jones]

I really appreciate the quick response from you guys! I'll be locating a FSM for future reference. Have a blessed evening guys!



[Travis Jones]

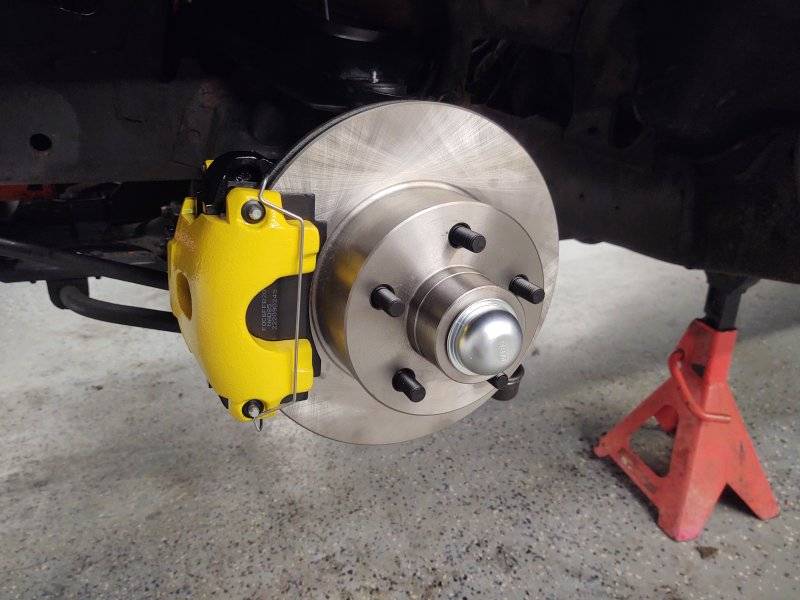

Thanks again dadsbee!



[Photon440]

I really appreciate the quick response from you guys! I'll be locating a FSM for future reference. Have a blessed evening guys!

Here you go. Service Manuals – MyMopar
