Front plastic splash shields

rrTor-Red

FBBO Gold Member
FBBO Gold Member
Local time
5:59 AM
Joined
Sep 1, 2010
Messages
2,219
Reaction score
793
Location
USA
Does anyone have pictures of the plastic splash shields on the front suspension on where they go (frame rail)? Is there four total? Mine were off of the car nd trying to find them and install.

Thanks!


440 4 speed

FBBO Gold Member
FBBO Gold Member
Local time
4:59 AM
Joined
Oct 20, 2019
Messages
2,039
Reaction score
1,107
Location
Saskatoon Saskatchewan Canada
There is a pair, one on each side attached to the frame rail, early 66 maybe all of 66 metal bolted on, 67 plastic riveted on.


Bee1971

Well-Known Member
Local time
5:59 AM
Joined
Jun 22, 2017
Messages
1,652
Reaction score
1,916
Location
Sobieski

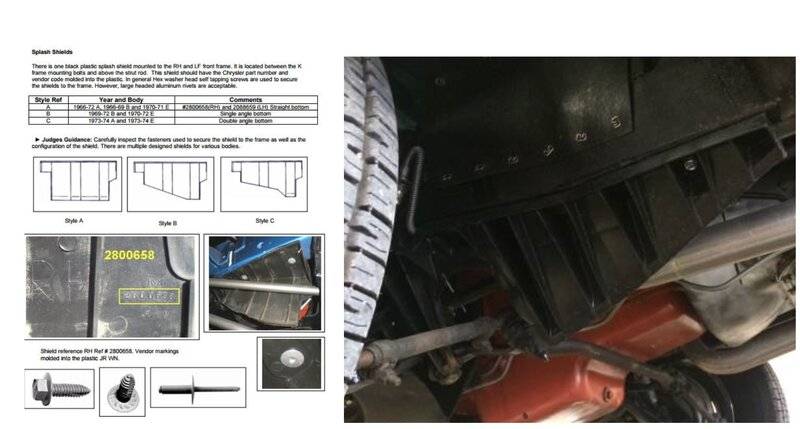

I used this picture as an reference - I did not want to rivet mine on

The holes where in the frame perfect when I put these in place

Bought mine from DMT

https://www.detroitmuscletechnologi...-splash-shield-with-pop-rivets-angled-bottom/



rrTor-Red

FBBO Gold Member
FBBO Gold Member
Local time
5:59 AM
Joined
Sep 1, 2010
Messages
2,219
Reaction score
793
Location
USA

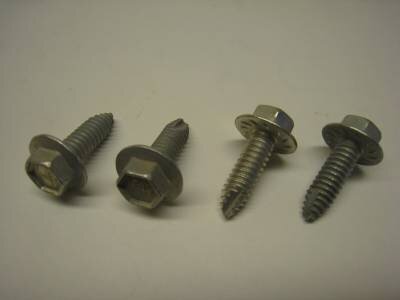

I forgot to mention, mine is a 71. I found one and it had self tapping bolts with it, no rivets. Pictures would be helpful too


rrTor-Red

FBBO Gold Member
FBBO Gold Member
Local time
5:59 AM
Joined
Sep 1, 2010
Messages
2,219
Reaction score
793
Location
USA
Thanks Bee! I think I'm missing the passenger side


rrTor-Red

FBBO Gold Member
FBBO Gold Member
Local time
5:59 AM
Joined
Sep 1, 2010
Messages
2,219
Reaction score
793
Location
USA
My bolts are 7/16 by 1/4 20(?). They fit the hole that I found attached to one if the shields
