Fuel regulator mounting location

Moparlike

Active Member
Local time
1:50 PM
Joined
Mar 19, 2010
Messages
30
Reaction score
6
Location
Baldwinsville NY
1969 Road Runner. 6bbl.
I’ve added an electric fuel pump, and I’m going with 1/2” fuel lines.
I’m attempting to mount a fuel regulator with a return line.

Does anyone have a suggestion where to mount the regulator?
And how/where to stuff all of these fuel lines?

Thanks!
Any photos would be huge....


493 Mike

FBBO Gold Member
FBBO Gold Member
Local time
1:50 PM
Joined
Dec 25, 2011
Messages
4,182
Reaction score
4,661
Location
White Cloud, MI

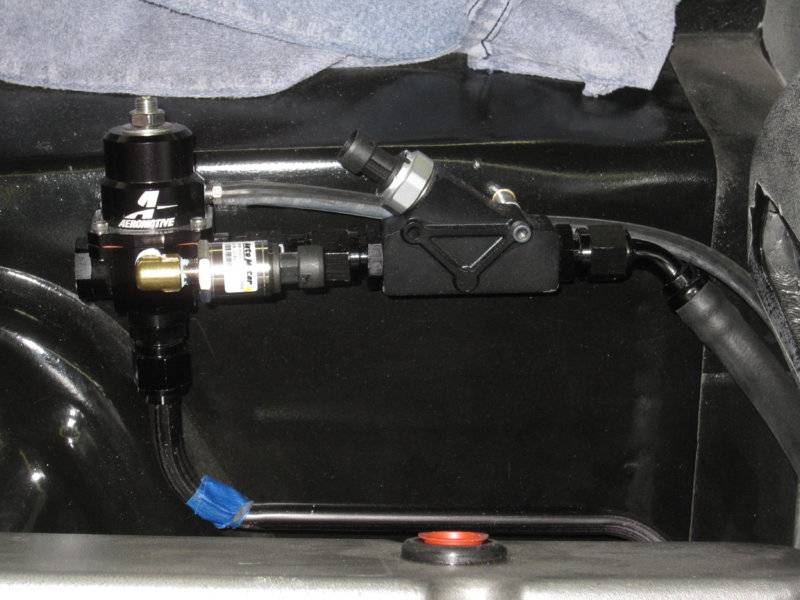

My regulator on right inner fender. I'm running from the pump to the FI body-out from FI to regulator and out bottom of regulator to fuel cell return fitting.

Mike


65hemi

Well-Known Member
Local time
12:50 PM
Joined
May 21, 2011
Messages
1,027
Reaction score
2,190
Location
Winnipeg, Manitoba

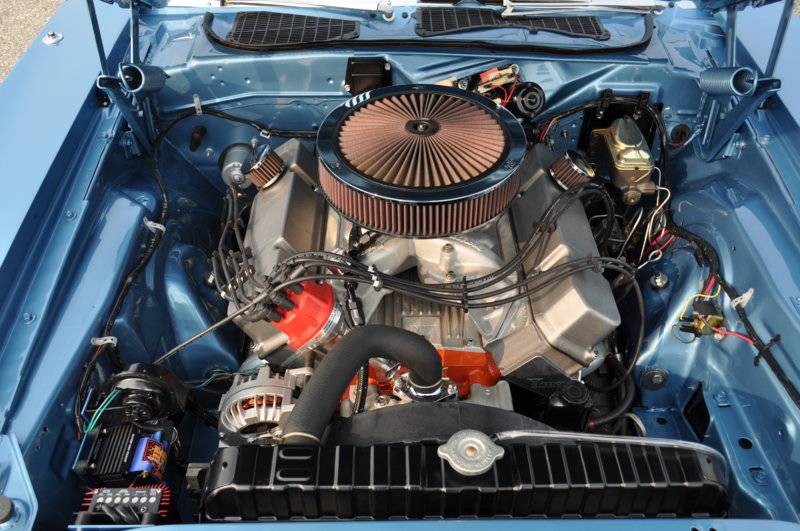

Not a RR, but similar concept. For my Cuda, I made a plate that mounts to the passenger inside fender using the horn bracket bolts. I mounted the regulator and coil on the plate. I did not want to drill extra holes in the body. The 1/2" supply line runs from the tank to the electric pump through filters to the regulator in the stock location under the body. The 1/2" return line runs parallel to the supply back to the tank.



PurpleBeeper

Well-Known Member
Local time
12:50 PM
Joined
Mar 20, 2011
Messages
4,896
Reaction score
3,630
Location
Chicago

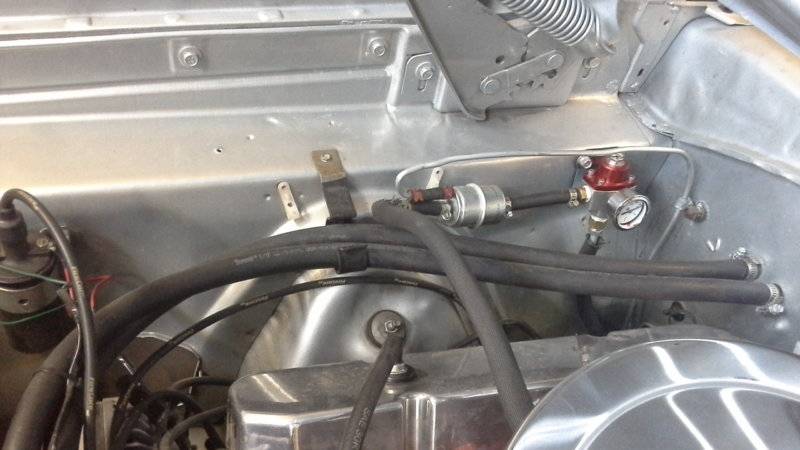

I mounted my regulators on the passenger inner fender just like 493 Mike. My fuel lines run "overhead" (motor) and along the firewall (nitrous) trying to keep everything as far away from the headers as possible. I will be adding some heat wrap soon, probably to both the fuel lines and the header pipes.

For the fuel lines, I ran mine along the same route as the factory fuel line (weaving in/out of the frame) to protect them in case of (God forbid) a crash. I have not added my return lines yet, and it's a little tight with two 3/8" feed lines already, so I may have to get creative on those.
