Gauge cluster disassembly??

[91r/t]

Hey all! Looking at my dads 66 Charger gauge cluster and I need to disassemble the lenses and can't figure out how they come apart. Do the clear ring parts with temp, speedo, alt, etc. come out through the front or the back of the actual bezel? Also what holds them in? This has little tabs it looks but they break off when you touch them. Anyone have any info I'd appreciate it. Pics would be awesome!



[Vix66]

Hey all! Looking at my dads 66 Charger gauge cluster and I need to disassemble the lenses and can't figure out how they come apart. Do the clear ring parts with temp, speedo, alt, etc. come out through the front or the back of the actual bezel? Also what holds them in? This has little tabs it looks but they break off when you touch them. Anyone have any info I'd appreciate it. Pics would be awesome!

I have a couple instrument clusters out of the dash, if i can take any pics to help or anything just let me know.



[RedBeard]

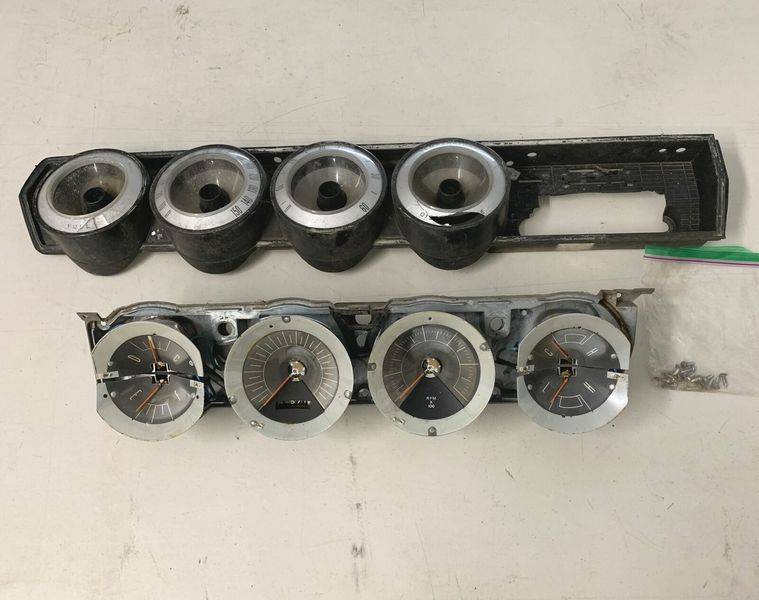

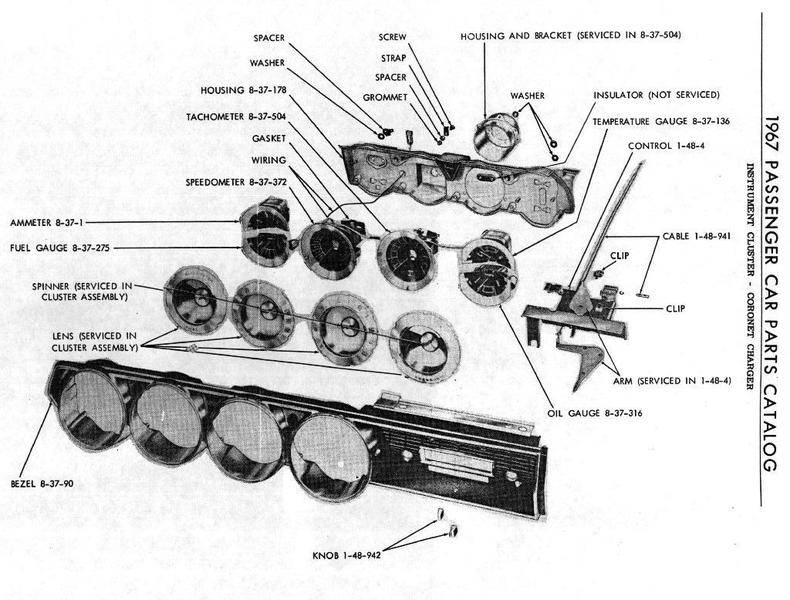

Is this where you are at? Now taking them apart?



[91r/t]

View attachment 841439

View attachment 841440

Is this where you are at? Now taking them apart?

Yes sir! I have to pop those lenses out of the main bezel to swap a couple that are broke. They come out with removing the silicone and popping them out the back it looks like?



[chescharger]

Contact the Gauge Doc.



[gibber]

It is very difficult to get 50 plus year old hardened silicone cut out to get those old broken lenses out. It can be done with patience. Critical that you don't break the bezel itself. You can contact me thru my website if you'd like. Google Gaugedoc.

Thanks,

Mark



[91r/t]

It is very difficult to get 50 plus year old hardened silicone cut out to get those old broken lenses out. It can be done with patience. Critical that you don't break the bezel itself. You can contact me thru my website if you'd like. Google Gaugedoc.

Thanks,

Mark

Thanks for the info man! I have a junk old bezel I will try and mess with first to see how they all come apart and then I will attempt it on my good one if I feel up to it. Any gauge issues and/or stuff not working, I will get in touch with you for sure! Thanks again!



[gibber]

No problem, glad to help!
