GTX '68 Coolant Reservoir Tank

gtx-

Active Member
Local time
7:44 PM
Joined
Oct 7, 2021
Messages
35
Reaction score
19
Location
Amsterdam

493 Mike

FBBO Gold Member
FBBO Gold Member
Local time
1:44 PM
Joined
Dec 25, 2011
Messages
4,269
Reaction score
4,757
Location
White Cloud, MI
Spend a little time searching your local junkyard.
Mike


moparedtn

Ed on the Ridge
FBBO Gold Member
Local time
1:44 PM
Joined
May 14, 2011
Messages
13,816
Reaction score
23,055
Location
On the Ridge, TN
Pretty sure our '68 GTX's didn't come with one, so you'll just have to retro something else
on it.
What year did they start using them on Plymouth b-bodies?


gtx6970

Well-Known Member
Local time
10:44 AM
Joined
Dec 29, 2015
Messages
1,865
Reaction score
2,973
Location
Tucson AZ
Pretty sure our '68 GTX's didn't come with one, so you'll just have to retro something else
on it.
What year did they start using them on Plymouth b-bodies?

1972,,,,,maybe some very late 71s


Outlawd

Well-Known Member
Local time
12:44 PM
Joined
Dec 18, 2020
Messages
508
Reaction score
1,125
Location
United States of America
Pretty sure our '68 GTX's didn't come with one
Pretty sure your right, my '68 GTX never had one. I robbed one from a '66 newyorker I had laying out back. It was big and ugly so later removed it and since been running without one, it never dribbles anyway and I don't take it to the track where they are required. On second though the big ugly thing came from a 70's Cordoba.


gtx-

Active Member
Local time
7:44 PM
Joined
Oct 7, 2021
Messages
35
Reaction score
19
Location
Amsterdam
So it is normal to run it without? Also with an aftermarket radiator?


1967coronet

Well-Known Member
Local time
12:44 PM
Joined
Jun 19, 2014
Messages
4,134
Reaction score
5,561
Location
Iowa
So it is normal to run it without? Also with an aftermarket radiator?
Yes, just make sure you have a good cap and you have some room for coolant expansion , 1 to 1 1/2" .
Nipple out of the filler neck should have a hose running down the side and then drops through a hole on the lower radiator support.


68gtxman

FBBO Gold Member
FBBO Gold Member
Local time
1:44 PM
Joined
Aug 23, 2011
Messages
3,415
Reaction score
7,730
Location
Eastampton, NJ
So it is normal to run it without? Also with an aftermarket radiator?
It depends on what radiator cap you use. The one for a coolant tank has a two way action, letting expanding coolant out and then return when it cools. The cap for no overflow only lets coolant out


Frank Mopar

Well-Known Member
Local time
1:44 PM
Joined
May 7, 2015
Messages
1,038
Reaction score
1,610
Location
Buffalo, NY

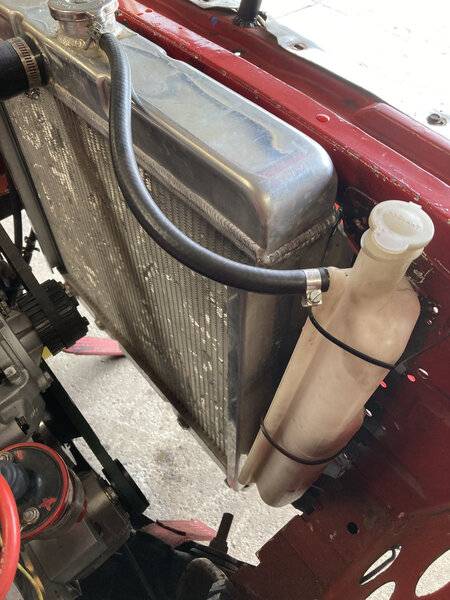

Damn if I can remember where I got this coolant recovery bottle. The cap is a Stant vented #10231.

You want to make sure the line to the bottle is clamped. If it won’t hold a vacuum it won’t work


Billccm

FBBO Gold Member
FBBO Gold Member
Local time
10:44 AM
Joined
Aug 3, 2016
Messages
2,886
Reaction score
2,562
Location
Tucson
Summit racing. No holes drilled.



Frank Mopar

Well-Known Member
Local time
1:44 PM
Joined
May 7, 2015
Messages
1,038
Reaction score
1,610
Location
Buffalo, NY
Three reasons to run a recovery system

1- it keep the radiator full which keeps air out of the system

2- it protects the environment

3- you can’t run on a track without it or a catch can.


beanhead

Well-Known Member
Local time
10:44 AM
Joined
May 18, 2014
Messages
7,222
Reaction score
12,979
Location
Wackyfornia

Billccm

FBBO Gold Member
FBBO Gold Member
Local time
10:44 AM
Joined
Aug 3, 2016
Messages
2,886
Reaction score
2,562
Location
Tucson
Three reasons to run a recovery system

1- it keep the radiator full which keeps air out of the system

2- it protects the environment

3- you can’t run on a track without it or a catch can.
Keeping the air out reduces cavitation which impacts cooling efficiency. Also you can run two additional quarts of coolant.


diesel_lv

FBBO Gold Member
FBBO Gold Member
Local time
11:44 AM
Joined
Dec 17, 2018
Messages
1,569
Reaction score
1,869
Location
Arizona
There are 2 types, simple overflow bottle, one inlet just to catch expansion for drag strip requirements, which on the street, totally unnecessary, have aluminum aftermarket radiator in AZ where it's 125° in the summer and as long as I leave the 1" space for expansion with a 16lb cap, never even a dribble nor overheat issue. 2nd is for keeping the radiator completely full and also requires the bottle to have some in it. This type has 2 nipples, one inlet and one for air displacement. This kind needs the 2 way radiator cap as mentioned above.


BSB67

Well-Known Member
Local time
1:44 PM
Joined
Jan 18, 2018
Messages
1,980
Reaction score
1,701
Location
PA

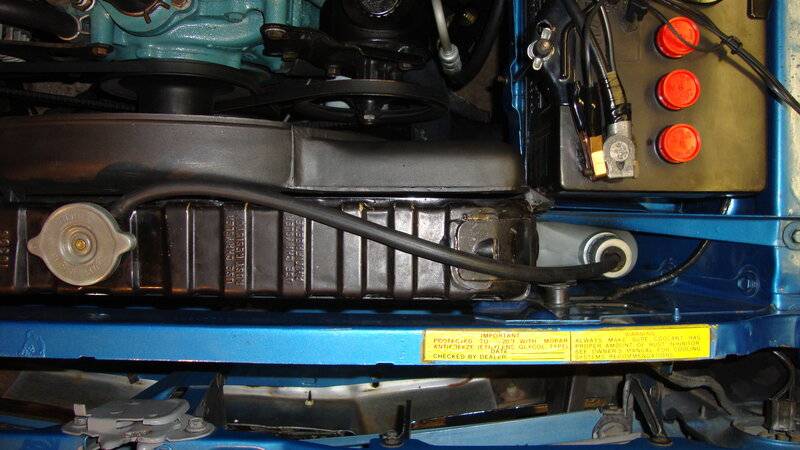

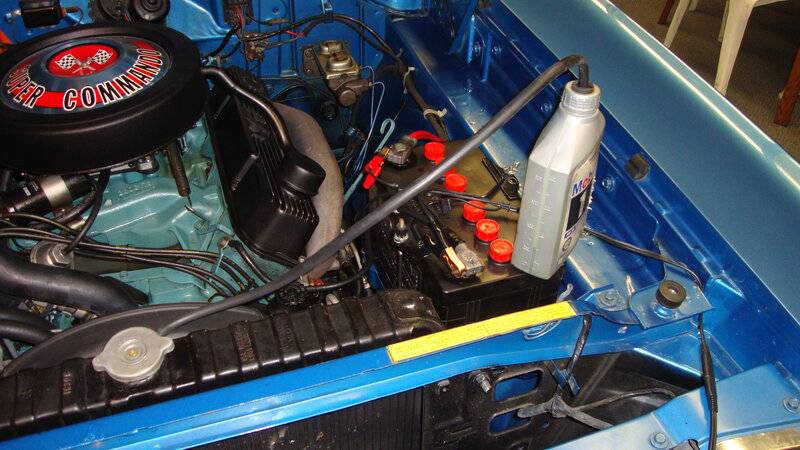

Here is what I did...cheap, barely noticeable and works like a charm.

View attachment 1179150 View attachment 1179151

I like it.

In 1987, I took my Charger to the track for the first time. Needed an overflow can. Found a coffee can w/ plactic lid in the trash. Used some cheap azz metal strapping and secured it next to the radiator. Cut two holes in the plastic top, one for the hose, the other as a vent. A little embarrassed to say, but I'm still using it today
