I bought the short Hayden fan clutch 2747. It's overall height is 2.71". The stock height Hayden 2747 is about 5/8" taller at 3.34", by the way.

I'm having a hard time finding the right studs and bolts combination to install this on my water pump. I bought the Mopar oem fan bolt kit that comes with 4 5/16"-18 bolts. I also, purchased a oem stud kit with conical washers but the studs are a 5/16"-24 thread all the way down and the Hayden fan clutches are 5/16"-18 thread.

So, I bought a Dorman 23733: Water Pump Stud Kit - 5/16-18 x 7/16 and 5/16-24 x 5/8 Overall Length of 1-1/4
water pump stud kit.

I can install the fan on the clutch with short bolts. However, there's not enough clearance between them and the flange to get a bolt or a nut onto a stud in the water pump flange.

I know the short Hayden fan clutch 2947 is very popular. So, I wonder what you guys did to get things installed.

Thanks

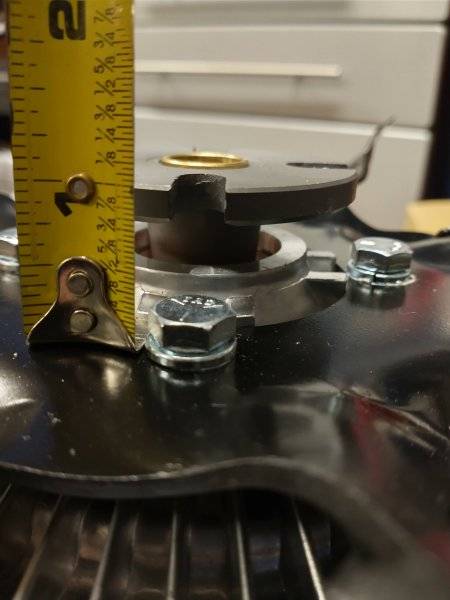

Fan clutch clearance.jpg

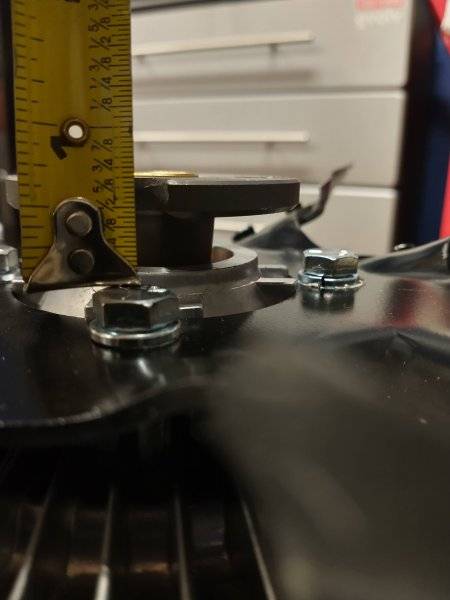

Fan clutch clearance between bolts.jpg


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
8:40 PM
Joined
Jul 15, 2009
Messages
9,341
Reaction score
9,307
Location
WI
It's always a bugger getting them on the water pump. I use bolts. Barely start one and then work around. You have to hold the fan away from the pump as you go to get enough clearance to get the other bolts in. Then tighten each one a bit as you continue around to the next. Not a fun job.


69ChargerR/TSE

FBBO Gold Member
FBBO Gold Member
Local time
8:40 PM
Joined
Jul 17, 2021
Messages
399
Reaction score
176
Location
Fort Worth
It's a Pain, bolted the fan to the clutch with these washers

I bought 2 packs(8 bolts total) of these.
C-8137ENGINE FAN CLUTCH > WATER PUMPPLACE BOLTS4$8

AMK Products # C-8137

5/16-18 X 3/4 GR5 PLACE BOLT ZC. 4 pk



RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
8:40 PM
Joined
Jul 1, 2015
Messages
3,140
Reaction score
3,248
Location
South Shores area of Decatur, Illinois
I bought the short Hayden fan clutch 2747. It's overall height is 2.71". The stock height Hayden 2747 is about 5/8" taller at 3.34", by the way.

I'm having a hard time finding the right studs and bolts combination to install this on my water pump. I bought the Mopar oem fan bolt kit that comes with 4 5/16"-18 bolts. I also, purchased a oem stud kit with conical washers but the studs are a 5/16"-24 thread all the way down and the Hayden fan clutches are 5/16"-18 thread.

So, I bought a Dorman 23733: Water Pump Stud Kit - 5/16-18 x 7/16 and 5/16-24 x 5/8 Overall Length of 1-1/4
water pump stud kit.

I can install the fan on the clutch with short bolts. However, there's not enough clearance between them and the flange to get a bolt or a nut onto a stud in the water pump flange.

I know the short Hayden fan clutch 2947 is very popular. So, I wonder what you guys did to get things installed.

Thanks

View attachment 1340163

View attachment 1340164
Just my opinion.....you do not need the hex cap screw, the split collar lock washer and shake proof washer.....just use the cap screw, shake proof washer AND orange Loctite on the threads. Or try Tony's parts for the correct mounting hardware.....fan blades to clutch and fan clutch hub to water pump.....
BOB RENTON


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma
Just my opinion.....you do not need the hex cap screw, the split collar lock washer and shake proof washer.....just use the cap screw, shake proof washer AND orange Loctite on the threads. Or try Tony's parts for the correct mounting hardware.....fan blades to clutch and fan clutch hub to water pump.....
BOB RENTON
I have all the factory correct hardware. As I said, the studs don't work with the new clutch.

I appreciate all of your attempts to help but, so far, none of you have said you're using the short fan clutch. That creates the whole problem. I think I would need bolts with 3/8" of thread to install this clutch to the wp.


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma
I forgot to point out the distance between the fan bolts and the front of the clutch flange is only 1/2" but that raised machined area gets in the way of every bolt I've tried to squeeze in there.

I measured the distance from the front of the fan clutch and blades to the radiator and ordered the taller clutch I mentioned before. I'm hoping it will give me the room I need to bolt the thing together and be done.


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
8:40 PM
Joined
Jul 15, 2009
Messages
9,341
Reaction score
9,307
Location
WI
I appreciate all of your attempts to help but, so far, none of you have said you're using the short fan clutch. That creates the whole problem. I think I would need bolts with 3/8" of thread to install this clutch to the wp.
I can guarantee that you can get bolts in there. I am running that clutch on all 3 of my cars. I'm surely not going to take one out to measure for you, but I believe they are 1 inch long....





WileERobby

Well-Known Member
Local time
9:40 PM
Joined
Sep 15, 2009
Messages
12,371
Reaction score
20,556
Location
State of insanity
I have all the factory correct hardware. As I said, the studs don't work with the new clutch.

I appreciate all of your attempts to help but, so far, none of you have said you're using the short fan clutch. That creates the whole problem. I think I would need bolts with 3/8" of thread to install this clutch to the wp.
I am. But I forgot what I used.


4406bbl

Well-Known Member
Local time
8:40 PM
Joined
Feb 8, 2015
Messages
820
Reaction score
862
Location
nebraska
I have all the factory correct hardware. As I said, the studs don't work with the new clutch.

I appreciate all of your attempts to help but, so far, none of you have said you're using the short fan clutch. That creates the whole problem. I think I would need bolts with 3/8" of thread to install this clutch to the wp.
You use the stock place bolts, start one with like 2 threads, hold the clutch about 1/2" away from the water pump pulley as stated earlier, start the other 3, then tighten each one, one turn at a time until tight. Not fun but it can be done.


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma
I found another problem. The bushing is about 1/16" too long. The clutch rocks and doesn't sit flush against the wp flange. You can see it in my photos.


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
8:40 PM
Joined
Jul 15, 2009
Messages
9,341
Reaction score
9,307
Location
WI
I found another problem. The bushing is about 1/16" too long. The clutch rocks and doesn't sit flush against the wp flange. You can see it in my photos.
I have run across that as well. Just removed a bit of the bushing on my bench belt sander.


Michael_

FBBO Gold Member
FBBO Gold Member
Local time
3:40 AM
Joined
Jan 31, 2019
Messages
1,329
Reaction score
1,272
Location
Germany
Well i installed one of these in my car.
Unfortunately i do not recall all the details...

I also used short bolts to bolt the fan to the clutch. (I don't recall if i used washers or not)
I then used "some" bolts, maybe the originals, maybe others to bolt the clutch to the water pump.
I also recall getting the bolts in there was very tricky/tight. But somehow got it done in the car, one by one using 2 people.

In your picture the bolt holes of your flange are inline with your fan bolts.
You can move around the clutch flange so it's not in line with your fan bolts giving you a bit more clearance.

We also had to trim down that golden clutch insert a little in order to create a flat mounting surface to the water pump.


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma
I just received the taller clutch. It has the correct size bushing that sits flush in the hole. I plan on installing it tomorrow. Too late to return the short clutch to Rock Auto. So, it might end up in a for sale thread.

P. S. Why does Hayden ship their fan clutches with a bushing and 4 lick washers? Why not include bolts to install the fan, too?


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma

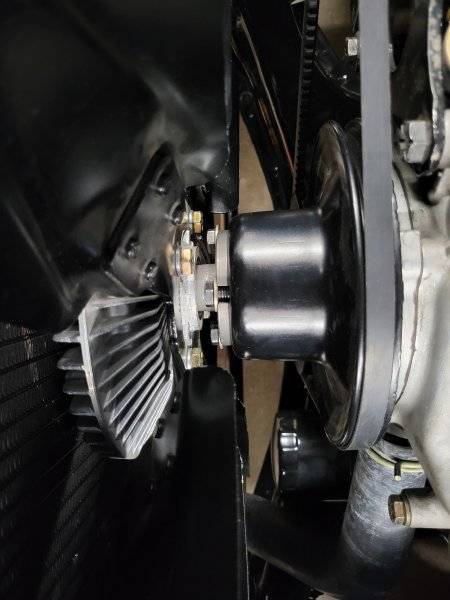

I tried the tall clutch and had 5/8" clearance from the radiator. That would have solved the installation issue with the bolts but caused a worse situation. So, I took the advice of the experienced and finally installed the short clutch. I used the AMK repro 7/8" bolts and the lock washers that came with the clutch to fasten the it to the water pump. I also shaved down the bushing, as suggested.

Thanks everyone.

BTW, I'm working on Uncle Bill's 340 Cuda using a new 26" Cold Case radiator, which, I can't recommend due to the fact oem shrouds (I trued 3) do not fit properly. I modified the one CC recommended, which was out of stock everywhere. So, I paid $225 for a cracked used shroud. I got it installed but it has 1/2" gaps along both sides.


4406bbl

Well-Known Member
Local time
8:40 PM
Joined
Feb 8, 2015
Messages
820
Reaction score
862
Location
nebraska
Glad you got it on there. You should be fine but look up the definition of "place bolt" like the factory fan bolts and amk repros are, they do not need lock washers.


themechanic

Oklahoma is OK
FBBO Gold Member
Local time
8:40 PM
Joined
Nov 11, 2012
Messages
16,398
Reaction score
18,986
Location
Moore, Oklahoma
Glad you got it on there. You should be fine but look up the definition of "place bolt" like the factory fan bolts and amk repros are, they do not need lock washers.
Hayden provided the washers for a good reason.


4406bbl

Well-Known Member
Local time
8:40 PM
Joined
Feb 8, 2015
Messages
820
Reaction score
862
Location
nebraska
I don't want to argue, I thought maybe you did not understand how place bolts work. Spend a little time and research place bolts and how they work. They are used in critical areas like flywheels, power steering control valve castings, fan clutchs, stuff you really do not want coming loose.
