FOR SALE Headlight Door Actuator Kits New! $150

Status
Not open for further replies.

mguner

Well-Known Member
Feedback: 0 / 0 / 0
Local time
10:43 AM
Joined
Jul 17, 2008
Messages
147
Reaction score
4
Location
Amarillo Texas

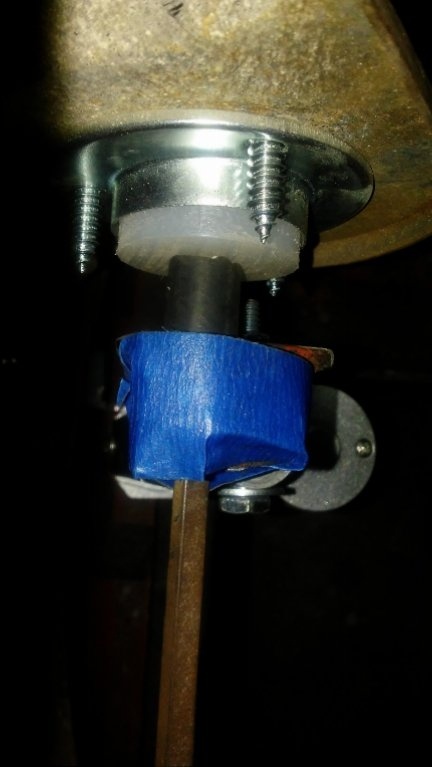

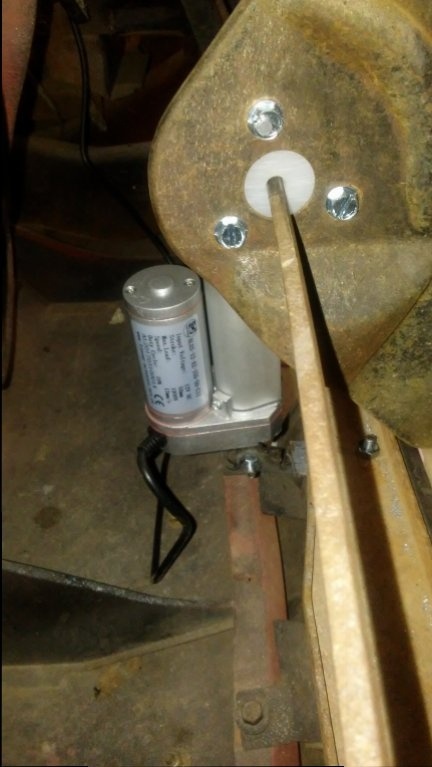

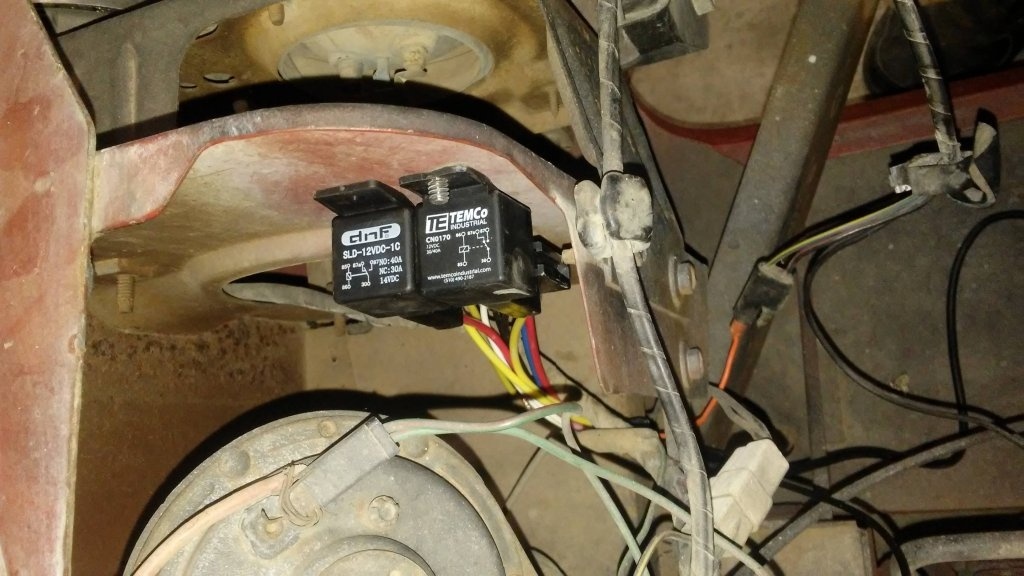

This is an easy install and a reliable replacement for the fragile and troublesome worm drive motors. Only one 1/4" hole has to be drilled for the bottom bracket. The system is a power off close so a single SPST switch can be used if your car was not an original hideaway car or the Mopar relay is toast. You can also activate the relays off a marker or low beam circuit. Power feeds from starter relay terminal, and grounds on core support ground terminal. The kit includes: Actuator and mounting hardware, pre-wired fuse protected relay pack, new polymer support bearing with steel cage, complete instructions and email support if needed. This is a bolt on for 3rd Gen Chargers so other models will require a custom lower bracket. Paypal or MO accepted just PM me for more info.

Thank you FBBO!


Last edited:

mguner

Well-Known Member
Feedback: 0 / 0 / 0
Local time
10:43 AM
Joined
Jul 17, 2008
Messages
147
Reaction score
4
Location
Amarillo Texas
This installs in just a few minutes and is plug and play. No wire cutting or splicing on original Hideaway cars. Save your OEM setup for the shows and swap this back on for your daily driving. The hardest part is drilling the 1/4" hole in the bumper bracket cross brace which (depending on the size of your drill and length of the bit) may require removing the license bracket and drilling from the bottom.
I will have 3 more kits ready to ship out this week!
