    Has anyone ever tried to do the headlight relay conversion on a Charger with rotating headlights? I was going to do it but I can't see how it would work given the limited space.

  2. davek

    davek FBBO Gold Member FBBO Gold Member

    Messages:
    6,208
    Likes Received:
    6100
    Joined:
    Oct 14, 2017
    Location:
    columbia SC
    Local Time:
    10:20 AM
    • Agree Agree x 1
    • qkcuda

      qkcuda Well-Known Member

      Messages:
      836
      Likes Received:
      1076
      Joined:
      Aug 29, 2019
      Location:
      Jarvis, Ontario
      Local Time:
      10:20 AM

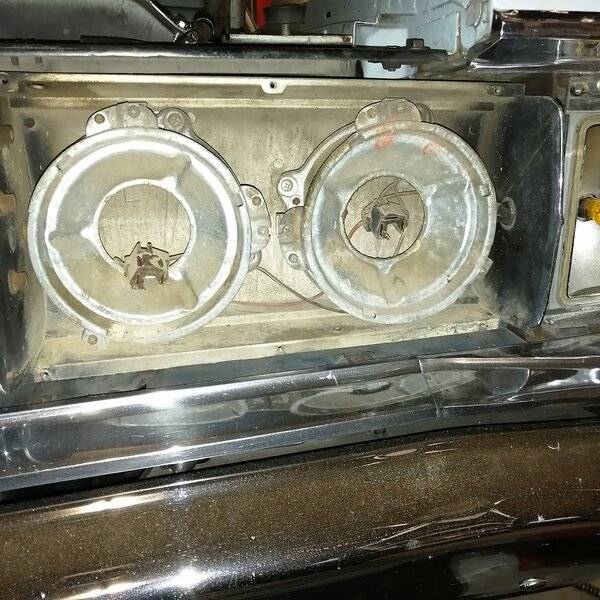

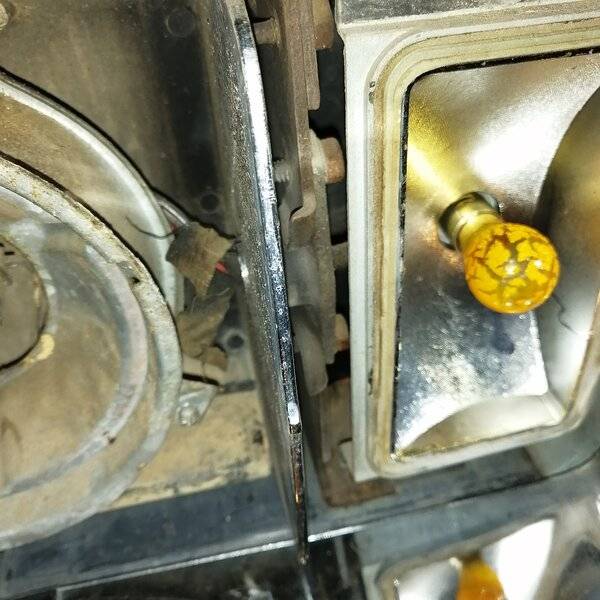

      The issue is the only access to the headlights is a half inch hole in the pivot shaft. You can see it here on the right and where the wiring goes in behind the parking light housing

      IMG_20211211_155039.jpg IMG_20211211_155341.jpg

      • Thanks! Thanks! x 1
      • Speedbird

        Speedbird Bird of Pray FBBO Gold Member

        Messages:
        2,672
        Likes Received:
        2208
        Joined:
        Jun 24, 2013
        Location:
        State Of Denial
        Local Time:
        9:20 AM
        I don't understand what extra space is required.
        For the relays?
        They can be mounted most anywhere by cutting and splicing under the hood.
        Or are you asking about using that kit and new plugs?

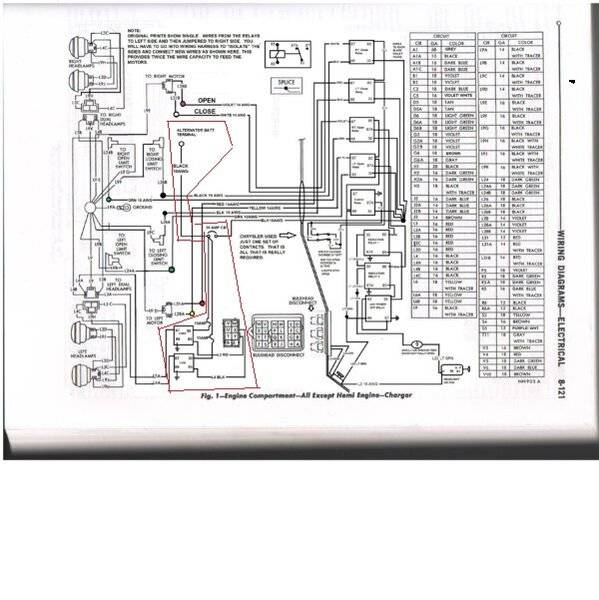

        Modified prints using a CB to feed off alternator terminal and eliminating connectors.
        You don't have to go that far.

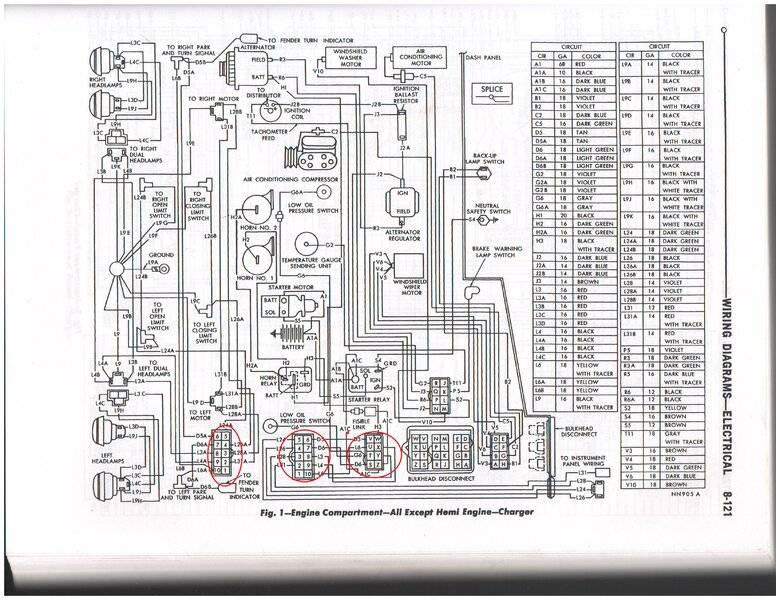

        And the factory prints.
        L3 and L4 wires for high/low beam to convert to control .
        Most people use a fuse on the power feed.
        All the wires to the lights remain past the relays.


        X and Y bulkhead to 8 and 9 next plug then to left connector and over to the right side.
        View attachment 1206510

        headlight 1.jpg headlights.jpg

      • qkcuda

        qkcuda Well-Known Member

        Messages:
        836
        Likes Received:
        1076
        Joined:
        Aug 29, 2019
        Location:
        Jarvis, Ontario
        Local Time:
        10:20 AM
        Yes, I was referring to the kits that use new wires and plugs and use one of the existing low beam plugs for the trigger. I would like to use the existing headlight wiring, so I see I would need to splice into the wiring harness going through the rad support.

      • Sixpactogo

        Sixpactogo Well-Known Member

        Messages:
        1,555
        Likes Received:
        1412
        Joined:
        Feb 2, 2014
        Location:
        Eau Claire, WI
        Local Time:
        9:20 AM
        I used crackedback's kit on my 68 Charger. He makes kits to order for individual cars. No wires to cut. My 68 Charger headlight doors are vacuum operated so everything works as it always did. The only thing that is altered is when you turn on your light switch, you are no longer running all that amperage through the switch and bulkhead. You are only activating the relays which have now assumed the role of handling the current flow to the lights.

      • bcOH67

        bcOH67 FBBO Gold Member FBBO Gold Member

        Messages:
        97
        Likes Received:
        22
        Joined:
        Jul 25, 2019
        Location:
        Youngstown, OH
        Local Time:
        10:20 AM
        I second Crackedback’s kit. I just put one on my 67 charger and it’s great! Super easy to install and worked perfectly. I left the factory harness in place, including the wires in the buckets. It all fit fine and works great. He’s also very very good at staying in contact and responding fast with any questions.

        • Agree Agree x 1
        • bcOH67

          bcOH67 FBBO Gold Member FBBO Gold Member

          Messages:
          97
          Likes Received:
          22
          Joined:
          Jul 25, 2019
          Location:
          Youngstown, OH
          Local Time:
          10:20 AM
          The harnesses he makes that fit in the bucket come without a connector. So you feed the end terminals from the inside out and then put the connector on after. I had the same worry you do but it’s actually very simple and there is plenty of room.

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM
          Thanks for your reply. Yours is the first 66-67 Charger that I know of that used it. Running the wires and then adding the connectors after makes perfect sense...now that you mentioned it. How did you fish the wires through to the headlight pod, up from behind the bumper? I couldn't figure out how to remove the parking light housing for access.

        • bcOH67

          bcOH67 FBBO Gold Member FBBO Gold Member

          Messages:
          97
          Likes Received:
          22
          Joined:
          Jul 25, 2019
          Location:
          Youngstown, OH
          Local Time:
          10:20 AM
          I removed the grill and the turn signals. The turn signals have screws at the top and bottom on the front of it, then there is a big screw underneath you have to get under the car to remove. Just remove them and the whole housing comes out pretty easy.

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM
          I got the other screws. It was the one on the bottom I was missing, thanks.

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM

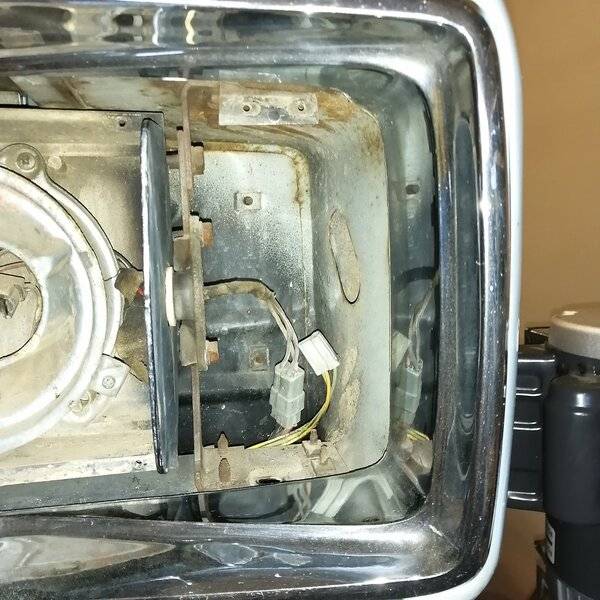

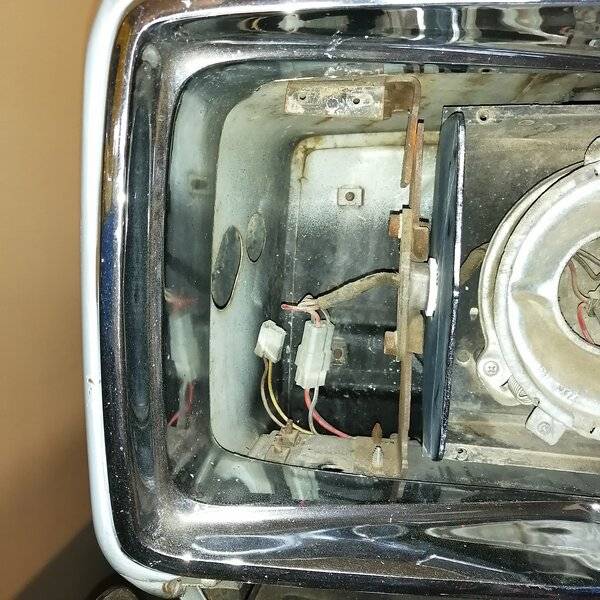

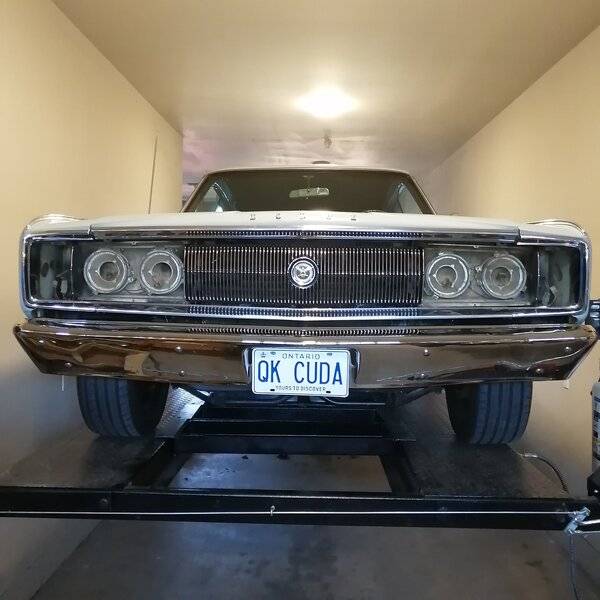

          Thanks to bcOH67 I managed to get the parking light buckets removed, and expose the headlight and parking light connectors. I had to loosen the bumper brackets to drop the bumper enough to get a socket in between the bumper and the grill surround. Not sure how I am going to get these bottom screws back in later, the bumper may have to come off. That is an issue for another day.

          IMG_20211219_135511.jpg IMG_20211219_135458.jpg IMG_20211219_135704.jpg

        • bcOH67

          bcOH67 FBBO Gold Member FBBO Gold Member

          Messages:
          97
          Likes Received:
          22
          Joined:
          Jul 25, 2019
          Location:
          Youngstown, OH
          Local Time:
          10:20 AM
          Glad you got them out! I just used a magnetic screwdriver to get the bottom screws back in, I have flatheads holding mine in- not sure if that’s standard or just what I have haha

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM
          My bottom screws are 7/16 headed bolts. Just not sure if I will be able to get the started straight when I try to put them back in. There is a splash panel that blocks access from underneath.

        • RedBeard

          RedBeard FBBO Gold Member FBBO Gold Member

          Messages:
          758
          Likes Received:
          349
          Joined:
          Nov 30, 2017
          Location:
          North Dakota
          Local Time:
          9:20 AM
          Should be a small phillips screw. Many were stripped out, etc due to corrosion. Jeff Intwert in BC Canada makes new ones. He is on FB.

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM
          The screws through the face are Phillips, I was referring to the self tapping bolt that comes up through the bottom.

        • bcOH67

          bcOH67 FBBO Gold Member FBBO Gold Member

          Messages:
          97
          Likes Received:
          22
          Joined:
          Jul 25, 2019
          Location:
          Youngstown, OH
          Local Time:
          10:20 AM
          Oh sorry I misunderstood. I don’t have and splash guards or anything. The screws underneath are Phillips for me so I just used a short screwdriver

        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM

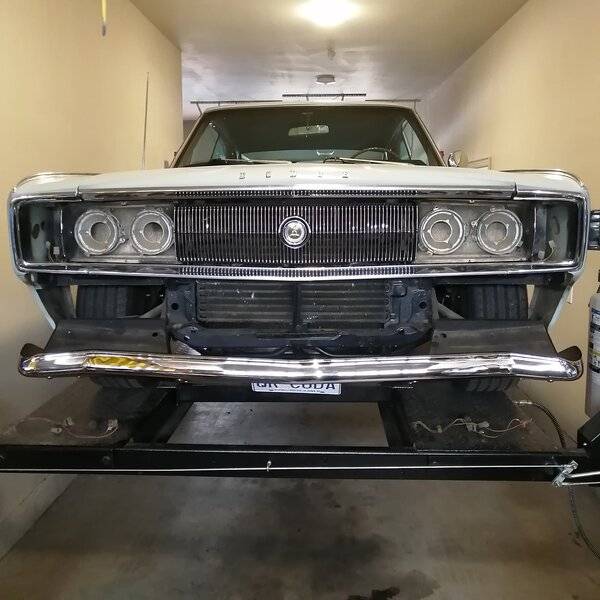

          I decided I would pull the bumper to get access to the headlight wiring harness. I removed the front bolts and loosened the back ones, figuring the bumper would just slide out. It ended up just dropping down, which is actually better. I won't need help to put it back on. I released the Packard connectors and was able to pull out the stock headlight sockets. Next to read the instructions a few times before I start adding the new harness.


        • qkcuda

          qkcuda Well-Known Member

          Messages:
          836
          Likes Received:
          1076
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          10:20 AM
          You can see the splash shields attached to the bumper brackets that prevented me from accessing the parking light bolts from below.

          • Like Like x 2
          • qkcuda

            qkcuda Well-Known Member

            Messages:
            836
            Likes Received:
            1076
            Joined:
            Aug 29, 2019
            Location:
            Jarvis, Ontario
            Local Time:
            10:20 AM

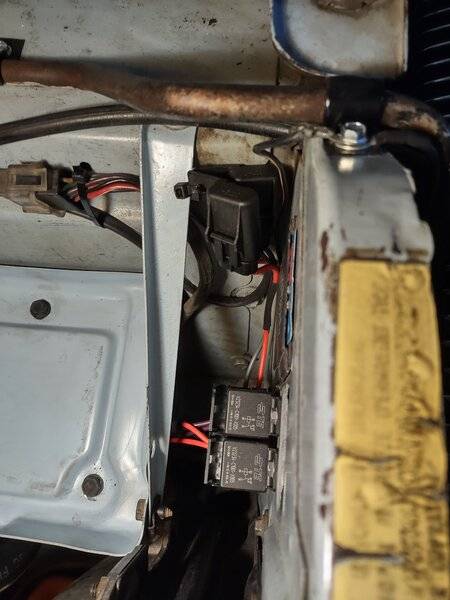

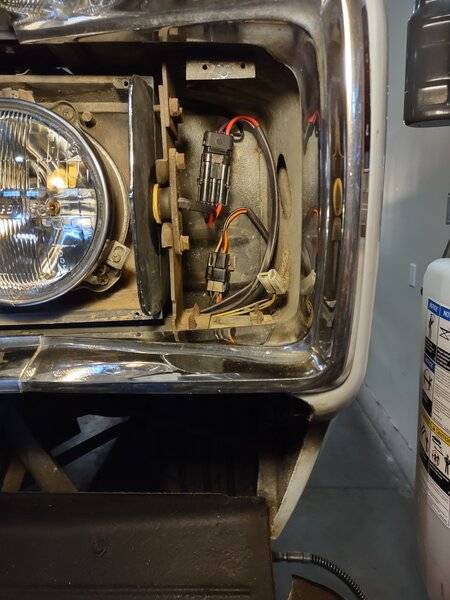

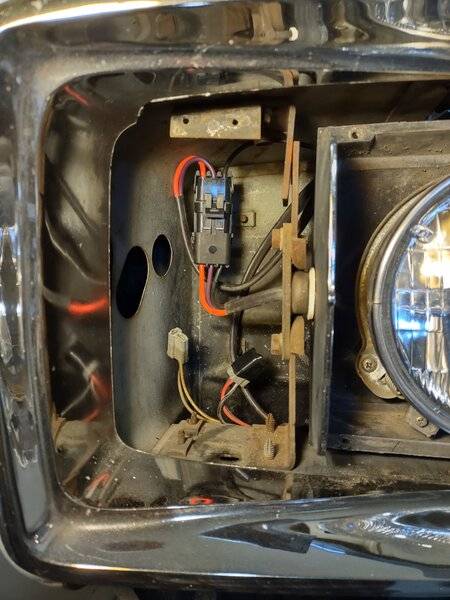

            I got the wiring in place today, it all fit in the factory looms. I did drill two small holes in the rad support to mount the relays. The grounds ended up mounting to the A/C brackets on the rad support where the original ground wire for the headlight harness attached.

            IMG_20220327_191538325_HDR.jpg IMG_20220327_191625508_HDR.jpgView attachment 1261294 IMG_20220327_191956843_HDR.jpg
