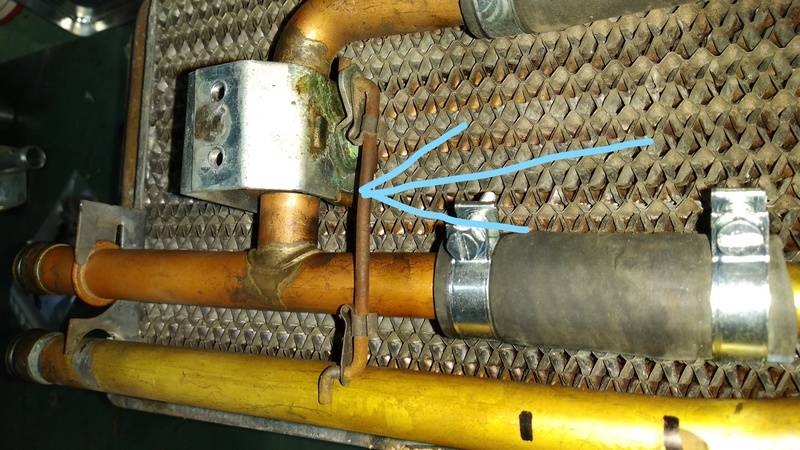

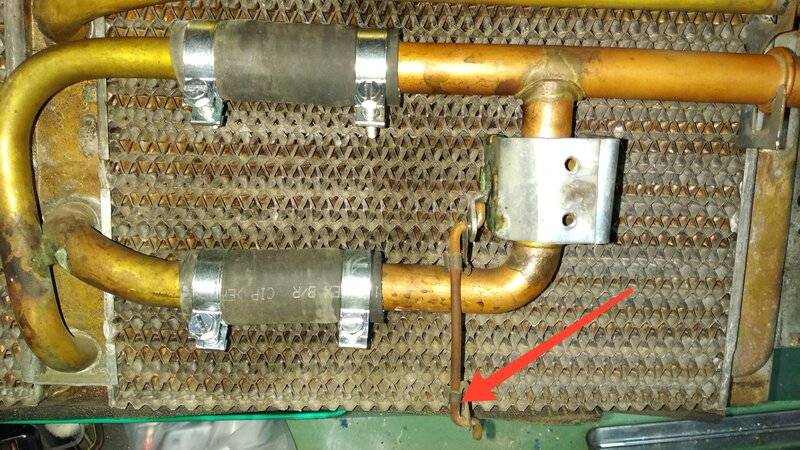

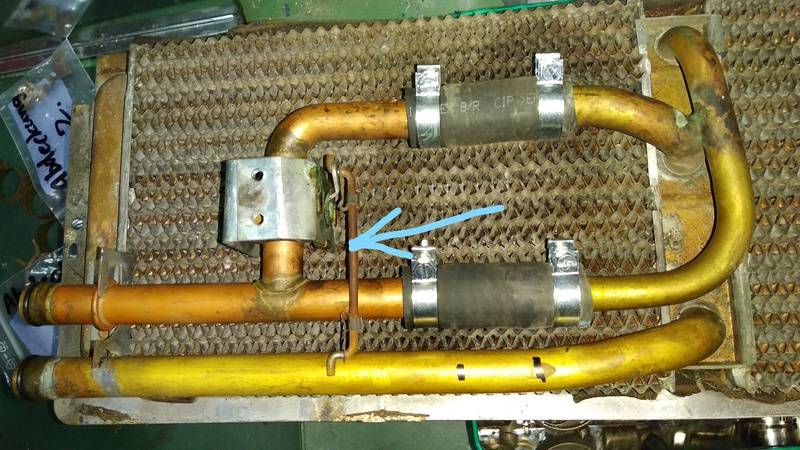

This small lever is connected to the heating valve. What is the other end of the small lever connected to?
Heater box valve rod connection
- Thread starter Rubberduck
- Start date
That looks like it connects to the temp level adjustment cable mechanism. What year and model are you dealing with, someone may have some pics to offer ?
Rubberduck
Well-Known Member
This unit belongs to a 1969 Coronet
LowBikeMike
Well-Known Member
It is connected to the rod that the air conditioning door is attached to. There is a small bracket on the air conditioning door rod where the small rod attaches. When the AC door is open it is designed to restrict water flow to only the outer portion of the heater core tubes. If I can get a pic of mine I will upload it later. In your pictures the rod is flipped in the wrong direction, it goes down away from the heater pipes.
- Local time
- 5:02 PM
- Joined
- Jan 23, 2009
- Messages
- 6,464
- Reaction score
- 5,300
- Location
- New Jersey The State of Tax Theives
While you have this apart put some Indian Head sealer on copper connections then run hoses and clamp. You will wish you did.
Rubberduck
Well-Known Member

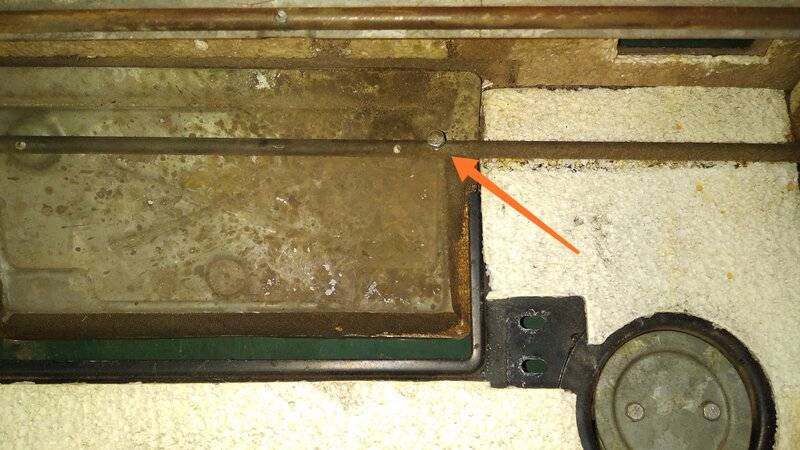

Does the maked rod
get connected to this shaft?

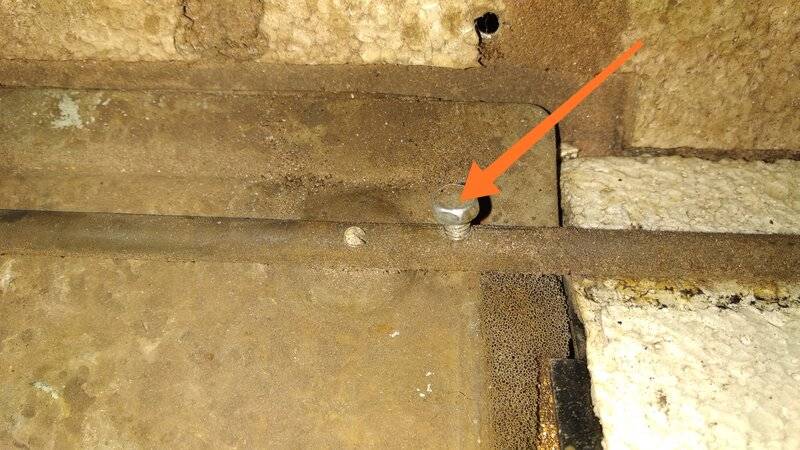

with that bolt?
get connected to this shaft?
with that bolt?
Sixpactogo
Well-Known Member

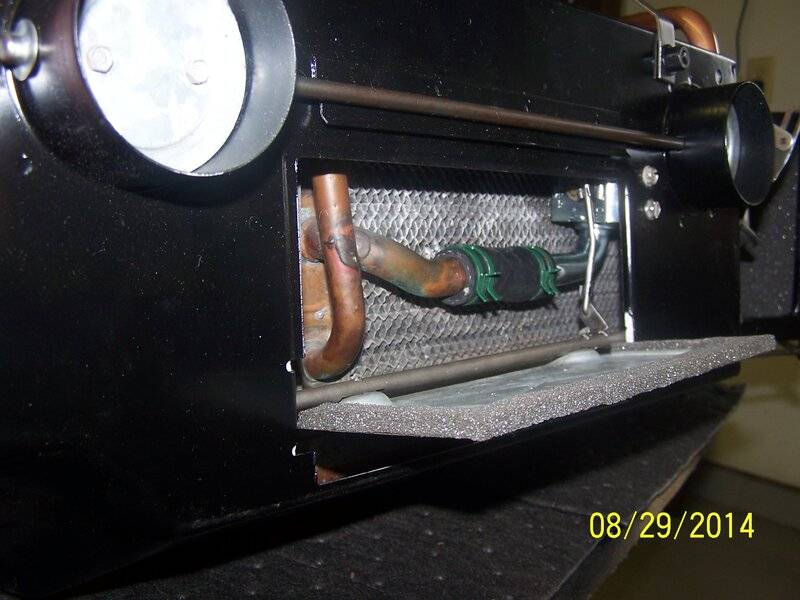

Yes. Here is a pic of mine connected.

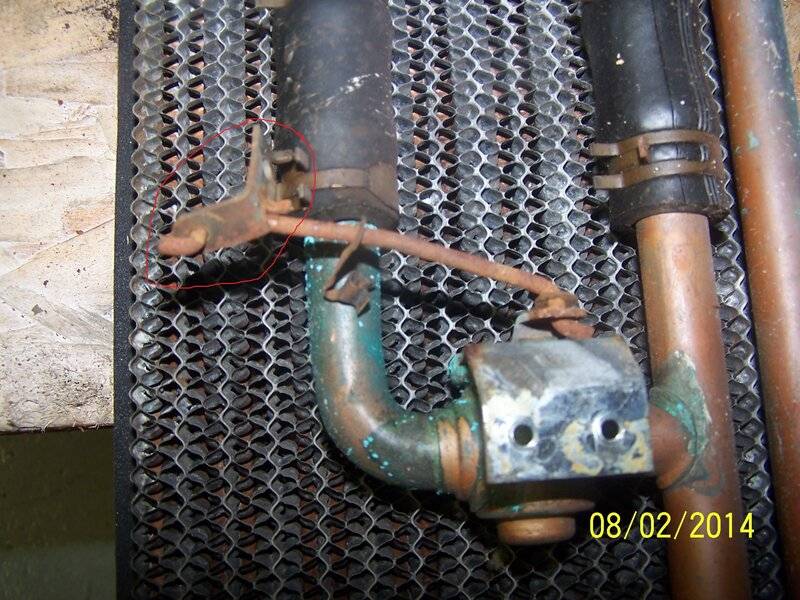

Looks like you are missing the circled clip in this pic
