Heater Cable Routing?

[dodge68charger]

Just Wondering On My 1969 Roadrunner Where The Heater Cables From The Control Switches On The Dash Go?

Are There 3 Cables?

Where Do The ‘Vent’ Knob Cables Attatch?

Thank You



[dadsbee]

2 cables. One to select heat/defrost and the other cold/hot.

Vent cables hook to the driver and passenger side vent stack flappers.



[Sahara]

2 cables. One to select heat/defrost and the other cold/hot.

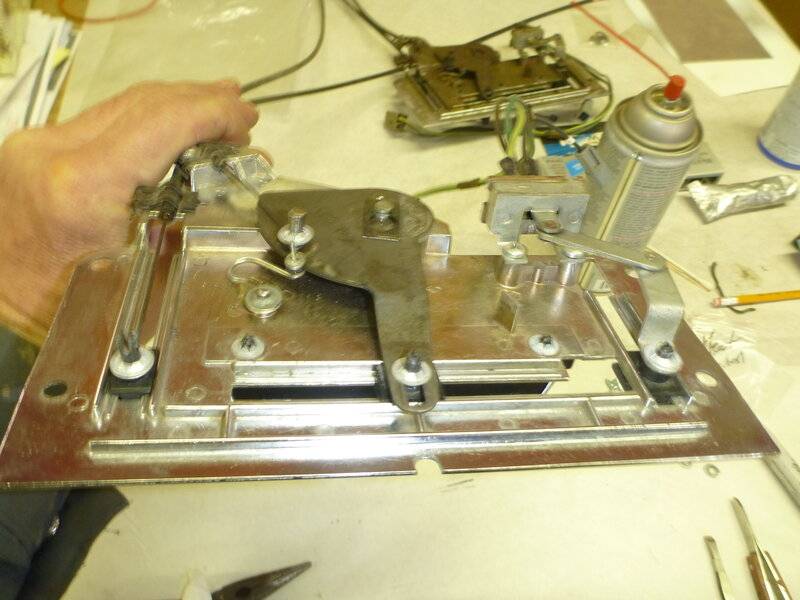

View attachment 1053581

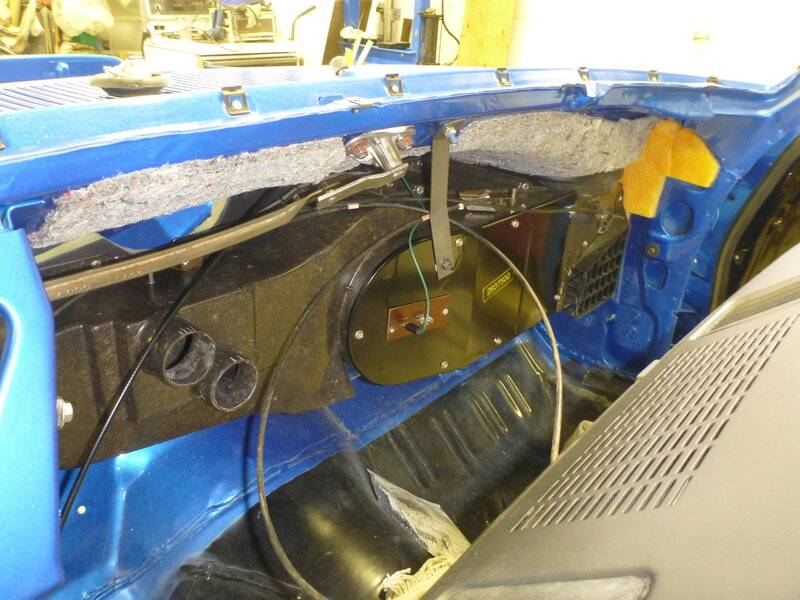

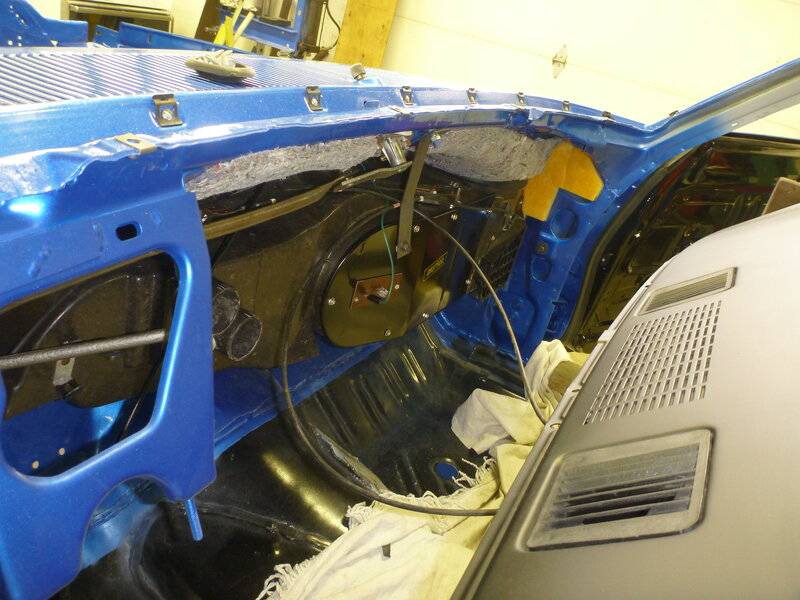

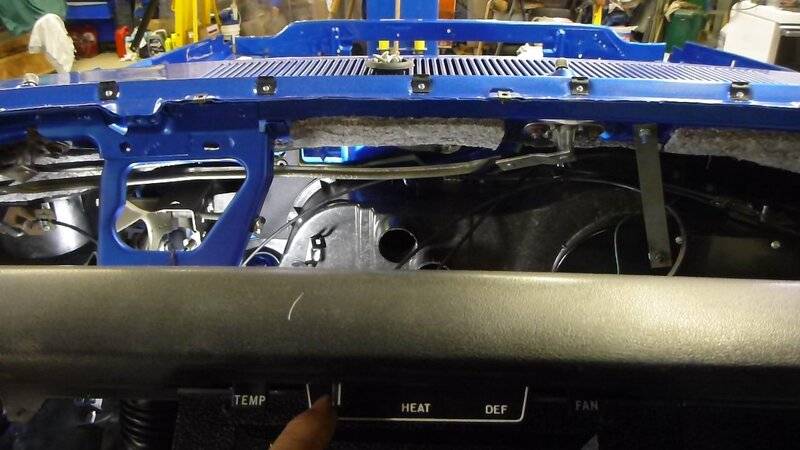

View attachment 1053584 View attachment 1053585 View attachment 1053586
Vent cables hook to the driver and passenger side vent stack flappers.

Hey, on a separate but related topic...

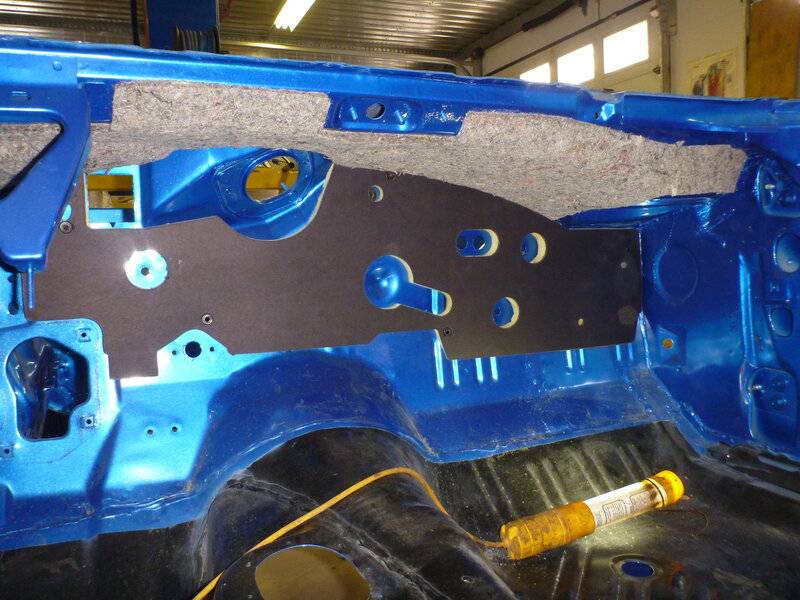

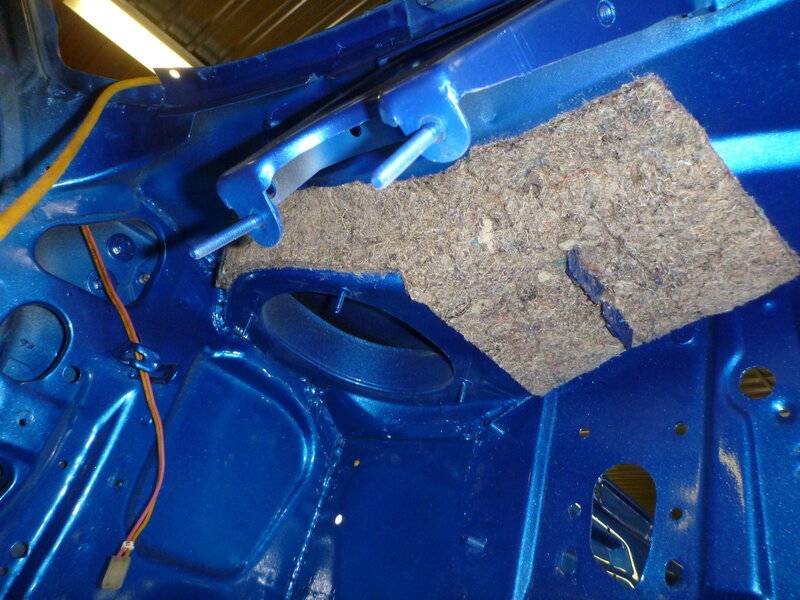

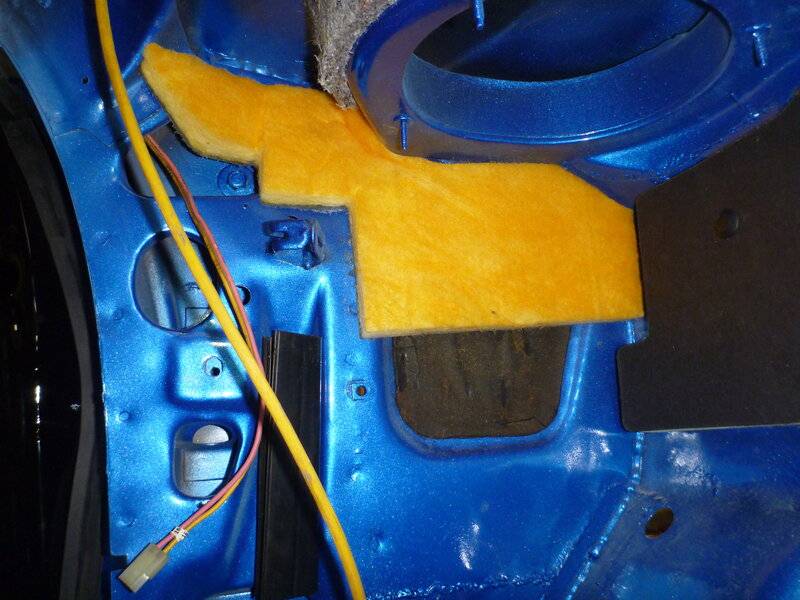

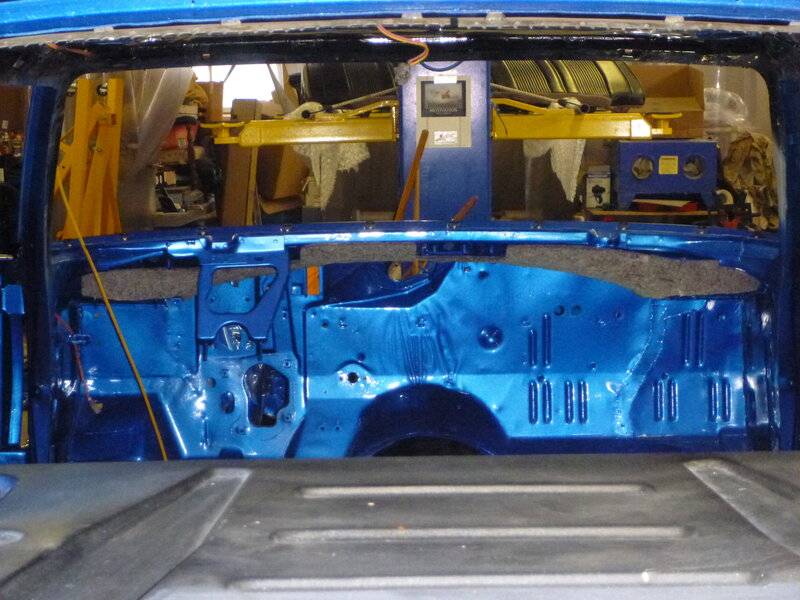

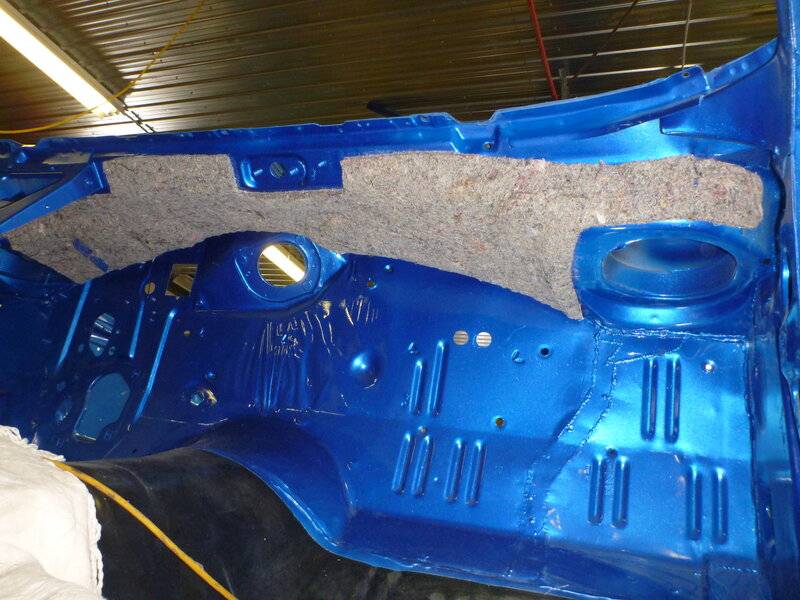

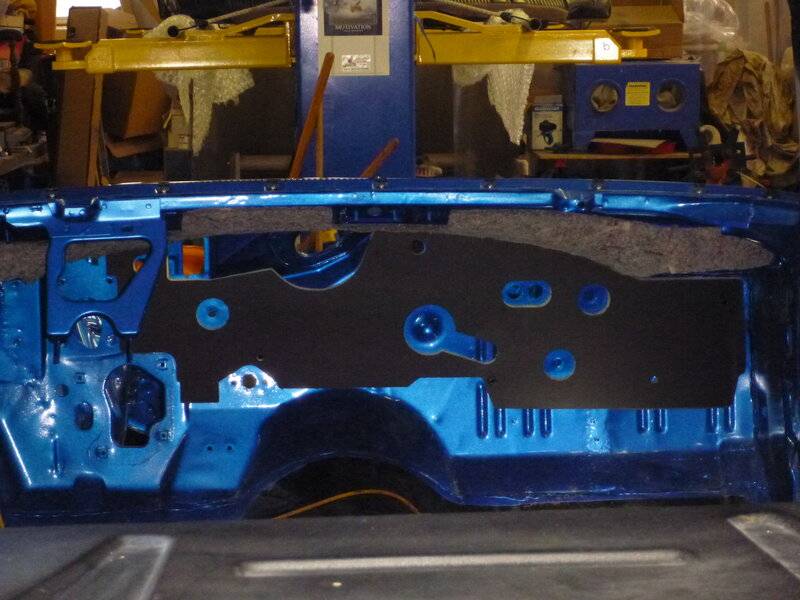

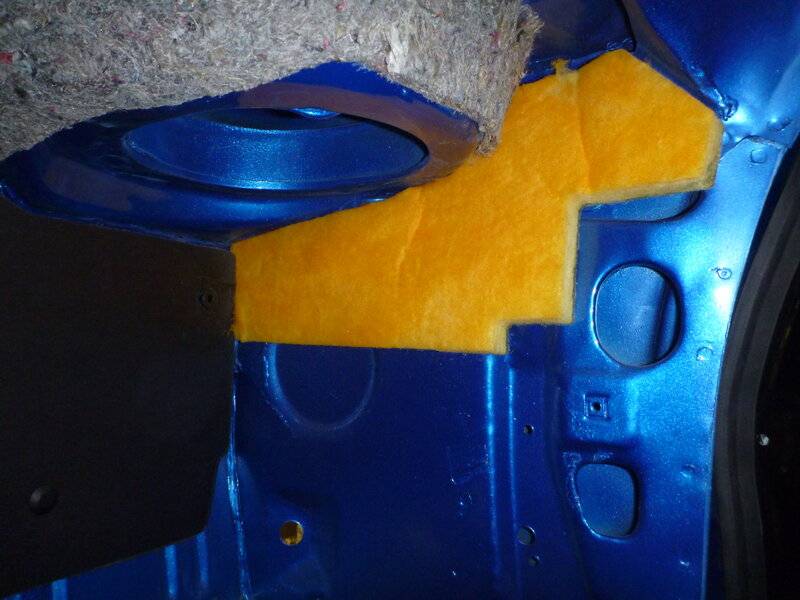

Your photos show some of the yellow under dash insulation pads. Do you have any more pix that show placement of any of them? I’m doing mine and I can’t figure out where they all go.



[dadsbee]

.....



[dodge68charger]

Awesome Pics, Exactly What I Needed.. Thank You For Those.



[Sahara]

Yup, thank you very much!



[JackR]

Those pictures are great. I was just trying to figure out how all that was installed. Thanks!



[dodge68charger]

The Right Cable Goes To The Top Of The Box and The Left Cable Goes To The Very Right Of The Heater Box?

Thank You



[69ChargerR/TSE]

Did you have a photo of the cable installed? Also the way the cable mounts for the adjustment, and which way the lever is suppose to go to install these?
Thank you
