FOUND Hemi Throw Out collar wanted

Status
Not open for further replies.

Dean Prevolos

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Sep 3, 2020
Messages
463
Reaction score
293
Location
Naples, Florida
I have a 67 dodge charger hemi for 26 with AAA 833 four-speed transmission 172 tooth fly wheel with a 11 inch clutch. I have the throwout bearing but I am looking to purchase the correct collar for my hemi set up. If anybody has a photo of what an original collar looks like and it's size I would appreciate it. I look forward to anybody's response.


PLMHEMI

FBBO Gold Member
FBBO Gold Member
Feedback: 104 / 0 / 0
Local time
3:14 PM
Joined
Oct 31, 2019
Messages
1,359
Reaction score
928
Location
Ray Twp, Michigan
You have the Direct Drive starter correct? If so try Johnsons Speed Shop in Lansing, last time i was out there he had a few Old stock / NOS Schiefer collar and bearing assemblies for your application. He also sells on Fleabay...

Schiefer 002.JPG


chignikred

Well-Known Member
Feedback: 15 / 0 / 0
Local time
12:14 PM
Joined
Apr 15, 2009
Messages
960
Reaction score
182
Location
seattle
It is about a 1/4" shorter than the 440 version. I have one but not handy to take a pic of.
R


Dean Prevolos

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Sep 3, 2020
Messages
463
Reaction score
293
Location
Naples, Florida
Wouldn’t it just be easier for the OP to purchase a complete throw out bearing?

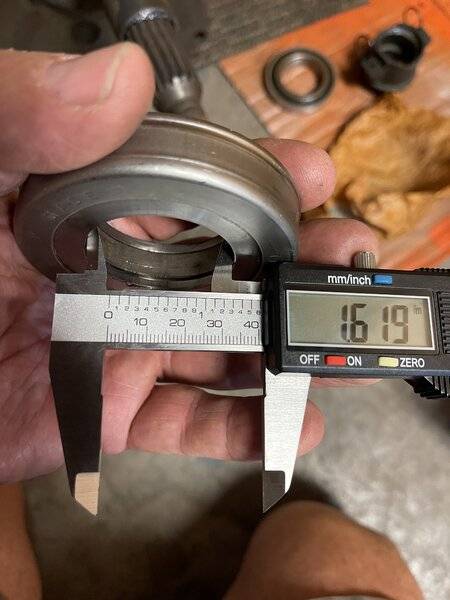

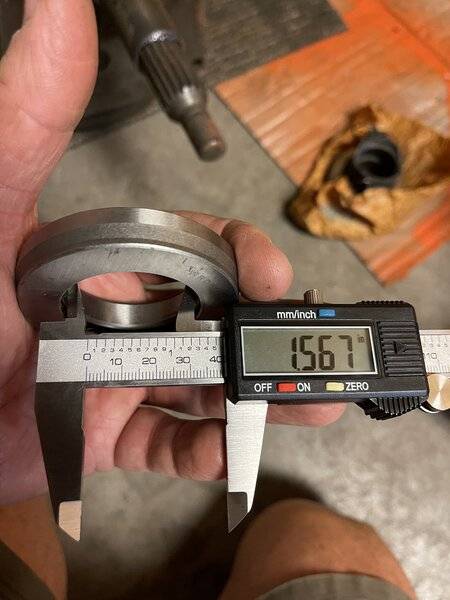

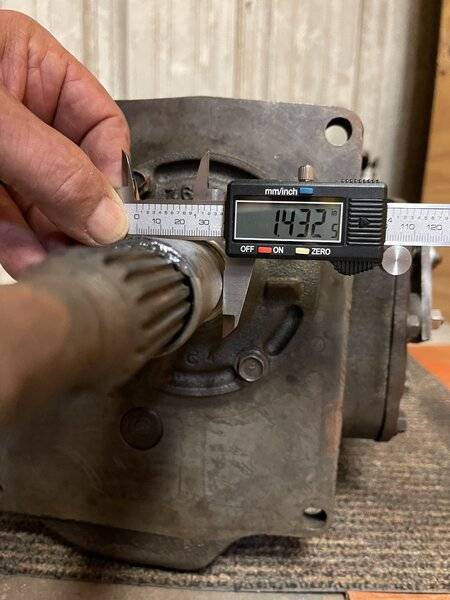

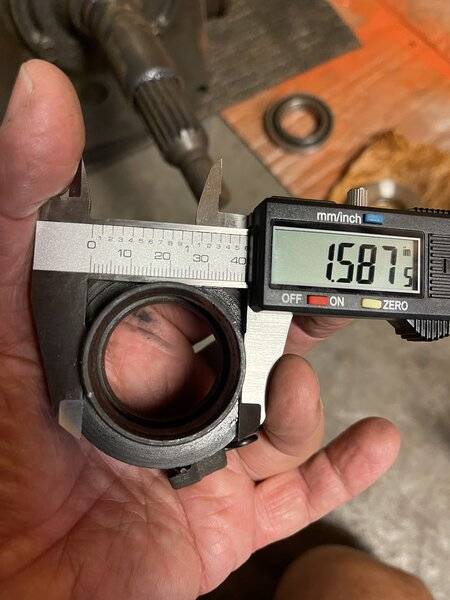

I bought the throw out bearing from Brewars Performance but he didn't have the collar. I have a collar (see photo) but the Brewars TO Bearing center diameter is too large , see attached photo, and fits loosely on my collar. I did find a smaller TO bearing that does fit on my collar but I want to make sure when I depress the clutch that it will engage properly. Any comments are welcome. On the Hemi what should be the diameter of my trans shaft that accepts the collar? I have a service manual I have a perch book and I have a restoration book. I even bought a book on the A833 transmissions. In all of those books there is nothing that states what the diameter should be for the Hemi collar that fits onto the trans.

B022C981-7028-43F3-93BA-188B89C0C007.jpeg 8257EDCD-D01D-4118-A75E-D9749B2281E1.jpeg 313FCC1B-10CB-43B3-ABC7-7746E3BC5AC0.jpeg 6085E59C-C5DB-423F-9ACE-B59361B84555.jpeg


PLMHEMI

FBBO Gold Member
FBBO Gold Member
Feedback: 104 / 0 / 0
Local time
3:14 PM
Joined
Oct 31, 2019
Messages
1,359
Reaction score
928
Location
Ray Twp, Michigan

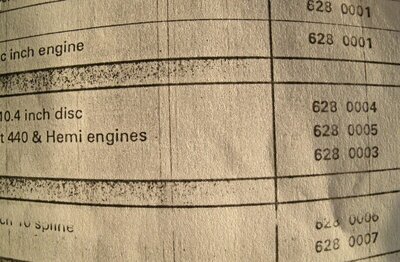

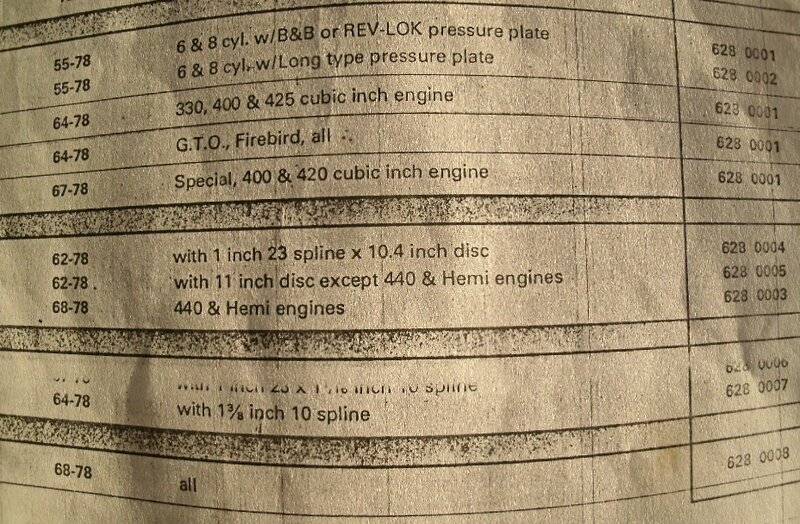

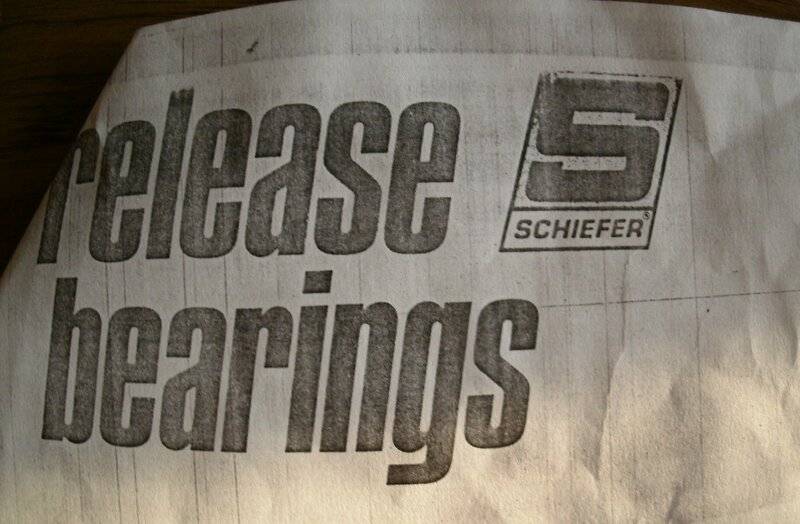

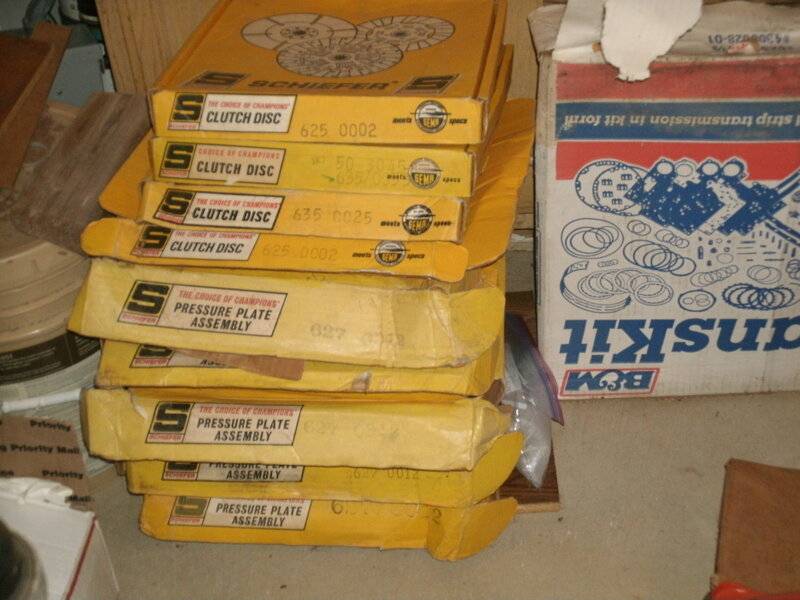

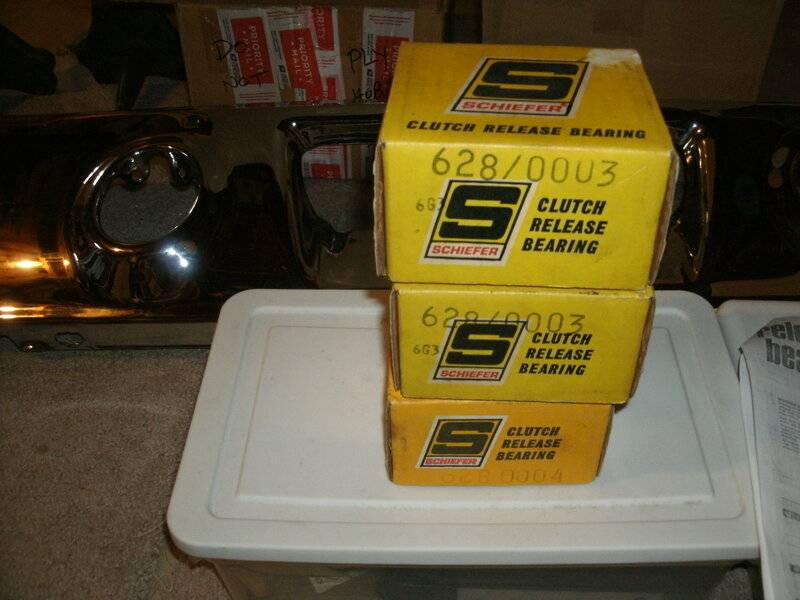

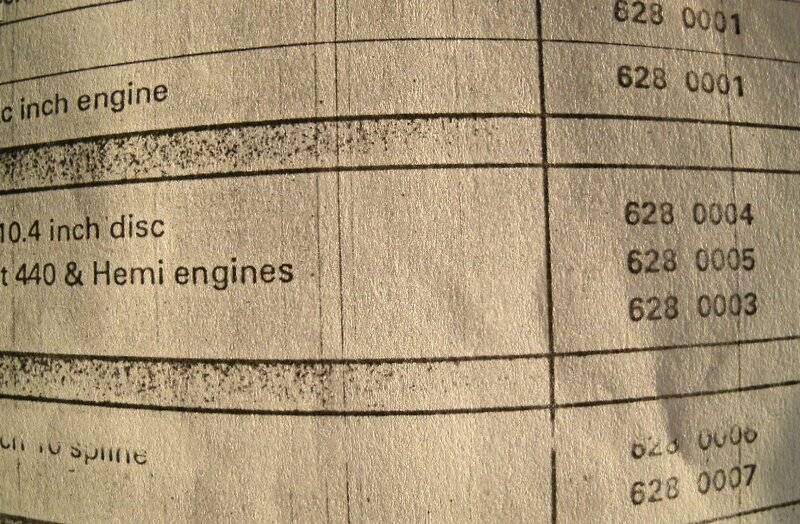

Dean, the reason i mentioned Johnsons Speed shop is because they dont sell just the collar, they "had" the complete assembly you need. I was there appox two years ago and they had Boxes of these Bearing assemblies, i bought 5 of each, and the remaining Discs & pressure plates for Mopars.. 628-0003/ 18 spline app. 68 & up. 628-0004/ 23 spline app. and the one you need 628-0005 for the Direct Drive starter appl. I made a copy of the Schiefer catalog while i was there, the release bearing info in the catalog was kind of vague, i had to do some research myself while there. All the 628-0005 that i bought i have sold on Ebay. I do know Johnsons were selling them on Ebay as well for quite some time, maybe they have some left??

Thrwout Bearing info 003.JPG Thrwout Bearing info 001.JPG Thrwout Bearing info 002.JPG Schiefer info 001.JPG Schiefer info 009.JPG


1969 Hemi RTs

Well-Known Member
Feedback: 10 / 0 / 0
Local time
2:14 PM
Joined
Aug 12, 2011
Messages
683
Reaction score
469
Location
Western WI.

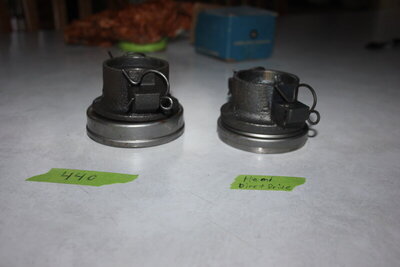

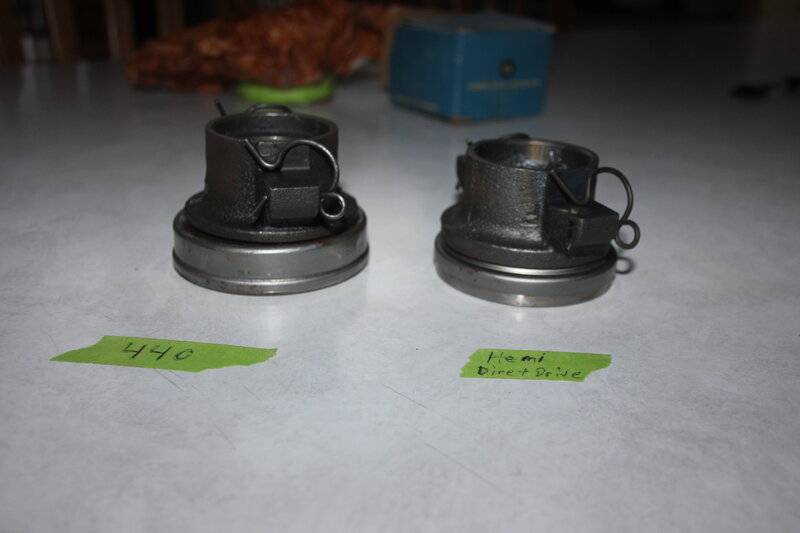

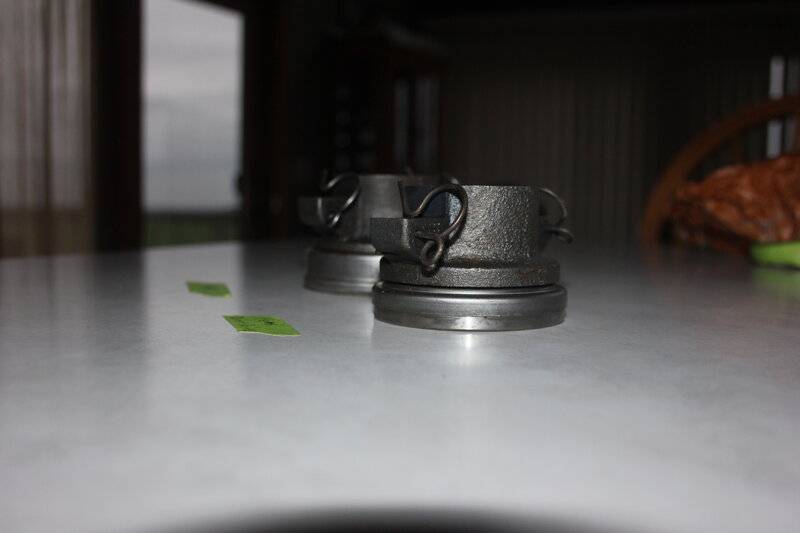

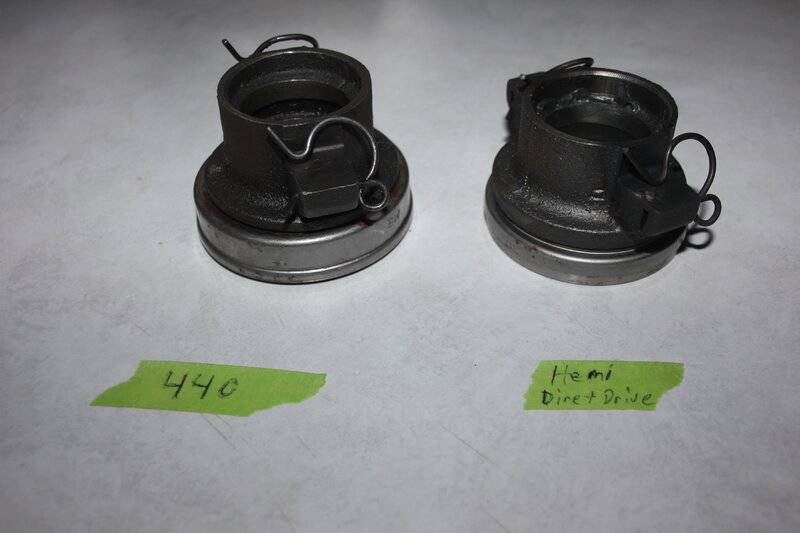

here are the two I have. 1 Hemi direct drive(shorter one), and a 440 (longer version. and this is to show the difference in the two, and help you to see what you are looking for! These are not for sale!! I don't have a source or a part number. they (direct drive 66-69)are shorter, and the bearing is different as well. I bought this off of ebay years ago. the part number was scratched/warn off the box.

IMG_5155 (1).JPG IMG_5156 (1).JPG IMG_5157 (1).JPG


PLMHEMI

FBBO Gold Member
FBBO Gold Member
Feedback: 104 / 0 / 0
Local time
3:14 PM
Joined
Oct 31, 2019
Messages
1,359
Reaction score
928
Location
Ray Twp, Michigan

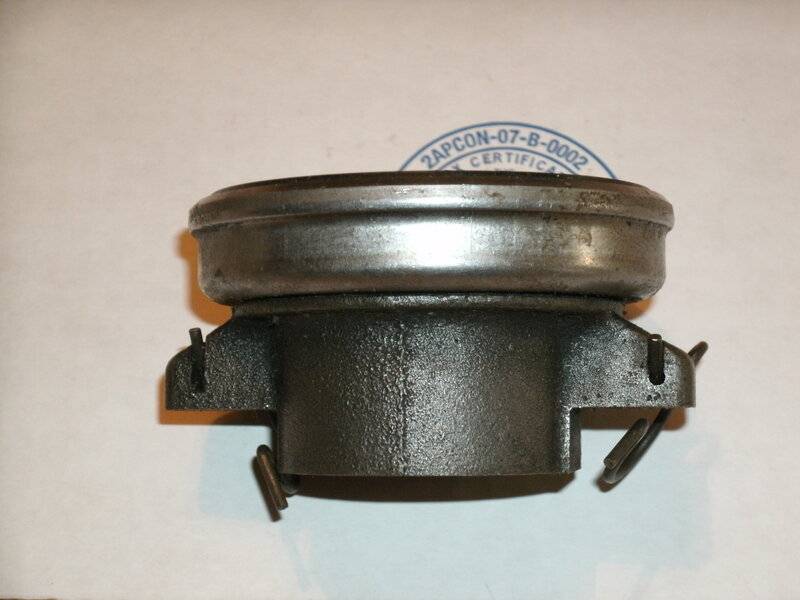

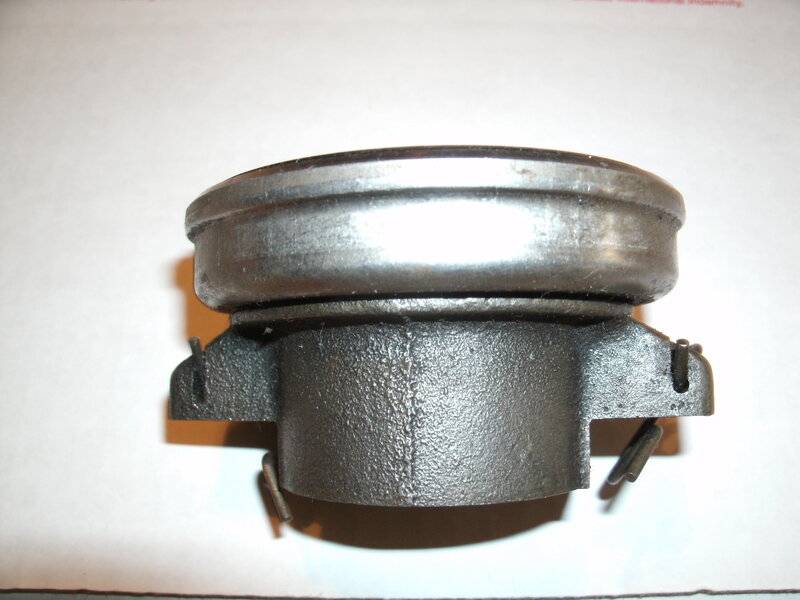

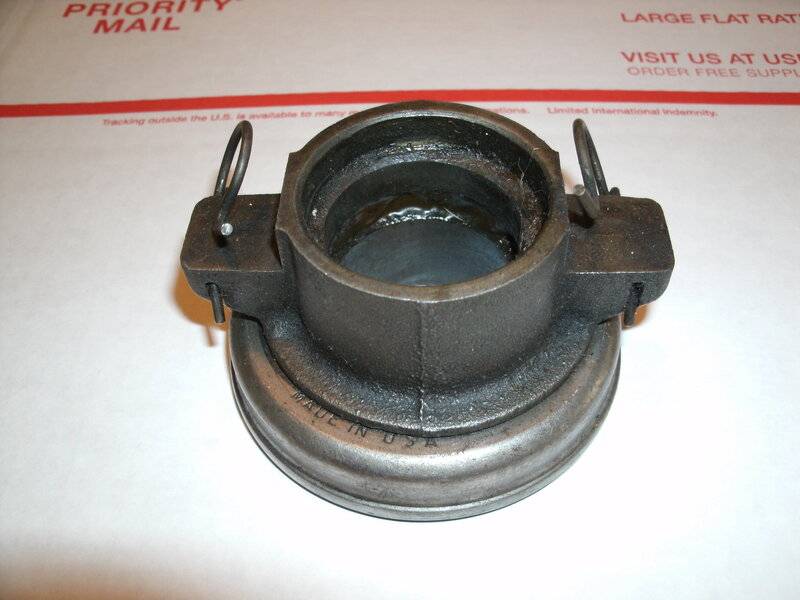

I just went through my picture Files back to 2019 when i sold this on Ebay, this is the short Direct Drive bearing you need.

67 4spd Bearing 008.JPG 67 4spd Bearing 009.JPG 67 4spd Bearing 005.JPG


1968rt

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Jul 28, 2010
Messages
748
Reaction score
921
Location
New York
Theres a shop on Long Island that has anything you want. He even has NOS hemi box trannys in the crate. He sells to some of the well known suppliers. 631 957 9427 ask for Brian


Dean Prevolos

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Sep 3, 2020
Messages
463
Reaction score
293
Location
Naples, Florida
Theres a shop on Long Island that has anything you want. He even has NOS hemi box trannys in the crate. He sells to some of the well known suppliers. 631 957 9427 ask for Brian
Thank you for this information, I will give him a call.


Dean Prevolos

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Sep 3, 2020
Messages
463
Reaction score
293
Location
Naples, Florida
Dean, the reason i mentioned Johnsons Speed shop is because they dont sell just the collar, they "had" the complete assembly you need. I was there appox two years ago and they had Boxes of these Bearing assemblies, i bought 5 of each, and the remaining Discs & pressure plates for Mopars.. 628-0003/ 18 spline app. 68 & up. 628-0004/ 23 spline app. and the one you need 628-0005 for the Direct Drive starter appl. I made a copy of the Schiefer catalog while i was there, the release bearing info in the catalog was kind of vague, i had to do some research myself while there. All the 628-0005 that i bought i have sold on Ebay. I do know Johnsons were selling them on Ebay as well for quite some time, maybe they have some left??

View attachment 1178473 View attachment 1178474 View attachment 1178475 View attachment 1178476 View attachment 1178477
OK I have taken down all your information, saved all of your photos in a file and will call Johnsons again. I just returned the TO bearing to Brewars and in an email he tells me that the
step on the factory 18 spline collar is 1.625". Thanks again for the information. I am also going to call Brian in Long Island per 1968RT recommendation.


Dean Prevolos

Well-Known Member
Feedback: 3 / 0 / 0
Local time
3:14 PM
Joined
Sep 3, 2020
Messages
463
Reaction score
293
Location
Naples, Florida
here are the two I have. 1 Hemi direct drive(shorter one), and a 440 (longer version. and this is to show the difference in the two, and help you to see what you are looking for! These are not for sale!! I don't have a source or a part number. they (direct drive 66-69)are shorter, and the bearing is different as well. I bought this off of ebay years ago. the part number was scratched/warn off the box.

View attachment 1178495 View attachment 1178496 View attachment 1178497

Throw Out bearing std vs direct drive.JPG
In my A833 Transmission book it shows the two different collar sizes but nowhere in the book does it say what the actual length of the collar is. When I see a TO Bearing and collar for sale, I always ask what the dimensions are so I can compare to the three sets I have purchased and returned becasue they don't fit.


Smhemi

Active Member
Feedback: 0 / 0 / 0
Local time
2:14 PM
Joined
Jul 27, 2008
Messages
26
Reaction score
41
Location
Usa
I got mine from passion performance he modifys a 440 to work on a 426


AR67GTX

FBBO Gold Member
FBBO Gold Member
Feedback: 4 / 0 / 0
Local time
2:14 PM
Joined
Jan 28, 2012
Messages
3,012
Reaction score
2,080
Location
Arkansas
View attachment 1179047

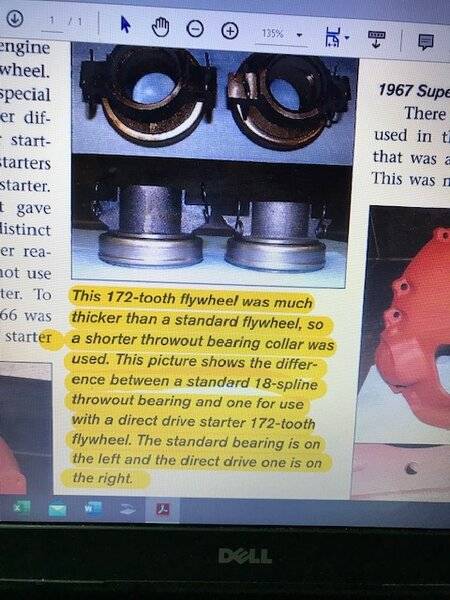

In my A833 Transmission book it shows the two different collar sizes but nowhere in the book does it say what the actual length of the collar is. When I see a TO Bearing and collar for sale, I always ask what the dimensions are so I can compare to the three sets I have purchased and returned becasue they don't fit.

Thanks for that attachment that describes why the two different length TO bearings. My car still has the direct drive starter so I may need to locate one for a spare. And a bearing retainer for the trans.


Bad400

Member
Feedback: 0 / 0 / 0
Local time
12:14 PM
Joined
Aug 20, 2017
Messages
18
Reaction score
24
Location
Alberta, Canada

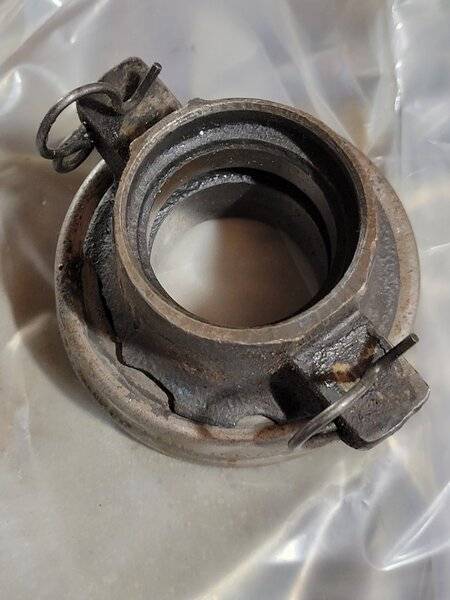

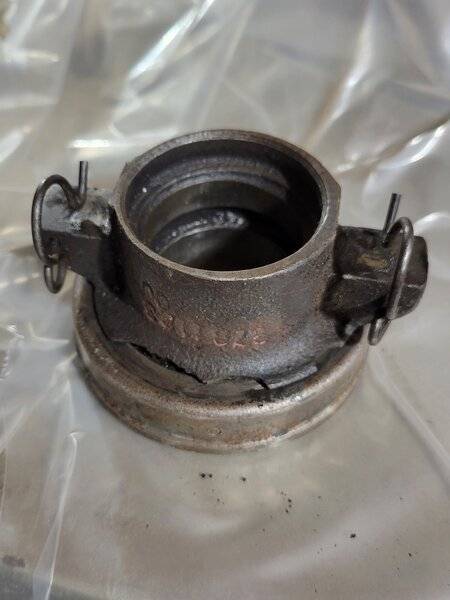

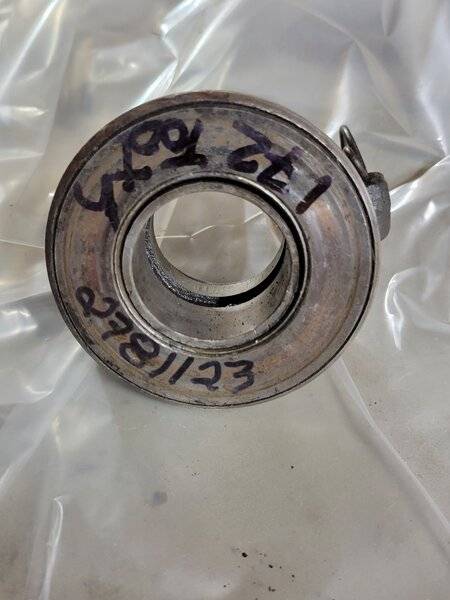

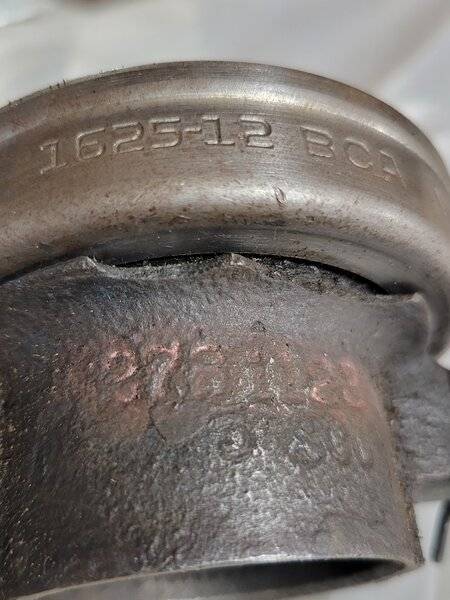

I have this one! I came with an 18 spline from a 69 440 Six Pack RR. The guy said it didn't shift rite for him, that's why he sold the Trans to me. I researched the part#, 2781123 and it is for a 172 tooth flywheel. It's a little chipped and could use a bearing!

20211023_111215.jpg 20211023_111208.jpg 20211023_111148.jpg 20211023_111345.jpg
