Hotchkis lower control arm bracket (sway bar)

JR_Charger

FBBO Gold Member
FBBO Gold Member
Local time
9:07 PM
Joined
Sep 30, 2020
Messages
298
Reaction score
202
Location
____
After studying a few pics of the stock LCA bracket I found, and the Hotchkis bracket, it's obvious the Hotchkis bracket is supposed to butt up against (and be welded to) the lip (?) on top of the LCA -

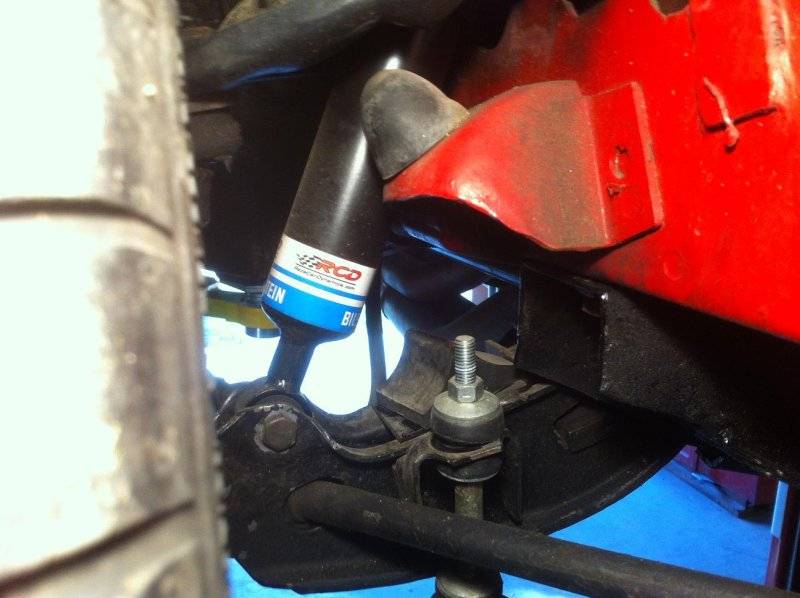

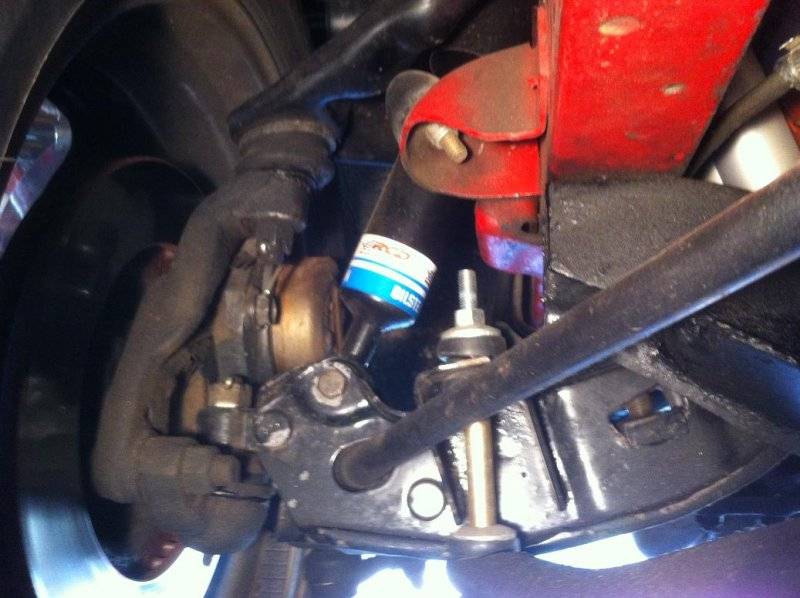

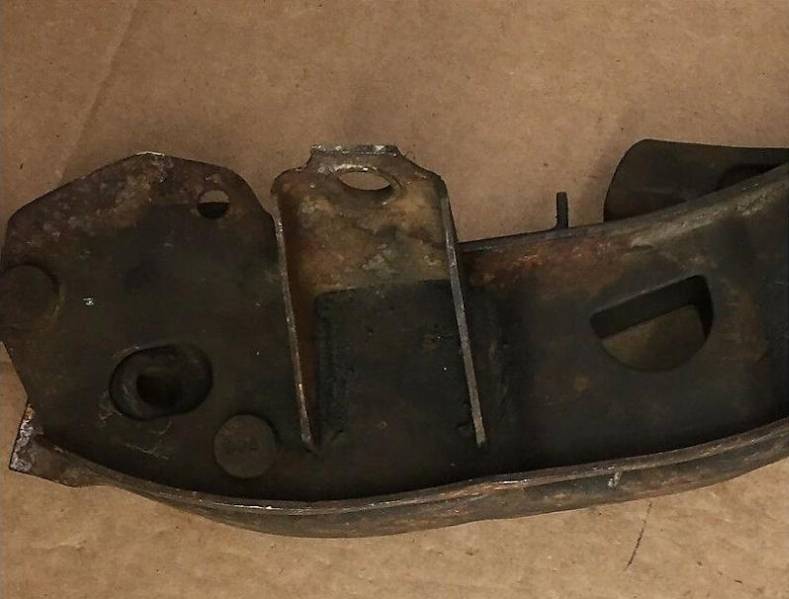

That locates it vertically. As far as the horizontal goes, here's two factory LCAs showing quite a bit of variability. One has the bracket up against the pin, one has around a quarter inch of space between the pin and the bracket. On the whole it appears that the bracket is supposed to be centered in that space. I wonder if the bottom pic with the bracket up against the pin is a factory screw up?


steve340

Well-Known Member
Local time
2:07 PM
Joined
Jul 7, 2018
Messages
1,010
Reaction score
800
Location
New Zealand
So long as it lines up pretty good you will be OK
Make sure you allow enough space for the length of the links.


JR_Charger

FBBO Gold Member
FBBO Gold Member
Local time
9:07 PM
Joined
Sep 30, 2020
Messages
298
Reaction score
202
Location
____
As far as the vertical goes, I'm sure it has to be welded to that top lip. Otherwise the side-to-side shear forces might eventually break it off.


steve340

Well-Known Member
Local time
2:07 PM
Joined
Jul 7, 2018
Messages
1,010
Reaction score
800
Location
New Zealand
Mounted properly there will be no shear forces. All the load will be vertical from the lower arm through the link too the chassis.
The term anti roll bar explains the function of these bars better than sway bar to me.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
7:07 PM
Joined
Apr 13, 2012
Messages
26,394
Reaction score
77,153
Location
Granite Bay CA

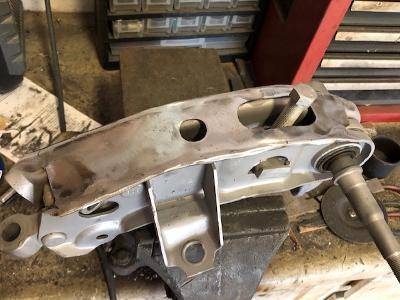

This control arm came from a 1972 Coronet.


XH LAC 1.jpg



Note that the stock sway bar bracket is right near the rivet.


JR_Charger

FBBO Gold Member
FBBO Gold Member
Local time
9:07 PM
Joined
Sep 30, 2020
Messages
298
Reaction score
202
Location
____
Interesting - that's two that are near the rivet. Most of the pics I found show the bracket a little over from the rivet.


JR_Charger

FBBO Gold Member
FBBO Gold Member
Local time
9:07 PM
Joined
Sep 30, 2020
Messages
298
Reaction score
202
Location
____
Not much clearance between the stock bracket and the strut bar, is there?

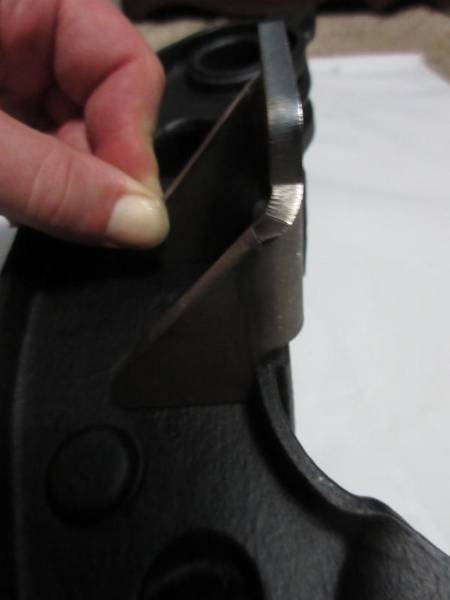

The shorter hotchkis bracket can actually go over the rivet a little, FWIW.


Grabbergreendream

Well-Known Member
Local time
10:07 PM
Joined
Jul 1, 2017
Messages
388
Reaction score
408
Location
Ashtabula Ohio
I purchased the same brackets & welded them on my 71 LCA's. I used a factory sway bar & mounted everything to the K to mock it up & get the position correct for the parts I was using. I can get you measurements in a day or 2 if I dont have to work a double shift tonight, if you'd like. I highly suggest mocking yours up before welding so you guarantee it will be correct. If they get welded incorrectly, you wont find it till assembly anyway & you'll kick yourself the entire time your re-doing them, IMO.


JR_Charger

FBBO Gold Member
FBBO Gold Member
Local time
9:07 PM
Joined
Sep 30, 2020
Messages
298
Reaction score
202
Location
____
Interested in seeing what you come up with. I'm having a hard time believing a few mm to one side or another makes any difference. Also, I don't weld or have 220 in my garage.
