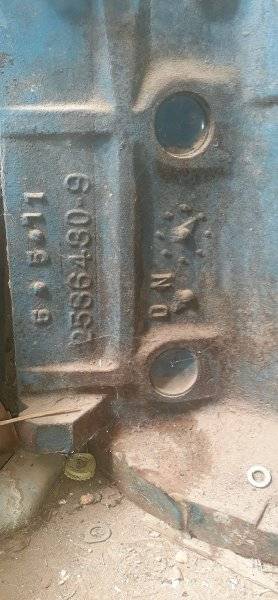

I think it was a replacement crank, it could have been the "cheaper" way to go at the time for the previous owner. It was 35 years ago when I got it. Its still the same. The block is "HP" for sure. and the rods look super strong, it just has to be externally balanced. ( I would sell this complete motor)
I just can’t figure out why some pay extra for an HP stamp. It’s just an hourly workers job to designate that the internals are HP. All the blocks in any given year are pretty much the same.


RemCharger

Well-Known Member
Local time
8:16 PM
Joined
Apr 5, 2014
Messages
2,685
Reaction score
2,251
Location
Sask
I just can’t figure out why some pay extra for an HP stamp. It’s just an hourly workers job to designate that the internals are HP. All the blocks in any given year are pretty much the same.
These same people pay extra for cars that came with "426 hemi" badges on the fender.
Weird but not weird.


Curiousyellow71

Well-Known Member
Local time
8:16 PM
Joined
Jun 18, 2019
Messages
1,290
Reaction score
1,431
Location
Nebraska
440hp in Charger ralleye in '72, Gtx and police cars. I think all the 440hp's may have received steel cranks? Our 73 does.
I've got a '72 HP 440 "H". It has 6 pack rods and cast crank. I think it came out of a 'Cuda.

By 72 the bb was gone as a option for the E bodies as far as I know? 340 was it.

This thread reminds me of a car:p


Last edited:

khryslerkid

Well-Known Member
Local time
9:16 PM
Joined
Mar 10, 2010
Messages
26,307
Reaction score
42,320
Location
Hanover, Pennslyvania
Definitely 1967. I own one. Every HP engine I've seen were at least a four barrel and dual exhaust from the factory. My '62 361 is stamped HP. First year for the 361, developed for the Polara 500. 4bll and dual exhaust.


Lefty71

FBBO Gold Member
FBBO Gold Member
Local time
9:16 PM
Joined
Mar 8, 2018
Messages
2,550
Reaction score
2,727
Location
Ohio
Since this thread is about as jacked as they get...... recent discussion about 400`s with HP stamp....haven't seen a pic of one yet....anyone???


69Coronetrt

Well-Known Member
Local time
8:16 PM
Joined
Jul 17, 2008
Messages
3,340
Reaction score
2,401
Location
Harlan, IA
Last edited:

R413

Well-Known Member
Local time
6:16 PM
Joined
Feb 4, 2019
Messages
3,174
Reaction score
6,374
Location
NW USA
Were the 1966 365 hp. 440 dual exhaust motors in "C" bodies stamped HP? As opposed to 350 hp. single exhaust. I know these engines still had the smaller port/exhaust valve heads. HP engines also had windage trays from factory.
I bet the 1966 do have HP on them. They have a different VIN code for the engine.

yes the blocks are all the same. Just like a4 speed cars, nothing special from a23 spline to and 18 spline casea or tailhousing. The bearings sizes changed, and yes the 1966-1967 hemi 4 speed has small 307 bearings.

Last edited:

66Satellite47

FBBO Gold Member
FBBO Gold Member
Local time
7:16 PM
Joined
Jan 15, 2015
Messages
6,535
Reaction score
5,566
Location
St Paul MN
In all the 440's & 440's blocks I've had over the years , HP stamping meant nothing to me. I just looked at the cylinder sonic test numbers.


4speed68rt

Well-Known Member
Local time
7:16 PM
Joined
Nov 24, 2021
Messages
214
Reaction score
171
Location
88007
So what did we decide was the answer to the OP question? What years did HP get stamped on the 440 blocks, 67-72?


66Satellite47

FBBO Gold Member
FBBO Gold Member
Local time
7:16 PM
Joined
Jan 15, 2015
Messages
6,535
Reaction score
5,566
Location
St Paul MN
Still a good question. My experience was only with '68, '70, & '71 440 blocks that had the HP stamp. Think I had a '72 400 cop block HP stamped.


khryslerkid

Well-Known Member
Local time
9:16 PM
Joined
Mar 10, 2010
Messages
26,307
Reaction score
42,320
Location
Hanover, Pennslyvania
What I've researched was there wasn't any 440 HP stampings in 1966. 1967 was the first year.

Chrysler had an optional 440 for their 300 models called the TNT440 365 horse power.


https://www.hamtramck-historical.co.../1966/66_Chrysler_Features_Equipment_0019.jpg

1967 came out with the 440 HP 375 horse power.

1966 - 1969 with 4 Barrel Carb (Standard Model)​

Max Brake Horsepower: 350 @ 4400 rpm
Max Torque: 480 @ 2800 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.1
Firing Order: 18436572

1967 - 1970 with 4 Barrel Carb (High Performance Model)

Max Brake Horsepower: 375 @ 4600 rpm
Max Torque: 480 @ 3200 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.1
Firing Order: 18436572

1969 - 1971 with 3 X 2 Barrel Carbs (Six Pack)​

Max Brake Horsepower: 390 @ 4700 rpm (385 bhp for 1971)
Max Torque: 490 @ 3200 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.5
Firing Order: 18436572

1971 with 4 Barrel Carb (High Performance Model)​

Max Brake Horsepower: 370 @ 4600 rpm
Max Torque: 480 @ 3200 rpm
Stroke: 3.375
Bore: 4.125
Compression: 10.1
Firing Order: 18436572

1972 - 1974 with 4 Barrel Carb​

Max Brake Horsepower: 280
Max Torque: N/A
Stroke: 3.375
Bore: 4.125
Compression: N/A
Firing Order: 18436572

Chrysler Plymouth Dodge 440 V8 Engine Specs, 440 Information and Firing Order : Engine Facts.com

No information links on this article.


66Satellite47

FBBO Gold Member
FBBO Gold Member
Local time
7:16 PM
Joined
Jan 15, 2015
Messages
6,535
Reaction score
5,566
Location
St Paul MN
What I've researched was there wasn't any 440 HP stampings in 1966. 1967 was the first year.

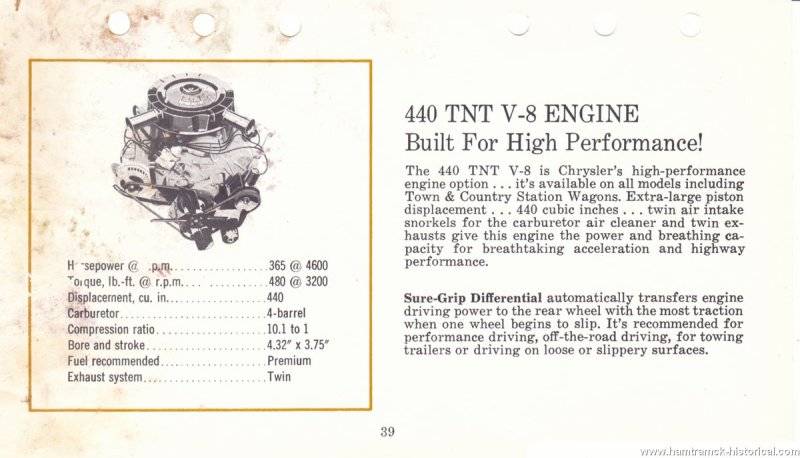

Chrysler had an optional 440 for their 300 models called the TNT440 365 horse power.
View attachment 1306830

https://www.hamtramck-historical.co.../1966/66_Chrysler_Features_Equipment_0019.jpg

1967 came out with the 440 HP 375 horse power.

1966 - 1969 with 4 Barrel Carb (Standard Model)​

Max Brake Horsepower: 350 @ 4400 rpm
Max Torque: 480 @ 2800 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.1
Firing Order: 18436572

1967 - 1970 with 4 Barrel Carb (High Performance Model)

Max Brake Horsepower: 375 @ 4600 rpm
Max Torque: 480 @ 3200 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.1
Firing Order: 18436572

1969 - 1971 with 3 X 2 Barrel Carbs (Six Pack)​

Max Brake Horsepower: 390 @ 4700 rpm (385 bhp for 1971)
Max Torque: 490 @ 3200 rpm
Stroke: 3.75
Bore: 4.25
Compression: 10.5
Firing Order: 18436572

1971 with 4 Barrel Carb (High Performance Model)​

Max Brake Horsepower: 370 @ 4600 rpm
Max Torque: 480 @ 3200 rpm
Stroke: 3.375
Bore: 4.125
Compression: 10.1
Firing Order: 18436572

1972 - 1974 with 4 Barrel Carb​

Max Brake Horsepower: 280
Max Torque: N/A
Stroke: 3.375
Bore: 4.125
Compression: N/A
Firing Order: 18436572

Chrysler Plymouth Dodge 440 V8 Engine Specs, 440 Information and Firing Order : Engine Facts.com

No information links on this article.
Gee not sure where those specs came from, but many are not correct. A 440 had a 3.75 stroke and a 4.32 bore as stock. The 4.25 bore was for a 426 Wedge. No idea what those 1972-74 dimensions relate to.
