Hyd Clutch Install Help

Engine, Trans & Driveline

  1. wsutard

    wsutard Well-Known Member

    Messages:
    694
    Likes Received:
    236
    Joined:
    Jul 7, 2016
    Location:
    Seattle
    Local Time:
    9:37 PM
    Im in the process of installing an American Powertrain hydraulic clutch. I need help with attaching the heim joint to the stock pedal. The instructions say to try to get it in the stock clutch rod mounting location for the best throw ratio. Problem for me is there are no mounting holes in the stock pedal and my pedal assembly is installed in the car.

    Any advice or pics on where to install the heim joint? Should I try to drill out the stock stud? Maybe drill right under that location on the pedal itself?


  2. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM
    There should be a hole where the original clutch rod attached to. Use that.

  3. coloradodave

    coloradodave FBBO Gold Member FBBO Gold Member

    Messages:
    3,661
    Likes Received:
    3026
    Joined:
    Jun 1, 2011
    Location:
    Lincoln, CA
    Local Time:
    9:37 PM

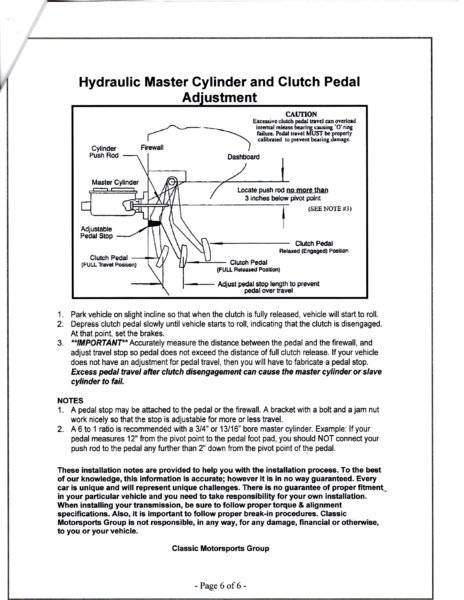

    Here you go:

  4. wsutard

    wsutard Well-Known Member

    Messages:
    694
    Likes Received:
    236
    Joined:
    Jul 7, 2016
    Location:
    Seattle
    Local Time:
    9:37 PM

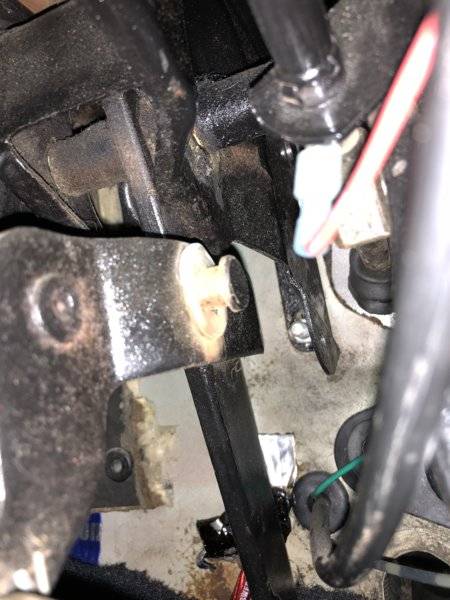

    The original clutch rod is attached to a stud on the pedal. No hole. I have figured out that I need to pull the clutch pedal out to drill the necessary hole. Question is now where do I place it to get the best feel.

    Anyone installed an American drivetrain hud clutch in a b body?

  5. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM
    I did it on my A body. So grind the stud flush with the pedal arm, use a punch and knock it out. Now you’ve got your hole.

  6. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM
    I’ll get some pics. Hang on.......

  7. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM

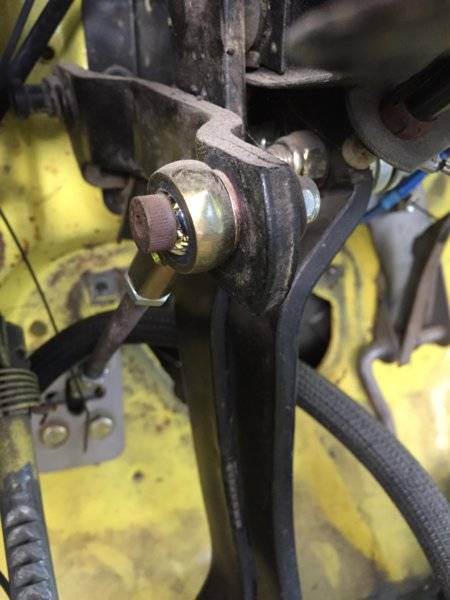

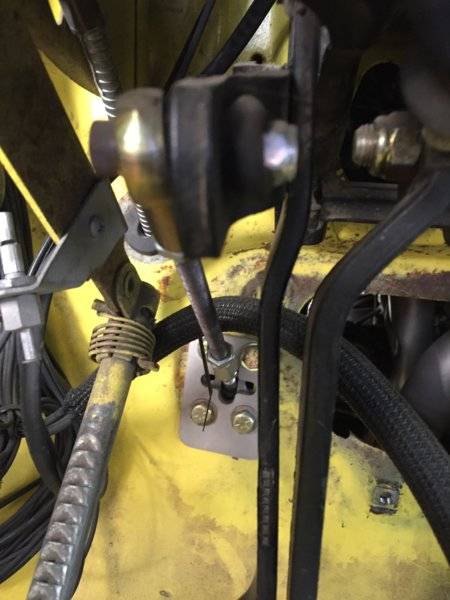

    Never mind my mess, dash is out for some Dakota Digital gauges.

    A5D9D995-4637-41BE-8FDC-C512FF305E50.jpeg 61E03C5A-841D-4BF1-B7D2-0F7BE3254BF1.jpeg

  8. wsutard

    wsutard Well-Known Member

    Messages:
    694
    Likes Received:
    236
    Joined:
    Jul 7, 2016
    Location:
    Seattle
    Local Time:
    9:37 PM
    Thanks for the pics. I just got the spring off and the pedal out. I will use that spot. However, on a b body the clutch is moved outward and thus the connection is inward. It will still be at a slight angle (angling in) to the cylinder. Will that be an issue?

  9. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM
    It’ll be fine. That’s why a heim joint is used. Do you see the angle mine is at?

  10. wsutard

    wsutard Well-Known Member

    Messages:
    694
    Likes Received:
    236
    Joined:
    Jul 7, 2016
    Location:
    Seattle
    Local Time:
    9:37 PM
    I can’t really tell the angle. But I believe you!

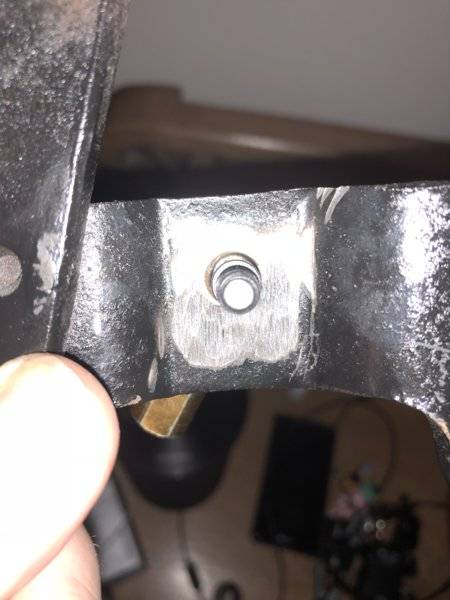

    Ok next question. The old hole is a tad larger than the heim joint stud. Issue?

    You can see the gap in the upper left on this pic.

  11. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    14,132
    Likes Received:
    12259
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    11:37 PM
    Use a washer, it’ll be just fine. I love mine, works awesome!

  12. dangina

    dangina Well-Known Member

    Messages:
    655
    Likes Received:
    156
    Joined:
    Aug 17, 2010
    Location:
    lethbridge
    Local Time:
    10:37 PM
    I feel I should chime in - I have a AP hydraulic clutch setup, I should mention first I tried running this with a slave cylinder setup with ended up wearing out and busting my clutch - I tried the bolting on the stock clutch in a couple spots knowing nothing about pedal ratios and how they work. To perfect this setup i ended buying a wilwood 7:1 pedal that the master cylinder attaches to giving me a modern day setup with a correct pedal ratio. This coupled with a slave cylinder setup was still hard to press the clutch, so i ended up ditching the slave setup and going with a hydraulic throwout bearing which is now a great setup to drive.

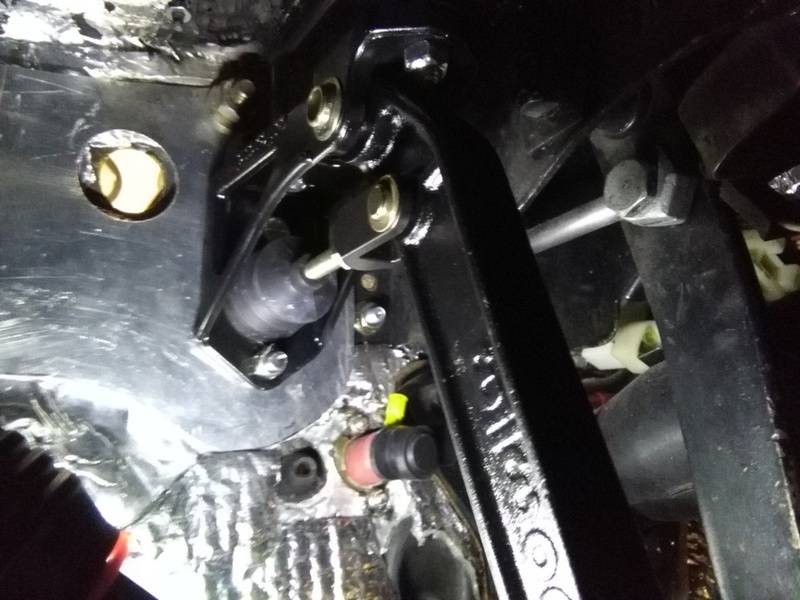

    The pic shows the pedal in the same location as the clutch but mounted to the firewall, I made a custom aluminum plate to even the distribution of force on the firewall so it won't crack down the road. IMG_20160323_182543670_zpsddyr9ywd.jpg

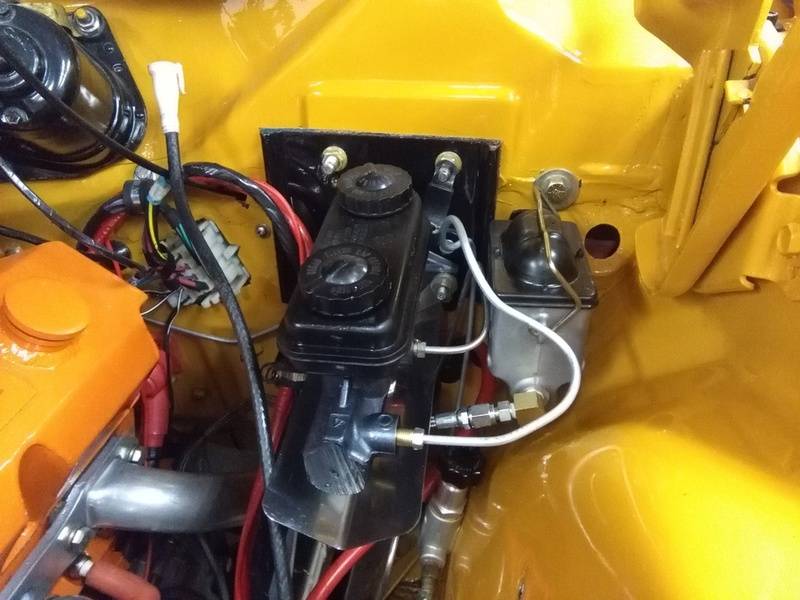

    this pic shows what it looks like mounted in the engine bay

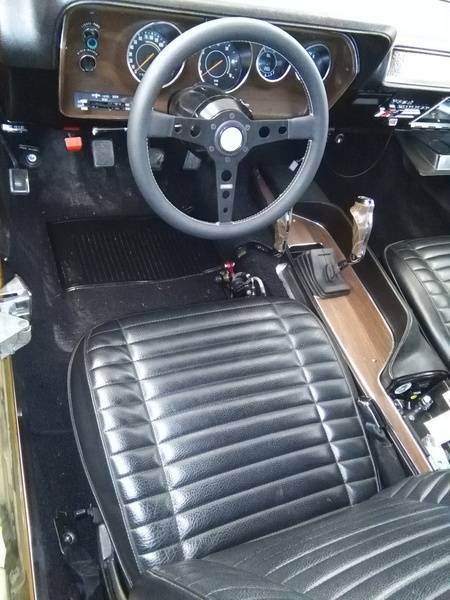

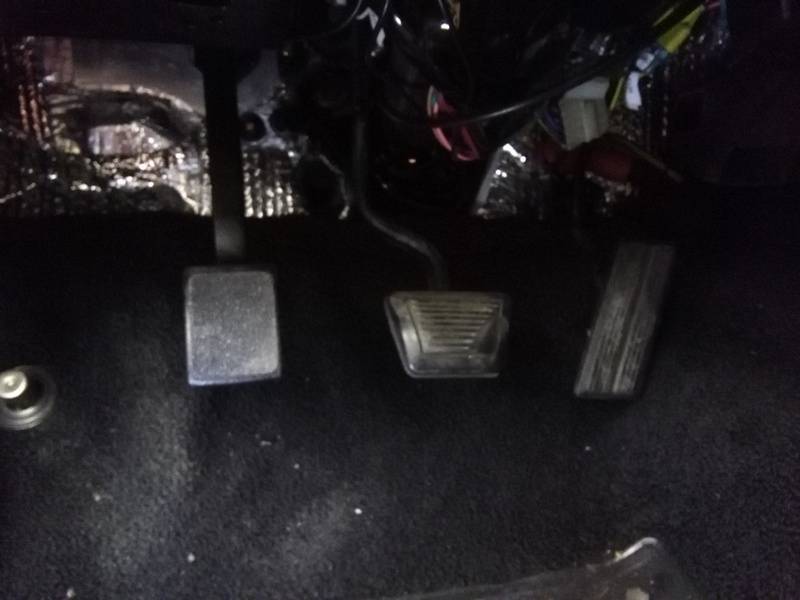

    mounted in car



  13. wsutard

    wsutard Well-Known Member

    Messages:
    694
    Likes Received:
    236
    Joined:
    Jul 7, 2016
    Location:
    Seattle
    Local Time:
    9:37 PM
    Did the +71’ b bodies have the same pedals as 68-70? Unfortunately I don’t have the option of moving my clutch cylinder placement.

  14. coloradodave

    coloradodave FBBO Gold Member FBBO Gold Member

    Messages:
    3,661
    Likes Received:
    3026
    Joined:
    Jun 1, 2011
    Location:
    Lincoln, CA
    Local Time:
    9:37 PM

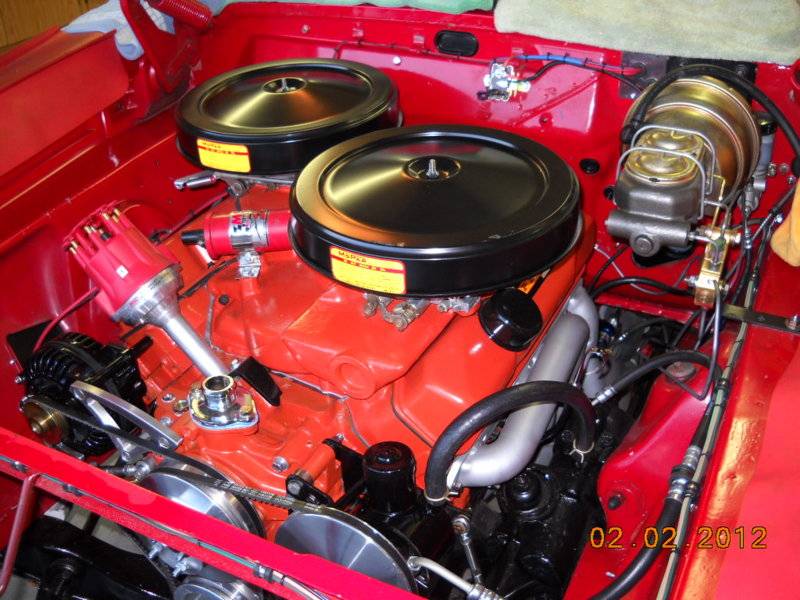

    What Zack (5.7hemi) said. Because I'm a Virgo, I would go to a big box store or an Ace hardware and find a brass, bronze, steel, nylon or teflon bushing to get a tight fit between the clutch pedal and a smooth shouldered bolt for the heim, getting rid of the slack. I have the same set-up in my 63 and it works very well.

    Last edited: Jul 7, 2018
