I made a welding cart

Shop, Garage and Tools

  1. rmchrgr

    rmchrgr Well-Known Member

    Messages:
    319
    Likes Received:
    343
    Joined:
    Oct 11, 2016
    Location:
    Stamford, CT
    Local Time:
    5:16 AM
    Been wanting a welder for a long time and recently pulled the trigger on a Hobart Handler 190 MIG welder. Seems like a really good machine for the money. Has 230V power so it can handle thicker material. Also comes with a spool gun for aluminum though I have not used it yet. Have to say it makes me look like I know what I am doing - good penetration, not burning through stuff, very little splatter. I have a lifetime of projects lined up already and have been using the thing a bunch already.

    So my first project was to make a cart for the machine. If I had to grade myself, I'd give me a B- or maybe a C+. I screwed up the frame measurements in a few spots and the entire thing is crooked. You can't really tell from the pics but trust me, it's about 1/4" off. I went ahead with it anyway because I didn't want to cut it apart and start again. This was how it looked just after I started.

    Frankly, it took way longer than I thought it would. All the measuring, cutting, fitting, do-overs and stepping back to look at it added up to what seemed like two weeks. Towards the end it was becoming tedious and I needed to be done with it. I had planned for a shelf for the spool gun case and a couple more storage features but decided to call it done as you see it now and paint it. Glad I didn't add anything more, it's really heavy with everything loaded on it. The cheapo HF casters are probably at their load limit. That's neoprene tool box drawer liner on the flat surfaces.

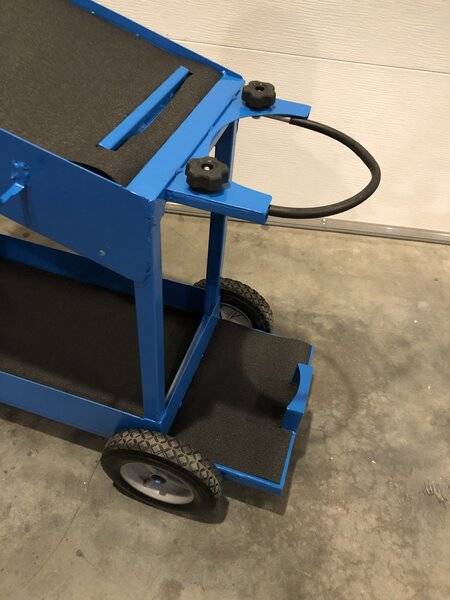

    Spent a bunch of time and effort on the gas cylinder holder. Went through a few different ideas and wound up with what you see. The hoop is a piece of 3/8" steel tubing I had left over from making fuel lines on my Coronet. It was bent around the cylinder and covered with heat shrink tubing. There are two holes drilled through the ends to allow bolts to come up through the half-circle bracket thing which get tightened down with the plastic knobs. The little rounded cutout piece on the bottom helps keep the cylinder stable. Not perfect but it works and it's solid.

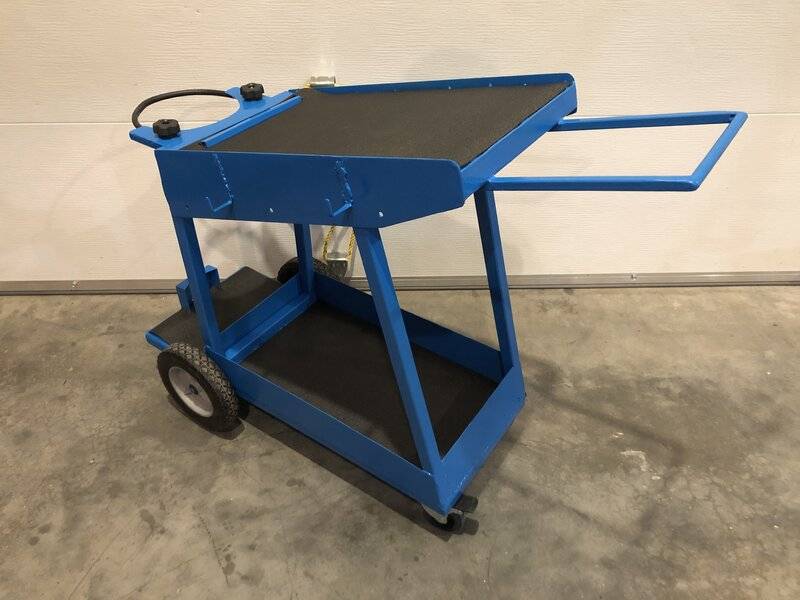

    Loaded up and ready to work.


    Learned a lot making this cart. I know it takes years to master welding but so far I feel pretty confident about my ability. Definitely need some better peripheral (measuring/cutting) tools and a dedicated area to do this type of project cause doing it while crouched or kneeling on the floor sucks. Not to sound corny but this is a big change for me, I can make stuff now, opens up a whole new world.

    - Greg

    • Like Like x 18
    • Agree Agree x 1
    • Big Bad Dad

      Big Bad Dad Well-Known Member

      Messages:
      2,423
      Likes Received:
      4322
      Joined:
      Jun 11, 2011
      Location:
      Fincastle, Va.
      Local Time:
      5:16 AM
      I have had a Hobart like that for about 5 or 6 years now. Love it! I also made my own cart.

    • jamie

      jamie Well-Known Member

      Messages:
      572
      Likes Received:
      654
      Joined:
      Aug 27, 2015
      Location:
      wisc
      Local Time:
      4:16 AM
      Great job. You can't buy a cart that sturdy.

    • 440Coronet500

      440Coronet500 Well-Known Member

      Messages:
      1,134
      Likes Received:
      1495
      Joined:
      Jun 27, 2019
      Location:
      Mi
      Local Time:
      5:16 AM
      The wonderful world of fabrication! The more you do the better you'll get. I Love my Hobart mig welder, as stated those machines make it look easy! I was surprised how easy it is to mig weld. I've done alot a stick welding prior to getting my mig welder. 440'

    • 1 Wild R/T

      1 Wild R/T FBBO Gold Member FBBO Gold Member

      Messages:
      3,809
      Likes Received:
      7447
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      2:16 AM
      Nice!! I just built a new stand for my cheap second hand HF 4x6 bandsaw bought off C/L for $75... The saws are great, the stand sucks... Made the new stand 6" taller so I don't have to bend over to use the saw... You should consider one of these saws, makes other projects much easier...

    • rmchrgr

      rmchrgr Well-Known Member

      Messages:
      319
      Likes Received:
      343
      Joined:
      Oct 11, 2016
      Location:
      Stamford, CT
      Local Time:
      5:16 AM

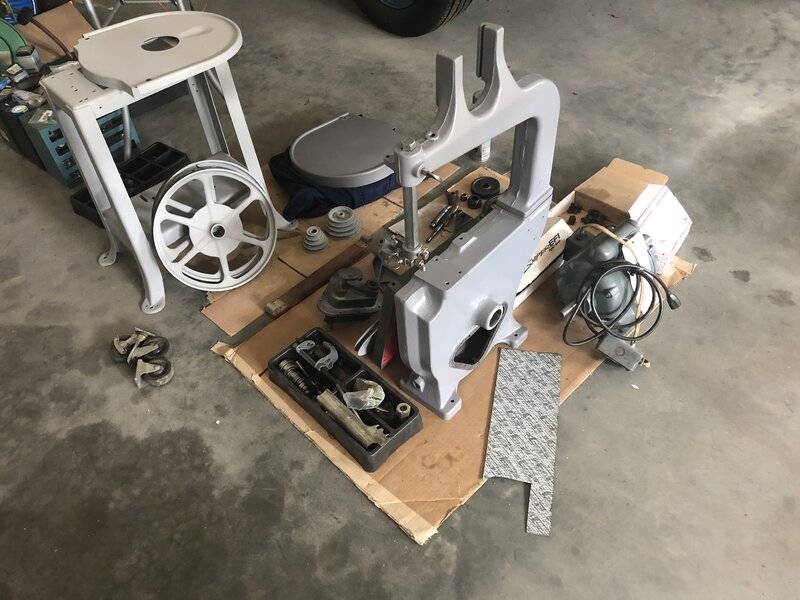

      I have a band saw... 1946 Delta Milwaukee 14" metal/wood. Restoration is almost done, just need to get a few new parts. As you can see it has a pretty sturdy stand since it has to support a rather large chunk of cast iron. Nothing flimsy about this thing.

      Thanks for all the compliments fellas.

      • Like Like x 4
      • Islandkent

        Islandkent FBBO Gold Member FBBO Gold Member

        Messages:
        581
        Likes Received:
        757
        Joined:
        Mar 9, 2019
        Location:
        PEI, Canada
        Local Time:
        6:16 AM
        Turned out GREAT! You wouldn't want to even look at those HF jobbies now. Well done.

        • Agree Agree x 1
        • Ironbuilt

          Ironbuilt FBBO Gold Member FBBO Gold Member

          Messages:
          15,677
          Likes Received:
          33820
          Joined:
          Jul 1, 2017
          Location:
          North Carolina
          Local Time:
          5:16 AM
          Looks great from my house!

        • Jeff Peterson

          Jeff Peterson Platinum Member FBBO Gold Member

          Messages:
          223
          Likes Received:
          791
          Joined:
          Oct 7, 2018
          Location:
          IL.
          Local Time:
          4:16 AM
          Looks great!, I also have had a Hobart for 25-30 years. Do yourself a favor and always keep a spare roll of wire on hand.

        • Don selleck

          Don selleck FBBO Gold Member FBBO Gold Member

          Messages:
          1,846
          Likes Received:
          2472
          Joined:
          Aug 6, 2014
          Location:
          michigan
          Local Time:
          5:16 AM
          nice it always feels good to build something that you use. :thumbsup:

        • PRND21

          PRND21 FBBO Gold Member FBBO Gold Member

          Messages:
          3,343
          Likes Received:
          5398
          Joined:
          Aug 16, 2016
          Location:
          Central Indiana
          Local Time:
          5:16 AM
          Looks great, next thing you’ll need to build is a rack for all the leftover steel from your projects. I never could stick weld worth a damn, I bought a Miller 250 about thirty years ago. I’d be lost without it. I also have a small Miller 110 volt welder with flux core wire that I use as a portable machine.

        • rmchrgr

          rmchrgr Well-Known Member

          Messages:
          319
          Likes Received:
          343
          Joined:
          Oct 11, 2016
          Location:
          Stamford, CT
          Local Time:
          5:16 AM
          I must be getting smart in my old age because when I bought the welder I ordered some extra rolls in different sizes (.024, .030, .035) and a roll of aluminum wire for when I break out the spool gun. Plus 5 packs of tips for each size and an extra nozzle. Going through cutting and flap wheels like crazy though. Fortunately there's a good welding supply place in my town that has anything I'd ever need.

          • Like Like x 1
          • Agree Agree x 1
          • rmchrgr

            rmchrgr Well-Known Member

            Messages:
            319
            Likes Received:
            343
            Joined:
            Oct 11, 2016
            Location:
            Stamford, CT
            Local Time:
            5:16 AM
            Indeed, a rack is on the list! As is an engine-transmission dolly.

            • Like Like x 1
            • 6PKRTSE

              6PKRTSE Well-Known Member

              Messages:
              1,918
              Likes Received:
              2729
              Joined:
              Nov 15, 2010
              Location:
              Motor City
              Local Time:
              4:16 AM
              Nice job. I built my cart for my Miller 130 as well. I also have a Miller 250 for larger jobs. Both are over 30 years old and still work great. My 130 jams up the wire once in a while. I think it is time for a new trigger gun.

            • YY1

              YY1 Well-Known Member

              Messages:
              17,279
              Likes Received:
              9330
              Joined:
              Jun 26, 2010
              Location:
              FL
              Local Time:
              5:16 AM
              Nice.

              How much did the materials cost vs buying the one from HF?

              Did you use thicker a gauge?

              Just curious.

              ...of course the practice is priceless.

            • tallhair

              tallhair Rufus "Mod-hair" Firefly Staff Member

              Messages:
              8,138
              Likes Received:
              3497
              Joined:
              Jan 1, 2013
              Location:
              Mascoutah, Illinois
              Local Time:
              4:16 AM
              Way to go !

            • rmchrgr

              rmchrgr Well-Known Member

              Messages:
              319
              Likes Received:
              343
              Joined:
              Oct 11, 2016
              Location:
              Stamford, CT
              Local Time:
              5:16 AM
              Regarding cost, it's hard to say, not an apples to apples comparison. There's a place here in CT that sells surplus for $1.25/lb. for anything over 100 lbs. Last time I was there I spent like $200. Cart itself weighs at least 40 lbs. It's heavy.

              I don't know what the HF one is like or made from but there's no way it's as burly as mine. The frame is made out of 1" & 2" x .125" wall square tubing. Honestly you could have used .062" wall thickness and it would still be super sturdy. The flat parts were cut out of a approx. 4' x 4' sheet of 14 ga. cold rolled. I'd say 18 ga. might be OK though it would require more support underneath. The side panels were from old workbench back stop sides I cut to fit, maybe 16-18 ga.

              • Like Like x 1
              • Thanks! Thanks! x 1
              • PRND21

                PRND21 FBBO Gold Member FBBO Gold Member

                Messages:
                3,343
                Likes Received:
                5398
                Joined:
                Aug 16, 2016
                Location:
                Central Indiana
                Local Time:
                5:16 AM
                My 250 used to jam occasionally, man if that don’t piss you off, what a waste of wire! I replaced the liner, hasn’t jammed since. That’s been 5-6 years ago. Very easy job, just use a drill motor in reverse if I remember right. Good luck.

              • 6PKRTSE

                6PKRTSE Well-Known Member

                Messages:
                1,918
                Likes Received:
                2729
                Joined:
                Nov 15, 2010
                Location:
                Motor City
                Local Time:
                4:16 AM
                Yes, think it is time for a new liner.

              • bigaadams

                bigaadams Well-Known Member

                Messages:
                489
                Likes Received:
                176
                Joined:
                Apr 4, 2013
                Location:
                Mid Georgia
                Local Time:
                4:16 AM
                cost to build....compared to stamped out one at HF....time wise you just went tits up on the built your own, maybe a little over in material....but for someone starting out welding...this is a great exercise in fabrication and welding for familiarity of the welder itself. Great stuff for learning...and you get a welder stand at the same time. My local sells fall off steel for a way better price...and has bailed me out on some many small projects compared to trying to find the metal at the scrap yard or buying X lengths at Lowes/H-Depot and what not. Even so if metal a tad costly there still way better than buying new, my area, new is full sticks...no exception. Gets costly fast, storing if often an issue if you even remotely think you can use it later. I gather and try to keep various lengths and style metal falloff for to meet many of my projects as I retrofit....always go to the local metal fabrication shop and inquire of fall off before ever buying lengths. Anyway, congrats on the successful build and enjoy....this is what we call having FUN...
