    Hi Guys -


    Redoing the interior of my Roadrunner and dont want to screw up my headliner but putting my sail panels in wrong. How do I go about putting them in right? Do you guys have any pictures of yours installed?

  2. multimopes

    multimopes FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    871
    Likes Received:
    945
    Joined:
    May 6, 2015
    Location:
    Columbia ,NJ
    Local Time:
    11:19 AM
    Sorry, I have a 73, similar but a little different. No pictures either. However, welcome aboard from NJ. I see you are down where the great electronics facility once was. Sad they are closed. You should always post first in the welcome wagon where you will be pestered to post pictures of your car. At any rate, I am sure that someone will chime in. Good Luck! :)

  3. T2R9

    T2R9 FBBO Gold Member FBBO Gold Member

    Messages:
    464
    Likes Received:
    516
    Joined:
    Jul 18, 2008
    Location:
    South Carolina
    Local Time:
    11:19 AM

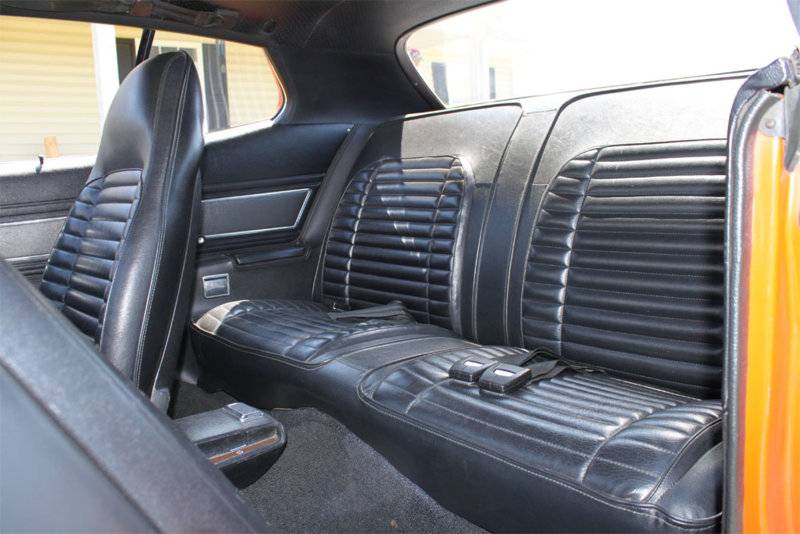

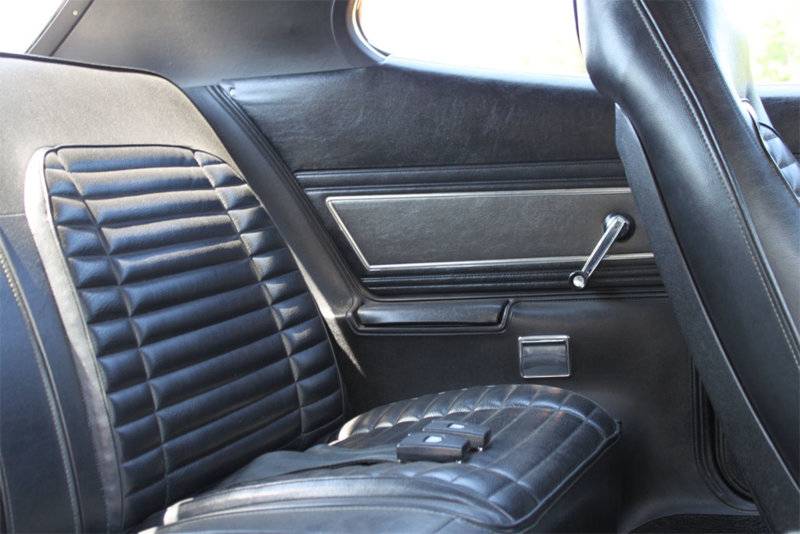

    They cover the headliner but go under the trim and upper trim panel. Best pics I have. :welcome:

    IMG_0092.JPG IMG_0116.JPG

    • Like Like x 1
    • Agree Agree x 1
    • Nacho-RT74

      Nacho-RT74 Well-Known Member

      Messages:
      2,452
      Likes Received:
      716
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      12:19 PM
      they are simply installed after headliner, sliding it over the quarter glass opening. It gets one screw on bottom of the "C" quarter glass opening ( down the quarter upper panel ). Then install the side headliner moldings and its screws ( it shares same attaching screw on top of the "C" opening ), rear package tray and rear glass trim... lower quarter panel and upper panel. That's the order.

      Editing... A pillar panel must be installed too, to be able to install the headliner side moldings

      Last edited: Jan 12, 2019 at 12:55 PM
    • ddpsnake

      ddpsnake FBBO Gold Member FBBO Gold Member

      Messages:
      484
      Likes Received:
      327
      Joined:
      Jun 18, 2017
      Location:
      Belleville Canada
      Local Time:
      11:19 AM
    • PlyGTXSat

      PlyGTXSat New Member

      Messages:
      4
      Likes Received:
      0
      Joined:
      Friday
      Location:
      Huntsville
      Local Time:
      10:19 AM

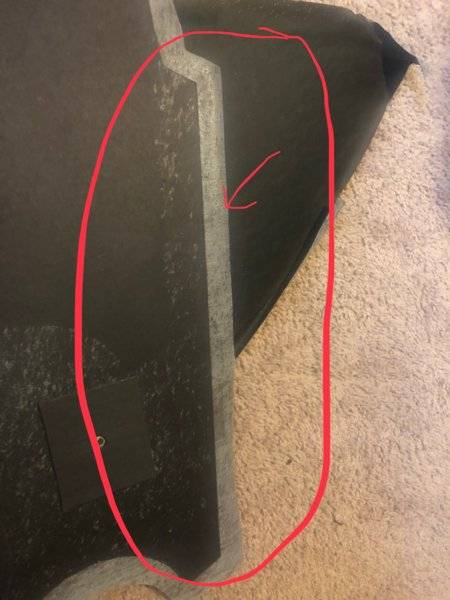

      Okay but my concern is the upper flap that goes on top and meets the headliner. is this suppose to be glued to the headliner or cut off?


    • PlyGTXSat

      PlyGTXSat New Member

      Messages:
      4
      Likes Received:
      0
      Joined:
      Friday
      Location:
      Huntsville
      Local Time:
      10:19 AM
      Okay but my concern is the upper flap that goes on top and meets the headliner. is this suppose to be glued to the headliner or cut off?

    • Nacho-RT74

      Nacho-RT74 Well-Known Member

      Messages:
      2,452
      Likes Received:
      716
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      12:19 PM
      Oh God!!! did you bought one of those repro panels? forgett it! I'm talking about originals... those repros doesn't worth a $hItT. Retunr it and get your money back!!!

      I can't understand how a manufacturer ( and vendors ) gets the courage to sell those as a sail panel replacement!

    • PlyGTXSat

      PlyGTXSat New Member

      Messages:
      4
      Likes Received:
      0
      Joined:
      Friday
      Location:
      Huntsville
      Local Time:
      10:19 AM
      Yes I did. Any advice for getting them to work? Dont really have the originals.

    • Nacho-RT74

      Nacho-RT74 Well-Known Member

      Messages:
      2,452
      Likes Received:
      716
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      12:19 PM
      edited the previous reply:


      Return it and get your money back!!!

      I can't understand how a manufacturer ( and vendors ) gets the courage to sell those as a sail panel replacement!

      I can't tell you how to make it work!!! never have had them in hands, but I know from the distance they don't work! will leave a HUGE gap around the glass, where the weatherstrip should be attached

      Last edited: Jan 12, 2019 at 2:58 PM
    • Nacho-RT74

      Nacho-RT74 Well-Known Member

      Messages:
      2,452
      Likes Received:
      716
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      12:19 PM
      • Agree Agree x 1
      • Nacho-RT74

        Nacho-RT74 Well-Known Member

        Messages:
        2,452
        Likes Received:
        716
        Joined:
        Oct 8, 2012
        Location:
        Caracas, Venezuela
        Local Time:
        12:19 PM
        They just could work if you still have in hands the old panel and cut the curved area what folds against the glass attaching it to that panel you got!

        Last edited: Jan 12, 2019 at 3:14 PM
      • rrTor-Red

        rrTor-Red FBBO Gold Member FBBO Gold Member

        Messages:
        1,675
        Likes Received:
        547
        Joined:
        Sep 1, 2010
        Location:
        USA
        Local Time:
        10:19 AM
        Try to find some originals. You can place an ad on the WTB section. Good luck

        • Agree Agree x 1
        • YY1

          YY1 Well-Known Member

          My Photo Garage
          Messages:
          11,751
          Likes Received:
          4466
          Joined:
          Jun 26, 2010
          Location:
          FL
          Local Time:
          11:19 AM
          Nice originals are out there and not too expensive.

          ...and black is the easiest color to dye to if necessary.

        • Nacho-RT74

          Nacho-RT74 Well-Known Member

          Messages:
          2,452
          Likes Received:
          716
          Joined:
          Oct 8, 2012
          Location:
          Caracas, Venezuela
          Local Time:
          12:19 PM
          I'd like to know where LOL

        • Montclaire

          Montclaire Well-Known Member

          Messages:
          913
          Likes Received:
          153
          Joined:
          Nov 15, 2011
          Location:
          PA
          Local Time:
          10:19 AM
          Nacho, the cloth panels use a metal banana-shaped piece that bridges the gap. You are supposed to reuse your originals. I do not know what controlled which cars got the full vinyl panels vs. the cloth panels.

          It's possible you could use the metal pieces from a 71-72 plymouth. I have a set of each but haven't compared the shape. I know the 73-74 Charger pieces are thicker with a slightly different grain pattern but the curve seemed very close.

          It's hard to tell from the pics in the link but I think there may be a metal trim on the passenger side where the cloth panel isn't fitting up to it properly. If so, it's also possible that the cloth sail panels are the same part for both 71/72 plymouth and 73/74 Charger (using the same shape but different grain), causing the issue. You could trim them to fit but that might leave you short on the glass end. I wish I saved my old ones for a pattern now.

          Last edited: Jan 13, 2019 at 8:37 PM
        • Montclaire

          Montclaire Well-Known Member

          Messages:
          913
          Likes Received:
          153
          Joined:
          Nov 15, 2011
          Location:
          PA
          Local Time:
          10:19 AM
          I'm looking at Classic's website. Basically they have one board for 71-74 plymouth and another 71-74 Charger. Obviously we know that isn't right but it's possible that the plymouth boards would be a better fit in a 73/74 Charger. I'm at a loss to think of what the Charger boards would actually fit - they can't possibly fit 71/72 or 72 SE, and if they don't fit 73/74 then they are just useless.

        • Montclaire

          Montclaire Well-Known Member

          Messages:
          913
          Likes Received:
          153
          Joined:
          Nov 15, 2011
          Location:
          PA
          Local Time:
          10:19 AM
          Flap should be on the bottom? Top should be straight, bottom should tuck behind the padded inner quarter panel. Do you have them reversed?

        • Nacho-RT74

          Nacho-RT74 Well-Known Member

          Messages:
          2,452
          Likes Received:
          716
          Joined:
          Oct 8, 2012
          Location:
          Caracas, Venezuela
          Local Time:
          12:19 PM
          Ok, my panel is hard plastic, one piece from end to end, is not cloth or vinyl!
