Installing XV 3 point front seat belts

[Ray70Chrg]

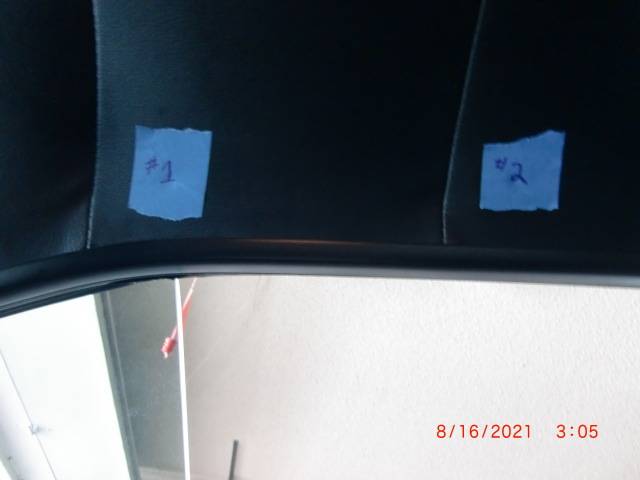

I'm installing these front seatbelts on a '70 charger. The interior has long been completed but the original shoulder belts were never mounted. I knew someday I would put in a 3 point system. Today's the day and I would like to confirm where the upper harness gets bolted into. I have attached photo with 2 possible locations. #1 is right above the edge of closed rear window and #2 is forward of that. I thought this would be easy to figure out years ago when the interior was done. The fsm is no help. Thanks for your assistance.



[BeepBeepRR]

1 is where they are in the roadrunner.



[Ray70Chrg]

Thanks Beeps. I'm thinking #1 also but hoping someone with a charger will also agree.



[CoronetDarter]

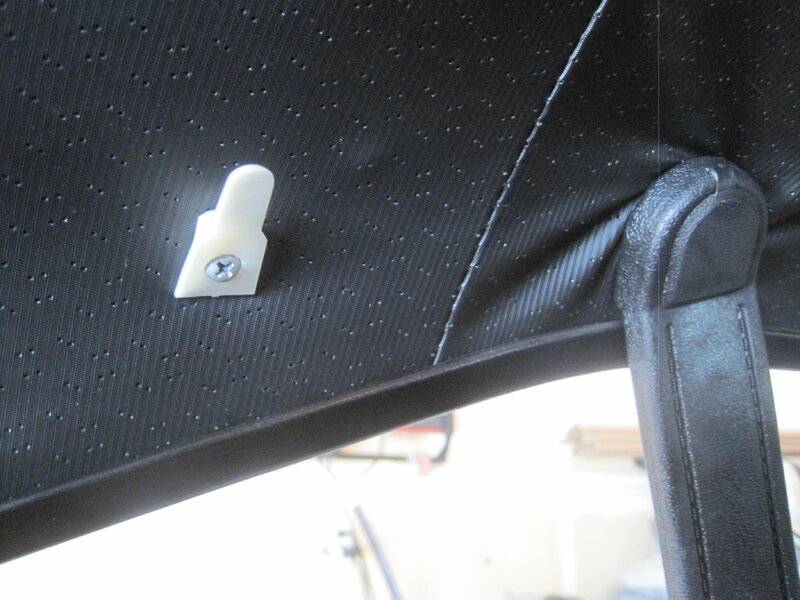

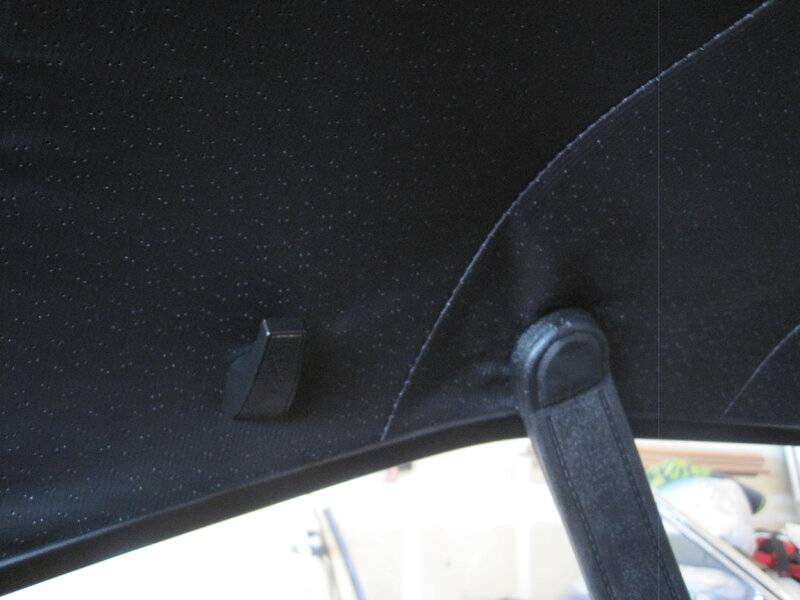

I have the XV 3 pt harness in both the Coronet and the Dart. Its not a Charger but the arc on the Coronet is pretty close.



[Ray70Chrg]

Thanks CD for responding. If I'm seeing this correctly these pictures are both on the passenger side? How do you like the XV set-up? I notice on their pictures that the belt going up from the retractor to the top mounting point has one twist in it and the two I have also has one twist. Is this true with yours? Thanks for replying.



[CoronetDarter]

It's odd but the Dart has more room for the retractor mechanism than the Coronet. The Coronet has one twist and the Dart lays flat.
I like them. Installed the Coronet five years ago and just installed them in the Dart two weeks ago.



[pro-streeter]

I'm installing these front seatbelts on a '70 charger. The interior has long been completed but the original shoulder belts were never mounted. I knew someday I would put in a 3 point system. Today's the day and I would like to confirm where the upper harness gets bolted into. I have attached photo with 2 possible locations. #1 is right above the edge of closed rear window and #2 is forward of that. I thought this would be easy to figure out years ago when the interior was done. The fsm is no help. Thanks for your assistance.View attachment 1153114

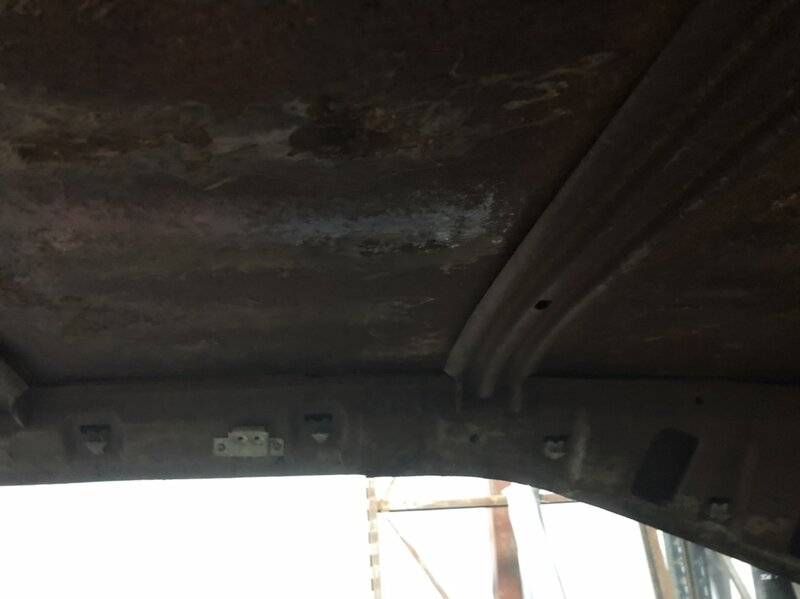

This may help.



[OKDart]

#1

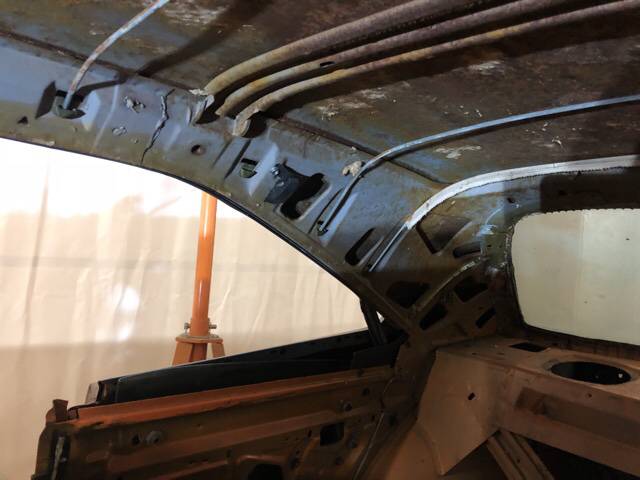

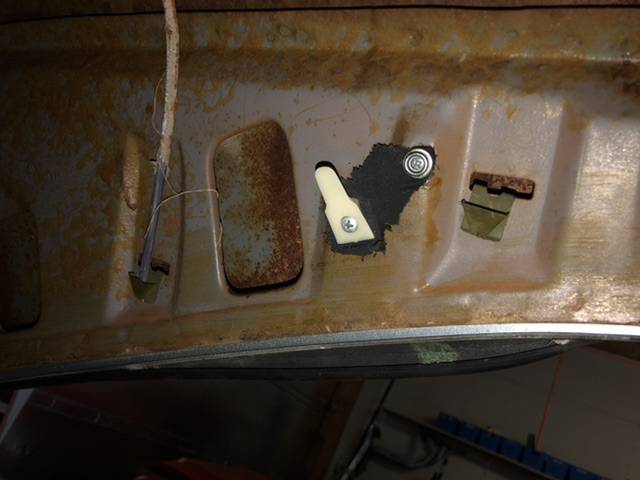

Here’s a pic of my 1970 Charger



[furious70]

I just ordered mine and received, to me it looks like the female end that bolts to the tunnel has the plastic molded in the wrong shape? Anyone got a photo of that side installed? Trying to put in my 68 with a console and it wants to fit a lot better upside down than the correct way.
Also, does the belt have to do a 1/2 twist in the vertical part to lay correct across your body?
Thanks



[Ray70Chrg]

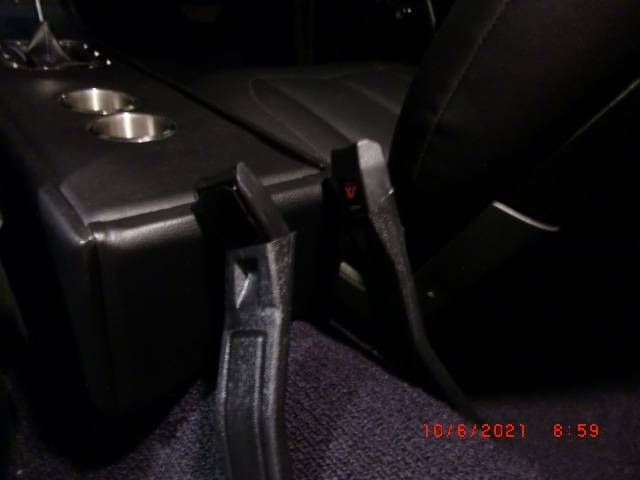

Here's a couple of pics of how I installed the receiver to the tunnel. Also the belt coming up from the floor does have a half twist in it. As you pull the buckle across your chest the twist automatically straightens out.
