Instrument voltage limiter replacement help

Electrical & Ignition

  1. repsol17

    repsol17 Well-Known Member

    Messages:
    45
    Likes Received:
    20
    Joined:
    Apr 29, 2015
    Location:
    Ft Lauderdale Florida
    Local Time:
    11:49 AM
    Hey all,
    From much research it appears I need to replace my instrument voltage limiter on my '70 Roadrunner. From looking at it, the only way to get my hands on it is by dropping the steering column.

    I've already taken off 3 nuts with washer from the bottom steering column bracket and the column dropped about 3/4" and that's it. I have never replaced one and don't want go any further for the fear of damaging something.

    What steps are taken next, I must be over looking something else but can't seem to see what.

    any help would be greatly appreciated
    Thanks

  2. 440Coronet500

    440Coronet500 Well-Known Member

    Messages:
    1,383
    Likes Received:
    1934
    Joined:
    Jun 27, 2019
    Location:
    Mi
    Local Time:
    12:49 PM
    Unhook the battery power first! 440'

  3. repsol17

    repsol17 Well-Known Member

    Messages:
    45
    Likes Received:
    20
    Joined:
    Apr 29, 2015
    Location:
    Ft Lauderdale Florida
    Local Time:
    11:49 AM
    No battery installed and yes a 440

  4. AR67GTX

    AR67GTX Well-Known Member

    Messages:
    1,923
    Likes Received:
    1031
    Joined:
    Jan 28, 2012
    Location:
    Arkansas
    Local Time:
    11:49 AM
    If just trying to drop it lower you can remove the screws securing the mounting plate at the firewall. The screws are accessed from inside and under the dash. At least that applies to 66/67 cars, I think 68-70 are the same. Remove the screws and the column should drop to where the rim rest on the seat cushion (if seats installed).

    Or are you wanting to remove the column?

    • Agree Agree x 1
    • repsol17

      repsol17 Well-Known Member

      Messages:
      45
      Likes Received:
      20
      Joined:
      Apr 29, 2015
      Location:
      Ft Lauderdale Florida
      Local Time:
      11:49 AM
      Seats are installed, I just need to lower to seat (if needed). Previously I had removed the two bolts that attach the floor plate of the column (from inside) to the firewall as well as the three washers and nuts at the column bracket. After that I figured it would of dropped to the seats but it didn't.

      So I stopped...I didn't want to force anything until I asked for advice.

      At this point, the column bracket is still affixed to the column even though I removed three nuts and washers. Should the bracket pop off or am I missing something else.
      The steering column does flex downward but only about 3/4".

    • 69plywgn

      69plywgn Well-Known Member

      Messages:
      119
      Likes Received:
      128
      Joined:
      Oct 3, 2013
      Location:
      White Lake, MI
      Local Time:
      11:49 AM
    • 69plywgn

      69plywgn Well-Known Member

      Messages:
      119
      Likes Received:
      128
      Joined:
      Oct 3, 2013
      Location:
      White Lake, MI
      Local Time:
      11:49 AM

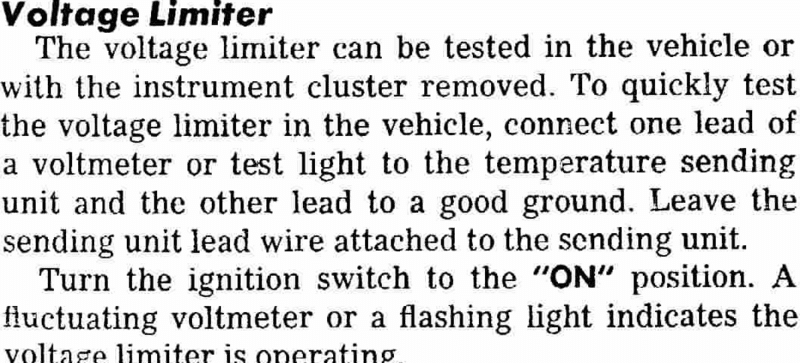

      Also, there are solid-state voltage limiters available from some aftermarket parts suppliers.

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • repsol17

        repsol17 Well-Known Member

        Messages:
        45
        Likes Received:
        20
        Joined:
        Apr 29, 2015
        Location:
        Ft Lauderdale Florida
        Local Time:
        11:49 AM

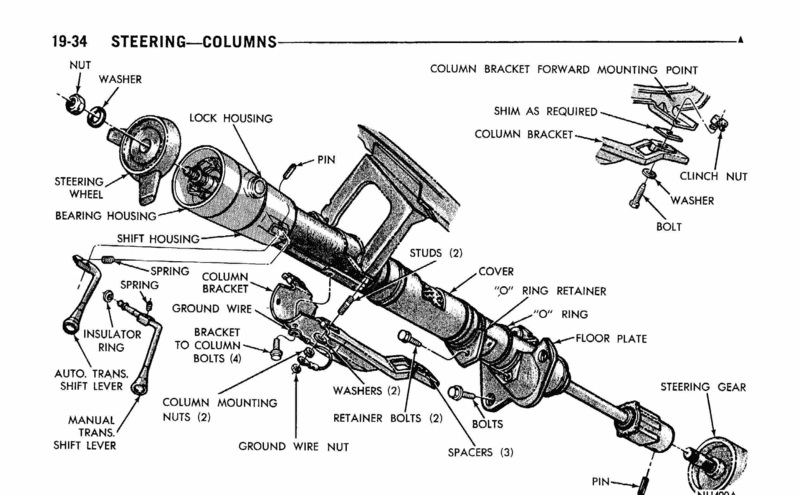

        I've been looking at the same drawing as above. There must be something else holding the column up though. It feels like there's to much resistance on the column to just lower with ease.

      • turbine68rt

        turbine68rt Turbine Bronze Member FBBO Gold Member

        Messages:
        1,429
        Likes Received:
        2083
        Joined:
        Dec 1, 2019
        Location:
        PA
        Local Time:
        12:49 PM
      • 65-440

        65-440 Well-Known Member

        Messages:
        3,159
        Likes Received:
        2700
        Joined:
        Dec 2, 2009
        Location:
        virginia beach, va
        Local Time:
        2:49 PM
        Take off the 2 nuts at the dash then the 3 bolts at the firewall...it'll move then

      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        9,716
        Likes Received:
        23623
        Joined:
        Jan 29, 2018
        Location:
        Midland Ontario, Canada
        Local Time:
        12:49 PM
        There's THREE bolts on the underdash retainer....

      • 69plywgn

        69plywgn Well-Known Member

        Messages:
        119
        Likes Received:
        128
        Joined:
        Oct 3, 2013
        Location:
        White Lake, MI
        Local Time:
        11:49 AM
        Click on the link to the service manual in post #6 and go to Section 19.

      • Big Bad Dad

        Big Bad Dad Well-Known Member

        Messages:
        2,743
        Likes Received:
        5113
        Joined:
        Jun 11, 2011
        Location:
        Fincastle, Va.
        Local Time:
        12:49 PM
        You have to take out the bolts holding the floor plate to the firewall for the column to drop onto the seat.

        • Agree Agree x 1
        • repsol17

          repsol17 Well-Known Member

          Messages:
          45
          Likes Received:
          20
          Joined:
          Apr 29, 2015
          Location:
          Ft Lauderdale Florida
          Local Time:
          11:49 AM
          As well as the three bolts holding the lower column bracket? is there something else I'm missing?

          Last edited: May 3, 2021
        • repsol17

          repsol17 Well-Known Member

          Messages:
          45
          Likes Received:
          20
          Joined:
          Apr 29, 2015
          Location:
          Ft Lauderdale Florida
          Local Time:
          11:49 AM
          Is this the column bracket you're referring to as the underdash retainer?

          • Agree Agree x 1
          • Big Bad Dad

            Big Bad Dad Well-Known Member

            Messages:
            2,743
            Likes Received:
            5113
            Joined:
            Jun 11, 2011
            Location:
            Fincastle, Va.
            Local Time:
            12:49 PM
            yes

          • repsol17

            repsol17 Well-Known Member

            Messages:
            45
            Likes Received:
            20
            Joined:
            Apr 29, 2015
            Location:
            Ft Lauderdale Florida
            Local Time:
            11:49 AM
            After these fasteners are removed does the column simply drop or does it pulled away from the firewall then drop?

          • AR67GTX

            AR67GTX Well-Known Member

            Messages:
            1,923
            Likes Received:
            1031
            Joined:
            Jan 28, 2012
            Location:
            Arkansas
            Local Time:
            11:49 AM
            It should simply drop although the plate will pull away from the firewall a little. Not sure about your exact year but on my 66/67 cars there is a small column seal plate that bolts with two bolts to the firewall seal plate which in turn bolts with 4 bolts to the firewall. Sounds like later cars use a 3-bolt plate.

            You will have to knock the roll pin out of the coupler to get it to pull back or remove.

          • Sixpactogo

            Sixpactogo Well-Known Member

            Messages:
            1,433
            Likes Received:
            1252
            Joined:
            Feb 2, 2014
            Location:
            Eau Claire, WI
            Local Time:
            11:49 AM
            I think you are missing one bolt. Four on the floor plate and three nuts and one bolt on the column. It will drop down to the seat then.

          • repsol17

            repsol17 Well-Known Member

            Messages:
            45
            Likes Received:
            20
            Joined:
            Apr 29, 2015
            Location:
            Ft Lauderdale Florida
            Local Time:
            11:49 AM
            Thanks everyone for helping out. 4 bolts on the floor plate and 3 nuts/washers for the column bracket.

            Every gauge (fuel, alt and temp) works except the oil. So I'll have to look into possibly a new sending unit

            Very simple and thanks again everyone
