    Hi guys - I am installing a set of AFCO sliders and note that the full travel length is 4-inches. That appears to be the same length that my leaf spring will extend from unloaded to fully flat. I'm concerned about being able to install and remove the spring and still have full travel without binding when the spring is fully loaded and flat.

    Right now I plan on locating them with the springs unloaded, connected to the front hangers, and with the pin in the slider all the way forward. This should work, but still leaves no room for error. The slider has 4 inches of travel and the springs will be 4 inches longer when loaded flat.

    Am I missing something or concerned about nothing? Experienced install tips please!

    Here they are: https://www.summitracing.com/parts/afc-20236s

  2. Jeremiah

    Jeremiah FBBO Gold Member FBBO Gold Member

    Messages:
    1,310
    Likes Received:
    463
    Joined:
    Feb 7, 2012
    Location:
    Rogue River, OR
    Local Time:
    4:45 AM
    I think you will be fine as long as you don't hit the RR tracks at 90mph.

    You want to keep the spring oriented so it is somewhat level front to rear.

  3. malex

    malex FBBO Gold Member FBBO Gold Member

    Messages:
    2,019
    Likes Received:
    2665
    Joined:
    Aug 10, 2013
    Location:
    Canada
    Local Time:
    6:45 AM
    With the springs unloaded you’ll want to still leave some forward travel. My sliders came from Speedway and the slot allows 4.5” travel. I left 1” space at the front when the springs are unloaded, diff hanging. At launch you want to make sure you don't run out of travel during rise. When sitting level on ground I have lots of slot remaining at the rear. I’d suggest to mock them up and check loaded and unloaded.


    Last edited: Dec 3, 2020
    • Like Like x 4
    • Agree Agree x 2
    • Jeremiah

      Jeremiah FBBO Gold Member FBBO Gold Member

      Messages:
      1,310
      Likes Received:
      463
      Joined:
      Feb 7, 2012
      Location:
      Rogue River, OR
      Local Time:
      4:45 AM

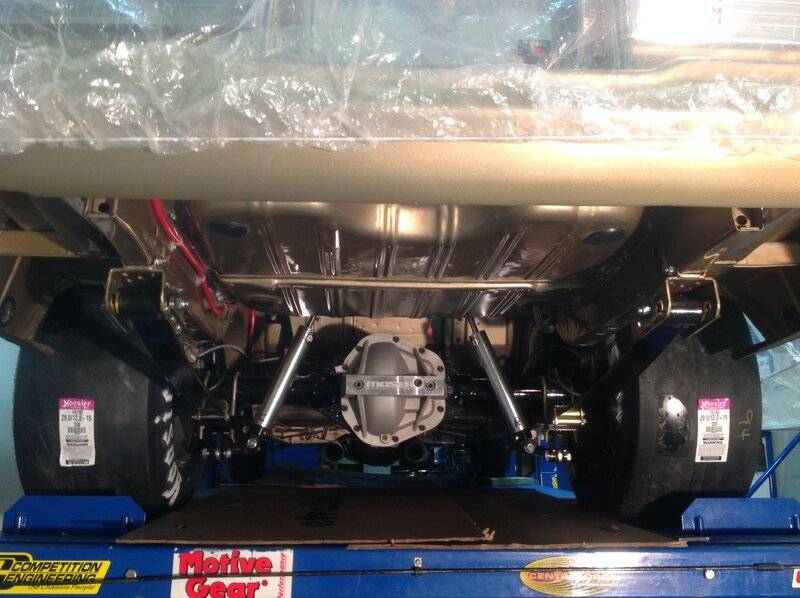

      And note the pic above has the slider on the chassis (lowers the ride height) *and* the front spring eye is in the top hole. This is a good thing. I had to do the same on my 66 Charger to correct the pinion angle I am remembering right. That it looks bad ass : D

      • Like Like x 1
      • malex

        malex FBBO Gold Member FBBO Gold Member

        Messages:
        2,019
        Likes Received:
        2665
        Joined:
        Aug 10, 2013
        Location:
        Canada
        Local Time:
        6:45 AM
        A couple more pictures.

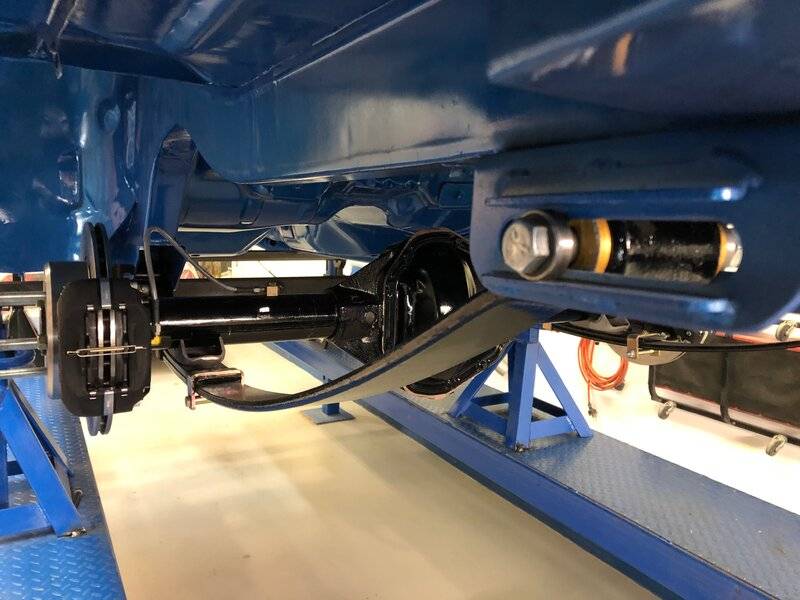

        Slider position at ride height.


        This is why it’s good to have additional travel at the front of the slider when the leaf is unloaded. When you have extreme separation those leafs curl up pretty good and that extra travel will get used up.

        • Like Like x 5
        • #41

          #41 Well-Known Member

          Messages:
          462
          Likes Received:
          791
          Joined:
          Oct 18, 2012
          Location:
          WA
          Local Time:
          4:45 AM
          Really appreciate this input Malex. Those pics were worth a thousand words. Have it mostly mocked up now and I'm on the right path.

          • Thanks! Thanks! x 1
          • dvw

            dvw Well-Known Member

            Messages:
            5,733
            Likes Received:
            8329
            Joined:
            Feb 16, 2010
            Location:
            waterford mi
            Local Time:
            7:45 AM
            I agree the spring will move further forward and less rearward than you would think.
            Doug

            • Agree Agree x 2
            • Thanks! Thanks! x 1
            • rumblefish360

              rumblefish360 Well-Known Member

              Messages:
              4,364
              Likes Received:
              1910
              Joined:
              Jun 30, 2008
              Location:
              New York
              Local Time:
              6:45 AM
              I’ve seen some good go pro footage of there movement. See if you can find some footage on you tube.

              • Like Like x 1
              • NSS Guy

                NSS Guy Well-Known Member

                Messages:
                276
                Likes Received:
                495
                Joined:
                Jan 26, 2018
                Location:
                ohio
                Local Time:
                7:45 AM

                • Like Like x 3
                • Thanks! Thanks! x 2
                • rumblefish360

                  rumblefish360 Well-Known Member

                  Messages:
                  4,364
                  Likes Received:
                  1910
                  Joined:
                  Jun 30, 2008
                  Location:
                  New York
                  Local Time:
                  6:45 AM
                  Great use of a go pro. Excellent!

                  • Agree Agree x 1
                  • malex

                    malex FBBO Gold Member FBBO Gold Member

                    Messages:
                    2,019
                    Likes Received:
                    2665
                    Joined:
                    Aug 10, 2013
                    Location:
                    Canada
                    Local Time:
                    6:45 AM
                    —-
                    That shows exactly what’s going on. IMO I’d say those sliders could be installed a little further ahead still but they sure do the job.

                    • Agree Agree x 1
                    • NSS Guy

                      NSS Guy Well-Known Member

                      Messages:
                      276
                      Likes Received:
                      495
                      Joined:
                      Jan 26, 2018
                      Location:
                      ohio
                      Local Time:
                      7:45 AM
                      The video was first time with Viking shocks, I tightened up the extension after that run and was good after that. That pass was 1.47 60ft and 10.48 et at NMCA Indy 2019

                      • Like Like x 4
                      • malex

                        malex FBBO Gold Member FBBO Gold Member

                        Messages:
                        2,019
                        Likes Received:
                        2665
                        Joined:
                        Aug 10, 2013
                        Location:
                        Canada
                        Local Time:
                        6:45 AM
                        —-
                        Yes NSS some shock adjustment would take care of that. I’m sure it was fine anyways, just the camera angle. A perfect video for the guy doing his install. Good old FBBO guys always quick to lend a hand.

                        • Like Like x 5
                        • biomedtechguy

                          biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                          Messages:
                          25,492
                          Likes Received:
                          37051
                          Joined:
                          Mar 28, 2014
                          Location:
                          South Louisiana
                          Local Time:
                          6:45 AM

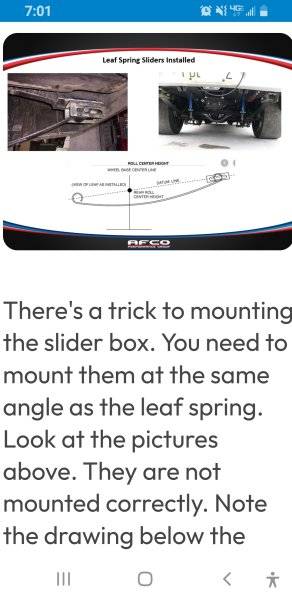

                          That video, before I knew it was you, convinced me just from watching how sliders work, to make a pair of the Calvert brand part of my substantial suspension upgrades.
                          My 70 Roadrunner is 80% or more street use for now.
                          The crossbolt is about 1/3rd of the total space back from one end (I don't remember which end)

                          • Like Like x 1
                          • #41

                            #41 Well-Known Member

                            Messages:
                            462
                            Likes Received:
                            791
                            Joined:
                            Oct 18, 2012
                            Location:
                            WA
                            Local Time:
                            4:45 AM
                            The way my install ended up is with the sliders about 1/2" from the back end with the springs fully loaded (flat arch). Unloaded they are about 1/3 of the slot from the front.

                            My measurement of total spring length at max (flat arch) turned out to be about an inch off, so my original concerns about the slot in the slider not being long enough was unfounded. I'm confident that I have this set up just right, thanks to all your input.

                            :luvplace:

                            • Like Like x 3
                            • malex

                              malex FBBO Gold Member FBBO Gold Member

                              Messages:
                              2,019
                              Likes Received:
                              2665
                              Joined:
                              Aug 10, 2013
                              Location:
                              Canada
                              Local Time:
                              6:45 AM
                              You got it right. The sliders will work well for you. HNY!
