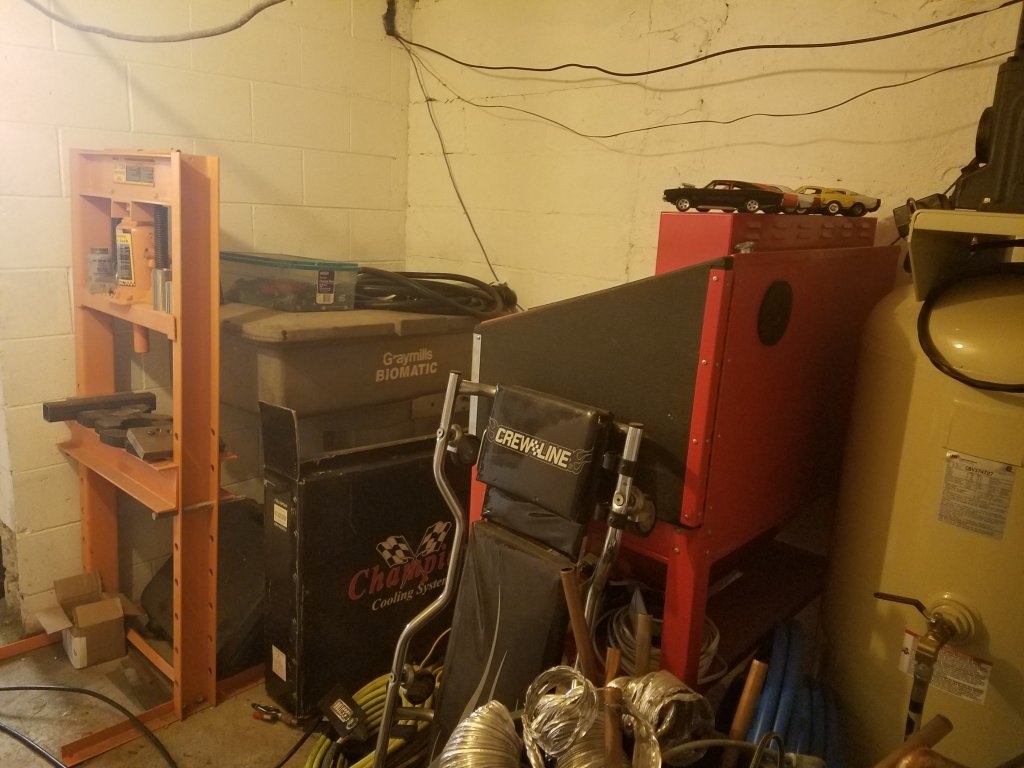

    So ive seen this on other forums and its always turned into one of those 100 + page threads. Didnt see one here though. The idea is to post pics of your workspace as is, no tidying up no organizing to look pretty. Lets take a tour of each others shops, piles of parts and tools scattered included. And a little blip about the kinds of things you guys have either tools or lighting, compressor plumbing wash up sinks whatever. And yes a b body on jack stands in the crushed stone behind your house with a walmart plastic molded box socket set counts as a "shop" its the cool tools and the hardships we find work arounds for that make ever build thread we read that much cooler. And of course, if you make changes or get a new cool tool please share.

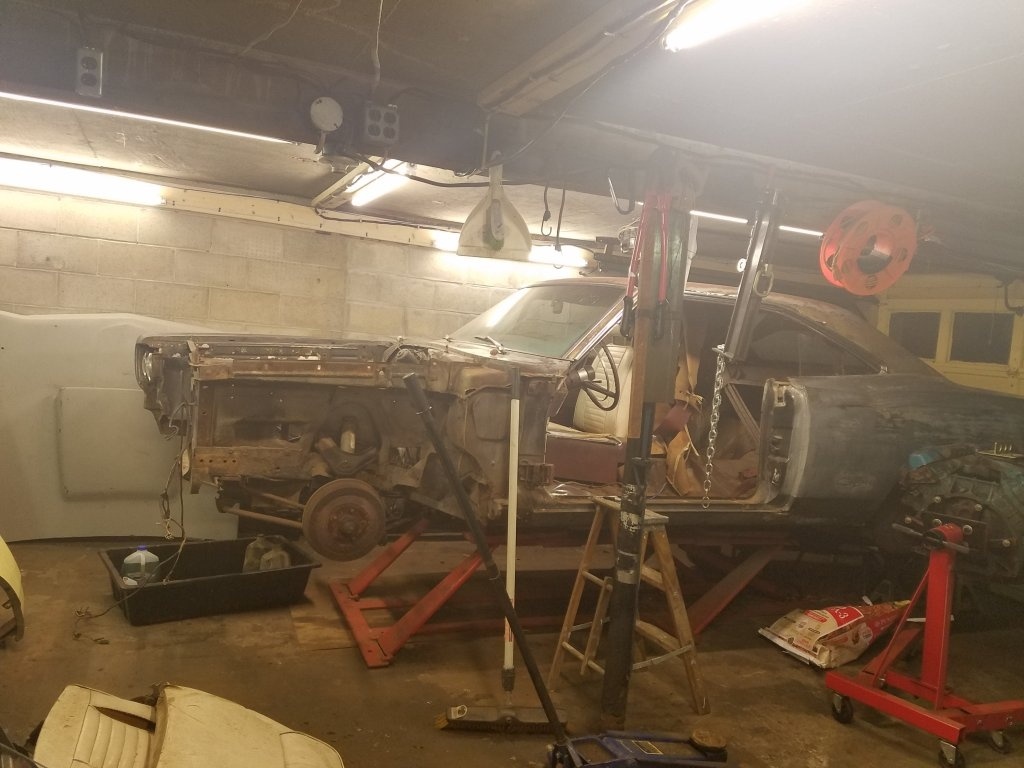

    So i spose ill start. My shop is a very cozy 18x22 two stall garage with 7ft ceilings. Ive put the lighting on the outside edges of one bay, because i need to see down the side of my cars, any direct overhead lighting does nothing but shadow. Also one light over where the engine bays typically sit. I have a mid rise parallell rotary lift in that bay. Full length bench across the back usually covered in crap(as you can see) where some useful tools also hang out. My other bay is the "shop" space, With a 3in1 roll break shear. Welding cart with a mig tig and plasma cutter. And a nice welding bench. Then i have a cabinet for paint oil filler, lots of pb blaster and mystery oil, cleaning stuff etc. Main toolbox I have a nice little side room on the pathway to my connected basement. I have crammed in there a 20ton shop press, sandblasting booth, bio parts washer (i just use it for the heater with simple green instead of the microbe slurry though) and an 80 gallon 5hp IR compressor. 20170215_212533.jpg 20170215_212519.jpg 20170215_212514.jpg 20170215_213613.jpg 20170215_213621.jpg 20170215_213625.jpg

    Last edited: Feb 15, 2017
    • Like Like x 12
    • Thanks! Thanks! x 1
    • Darter6

      Darter6 FBBO Gold Member FBBO Gold Member

      Messages:
      3,395
      Likes Received:
      3315
      Joined:
      Dec 29, 2009
      Location:
      Nevada
      Local Time:
      5:14 PM
      Cool Idea, I'll get some shots

    • Baller

      Baller Well-Known Member

      Messages:
      382
      Likes Received:
      179
      Joined:
      Oct 5, 2012
      Location:
      Delta BC
      Local Time:
      3:14 PM
      I Like this idea. Cool lift that you have.

    • Baller

      Baller Well-Known Member

      Messages:
      382
      Likes Received:
      179
      Joined:
      Oct 5, 2012
      Location:
      Delta BC
      Local Time:
      3:14 PM

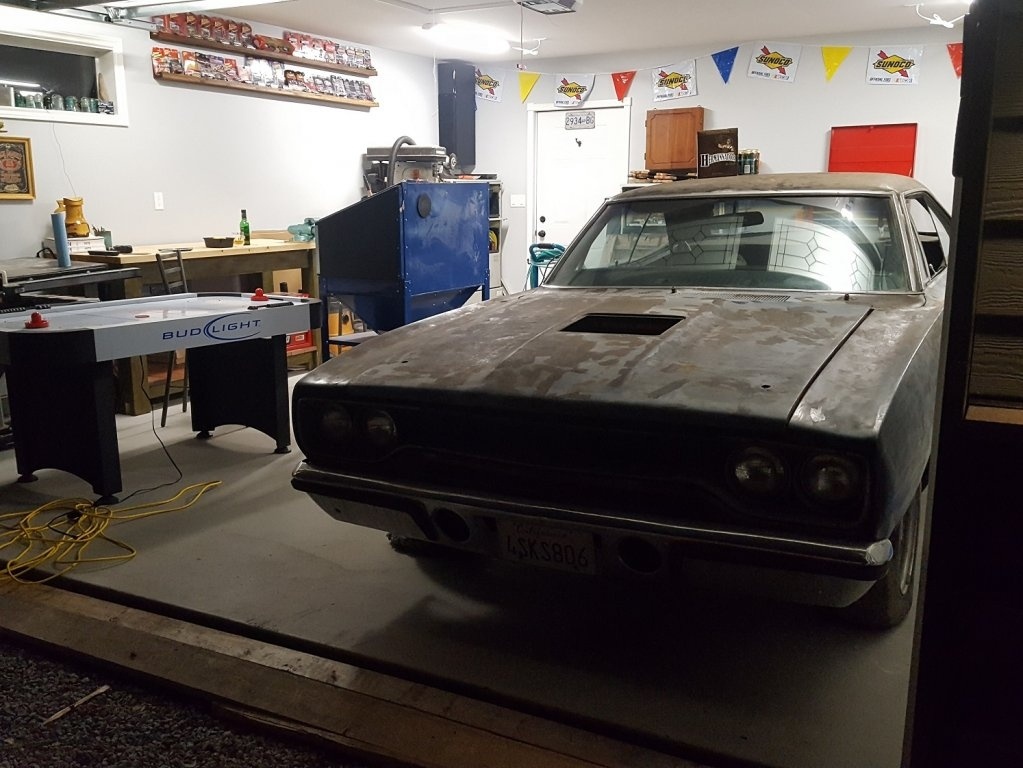

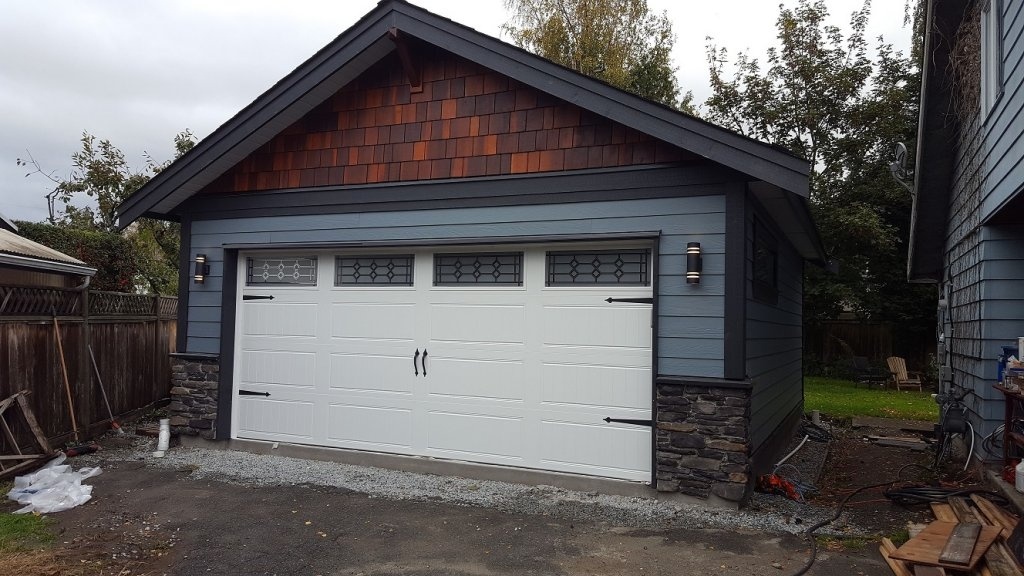

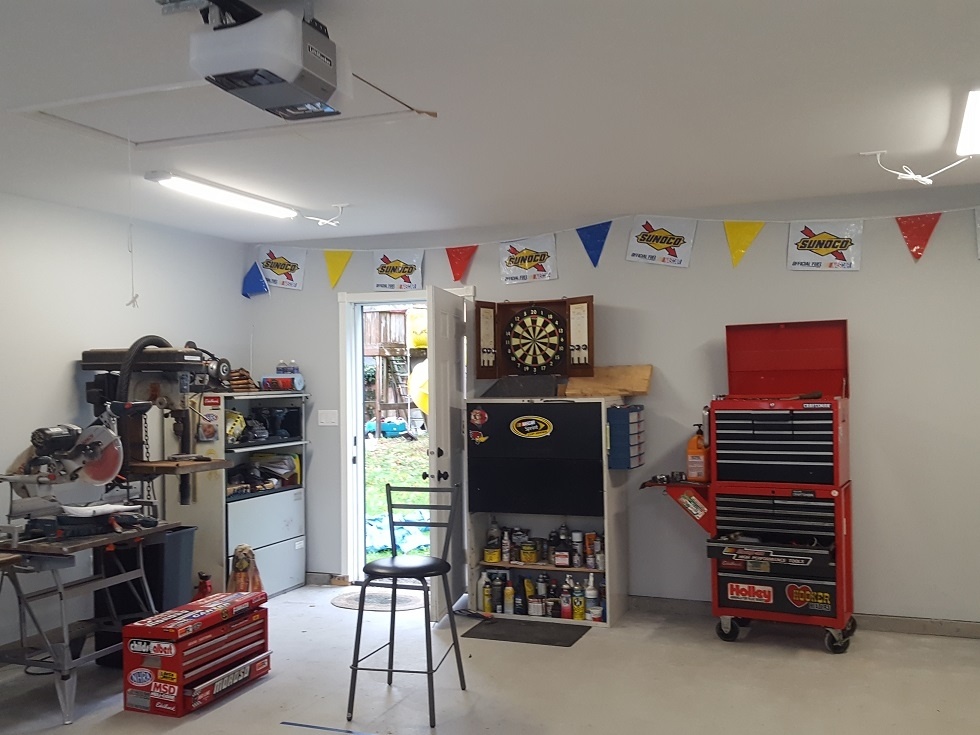

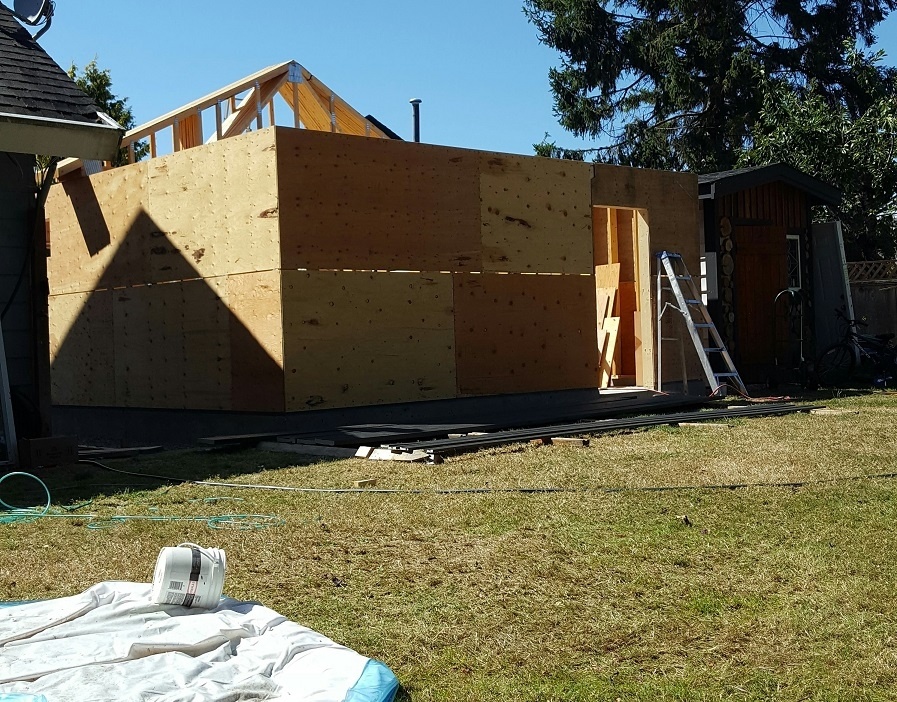

      Okay, so last July I started on my new garage 20'x23', which was the largest that I could go. Used the dual LED 4' lights from Costco and they work great. No welder yet and I need a single phase motor for my big Speedaire (17.1 cfm @175psi) compressor that will be stored under cover out side, though I may downsize the compressor. Also bought a large blast cabinet off a local buy and sell for $75, with new gloves, light and tips. Moved the car in at the end of January so the fun can now begin.

      2016-07-31 020.jpg 2016-10-13 003.jpg 2016-10-31 027.jpg 2017-01-13 017.jpg

      • Like Like x 14
      • dieseldazzle

        dieseldazzle Well-Known Member

        Messages:
        2,670
        Likes Received:
        1921
        Joined:
        Aug 31, 2014
        Location:
        California
        Local Time:
        5:14 PM
        Sick air hockey table dude!

        • Agree Agree x 6
        • 68GTXNH

          68GTXNH Well-Known Member

          Messages:
          211
          Likes Received:
          255
          Joined:
          Jul 18, 2016
          Location:
          NH
          Local Time:
          6:14 PM
          haha i was going to say the exact same thing. the other thing i need to do is make everything white like he did, the mismatched coloring of my cinderblocks makes things very dark.

          • Like Like x 1
          • 493 Mike

            493 Mike FBBO Gold Member FBBO Gold Member

            Messages:
            1,491
            Likes Received:
            1435
            Joined:
            Dec 25, 2011
            Location:
            White Cloud, MI
            Local Time:
            6:14 PM

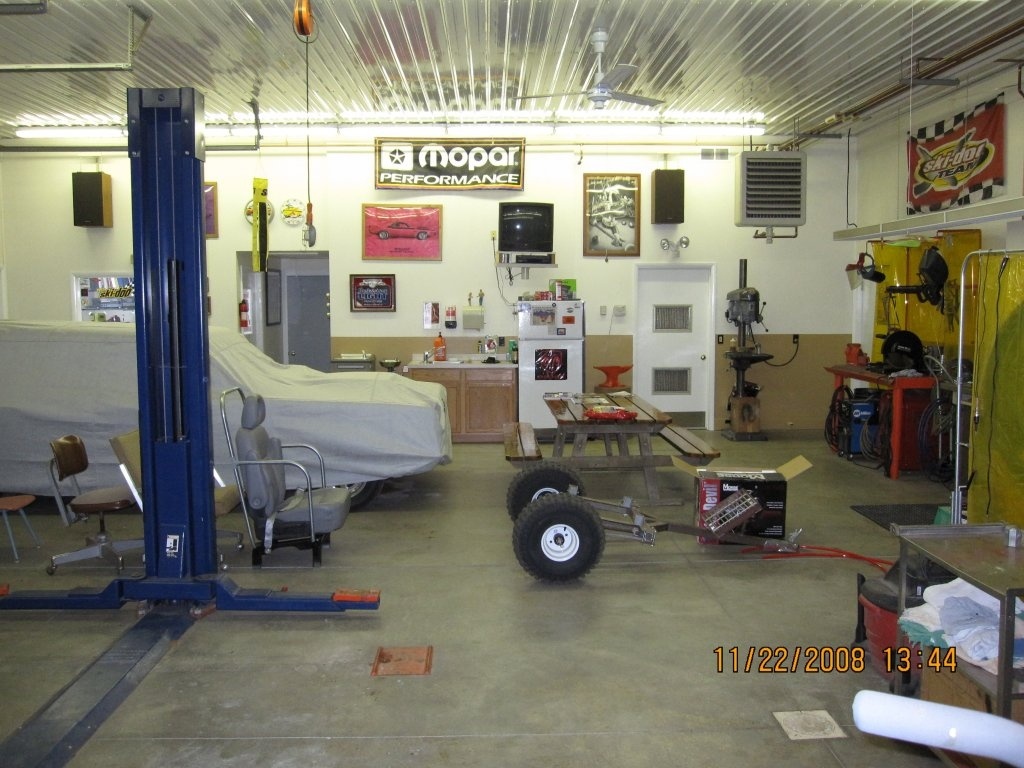

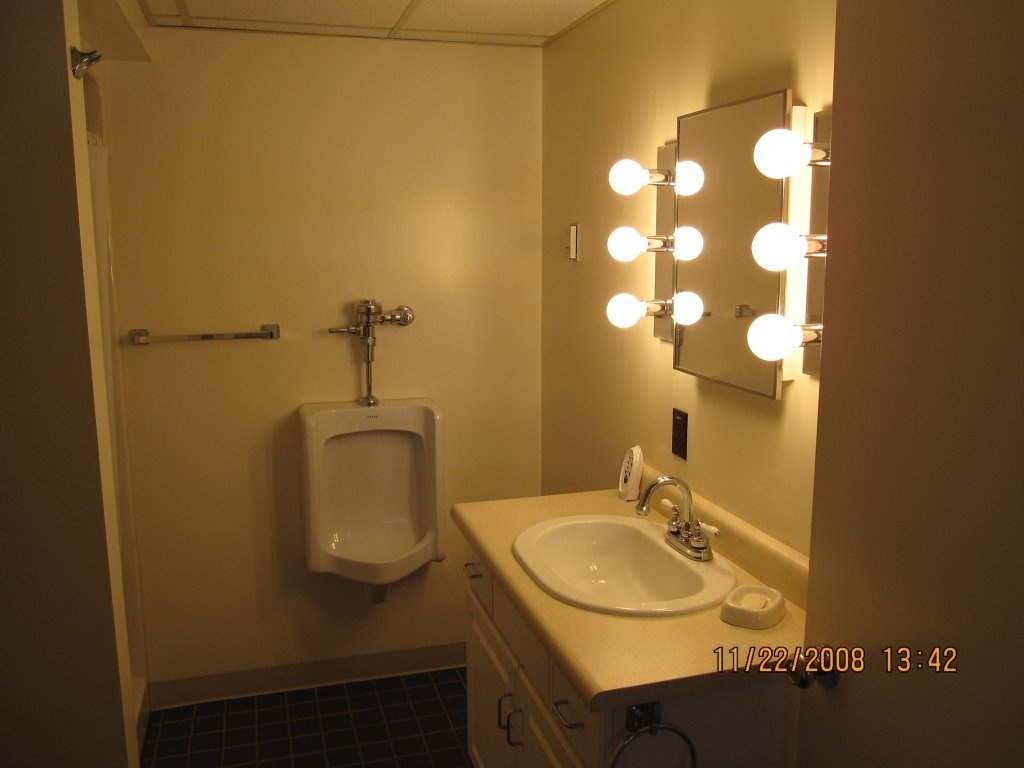

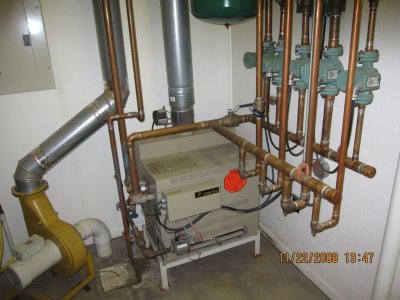

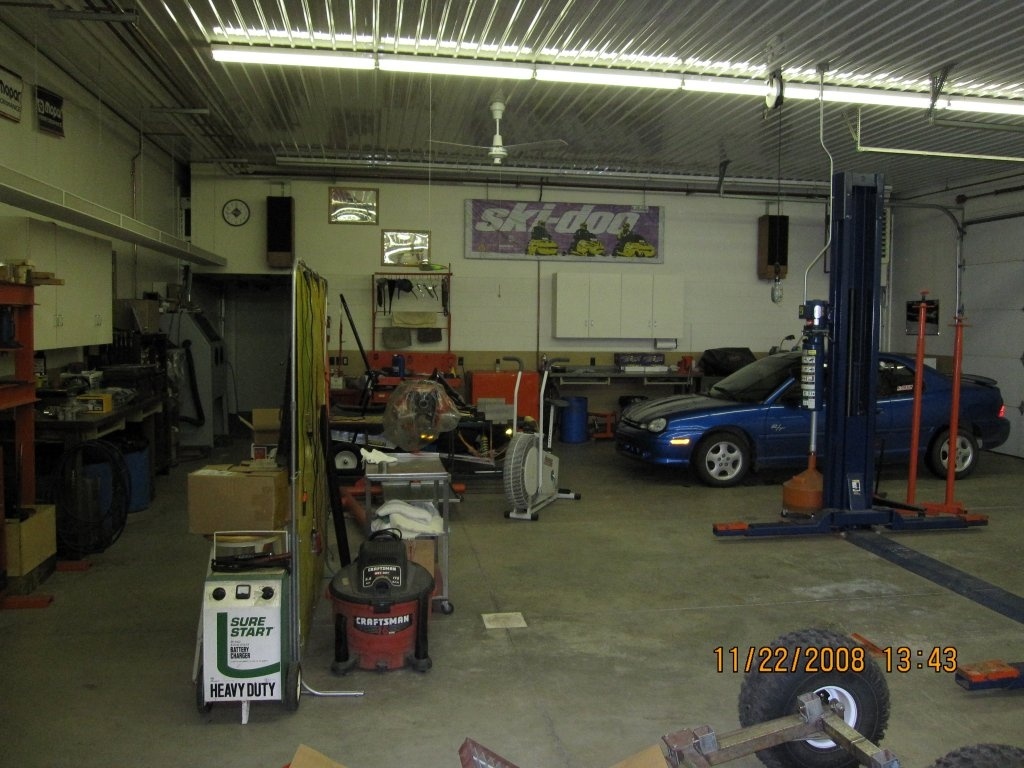

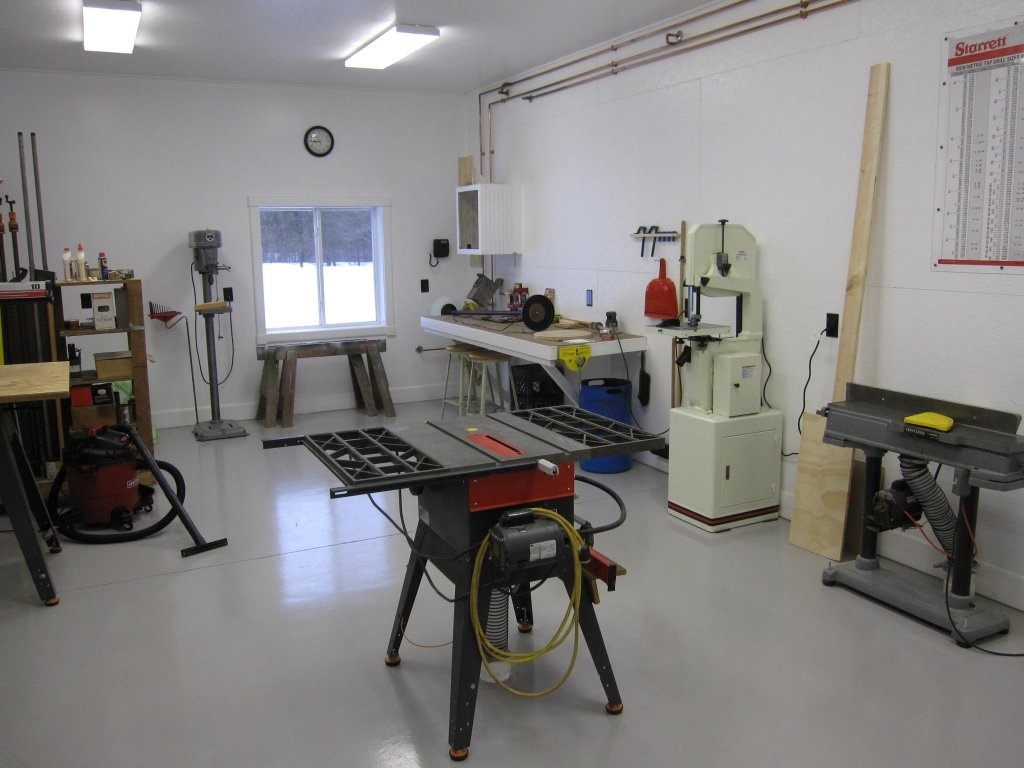

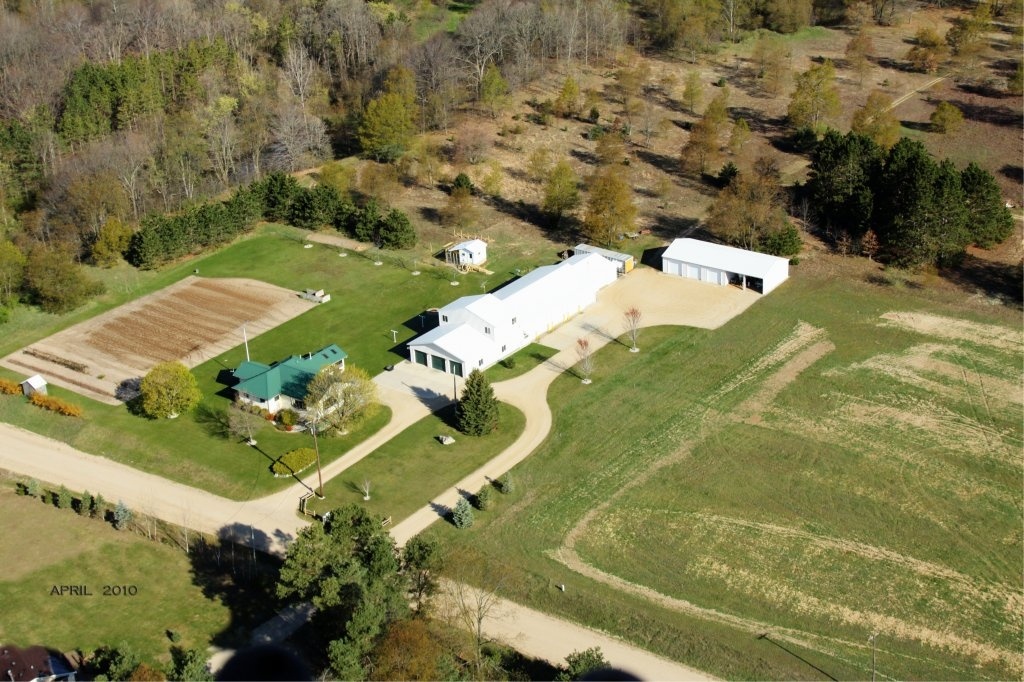

            My main shop is 68' x 36' x 12'. It is between the original 32' x 28' barn and the newest 44' x 36' addition. 3 pole barns inline. These took years to plan and build and I hired the excavation, shell erection, concrete, sheet rock, (in the main shop painting), block work, and paneling in the guest suite.

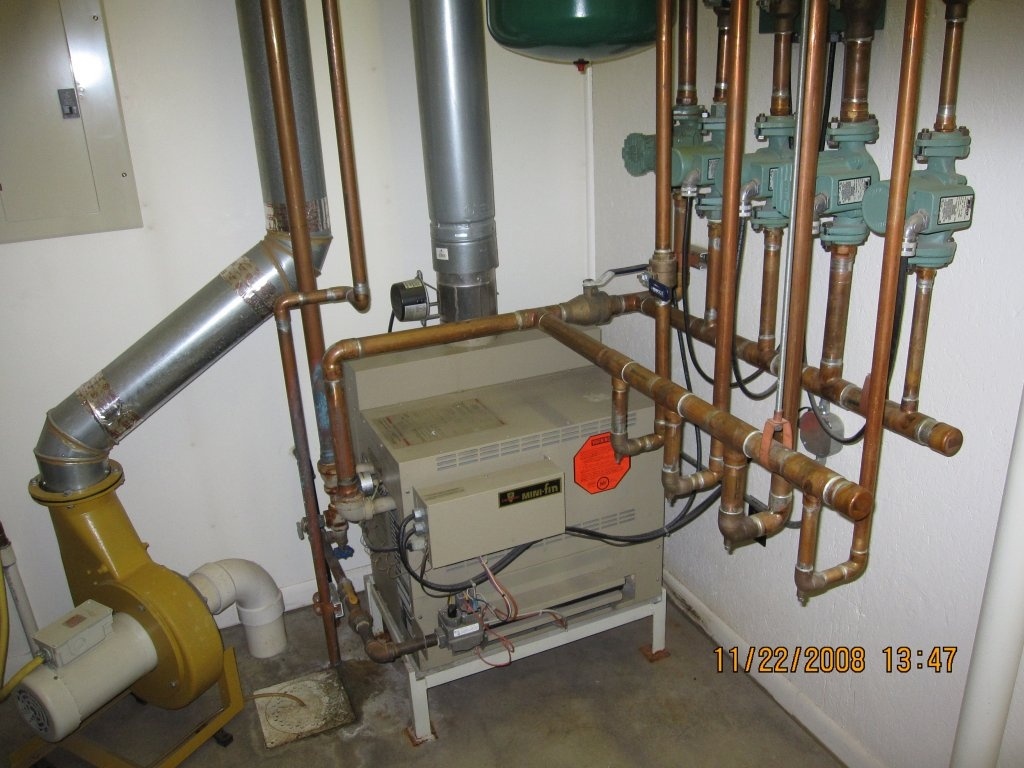

            I did all the rest of the construction and finishing. Including insulation, mechanical systems, and electrical work. I have to add that I am very pleased with the results.
            Mike

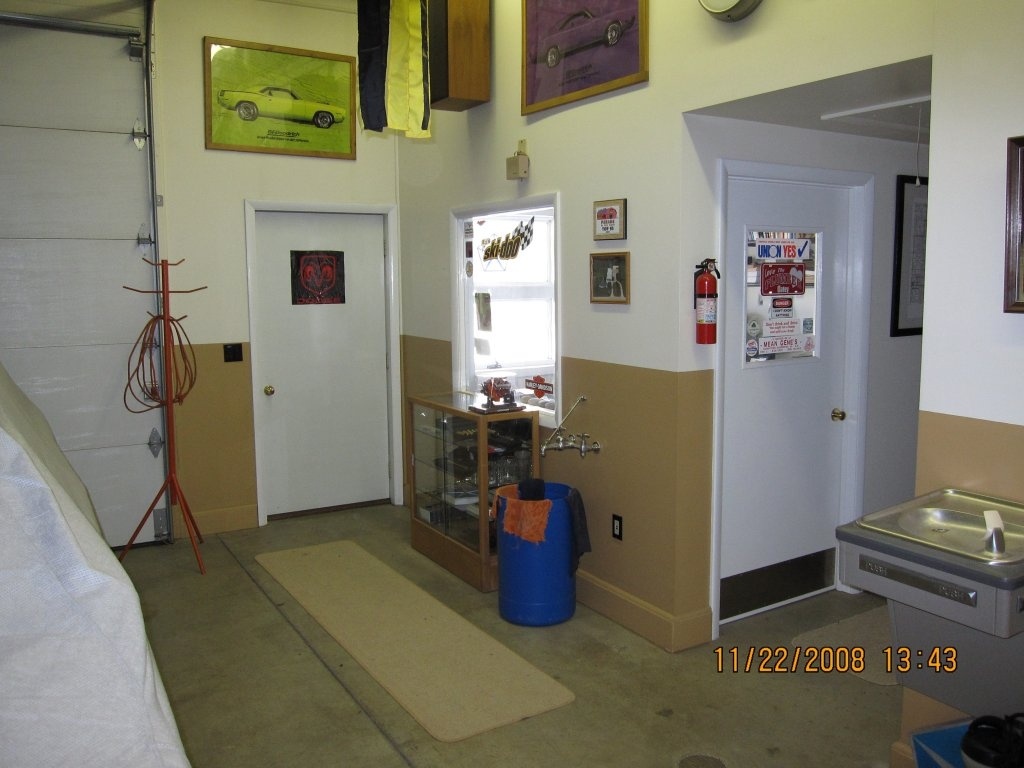

            IMG_0071.JPG IMG_0072.JPG IMG_0073.JPG IMG_0069.JPG IMG_0079.JPG

            • Like Like x 12
            • 493 Mike

              493 Mike FBBO Gold Member FBBO Gold Member

              Messages:
              1,491
              Likes Received:
              1435
              Joined:
              Dec 25, 2011
              Location:
              White Cloud, MI
              Local Time:
              6:14 PM

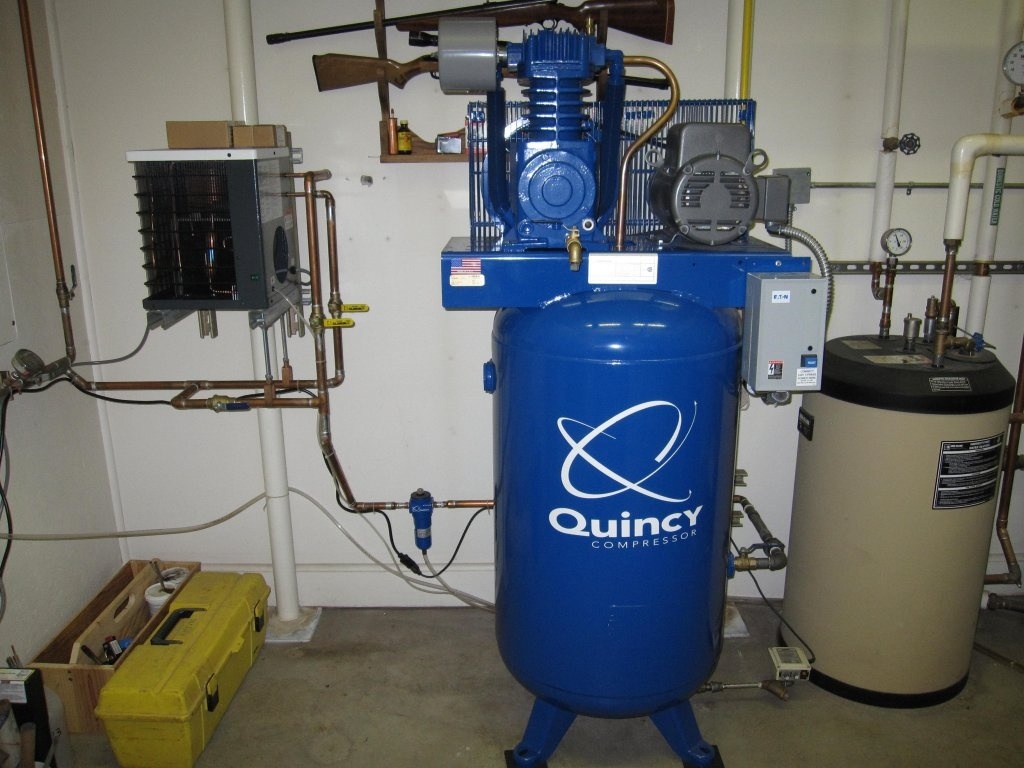

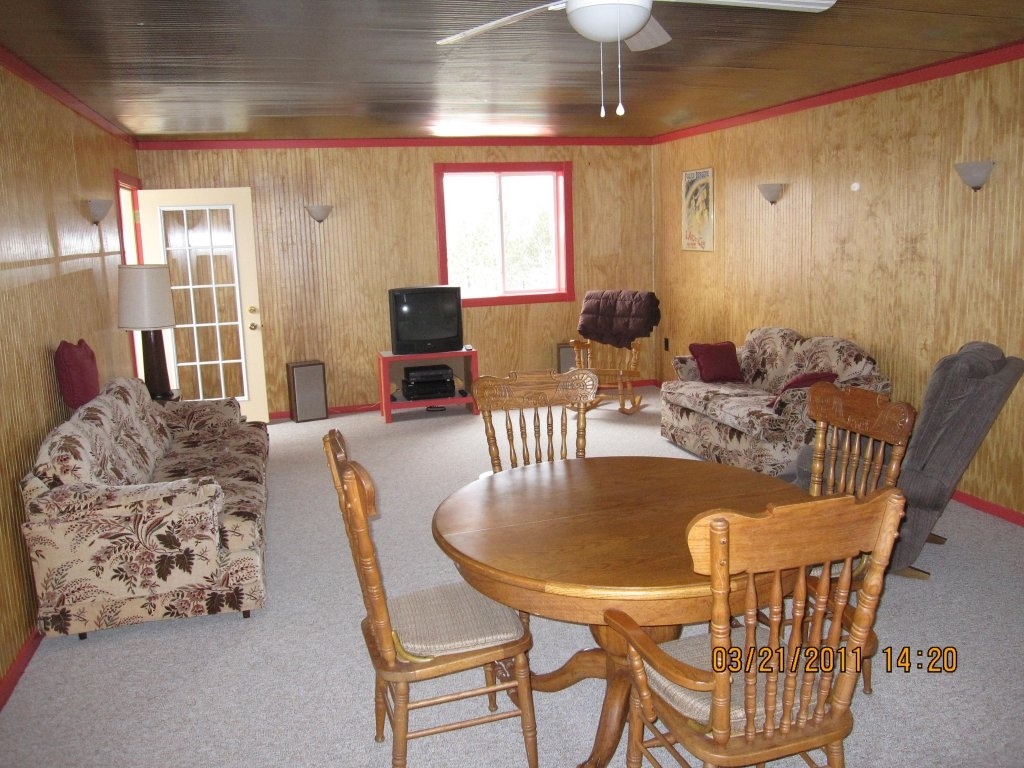

              More.
              Mike

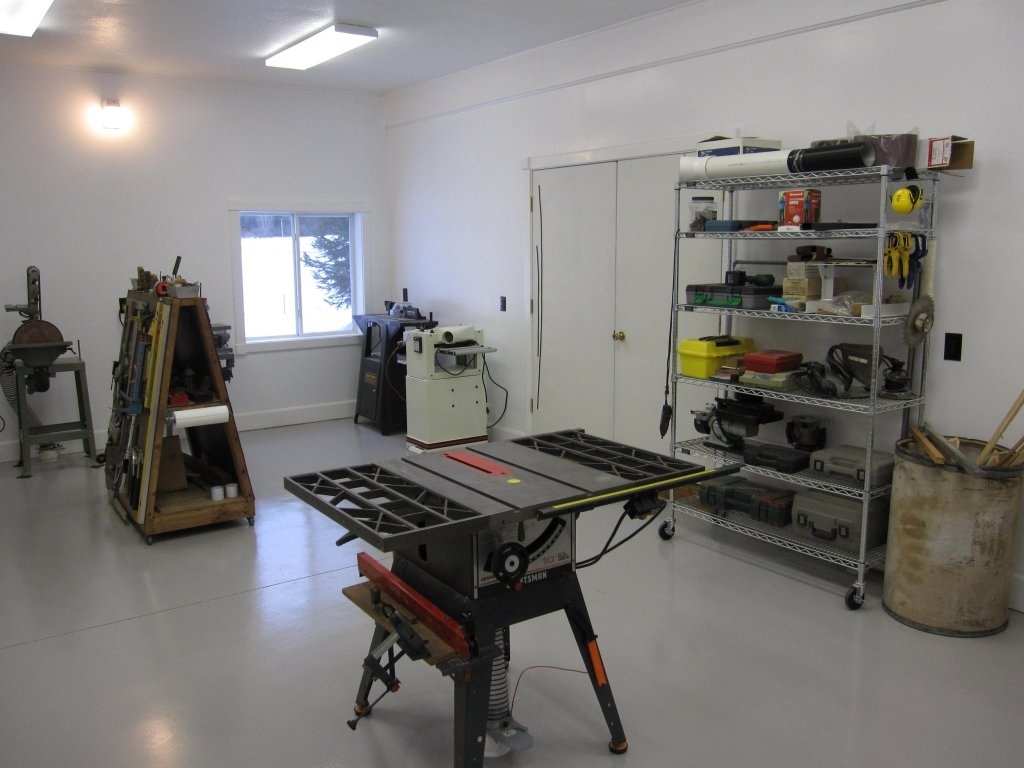

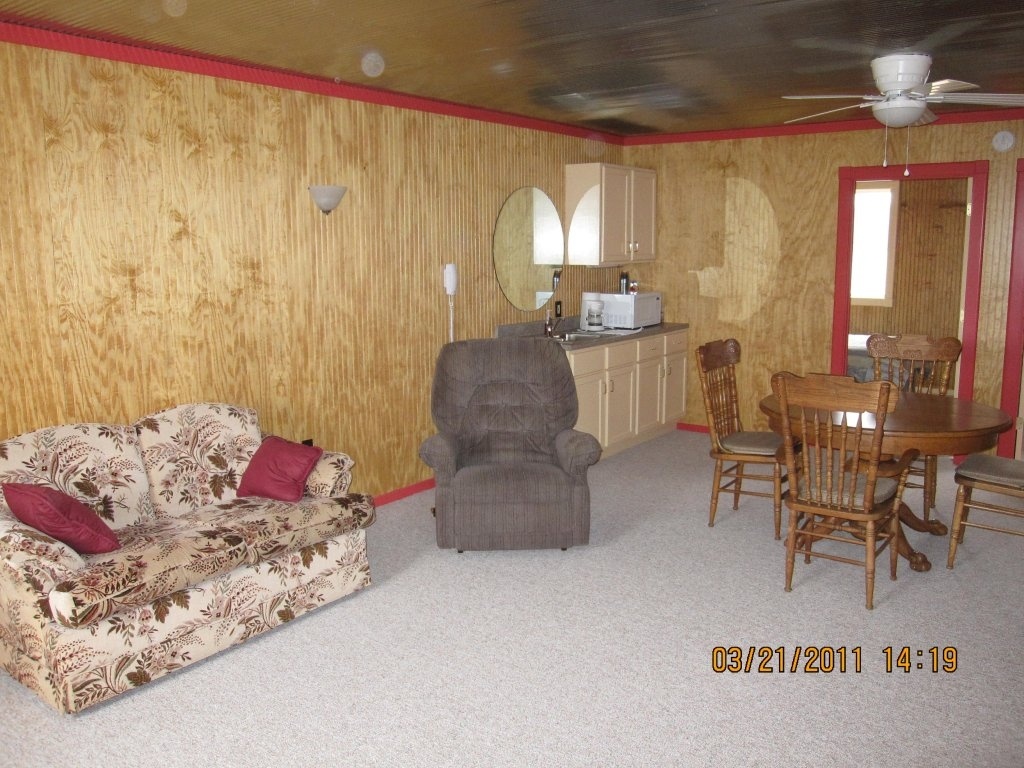

              IMG_1442.JPG IMG_0669_tonemapped copy.jpg 136.JPG 138.JPG IMG_0575.JPG IMG_0580.JPG

              • Like Like x 15
              • 68GTXNH

                68GTXNH Well-Known Member

                Messages:
                211
                Likes Received:
                255
                Joined:
                Jul 18, 2016
                Location:
                NH
                Local Time:
                6:14 PM
                man mike, what a kick ass space. i never really thought about pole barns being finished, insulated sheetrocked shop spaces, since its the simplest form of barn construction, i always picture bare walls and a dirt floor, but thats a great idea. problem is i dont think pole barns are really allowed around here, building permit wise, we require minimum 36" frostwalls on subfrost footings for any human occupied building. id have to double check though.

                Last edited: Feb 16, 2017
                • Like Like x 1
                • gtx1of1

                  gtx1of1 Well-Known Member

                  Messages:
                  265
                  Likes Received:
                  80
                  Joined:
                  Mar 3, 2011
                  Location:
                  western ,mass
                  Local Time:
                  6:14 PM
                  not big enough


                  • Like Like x 7
                  • desotoman

                    desotoman Well-Known Member

                    Messages:
                    183
                    Likes Received:
                    119
                    Joined:
                    May 10, 2012
                    Location:
                    upstate n.y
                    Local Time:
                    5:14 PM

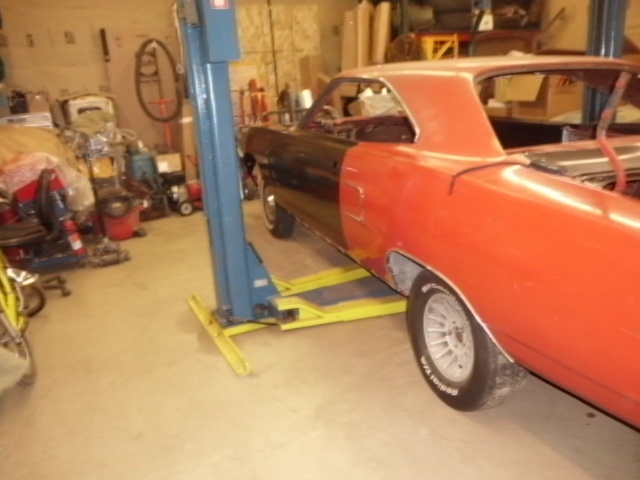

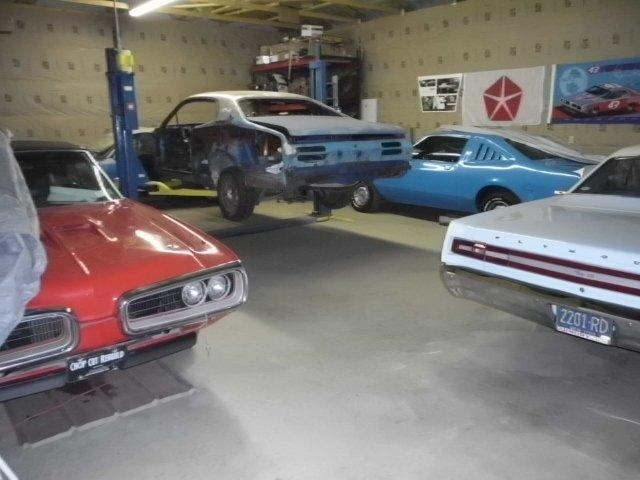

                    never enough room !!

                    i496 (1).jpg SANY0467.JPG

                    • Like Like x 16
                    • Ghostrider 67

                      Ghostrider 67 FBBO Gold Member FBBO Gold Member

                      Messages:
                      17,205
                      Likes Received:
                      28879
                      Joined:
                      Oct 16, 2014
                      Location:
                      Salisbury, Vermont
                      Local Time:
                      6:14 PM

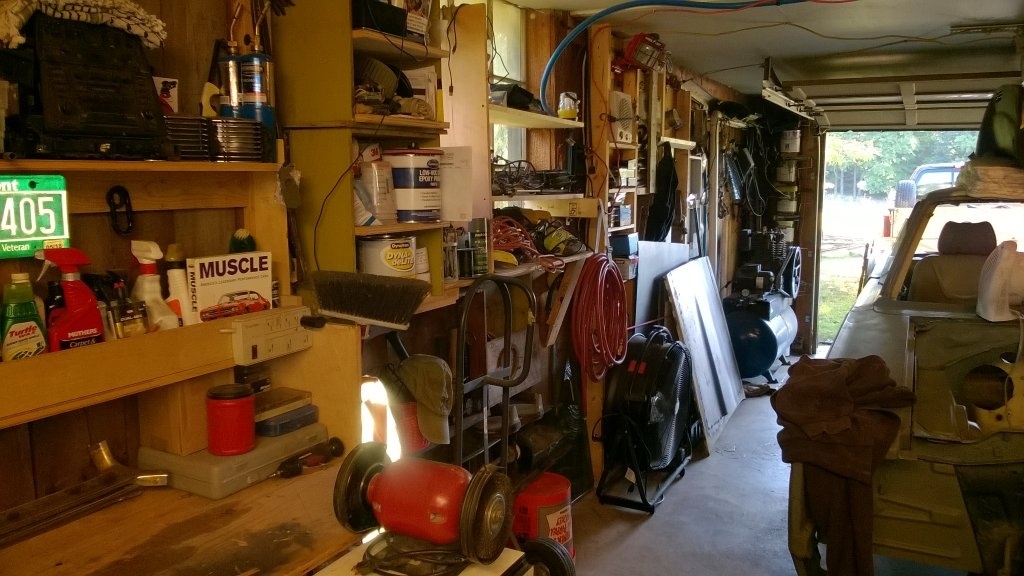

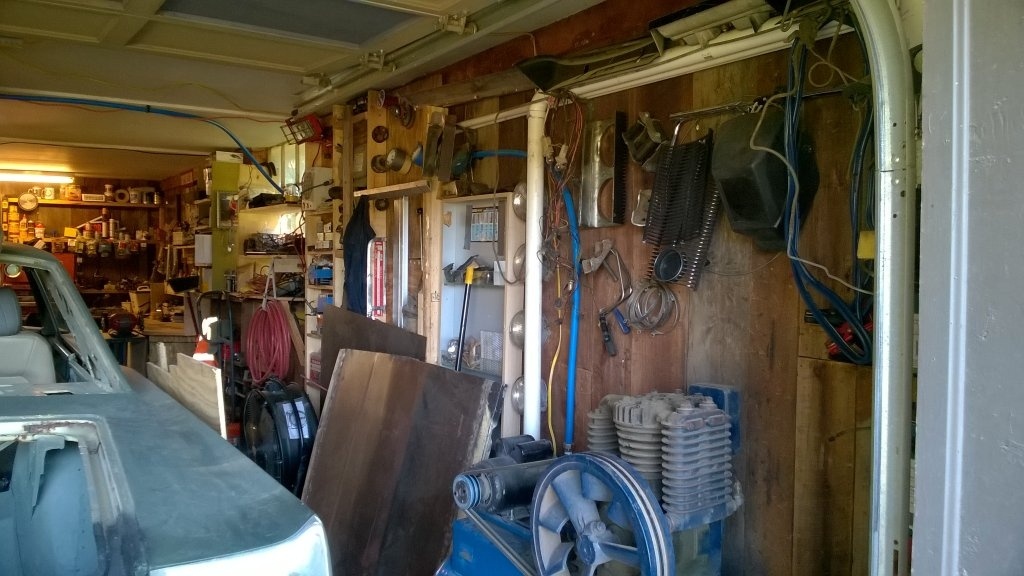

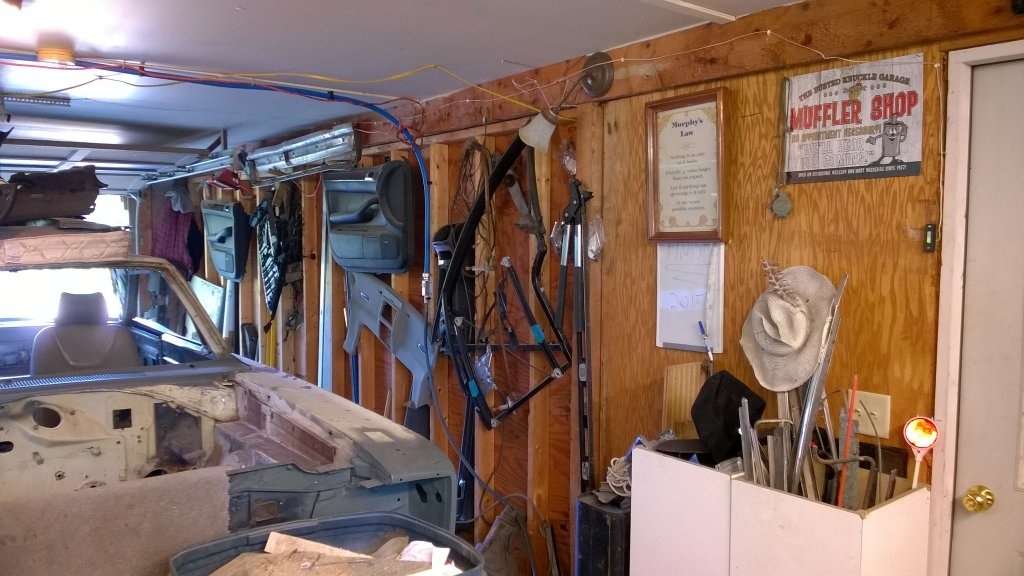

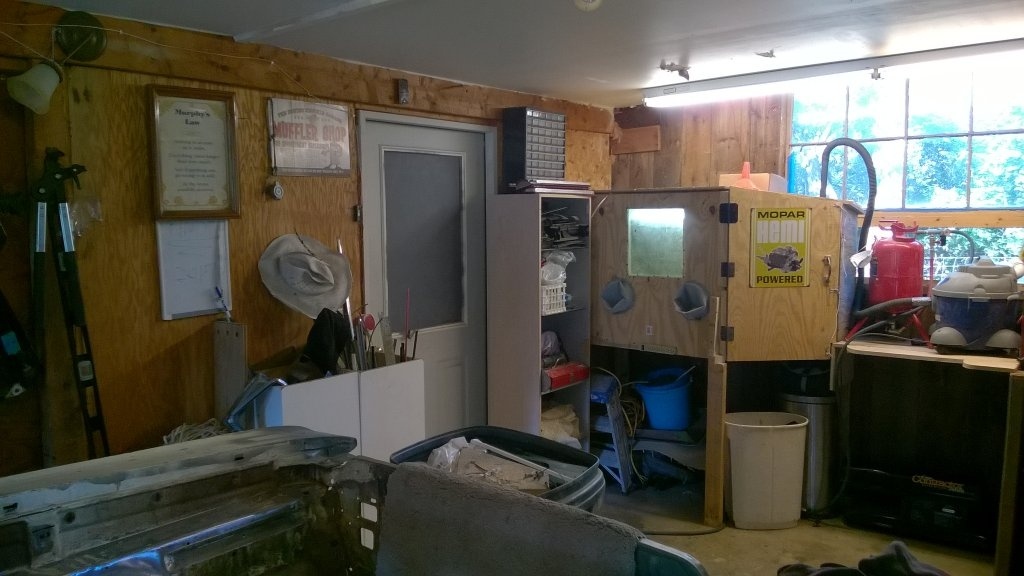

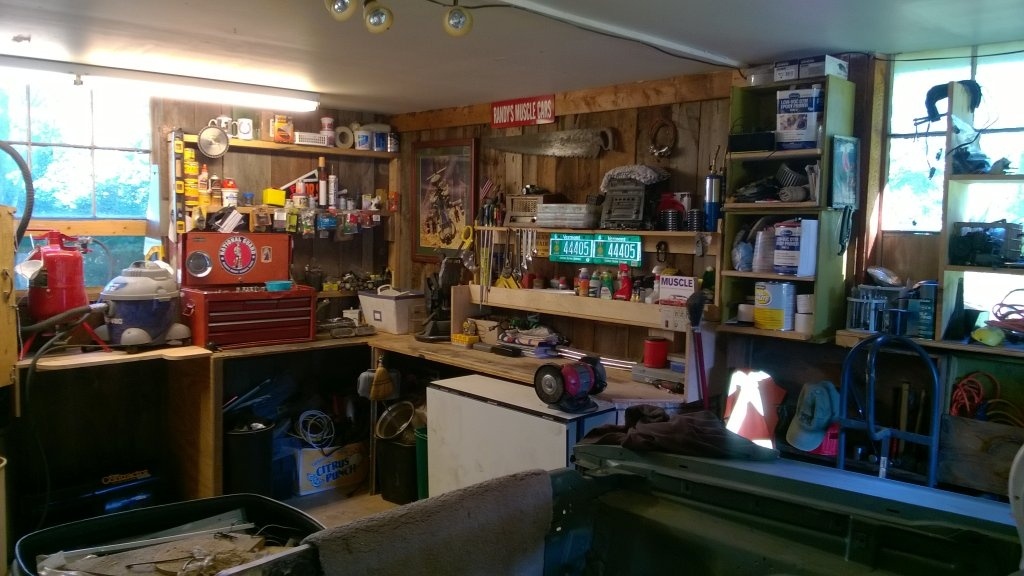

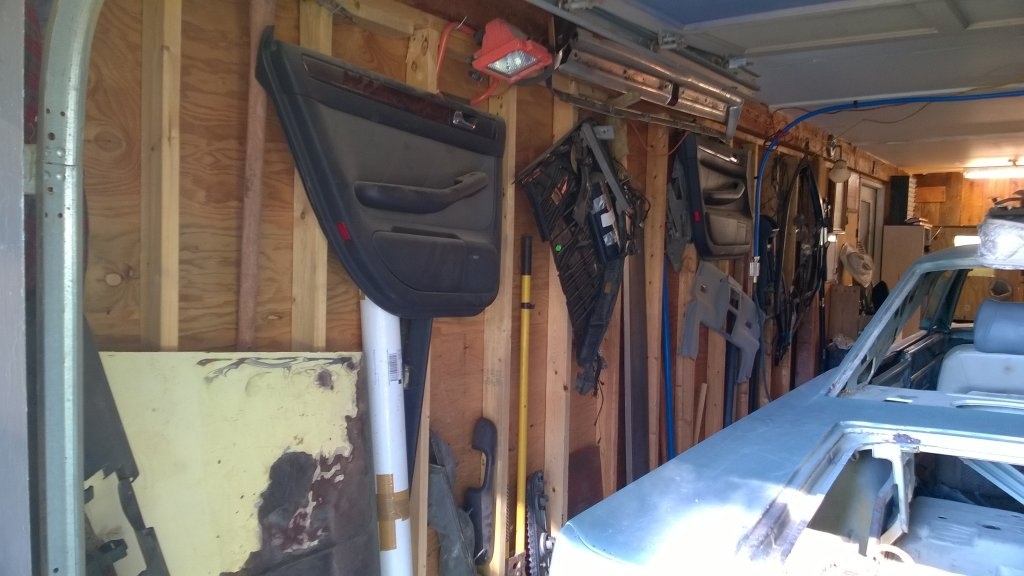

                      Ok, here goes.... 28 x 12 single bay. Concrete floor, barn wood or bare 2x4s walls, 8 ft ceiling. I placed lights on the end over the roll up door for light when it's closed, lights on both sides for side panels and lights at the front of the bay for engine. 2x4 shelves along one wall plus odd shelving filling in the spaces. L shaped bench with shelves over top. spare metal and sand blaster tank next to cabinet. Shelving unit and the door to the hallway between house and garages and apartment over garages. Two stand up boxes holding any long trim or long parts from interior/grill etc, 10 gal spare gas tank, 8 3/4 rear, more 2x4 walls with all manner of stuff hanging. 60 gal compressor in other corner with air handling tubing up and over the ceiling and down two sides. This small tool chest is all I have now a days but it suffices. 90* AMP wire welder, assorted power tools and supplies. Also a full basement where the glass is stored.

                      WP_20160925_09_19_26_Pro.jpg WP_20160925_09_19_32_Pro.jpg WP_20160925_09_19_48_Pro.jpg WP_20160925_09_20_00_Pro.jpg WP_20160925_09_20_18_Pro.jpg WP_20160925_09_20_23_Pro.jpg

                      • Like Like x 16
                      • dieseldazzle

                        dieseldazzle Well-Known Member

                        Messages:
                        2,670
                        Likes Received:
                        1921
                        Joined:
                        Aug 31, 2014
                        Location:
                        California
                        Local Time:
                        5:14 PM
                        • Agree Agree x 2
                        • 747mopar

                          747mopar Well-Known Member

                          Messages:
                          11,318
                          Likes Received:
                          12705
                          Joined:
                          Oct 30, 2012
                          Location:
                          ohio
                          Local Time:
                          5:14 PM

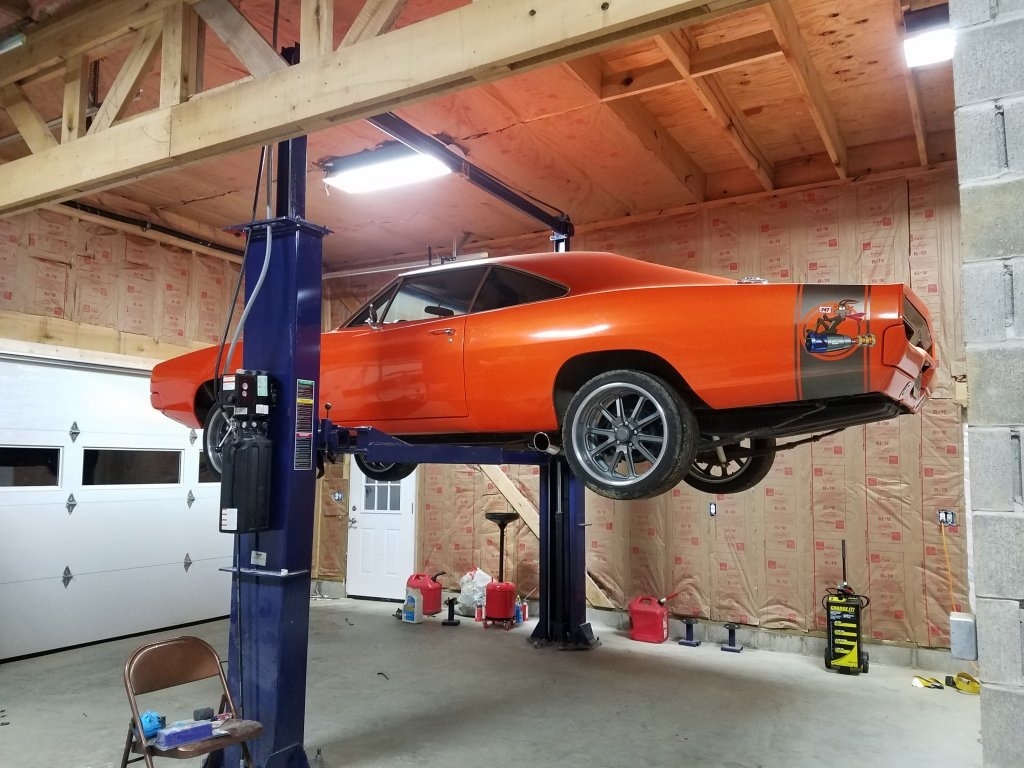

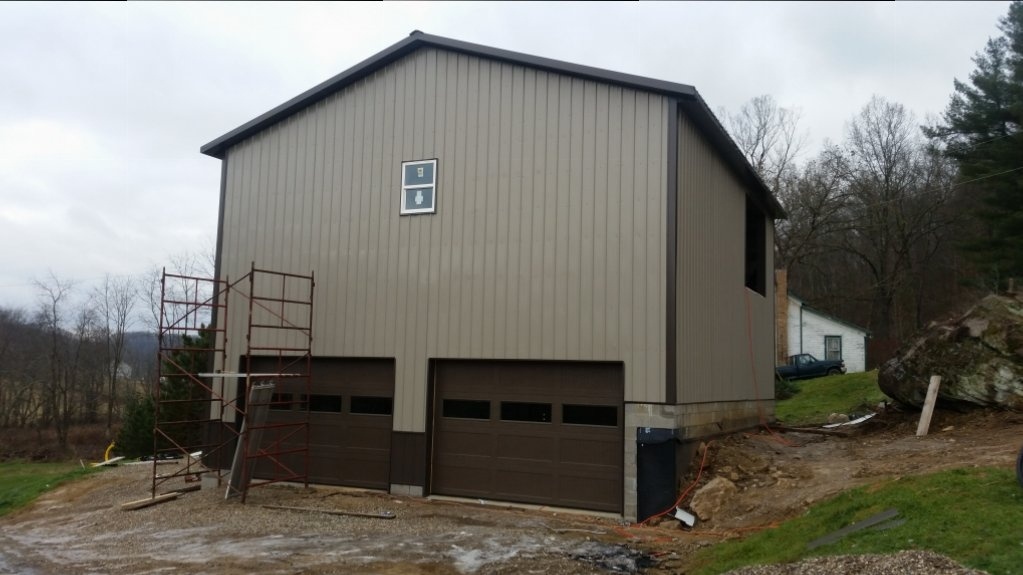

                          I've got 3 between my dad and I, a small woodshop, a 32X100 and I'm in the process of building a 34X32 2 story with a 24X24 attached parking garage. I started it in Sept, block foundation, 2X6 framed walls, metal siding and R19 walls R30 ceiling. Here's a few pictures of it as it sits.
                          20170204_225300.jpg 20161218_150540.jpg

                          • Like Like x 17
                          • Thunderlugs

                            Thunderlugs Well-Known Member

                            Messages:
                            575
                            Likes Received:
                            801
                            Joined:
                            Sep 21, 2016
                            Location:
                            Burlington, WI
                            Local Time:
                            5:14 PM

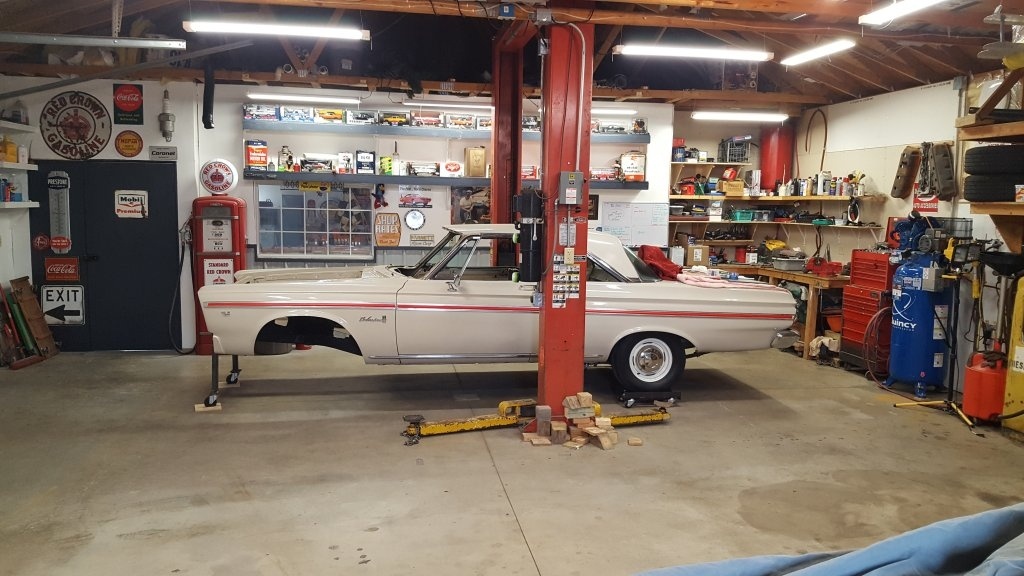

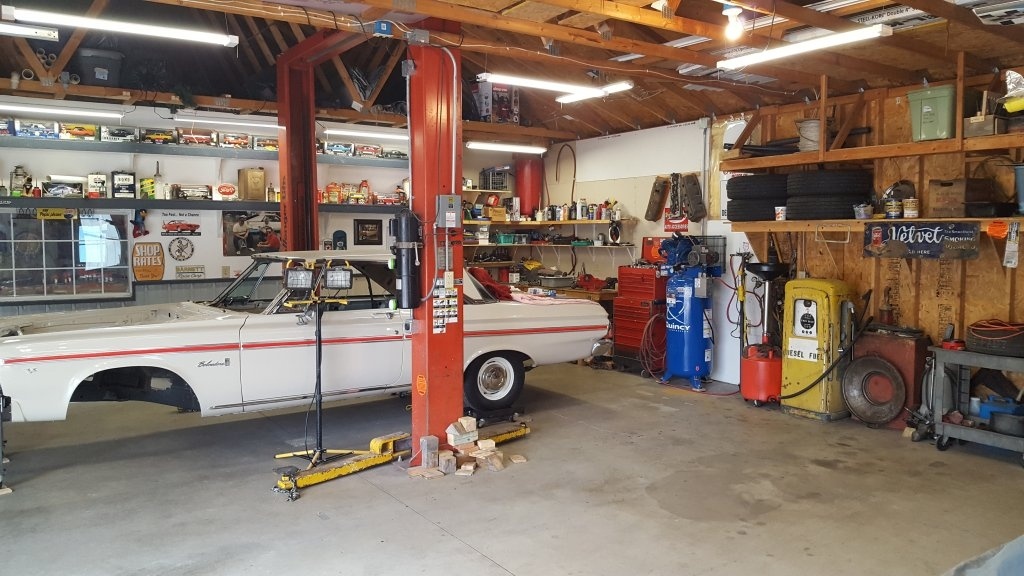

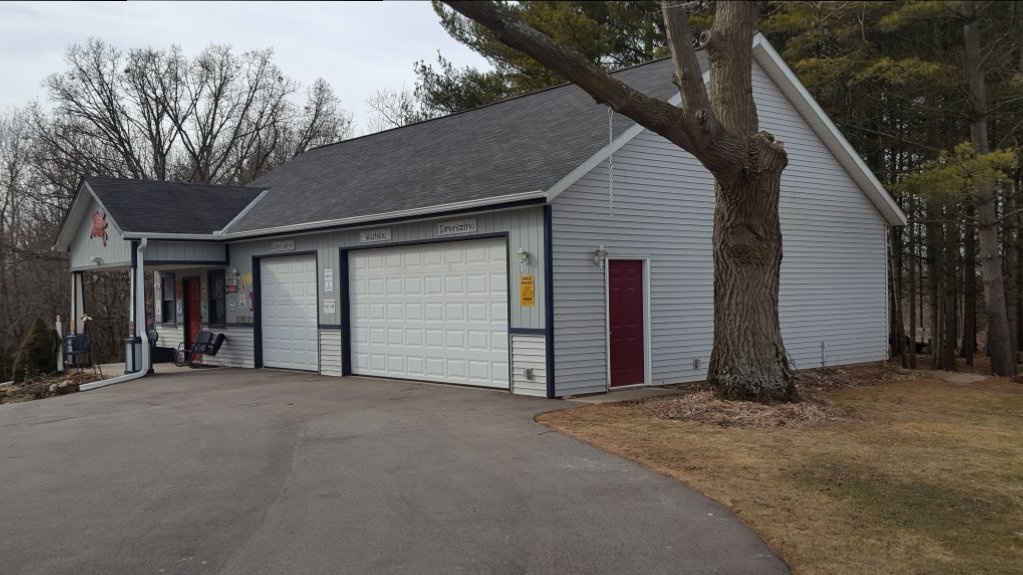

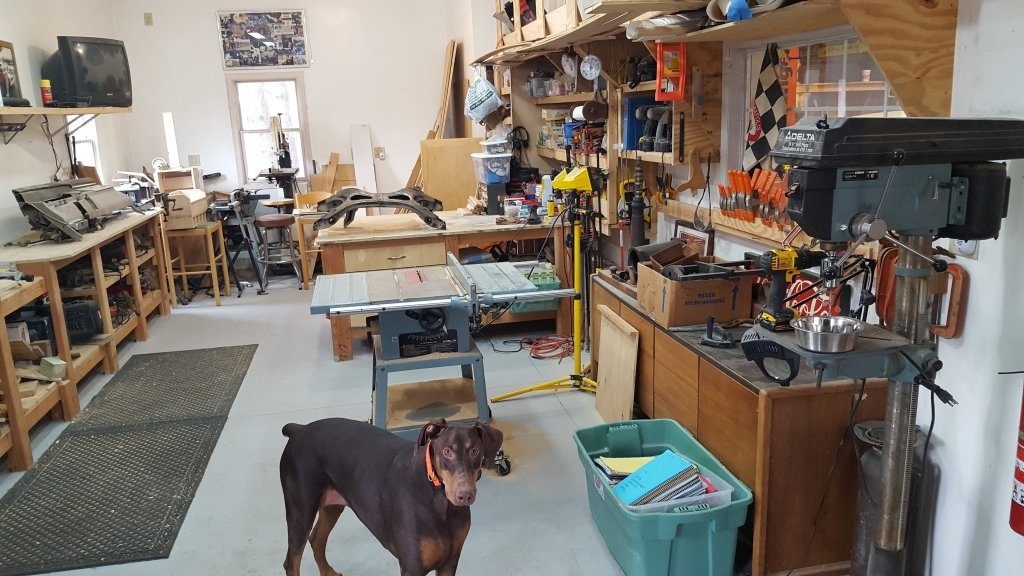

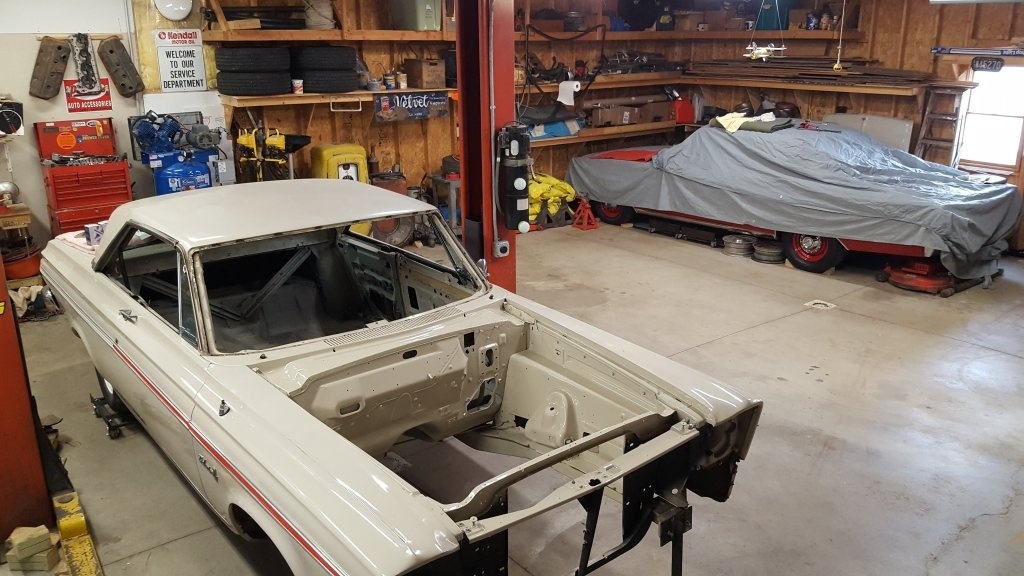

                            This shop serves me as both woodworking, and vehicle. Footprint 50x32 , vehicle area 36x32,.... woodworking and whatever I need it for area,.....14 x 32. It works well, but it is just not big enough!

                            20170216_100429.jpg 20170216_095238.jpg 20170216_100654.jpg 20170216_101627.jpg 20170216_101727.jpg

                            • Like Like x 12
                            • Baller

                              Baller Well-Known Member

                              Messages:
                              382
                              Likes Received:
                              179
                              Joined:
                              Oct 5, 2012
                              Location:
                              Delta BC
                              Local Time:
                              3:14 PM
                              I entered a draw at a beer store on a whim (as I never usually do) and won the Bud Light table. As for the white walls, my wife wanted me to paint it some color, but I wanted as bright as possible without being pure white. There is a subtle hint of grey. She suggested a darker blue. Ya, don't think so...

                              • Agree Agree x 1
                              • 1967coronet440

                                1967coronet440 Well-Known Member

                                Messages:
                                6,828
                                Likes Received:
                                9386
                                Joined:
                                Oct 26, 2016
                                Location:
                                Indiana
                                Local Time:
                                5:14 PM

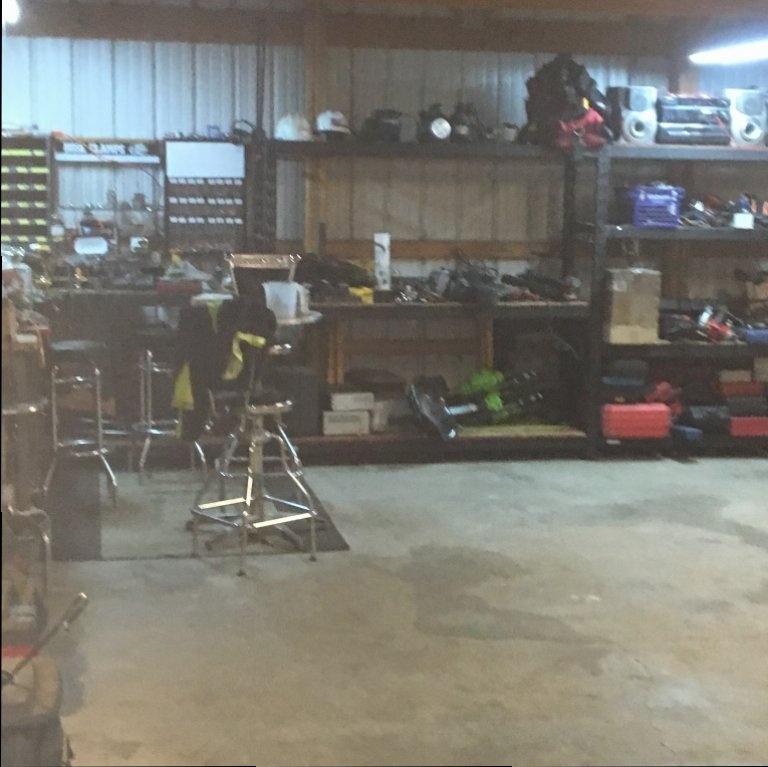

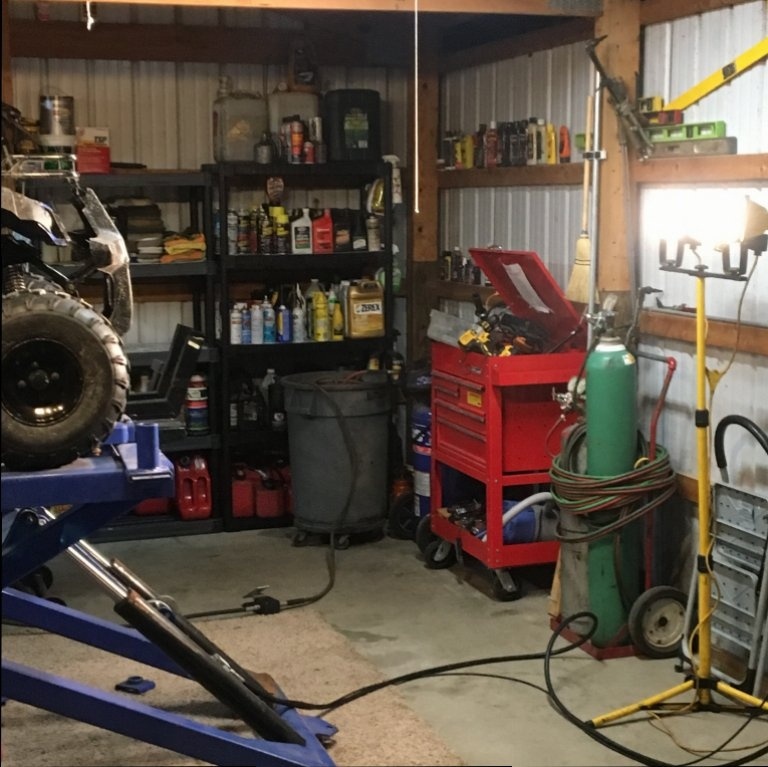

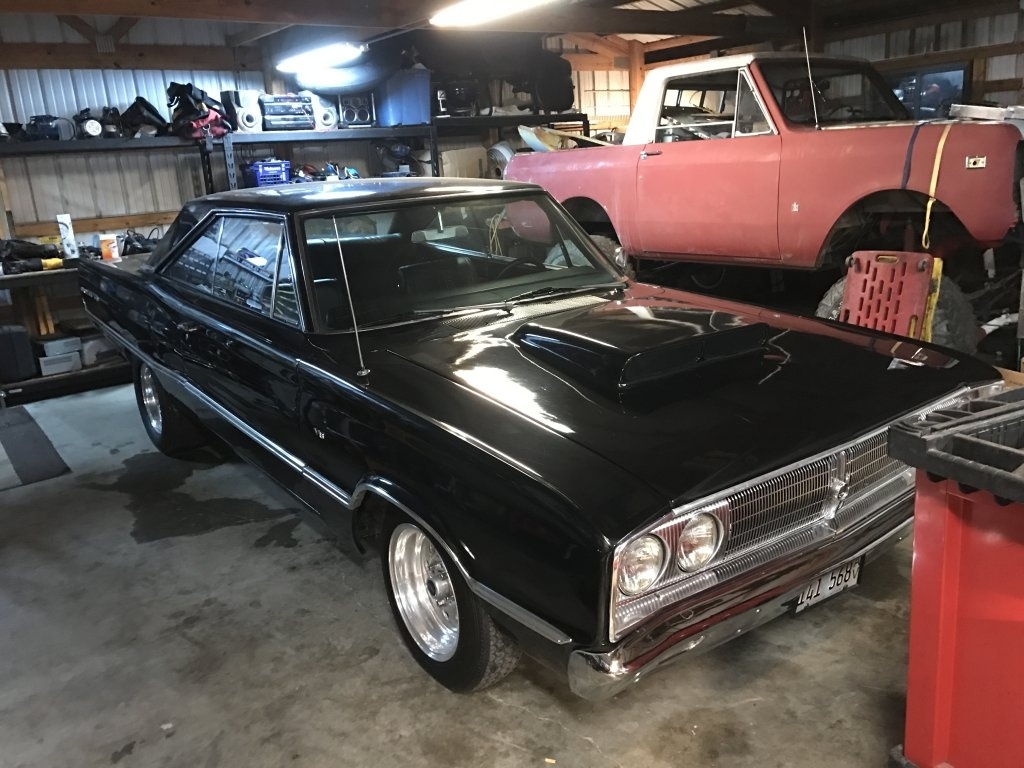

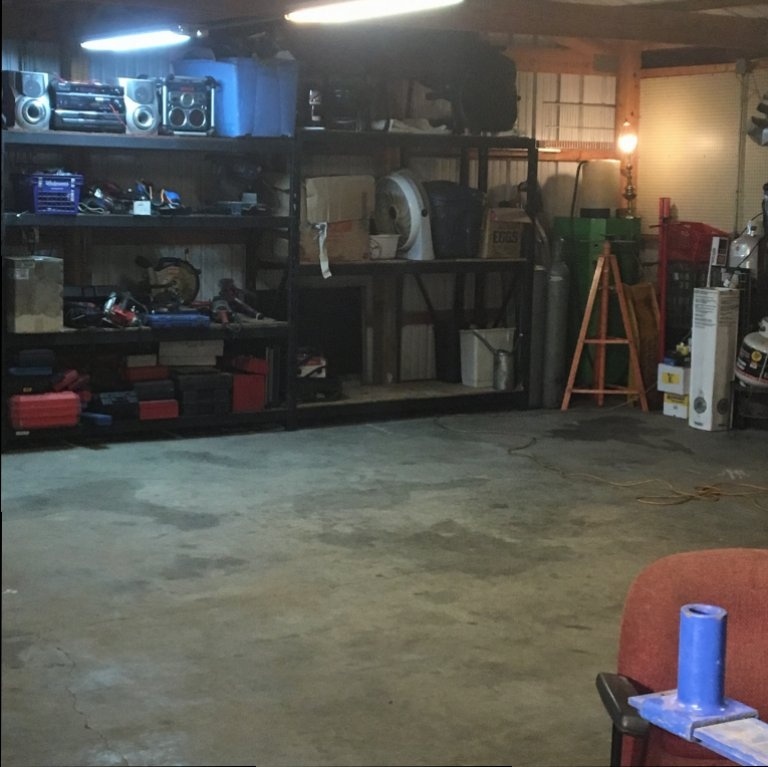

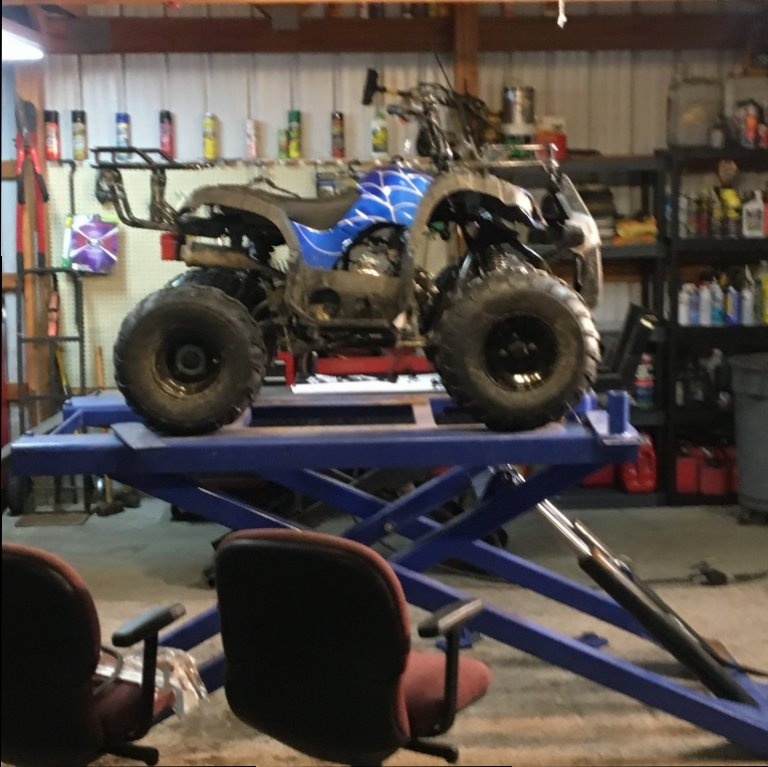

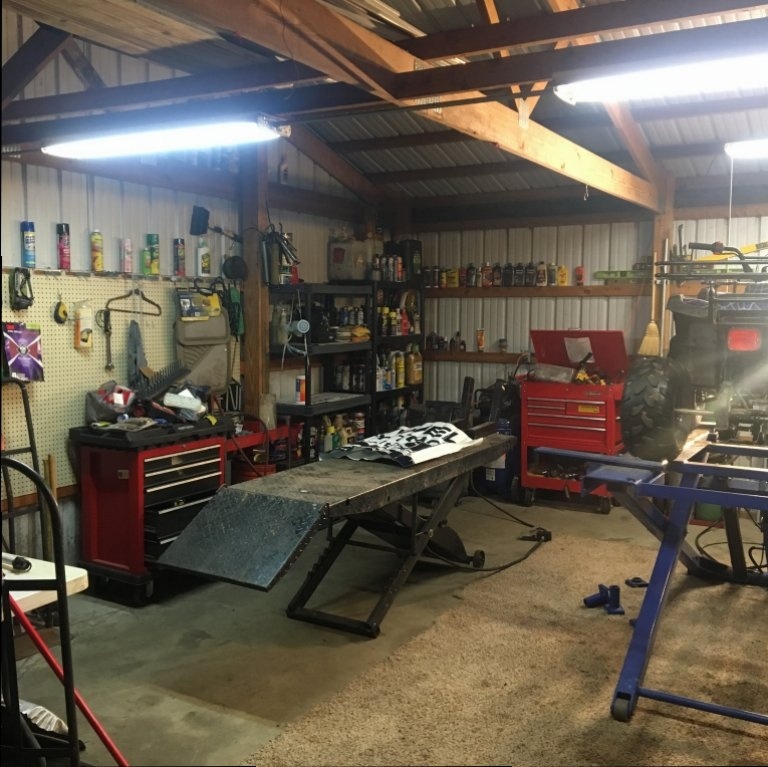

                                30x60 pole barn, nothing too special. Bunch of Costco heavy duty shelving and ALOT of tools, also 2 cool ass cars!

                                IMG_0622.JPG IMG_0598.JPG IMG_0599.JPG IMG_0600.JPG IMG_0601.JPG IMG_0602.JPG IMG_4872.JPG

                                • Like Like x 14
                                • 493 Mike

                                  493 Mike FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  1,491
                                  Likes Received:
                                  1435
                                  Joined:
                                  Dec 25, 2011
                                  Location:
                                  White Cloud, MI
                                  Local Time:
                                  6:14 PM
                                  Your probably too old for a IRS tax deduction!
                                  Mike

                                  • Like Like x 1
                                  • Agree Agree x 1
                                  • 65hemi

                                    65hemi Well-Known Member

                                    Messages:
                                    848
                                    Likes Received:
                                    1407
                                    Joined:
                                    May 21, 2011
                                    Location:
                                    Winnipeg, Manitoba
                                    Local Time:
                                    5:14 PM

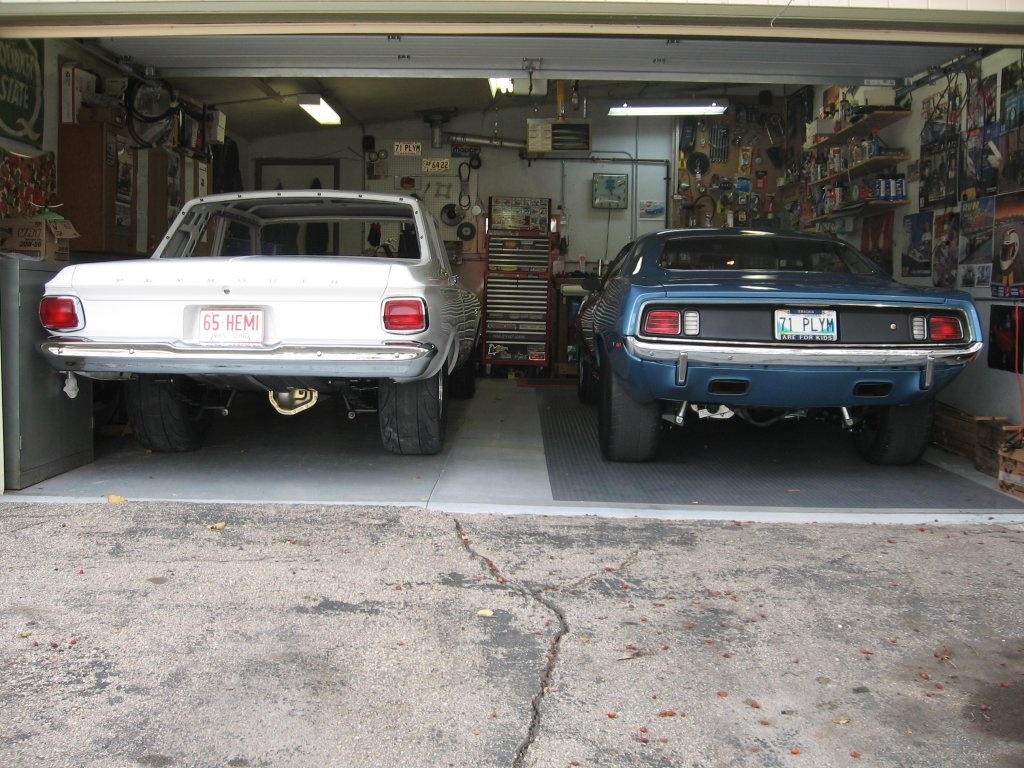

                                    I have shop-envy. My shop is just a 2 car attached garage, but it works for me.

                                    Picture 178.jpg

                                    • Like Like x 20
                                    • Agree Agree x 1
                                    • gtx1of1

                                      gtx1of1 Well-Known Member

                                      Messages:
                                      265
                                      Likes Received:
                                      80
                                      Joined:
                                      Mar 3, 2011
                                      Location:
                                      western ,mass
                                      Local Time:
                                      6:14 PM
                                      thunderlugs nice shop dog.
