Lift points on a 426 Max Wedge w/cross rams

Engine, Trans & Driveline

  1. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:14 PM
    I have a complete 426 MW sitting on a pallet in my shop. I need to attach my engine lift to it so I can put it in the car. Where are the lift points??? Do I use the bolt holes where the exhaust manifold will attach? If I do that, it appears to me that I may have to use some spacers to ensure that the chains don't come in contact with the valve covers.

    I don't see anything obvious on the top. Thanks in advance for any help you can offer. /Butch


  2. 65-440

    65-440 Well-Known Member

    Messages:
    2,730
    Likes Received:
    2113
    Joined:
    Dec 2, 2009
    Location:
    virginia beach, va
    Local Time:
    9:14 PM
    Carb plate ?

  3. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:14 PM
    I was hoping not to remove the carbs, but if that's the best option, that's what I'll do. Seems to me it could be difficult to balance the weight of the motor, but could be wrong, having not done this before.

  4. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    7,242
    Likes Received:
    6792
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    7:14 PM
    You maybe able to but should you?

  5. 33 IMP

    33 IMP FBBO Gold Member FBBO Gold Member

    Messages:
    2,702
    Likes Received:
    3323
    Joined:
    Dec 21, 2017
    Location:
    taxifornia,soon 2b Arizona.
    Local Time:
    4:14 PM
    If I were in your place, I would use an old seat belt. It won't marr the manifold. I would remove the carbs though. I have a bunch of out-dated racing belts, and that is about all they are good for. I wouldn't hesitate to pick up 1000lbs.
    Best option imo, pull the intake and carbs as a unit.

  6. moparwacko

    moparwacko MASSIVE GOLD MEMBER FBBO Gold Member

    Messages:
    1,726
    Likes Received:
    4010
    Joined:
    Mar 14, 2015
    Location:
    Pa
    Local Time:
    7:14 PM
    Cylinder heads are tapped F&R for accessories (think alternator mount).

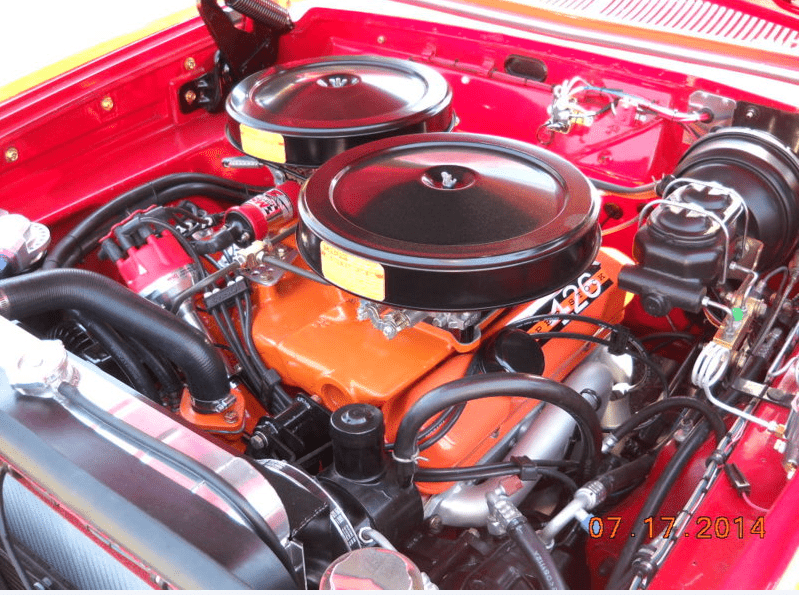

    The plates on mine are straight, not bent at 90 degrees like pictured.
    Gives you 4 point lift, and will most likely clear. Plus you can tilt for ease of installation.

    • Like Like x 2
    • Agree Agree x 2
    • silversedan

      silversedan Well-Known Member

      Messages:
      467
      Likes Received:
      262
      Joined:
      Mar 29, 2014
      Location:
      Edgar , Wi.
      Local Time:
      6:14 PM
      take the carbs , linkage, and dist. out and off. put a chain from drivers rear head in factory 3/8 threaded holes, run chain across intake to pass side head in front, use threaded hole in head, put a blanket over intake to protect from chain. done this several times.

      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • Ernie ingling

        Ernie ingling Well-Known Member

        Messages:
        242
        Likes Received:
        166
        Joined:
        Jun 8, 2019
        Location:
        Cocoa Fla
        Local Time:
        7:14 PM
        Ditto with silversedan a device pictured would be the best but chain and hook will do.

      • dvw

        dvw Well-Known Member

        Messages:
        4,643
        Likes Received:
        6404
        Joined:
        Feb 16, 2010
        Location:
        waterford mi
        Local Time:
        7:14 PM
        I've always done it with the intake off. Didn't want to chance hitting the intake.
        Doug

        • Agree Agree x 4
        • coloradodave

          coloradodave FBBO Gold Member FBBO Gold Member

          Messages:
          3,433
          Likes Received:
          2756
          Joined:
          Jun 1, 2011
          Location:
          Lincoln, CA
          Local Time:
          4:14 PM
          Hey, you didn't take my engine out of my garage, did you? I'd better go look...lol.

          • Thanks! Thanks! x 1
          • miller

            miller Well-Known Member

            Messages:
            4,083
            Likes Received:
            2005
            Joined:
            Jan 5, 2014
            Location:
            Tom Bean,Texas
            Local Time:
            6:14 PM
            What silversedan said.

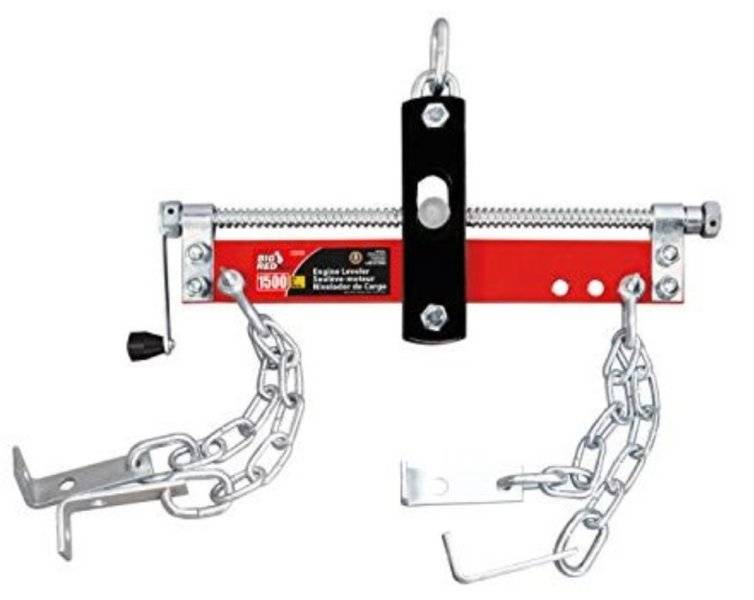

            On my 440 (based), with the crossram in place. Though, it's best to get one of the chain type, with good steel mounting plates, that bolt to the two ends of the heads.
            I left my carbs off, for clearance for the chain to crossover. The mounting plates keep it all high enough, to stay off the top side of the engine. Worked fine.

          • wyrmrider

            wyrmrider Well-Known Member

            Messages:
            2,135
            Likes Received:
            835
            Joined:
            Aug 26, 2014
            Location:
            los angeles
            Local Time:
            4:14 PM
            you did not suggest to lift on that manifold did you
            tell me you didn't

          • 33 IMP

            33 IMP FBBO Gold Member FBBO Gold Member

            Messages:
            2,702
            Likes Received:
            3323
            Joined:
            Dec 21, 2017
            Location:
            taxifornia,soon 2b Arizona.
            Local Time:
            4:14 PM
            I think almost everybody told him to pull the intake. I sure did! I hope he takes that advice.

          • andyf

            andyf Well-Known Member

            Messages:
            649
            Likes Received:
            1012
            Joined:
            Jul 21, 2012
            Location:
            Oregon
            Local Time:
            4:14 PM

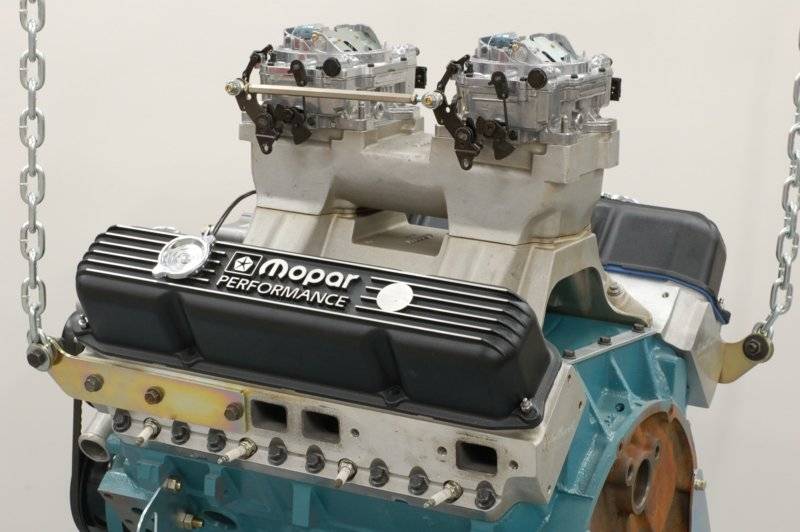

            Here is what I used to use when lifting engines with cross rams or tunnel ram intakes.
            AR252a (Large).jpg

            • Agree Agree x 1
            • andyf

              andyf Well-Known Member

              Messages:
              649
              Likes Received:
              1012
              Joined:
              Jul 21, 2012
              Location:
              Oregon
              Local Time:
              4:14 PM
              The best way to put a MW engine into a car is from the bottom. That is the way the factory did it. Putting it in from the top is a lot of work.

            • miller

              miller Well-Known Member

              Messages:
              4,083
              Likes Received:
              2005
              Joined:
              Jan 5, 2014
              Location:
              Tom Bean,Texas
              Local Time:
              6:14 PM
              If you mean me...of course NOT!

              At the iron heads. And, besides the majority of the engine, crossram in place, 727 was also mounted on the engine.
              I didn't have the means to come from underneath...so, over the top. I've done that many times.
              Just saying, can be done.

            • Ski 61701

              Ski 61701 Well-Known Member

              Messages:
              693
              Likes Received:
              536
              Joined:
              Nov 21, 2016
              Location:
              Bloomington Illinois
              Local Time:
              6:14 PM
              Do yourself a favour and get AndyF's lift plates. They work perfect for a MW motor with the intake still bolted on.
              I personally would not use the intake carb plates as lifting points. I've done a couple of MW motors and the carb bolt holes in oem intakes are usually buggered up. Hate to see you have the motor hanging and a bolt pulls out of the soft oem aluminum . I've pulled a few carb studs out due age and softness of the metal, and the have to helicoil which is no big deal.
              With the plates, make a spreader bar so the chains from plates to bar lift straight up and dont mar the block. Use the drivers side rear exhaust side and passengers front exhaust and you'll have plenty of room to install the engine in the car.

            • waedison

              waedison Member

              Messages:
              10
              Likes Received:
              1
              Joined:
              Dec 18, 2015
              Location:
              Ferndale WA
              Local Time:
              6:14 PM
              Thanks for that!

            • waedison

              waedison Member

              Messages:
              10
              Likes Received:
              1
              Joined:
              Dec 18, 2015
              Location:
              Ferndale WA
              Local Time:
              6:14 PM
              Andy, can you provide a link or source for those lift plates? Thanks! /Butch

            • waedison

              waedison Member

              Messages:
              10
              Likes Received:
              1
              Joined:
              Dec 18, 2015
              Location:
              Ferndale WA
              Local Time:
              6:14 PM
              Thanks for that. Very helpful./Butch
