Looking for pictures of 1974 400 belt/pulley setups

[SureGrip]

Hi there,

I have a 1974 RR and it has a 400 in it, but has no engine brackets or pulleys.

I'm trying to source all of the brackets and pulleys that I need for a correct set-up for an engine with power steering. I'll be adding AC later, so I know that will be different, but for now, I just need a factory set-up with PS.

So far, I have the 4-groove crank pulley, but that's it. I've seen close to a dozen, if not more, configurations which are 'correct'.

I'm hoping someone here can post pictures of the set up they used.

Thanks in advance!



[jusglazin]

440 source sells the entire front end kit. Give them a call.



[SureGrip]

440 source sells the entire front end kit. Give them a call.

Thank you!

I've looked at Bouchillon too, and while I can buy a whole kit (which I may end up needing), I DO have a pile of pulleys that I've collected over the last 20 years, so I MAY have what I need, but I'm hoping to see a few pictures to compare to what I have and figure out if what I need to buy.



[Lefty71]

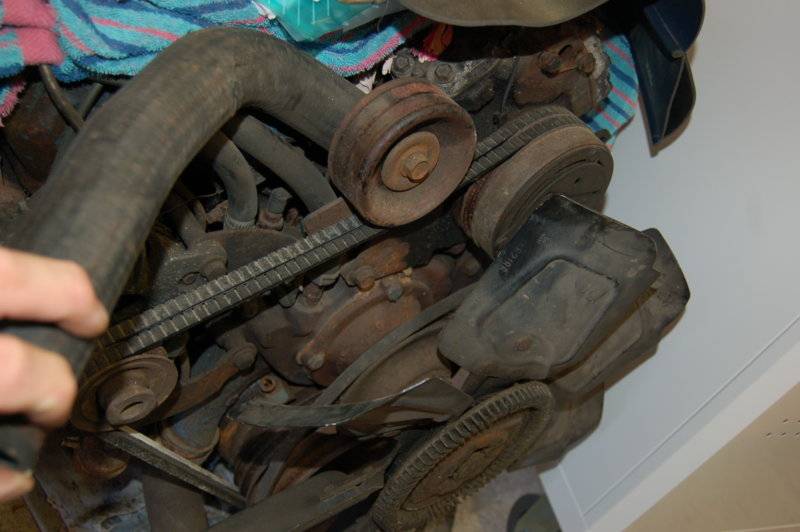

I cant remember if this is a 73 or 4. Its a 400 with a/c from a C body Newport I believe.... Anyway, the two inside grooves are running the Alternator and a/c with idler. The furthest outside groove runs the fan pulley and the power steering pump (which is missing on this one). Let me know if I can get you a closer look if this helps. HTH, Lefty71



[Lefty71]

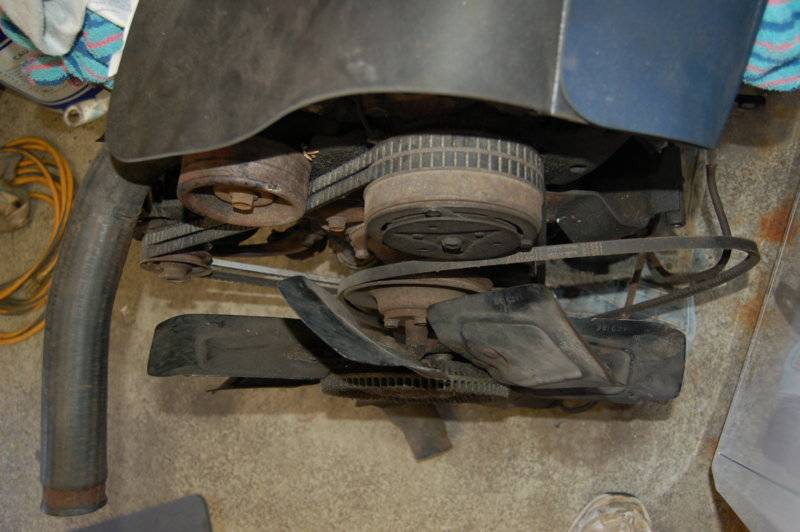

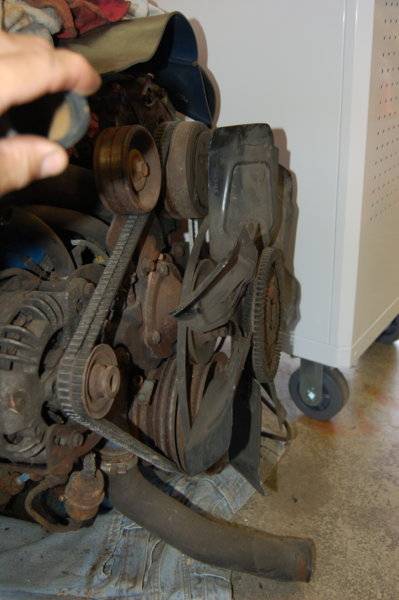

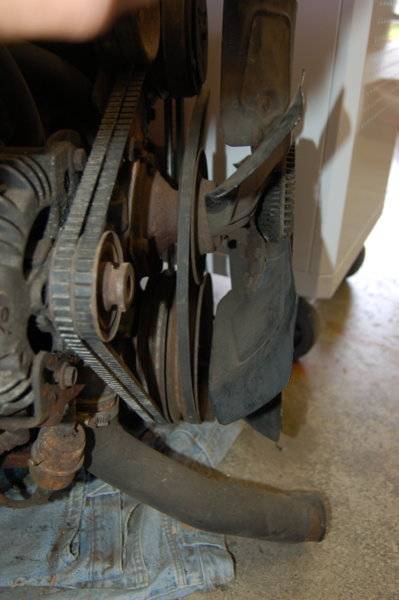

couple more



[Lefty71]

I DO have a pile of pulleys that I've collected over the last 20 years, so I MAY have what I need,

Don't you love that??? Once you've taken a couple pulleys off a couple motors, its like throwing all your jigsaw puzzle pieces in one box lol



[Lefty71]

I think the only real difference between what im showing and what you are asking (no a/c) is going to be a different fan pulley and the dual shorter belts for the alt???



[SureGrip]

Lefty, thank you a bunch!!
