    Does anyone have pics of their B bodies that they have lowered? I am specifically looking to lower my 69 RR a bit and wondered what i can expect it to look like. My plan is to get 1 inch lowered rear leaf springs and the 2 inch drop spindles. From my research i've been told to use the drop spindles instead of adjusting the torsion bars. I will be most likely installing 18 inch wheels as well. If anyone has advice or tips on the subject i would greatly appreciate it. Thanks!

  2. Jim Bob The Dancing Bear

    Jim Bob The Dancing Bear Well-Known Member

    Messages:
    457
    Likes Received:
    110
    Joined:
    Apr 4, 2011
    Location:
    Glenpool Oklahoma
    Local Time:
    2:29 AM
    What other suspension mods do you plan?

    I did a Hotchkis TVS and it dropped my car an 1" or better. The rear had aftermarket shackles that stuck it up even higher when I purchased it.

    I have 18" Cragar SS rims to put on the car with new disck brakes but that work is in process and not complete.

    The pictures are before / after and before / after.

    Stock Ride Height.jpg TVS 1.jpg Stock Ride Height 2.jpg TVS 2.jpg

    - - - Updated - - -

    I lowered by front with the torsion bars but I have firm feel 1.06" torsion bars. I drive the car daily (when it isn't down for upgrades) and have no issues with lowering the car this way.

    Shawn

    • Like Like x 2
    • superbird77

      superbird77 Well-Known Member

      Messages:
      261
      Likes Received:
      77
      Joined:
      Aug 14, 2013
      Location:
      West Michigan
      Local Time:
      6:29 AM
      I do plan on installing new torsion bars and possibly tubular UCA's in case camber is an issue with the stock UCA's.

    • HYRDGOON

      HYRDGOON Well-Known Member

      Messages:
      3,362
      Likes Received:
      2649
      Joined:
      Apr 20, 2013
      Location:
      Breslau, Ontario, Canada
      Local Time:
      6:29 AM
      I'm dropping my front end with the torsion bars to get it to sit a bit more level in a lowered stance. I'd eventually like to do the 2" drop spindles but for the cost it's just not in the budget right now.

      Look at page 8 & 9 of Jeff Ashley's Roadrunner build his is about the stance I'm looking for and sounds like what you describe http://www.forbbodiesonly.com/mopar...augh-its-paid-for/page9&highlight=jeff+ashley

      • Like Like x 1
      • Boise68

        Boise68 Well-Known Member

        Messages:
        290
        Likes Received:
        143
        Joined:
        Oct 19, 2012
        Location:
        Boise, ID
        Local Time:
        4:29 AM
        More or less did the same as Jim Bob, Hotchkis (road race)rear leaf, torsion bars and adjusted the front end height with the torsion bars. Wanting additional camber I went with FirmFeel uca's and added boxing to the lower control arms. Also went with 18" rims and modern tire technology. It is now very fun to drive. Can't forget total front end rebuild with PST poly kit, too.

        Before
        my 68Dodge.jpg

        After

        • Like Like x 2
        • Jim Bob The Dancing Bear

          Jim Bob The Dancing Bear Well-Known Member

          Messages:
          457
          Likes Received:
          110
          Joined:
          Apr 4, 2011
          Location:
          Glenpool Oklahoma
          Local Time:
          2:29 AM
          I may go lower in the back to flaten the car out but I need the 18's on first. I would not go with the 2" drop spindles if you are going to up the torsion bar size to the 1" range or higher. There are a few people on this site that have gone that route only to go back to stock height spindles when doing the rest of the upgrades. If you take the time to plan out your build you will be dollars ahead in the end.

          Tubular control arms or the offset bushings are the way to go. It all depends on how you plan on driving the car really. For a-arms there are Hotchkis, PST, Firm Feel, and a couple of others.

        • superbird77

          superbird77 Well-Known Member

          Messages:
          261
          Likes Received:
          77
          Joined:
          Aug 14, 2013
          Location:
          West Michigan
          Local Time:
          6:29 AM
          Good info guys, thanks. Both Boise68's and Jeff's cars look to be what i am going for. My biggest question is to either use the tubular UCA's and lower it via the torsion bars or go the 2 inch dropped spindles route. The spindles are kinda pricey so if i could get away with using new tubular UCA's and new torsion bars that would be ideal. I've been told the main issue with just lowering the bars is having enough camber adjustment, i wonder if using the tubular UCA's would remedy this issue? The PST units seem to have more camber adjustment built in than stock units.

        • Jim Bob The Dancing Bear

          Jim Bob The Dancing Bear Well-Known Member

          Messages:
          457
          Likes Received:
          110
          Joined:
          Apr 4, 2011
          Location:
          Glenpool Oklahoma
          Local Time:
          2:29 AM
          If you look at PST, Hotchkis, Firm Feel, and QA1 upper control arms, only one has adjustment. The rest do help greatly with the geometry of the upper control arms but are fixed except the typical concentric adjusters.

          http://www.p-s-t.com/s.nl/it.A/id.7113/.f?sc=12

          http://www.hotchkis.net/dodge_b_e_body_geometry_corrected_tubular_upper_aarms.html

          http://www.firmfeel.com/tubuca_b.htm

          http://www.qa1.net/qa1_motorsports/...mponents/control-arms/mopar-control-arms.html

          There is another company out there makeing some with even more adjustment but I can not remember their name. The top 3 listed here are some of the most used on this board and a few boards I visit.

          XV motorsports is another company but I haven't heard anything about them in a while and their website is not working.

          • Like Like x 1
          • Boise68

            Boise68 Well-Known Member

            Messages:
            290
            Likes Received:
            143
            Joined:
            Oct 19, 2012
            Location:
            Boise, ID
            Local Time:
            4:29 AM
            I am no expert with performance suspension tuning, so I went with some basic info from allpar.com and also talked with Dick from FirmFeel. So the concern isn't camber as much as caster for handling and steering feel/response. See the image from allpar.com below.

            View attachment 173425

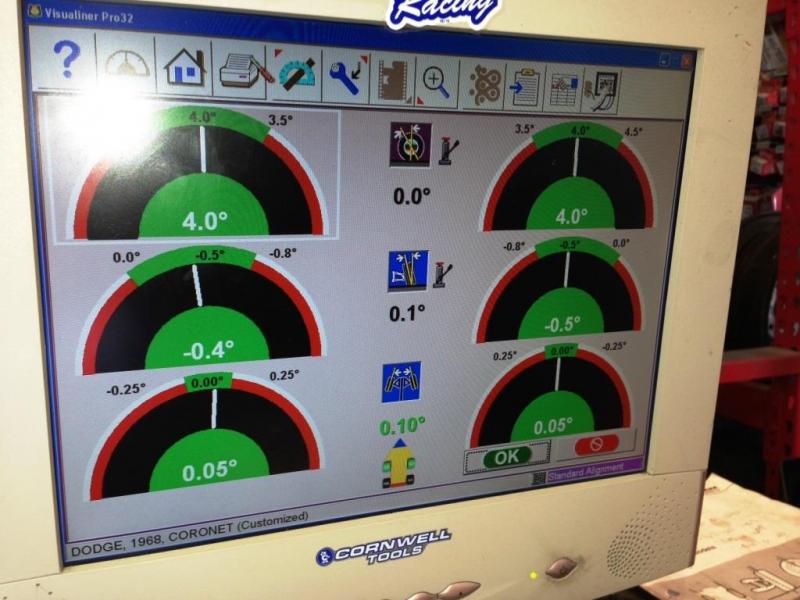

            Even though FirmFeel uca's are not 'adjustable' their geometry is spot-on and works just utilizing the built-in adjustability of the mopar front suspension. Using level and string I initially had the caster set at 5, and that felt great, but I settled for 4. Here is my alignment profile with the FirmFeel uppers. It is important to know what you want in your setup. Some alignment shops will not vary from factory settings so bringing some aftermarket 'charts' such as allpar's might be helpful.

            photo (36).jpg

            • Like Like x 2
            • 67 coronet

              67 coronet Well-Known Member

              Messages:
              2,622
              Likes Received:
              851
              Joined:
              Nov 28, 2011
              Location:
              las vegas
              Local Time:
              3:29 AM
              • Like Like x 1
              • 72rdrnnr

                72rdrnnr Member

                Messages:
                18
                Likes Received:
                5
                Joined:
                Feb 13, 2013
                Location:
                lawreneville,il
                Local Time:
                5:29 AM


                I lowered my 72' Satellite 2".

                • Like Like x 1
                • Mr.SpeedFreak

                  Mr.SpeedFreak Well-Known Member

                  Messages:
                  1,645
                  Likes Received:
                  1051
                  Joined:
                  Jan 29, 2013
                  Location:
                  Southern Oregon
                  Local Time:
                  3:29 AM
                  The member on here with username Red Stripe has a Charger that's lowered about how much you're talking about and looks killer, 17" front/18" rear staggered wheels like the Mr.Angry '68 Charger and mine too. I haven't gotten around to the rear lowering yet but for now I'm just lowered with the tbars and going to machine 1-1/2" lowering blocks for the rear (still need to get tubular uca's too). Worked good for Mr.Angry so should work alright for me too haha

                  http://youtu.be/F9xM-UM-vhw

                  My car:

                • Grabinov911

                  Grabinov911 Well-Known Member

                  Messages:
                  558
                  Likes Received:
                  240
                  Joined:
                  Jan 27, 2012
                  Location:
                  Southern California
                  Local Time:
                  3:29 AM
                  Mine is Firm Feel with Magnum Force 2" dropped spindles and 1.03" torsion bars. I'm also at 4 degrees of caster and the car handles like a slot car! I like the look on 15's but am looking for a set of 18's also for road performance - you just can't get tires for 15's any more unless you're a drag racer, or a Prius...

                  The cardboard on the floor is because my wife's (new) Volvo leaks. Roadrunner is fine though!

                  More details in my threads if you want them. Looking for a better pic, but for now:

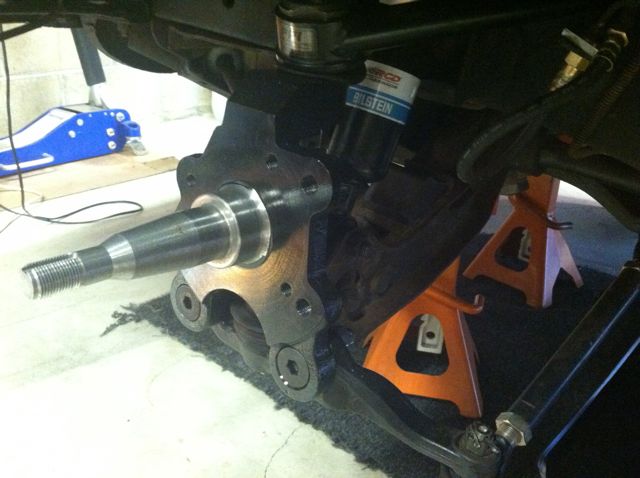

                  IMG_1208.jpg IMG_1184.jpg

                • mopar505

                  mopar505 FBBO Gold Member FBBO Gold Member

                  Messages:
                  238
                  Likes Received:
                  60
                  Joined:
                  Oct 20, 2012
                  Location:
                  pa
                  Local Time:
                  6:29 AM
                  that has a nice stance, 18,s may be too much. might look at 17,s as option.

                • BDL

                  BDL Well-Known Member

                  Messages:
                  169
                  Likes Received:
                  94
                  Joined:
                  Mar 3, 2014
                  Location:
                  Bettendorf, IA
                  Local Time:
                  5:29 AM
                  '66 Charger

                  IMG_2679.jpg IMG_2923.jpg IMG_2921.jpg I went with the quick and easy way to lower my '66 Charger. I loosened the torsion keys on the front and used 2" blocks in the rear. Of course, that went too far in the rear, so I put some air shocks back there so I could adjust as needed depending on luggage and passengers.

                • kevin403

                  kevin403 Well-Known Member

                  Messages:
                  287
                  Likes Received:
                  99
                  Joined:
                  Feb 7, 2011
                  Location:
                  Calgary
                  Local Time:
                  4:29 AM
                  image.jpg image.jpg

                  Street lynx
                  20x10 with 285/30/20

                • Jonnyuma

                  Jonnyuma Well-Known Member

                  Messages:
                  823
                  Likes Received:
                  159
                  Joined:
                  Nov 15, 2010
                  Location:
                  A dirty little town in eastern Oregon
                  Local Time:
                  5:29 AM
                  th_d59dc83e-2fd8-4db7-844c-06a138dae924.jpg Okay...it aint a Charger or Road Runner, but it IS a B body and it IS lowered. Iso-junk is gone, 3 leaves per side gone (shit, it HAD 6), ripped some 2" blocks down to 1.25" to get it too low, and use air shocks to get the ride height where I want it...similar to what BDL did. The anti-air shock crowd will no doubt weigh in here, but the shocks only raise the rear 1 to 2 inches before the leaf springs take over, and my junk aint rusty. AirRide Shockwaves operate offa the same principle, they're just more expensive. Mine are Gabriels. The front came down via the T-bars, but if you go too far the camber gets all wonky. Not so much a problem with the older cars due to the UCA eccentrics, but the later cars (like mine) don't have that. Dropped spindles are probably the better way to go if'n they're available. BTW, in the picture my air shocks are all the way down. Ride height in the rear is a bit higher than that. The second arty-farty picture is closer to what actual ride-height is... th_c36af78a-425e-4294-93c8-dad02e8ecf01.jpg

                • tallhair

                  tallhair Rufus "Mod-hair" Firefly Staff Member

                  Messages:
                  7,748
                  Likes Received:
                  3257
                  Joined:
                  Jan 1, 2013
                  Location:
                  Mascoutah, Illinois
                  Local Time:
                  5:29 AM
                  Anyone use PST tubular UCAs? What's the upside / downside with those?

                  Is the geometry diff than stock and are they similar to FF's UCAs?

                • HYRDGOON

                  HYRDGOON Well-Known Member

                  Messages:
                  3,362
                  Likes Received:
                  2649
                  Joined:
                  Apr 20, 2013
                  Location:
                  Breslau, Ontario, Canada
                  Local Time:
                  6:29 AM
                • tallhair

                  tallhair Rufus "Mod-hair" Firefly Staff Member

                  Messages:
                  7,748
                  Likes Received:
                  3257
                  Joined:
                  Jan 1, 2013
                  Location:
                  Mascoutah, Illinois
                  Local Time:
                  5:29 AM
                  Those rims do look good .. and that paint is pretty electric .. I love it
