Manifold Fitting

[Kilrbee]

I'm putting my 69 charger 440 back together and need some info on the correct vacuum fitting for a Charger with no power brakes and with A/C ( the 1/4" line for the headlight hose and 1/8" for the A/C system feed). I need a 2 port fitting with a 1/4" and 1/8" ports. I am not finding that particular style available or even in the parts book, they have either a single or triple fitting ones listed. My question is does anyone have a correct reference car that has the correct fitting? I'm thinking that they used a three prong one and capped the 3/8" port?

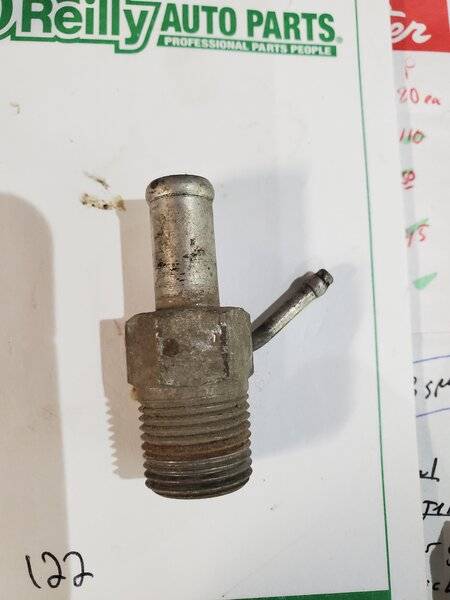

Pic added for reference..

Thank you



[DeltaV]

Try part number PN 1944155. This is the PN used on '70 Chargers with 440, manual brakes, and a/c.

It was probably used on other similarly equipped models.

In 1970, line 4 build codes on the broadcast sheet has 2 digits for the vacuum fitting. The 2 digits vary with combinations of engine, brake, and a/c options. The 2 digits are the last 2 digits of the part number.



[DeltaV]

2405 466 might be it too.

Possible source:

https://www.mrmoparts.net/vacuum-ho...71-hemi-except-68-69-charger-w-hemi-2405-466/



[Kilrbee]

Checked the build sheet and it has an 86 for the vacuum fitting. Thanks for the help.



[Kilrbee]

Ok this is confusing.. my build sheet shows an "86" under vac fitting, 2863486 according to the parts book, That is a single 1/8" fitting. My question is where does the 1/4" headlight hose attach to then?, the carb itself?. does anyone have a reference car that has the correct fitting setup?



[Kilrbee]

Hello??



[moparedtn]

I reckon you can fetch vacuum nipples of about any configuration imaginable,
but here's Mopar-specific ones available for what sounds like you need:
https://www.moparmall.com/Intake-Manifold-Power-Brake-Vacuum-Nipple-p/ck-22076.htm



[WileERobby]

I reckon you can fetch vacuum nipples of about any configuration imaginable,
but here's Mopar-specific ones available for what sounds like you need:
https://www.moparmall.com/Intake-Manifold-Power-Brake-Vacuum-Nipple-p/ck-22076.htm

Vacuum nipples ?



[moparedtn]

Vacuum nipples ?

Sorry, what was your question?



[Kilrbee]

Ok this is confusing.. my build sheet shows an "86" under vac fitting, 2863486 according to the parts book, That is a single 1/8" fitting. My question is where does the 1/4" headlight hose attach to then?, the carb itself?. does anyone have a reference car (69 Charger) that has the correct vacuum fitting setup?



[moparedtn]

The FSM (factory service manual) shows the 1/4" hose coming to the 5/16" nipple on the fitting
in the intake behind the carburetor.



[Kilrbee]

Does anyone have a picture or two of the vacuum fitting on a survivor or original 68 or 69 charger with A/C and no power brakes???
