    I have mini tubed my 62 Savoy and am considering narrowing my differential. Currently riding on the stock differential (8 3/4) but have a B body Dana that I plan on using. Trying to get my head around all the different wheel offsets and am trying to weigh my options on whether I should narrow the Dana and if so how much. Would appreciate input from you guys who have already been through this.

  2. R413

    R413 Well-Known Member

    Messages:
    1,515
    Likes Received:
    3158
    Joined:
    Feb 4, 2019
    Location:
    NW USA
    Local Time:
    11:12 PM
    OK I’d narrow it 5” No more like 11” No no no, 3.25” is perfect!

    wait, how do we know how much to narrow it if we do t know what you have now?
    And we don’t know what wheel
    S you are going to use.
    Nobody can tell you the answer with so many questions left Unanswered.

  3. 66/440

    66/440 Well-Known Member

    Messages:
    92
    Likes Received:
    32
    Joined:
    Dec 20, 2010
    Location:
    TEXAS
    Local Time:
    1:12 AM
    LOL, as stated above, stock width '62 8 3/4, plan on using a stock look steel wheel 8" or 10" depending on the room I can make.

  4. 33 IMP

    33 IMP Well-Known Member

    Messages:
    4,834
    Likes Received:
    6433
    Joined:
    Dec 21, 2017
    Location:
    taxifornia,soon 2b Arizona.
    Local Time:
    11:12 PM
    Two approaches:
    1. You say you have a b-body dana (as opposed to a truck dana, which would have to be narrowed.)Okay. Determine how much wider it is than your 8 3/4, and adjust the backspace of your wheels accordingly. You will probably have to custom order your wheels, but that still should be cheaper than narrowing the rear, and a stock width pass car dana has a lot of value! You might find a shelf wheel with a backspace you can use.
    2. Pick out the wheels and tires you WANT to run, and narrow the rear to fit.
    By the way, did you move the springs too, or just do the mini tub?
    Edit: ive got a ramcharger 15x8 steelie on my 62, but the backspace isnt enough to use a real big tire, 4" or 4 1/4", dont remember exactly.

    • Thanks! Thanks! x 1
    • 66/440

      66/440 Well-Known Member

      Messages:
      92
      Likes Received:
      32
      Joined:
      Dec 20, 2010
      Location:
      TEXAS
      Local Time:
      1:12 AM
      Car has mini tubs and frame connectors and an 8 point roll bar. Have not moved rear springs (yet) still thinking about it. Have been considering running it in NSS and I don't think moving springs is allowed. Still a work in progress, was originally a crew cab now a 2 door.

    • R413

      R413 Well-Known Member

      Messages:
      1,515
      Likes Received:
      3158
      Joined:
      Feb 4, 2019
      Location:
      NW USA
      Local Time:
      11:12 PM
      Sorry I missed the b-body Dana.

      I would highly advise NOT narrowing a B-body Dana. They are too valuable.

      Instead narrow a truck Dana, or even less work and fussing around is to order a new Strange S60 made to your specs.

      • Agree Agree x 3
      • ruffcut

        ruffcut FBBO Gold Member FBBO Gold Member

        Messages:
        433
        Likes Received:
        565
        Joined:
        Dec 26, 2016
        Location:
        northwestern pa
        Local Time:
        2:12 AM
        I run my 63 in NSS and have the springs moved in and car is mini tubbed. I use a narrowed truck Dana 60. First got the wheels I wanted and put them under the car with the slicks on them. Next measured the width of the Dana and went from there. Of course needed axles and new flanges on the Dana. Hope this helps some. RUFFCUT

        • Thanks! Thanks! x 1
        • 33 IMP

          33 IMP Well-Known Member

          Messages:
          4,834
          Likes Received:
          6433
          Joined:
          Dec 21, 2017
          Location:
          taxifornia,soon 2b Arizona.
          Local Time:
          11:12 PM
          I would suggest checking the rules of your local n/ss association, to find out for sure what you can and cant do! There are variations of rules with the various groups.

          • Thanks! Thanks! x 1
          • dvw

            dvw Well-Known Member

            Messages:
            5,582
            Likes Received:
            7981
            Joined:
            Feb 16, 2010
            Location:
            waterford mi
            Local Time:
            2:12 AM
            You can move the springs. it's lNMCA legal. My sons 62 has the front spring hanger fitted flush to the outside of the rails. Sliders in the rear. 275 Mickey Thompson Pro Bracket radials on 10" wheels. Stock wheel tubs. Clears enough to street drive with 4 full size guys in it.
            Doug

            Last edited: Mar 5, 2021
            • Like Like x 1
            • Thanks! Thanks! x 1
            • 66/440

              66/440 Well-Known Member

              Messages:
              92
              Likes Received:
              32
              Joined:
              Dec 20, 2010
              Location:
              TEXAS
              Local Time:
              1:12 AM
              Is your sons car the turbo small block I have seen the videos of? Is he running a dana? What gear set does he use?

            • 66/440

              66/440 Well-Known Member

              Messages:
              92
              Likes Received:
              32
              Joined:
              Dec 20, 2010
              Location:
              TEXAS
              Local Time:
              1:12 AM

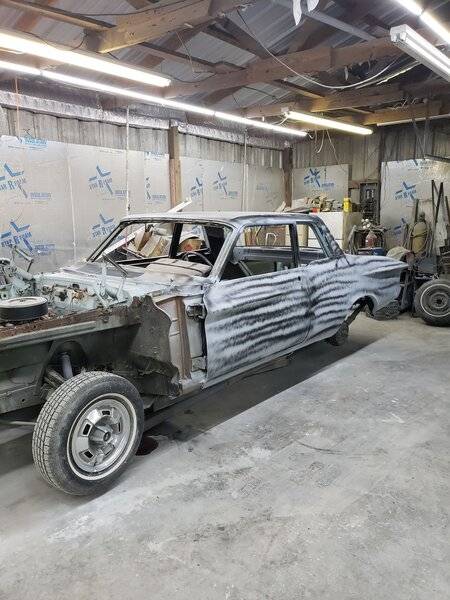

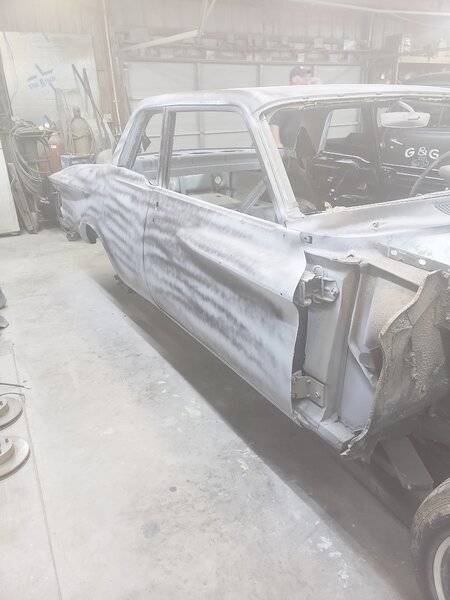

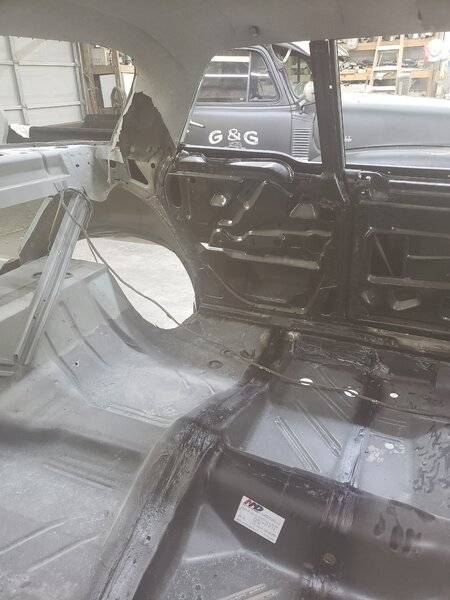

              Here is my work in progress before the tubs went in. Could not find the Savoy post assembly so used a '62 dart and the skins from the rear doors of the 4 door Savoy. Came out really nice.

              20190703_163848.jpg 2.jpg 20190703_163758.jpg

              • Like Like x 1
              • 33 IMP

                33 IMP Well-Known Member

                Messages:
                4,834
                Likes Received:
                6433
                Joined:
                Dec 21, 2017
                Location:
                taxifornia,soon 2b Arizona.
                Local Time:
                11:12 PM

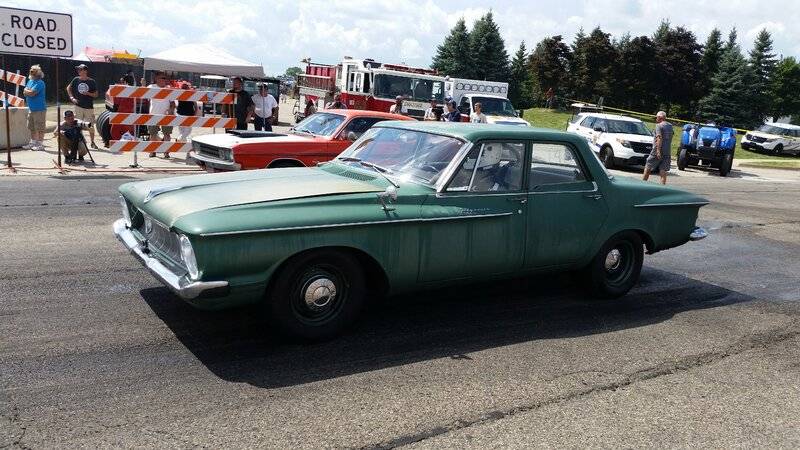

                Yep, that fourdoor 62 pictured is Doug's son, Dizuster (spelling) here. 360, single turbo, narrowed truck dana, mid nines at 3700 lbs. Sorry, dont know the gear ratio.

              • dvw

                dvw Well-Known Member

                Messages:
                5,582
                Likes Received:
                7981
                Joined:
                Feb 16, 2010
                Location:
                waterford mi
                Local Time:
                2:12 AM
                It has the junkyard 3.54 gears. It was a 8 lug out if a Ford truck. Just added a spool, ends, and axles.
                Doug

              • ply64post

                ply64post Seinor Member

                Messages:
                465
                Likes Received:
                202
                Joined:
                Sep 21, 2008
                Location:
                central pa
                Local Time:
                2:12 AM
                Who is the vendor for the axle bearing ends and the axles? or do you use the ends off of an 8 3/4 housing?

                Thank You
                Jeff

              • 33 IMP

                33 IMP Well-Known Member

                Messages:
                4,834
                Likes Received:
                6433
                Joined:
                Dec 21, 2017
                Location:
                taxifornia,soon 2b Arizona.
                Local Time:
                11:12 PM
                There are lots of vendors of hi performance axles, and most of them sell housing ends. An 8 3/4 end and the passenger dana are the same, so yes you could use 8 3/4 ends and brakes, but most that do narrowing would prefer to use new ends. I know i would use new. You can find several brands of axles, and ends, in a jegs or summit catalog, axles and components section.

              • dvw

                dvw Well-Known Member

                Messages:
                5,582
                Likes Received:
                7981
                Joined:
                Feb 16, 2010
                Location:
                waterford mi
                Local Time:
                2:12 AM
                Depends on what you want to do. This 62 has Ford explorer disc brakes on the rear so it has Strange large Ford ends. My racecar has 8 3/4 ends. The biggest issue is to make sure the axles and brakes have the correct offset for the ends you are going to use. Many many different combos. Contact Strange, Dr Diff, Mark Williams before you cut.
                Doug

                • Agree Agree x 1
                • fbs63

                  fbs63 Well-Known Member

                  Messages:
                  268
                  Likes Received:
                  178
                  Joined:
                  Feb 5, 2017
                  Location:
                  Lowell, Indiana
                  Local Time:
                  1:12 AM
                  In my 63 Dodge the housing is 45 1/4" housing end to housing end. My springs are moved into the frame rails and the inner wheel house moved to the frame rail. I use a 15x12" wheel with 4" backspace with a 13.50 x 30 Hoosier Quick Time Pro tire and they fit well. Thats using the std Mopar 2 1/2" brake spacing. There are A LOT of variables so its best to mock everything up and take measurements. Remember the uni-body on these car had some big tolerances so its best to fit each car individually.

                  • Thanks! Thanks! x 1
                  • Krooser

                    Krooser Member

                    Messages:
                    15
                    Likes Received:
                    12
                    Joined:
                    Jan 12, 2021
                    Location:
                    54981
                    Local Time:
                    1:12 AM
                    Moser can do anything you need at a good price.
