Need a 1978 2 door wiring diagram or help from someone with a 78

Johnny Mac

FBBO Vendor
FBBO Sponsor
Local time
8:22 AM
Joined
Jan 8, 2015
Messages
296
Reaction score
397
Location
NE OHIO
Hello all,
Please and thanks in advance.
Heater box is from a 78 2 door with A/C.

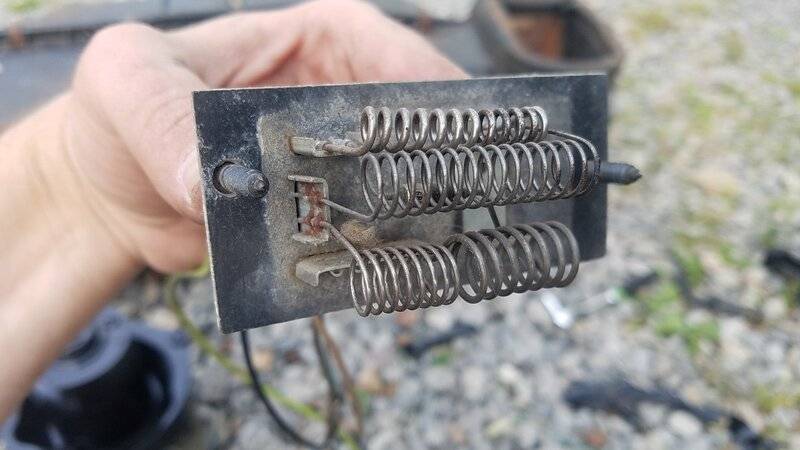

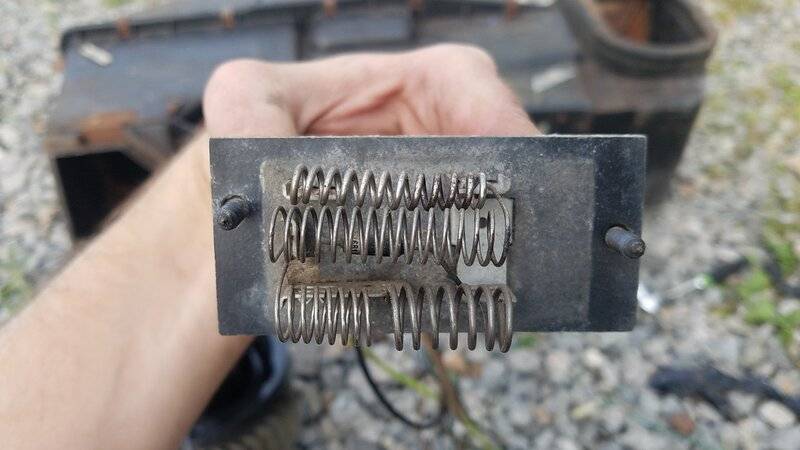

Resistor is shown.

Cannot find a wiring diagram newer than 76. It does not match.

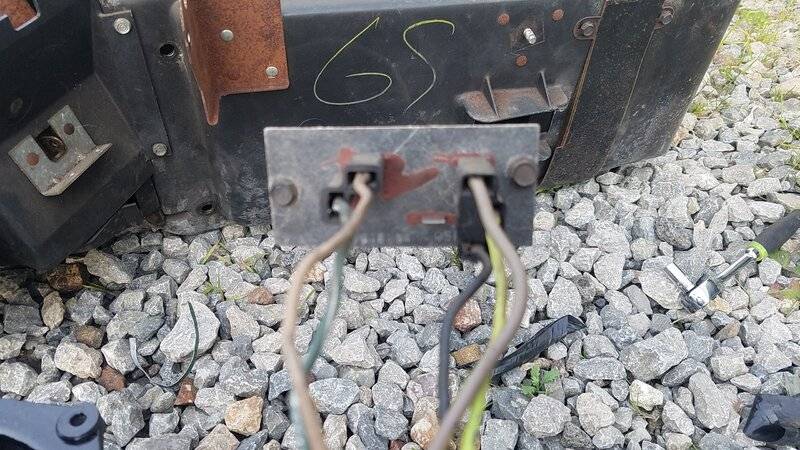

On RH plug.
Top (brown w yellow) runs to nothing. Just a female butt. (Where does it go?)

Middle RH(bright green) runs to OE speed switch.

Bottom RH (black) also runs to OE speed switch

Left upper (tan) runs to OE speed switch, bit also appears ran to a 12v fuse on fuse box.

Left bottom (green w white) runs to a stripped end. (Where does this go)?

Blower motor hot appears to be green with no tracer

I'm a little lost on this one...any advice?






I have ‘79 Dodge wiring schematics.
PM me your address, I’ll mail them out ASAP.
