Need advice installing clutch linkage and 2" Dougs headers

General Mopar Tech Discussions

  1. elliskev2

    elliskev2 Active Member

    Messages:
    41
    Likes Received:
    12
    Joined:
    May 16, 2015
    Location:
    Binghamton, NY
    Local Time:
    2:14 PM

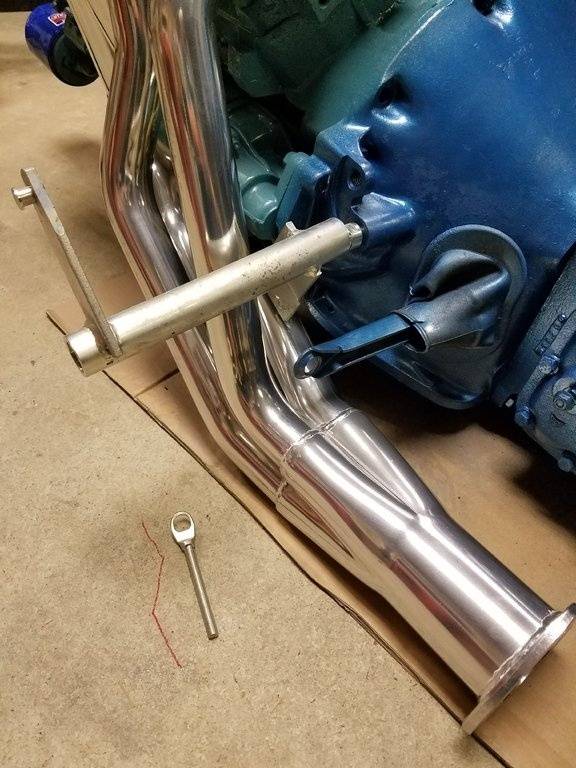

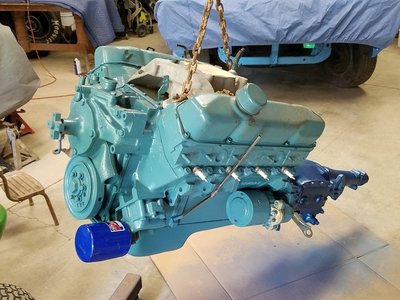

    Hello everyone, getting ready to drop my engine into my 70 Road Runner. I have Doug's headers and was test fitting the passenger side. My question is who may have advice on getting the z bar installed? Those header tubes eat up a lot of room. Definitely need a plan and possibly modify the linkage to the fork. Thanks

    20170529_132249.jpg 20170528_143917.jpg 20170530_212416[1].jpg

  2. 5.7 hemi

    5.7 hemi FBBO Gold Member FBBO Gold Member

    Messages:
    12,337
    Likes Received:
    9097
    Joined:
    Dec 21, 2008
    Location:
    ca
    Local Time:
    1:14 PM
    Go hydraulic, problem(s) solved.

    • Agree Agree x 1
    • dave dodge

      dave dodge Well-Known Member

      Messages:
      354
      Likes Received:
      396
      Joined:
      Apr 6, 2012
      Location:
      rochester new york
      Local Time:
      2:14 PM
      Although my car wasn't a 70Plymouth, mine 67 r/t. I installed mine after the motor was in through the access in the inner fender. It takes a little finesse but it can be done.

      • Thanks! Thanks! x 1
      • Daves69

        Daves69 Well-Known Member

        Messages:
        1,634
        Likes Received:
        1427
        Joined:
        Jan 24, 2014
        Location:
        ChiWest
        Local Time:
        1:14 PM
        It's a puzzle with headers. Some painters tape on the corners of the bell crank can help minimize paint scrapes.
        Side note: You did bench test you starter before you bolted it up, right?

      • PurpleBeeper

        PurpleBeeper Well-Known Member

        Messages:
        4,528
        Likes Received:
        3284
        Joined:
        Mar 20, 2011
        Location:
        Chicago
        Local Time:
        1:14 PM

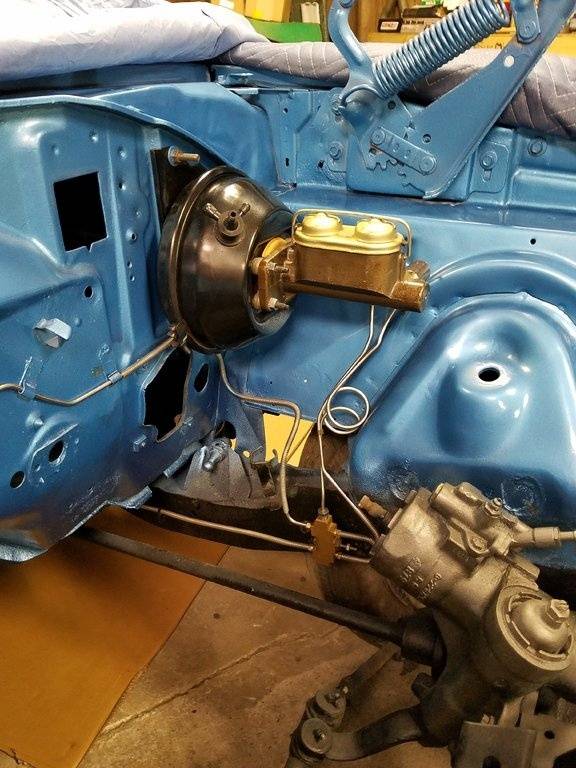

        At least in your last/bottom picture it looks like you've got a ton of room for the Z-bar. Is there a clearance issue that's not obvious in the picture? I also have a 70 Road Runner 4spd car & I've run 3 different styles of headers and never had an issue with the clutch linkage. It always went in easy after the motor/headers were installed.

        I think the only "trick" I ever used was to install the bellhousing side pivot & white bushings into the Z-bar FIRST, then install the Z-bar & use an open end wrench to screw the bellhousing side pivot into the bellhousing.

        • Thanks! Thanks! x 1
        • dave dodge

          dave dodge Well-Known Member

          Messages:
          354
          Likes Received:
          396
          Joined:
          Apr 6, 2012
          Location:
          rochester new york
          Local Time:
          2:14 PM
          I put grease on the bellhousing side ball to hold the two half bushing shells and slid the z bar right on.

          • Like Like x 1
          • elliskev2

            elliskev2 Active Member

            Messages:
            41
            Likes Received:
            12
            Joined:
            May 16, 2015
            Location:
            Binghamton, NY
            Local Time:
            2:14 PM
            No but was thinking the same thing before going in. I know it worked when it came out....but....

          • elliskev2

            elliskev2 Active Member

            Messages:
            41
            Likes Received:
            12
            Joined:
            May 16, 2015
            Location:
            Binghamton, NY
            Local Time:
            2:14 PM
            That's good to know..I've put in a lot of engines with headers but no big blocks with 4sp. What has me wondering is the rod that goes back to the fork. I may have something aligned wrong but it seems to have too much angle.


          • elliskev2

            elliskev2 Active Member

            Messages:
            41
            Likes Received:
            12
            Joined:
            May 16, 2015
            Location:
            Binghamton, NY
            Local Time:
            2:14 PM

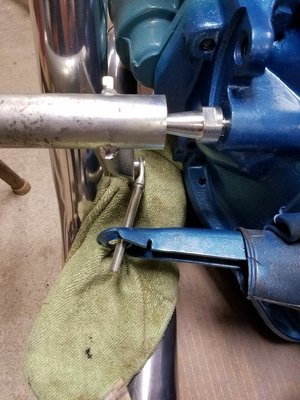

            You can see I have the z bar pulled out from the ball mount a bit.

          • elliskev2

            elliskev2 Active Member

            Messages:
            41
            Likes Received:
            12
            Joined:
            May 16, 2015
            Location:
            Binghamton, NY
            Local Time:
            2:14 PM
            Good advice, Thanks. :thumbsup:

          • Daves69

            Daves69 Well-Known Member

            Messages:
            1,634
            Likes Received:
            1427
            Joined:
            Jan 24, 2014
            Location:
            ChiWest
            Local Time:
            1:14 PM
            Is that fork on the pivot and release bearing correctly?

            • Like Like x 1
            • PurpleBeeper

              PurpleBeeper Well-Known Member

              Messages:
              4,528
              Likes Received:
              3284
              Joined:
              Mar 20, 2011
              Location:
              Chicago
              Local Time:
              1:14 PM
              Yeah, something looks off there for sure. My first guess is that the clutch fork is not setting on its pivot. 2nd guess, the fork is on the pivot, but the pivot is turned the wrong direction making the clutch fork stick out too far. 3rd guess (not likely) the Z-bar is backwards.

            • Mick70RR

              Mick70RR Well-Known Member

              Messages:
              59
              Likes Received:
              25
              Joined:
              Jul 19, 2008
              Location:
              Birmingham, England
              Local Time:
              7:14 PM
              I have a 4 speed big block with 2" Doug's headers and have plenty of clearance. The clutch fork looks a bit too long in one of your pictures. Are you sure it's engaged in the bell housing fully because if it is it may be the wrong fork for your 4 speed.

              • Like Like x 1
              • 5.7 hemi

                5.7 hemi FBBO Gold Member FBBO Gold Member

                Messages:
                12,337
                Likes Received:
                9097
                Joined:
                Dec 21, 2008
                Location:
                ca
                Local Time:
                1:14 PM
                Shouldn't the clutch fork measure around 12 inches?

                • Like Like x 1
                • elliskev2

                  elliskev2 Active Member

                  Messages:
                  41
                  Likes Received:
                  12
                  Joined:
                  May 16, 2015
                  Location:
                  Binghamton, NY
                  Local Time:
                  2:14 PM
                  I believe it is the correct one....I will have to look up what the original should be. The car has been apart for several years. It is hooked into the pivot inside the edge of the bellhousing.

                • elliskev2

                  elliskev2 Active Member

                  Messages:
                  41
                  Likes Received:
                  12
                  Joined:
                  May 16, 2015
                  Location:
                  Binghamton, NY
                  Local Time:
                  2:14 PM
                  Pulled the boot off and took a quick look. It is engaged into the pivot.

                • elliskev2

                  elliskev2 Active Member

                  Messages:
                  41
                  Likes Received:
                  12
                  Joined:
                  May 16, 2015
                  Location:
                  Binghamton, NY
                  Local Time:
                  2:14 PM

                • elliskev2

                  elliskev2 Active Member

                  Messages:
                  41
                  Likes Received:
                  12
                  Joined:
                  May 16, 2015
                  Location:
                  Binghamton, NY
                  Local Time:
                  2:14 PM
                  Thanks guys... I may have this mixed up with another 4speed I have in the shop. Question...Are they different from a small block vs. big block?

                • 5.7 hemi

                  5.7 hemi FBBO Gold Member FBBO Gold Member

                  Messages:
                  12,337
                  Likes Received:
                  9097
                  Joined:
                  Dec 21, 2008
                  Location:
                  ca
                  Local Time:
                  1:14 PM
                  The clutch forks are different lengths and are by body if I'm remembering correctly.

                  • Like Like x 1
                  • 5.7 hemi

                    5.7 hemi FBBO Gold Member FBBO Gold Member

                    Messages:
                    12,337
                    Likes Received:
                    9097
                    Joined:
                    Dec 21, 2008
                    Location:
                    ca
                    Local Time:
                    1:14 PM
                    I went through this with a 70 RR 383 4 speed while installing TTI headers. Fork was rubbing the top tubes, got the correct fork and bingo, it worked like it should.

                    • Like Like x 1
