    I picked up this GTX a few weeks ago so my Charger would have some company! It's a numbers matching 440, 4 speed Dana car.

    I'm going to be converting the points ignition to an electronic ignition so I wanted to ask for suggestions on where to mount the orange control box. Where have you guys mounted them? I'd prefer not to have to drill any hole in the car.

    Thanks!

    2.jpg 3.jpg

    • Like Like x 9
    • Runcharger

      Runcharger Well-Known Member

      Messages:
      149
      Likes Received:
      225
      Joined:
      Apr 22, 2020
      Location:
      Vernon
      Local Time:
      10:38 PM
      A lot of guys put then under the battery tray. On my 66 Coronet I made a little plate that mounted it behind the grille so it would be in cool air blowing in, sitting it probably heat sank from the radiator though. I have thought about putting them in the wheelhouse as well just to keep them cooler.

    • Don Frelier

      Don Frelier FBBO Gold Member FBBO Gold Member

      Messages:
      3,770
      Likes Received:
      4208
      Joined:
      Oct 11, 2016
      Location:
      Ionia, NY
      Local Time:
      1:38 AM
      You might want to consider a "Ready to Run" distributor.
      No box required.

      • Agree Agree x 2
      • Bee1971

        Bee1971 Well-Known Member

        Messages:
        976
        Likes Received:
        913
        Joined:
        Jun 22, 2017
        Location:
        Sobieski
        Local Time:
        12:38 AM
        If I was doing it today , I would buy or make the adapter plate that mounts on the valley pan behind the intake manifold

        Simple , out of sight , and heat is not an issue

        Or like mentioned under the battery tray , with of course a little work on extending the wiring harness

        • Agree Agree x 1
        • Don Frelier

          Don Frelier FBBO Gold Member FBBO Gold Member

          Messages:
          3,770
          Likes Received:
          4208
          Joined:
          Oct 11, 2016
          Location:
          Ionia, NY
          Local Time:
          1:38 AM
          Pertronix is another option

          • Agree Agree x 2
          • Jerry Hall

            Jerry Hall FBBO Gold Member FBBO Gold Member

            Messages:
            5,105
            Likes Received:
            8275
            Joined:
            Mar 26, 2018
            Location:
            Alabama
            Local Time:
            12:38 AM
            Why get rid of the points? In my points cars are a spare set of points, ballast resistor, a few tools and a couple of other things. I can install points if necessary in less time than changing a tire. 20201230_143334.jpg 20200106_121557.jpg IMG_3096.jpg 20171109_094337.jpg
            Points in all of the above. I have had more trouble with electronic ignition than points and points usually give you a warning. Just my opinion.

            • Agree Agree x 6
            • Like Like x 4
            • Ranger16

              Ranger16 Well-Known Member

              Messages:
              3,965
              Likes Received:
              4903
              Joined:
              Jun 27, 2016
              Location:
              Woodstock Ill.
              Local Time:
              12:38 AM
              If you don't drill a mounting hole, how do you plan to ground it?


              Last edited: Feb 10, 2021
            • Turboomni

              Turboomni Well-Known Member

              Messages:
              163
              Likes Received:
              155
              Joined:
              Feb 4, 2019
              Location:
              MA
              Local Time:
              1:38 AM
              Why?? Always interested on the reason.

              • Agree Agree x 1
              • 1968rt

                1968rt Well-Known Member

                Messages:
                376
                Likes Received:
                384
                Joined:
                Jul 28, 2010
                Location:
                New York
                Local Time:
                1:38 AM
                Behind the manifold on the valley pan hold downs. They sell a bracket.

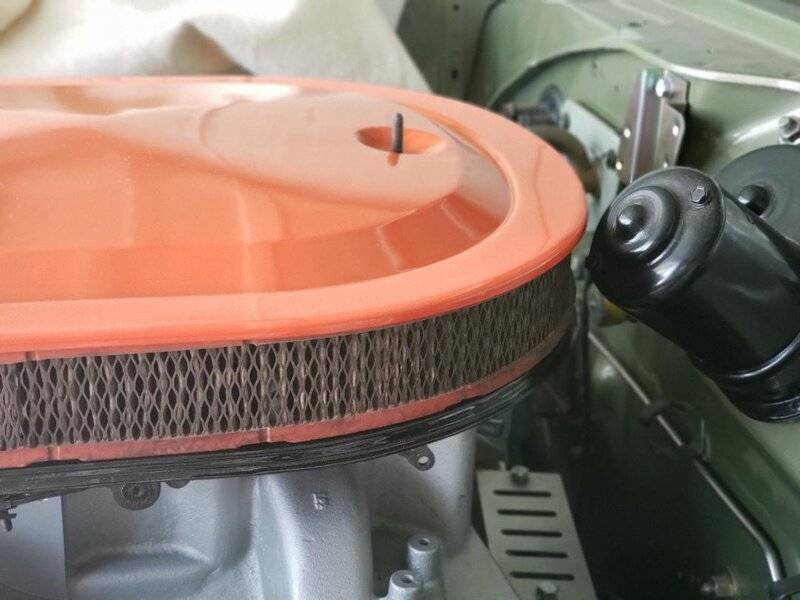

                6pack lid.jpg

              • 70runner

                70runner Well-Known Member

                Messages:
                316
                Likes Received:
                620
                Joined:
                Jul 15, 2010
                Location:
                Avocado country
                Local Time:
                10:38 PM
                Gotta agree. Daughter's all matching 69 Charger R/T started out with a fancy all-in-one rig, installed by the engine builder. Lasted about 200mi until the AIO stranded her on a freeway. After a week or so of unproductive troubleshooting with the company tech guy, pulled it and reinstalled the points distributor/stock coil/ballast. Started right up and runs perfect.

                • Like Like x 1
                • Thanks! Thanks! x 1
                • Agree Agree x 1
                • 68Charger440HP

                  68Charger440HP Well-Known Member

                  Messages:
                  75
                  Likes Received:
                  97
                  Joined:
                  Dec 5, 2016
                  Location:
                  Phoenix
                  Local Time:
                  10:38 PM
                  I’ve got nothing against points distributors. The distributor in the car right now is an old Mallory unit and don’t care for the look of it. I had a spare Mopar Performance electronic distributor so I figured I’d change it out.

                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • 68BabyBlue

                    68BabyBlue FBBO Gold Member FBBO Gold Member

                    Messages:
                    167
                    Likes Received:
                    353
                    Joined:
                    Aug 9, 2020
                    Location:
                    State College, Pennsylvania
                    Local Time:
                    1:38 AM
                    We have twins, maybe, what is your interior color?

                    IMG_2278.JPG IMG_2340.JPG

                    • Like Like x 2
                    • 68Charger440HP

                      68Charger440HP Well-Known Member

                      Messages:
                      75
                      Likes Received:
                      97
                      Joined:
                      Dec 5, 2016
                      Location:
                      Phoenix
                      Local Time:
                      10:38 PM
                      • Thanks! Thanks! x 1
                      • 68BabyBlue

                        68BabyBlue FBBO Gold Member FBBO Gold Member

                        Messages:
                        167
                        Likes Received:
                        353
                        Joined:
                        Aug 9, 2020
                        Location:
                        State College, Pennsylvania
                        Local Time:
                        1:38 AM
                        What are the odds - I have only ever seen one other R6 numbers matching track pak '69 GTX, in my life, and that was on the internet, a car in Washington state that showed up in Hemmings a month after I bought the one I have now. That car also had a pewter interior like mine, supposedly only 45 built red with pewter. I spent 45 years hunting a red numbers matching 4 speed '69. I think you won the lottery! Gorgeous car!


                        • Like Like x 1
                        • 69 R/T

                          69 R/T Well-Known Member

                          Messages:
                          165
                          Likes Received:
                          43
                          Joined:
                          May 10, 2009
                          Location:
                          San Jose, CA
                          Local Time:
                          10:38 PM
                          I went with the Pertronix Ignitor II. However, I used a stealth method of installation. The Pertronix requires a constant 12v to run, therefore you can't run both distributor leads to the coil unless you use my stealth method. Remove the ballast resistor and solder a heavy gauge jumper lead between the two terminals on the back side. This will now carry a constant 12v, and when bolted back on the firewall, no one can tell. This will allow you to run the two leads directly to the coil to keep the wiring as stock and sanitary looking as possible. My car is a bone stock, numbers car too, so stock appearing with date coded parts is my thing...I totally understand your concern.

                        • joemish

                          joemish Well-Known Member

                          Messages:
                          147
                          Likes Received:
                          65
                          Joined:
                          May 29, 2014
                          Location:
                          murfreesboro,Tn.
                          Local Time:
                          12:38 AM

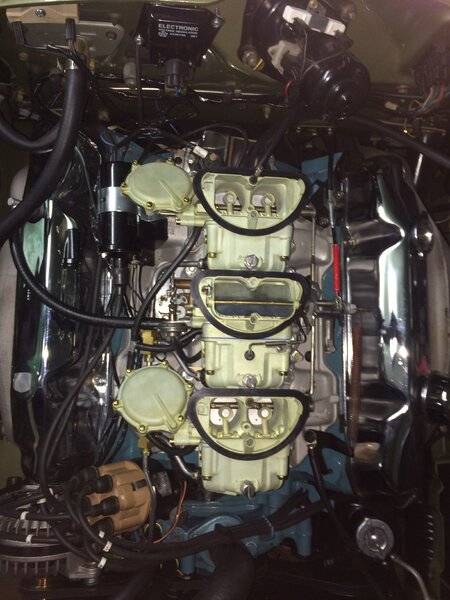

                          Put it on the firewall where it belongs. I put mine there looks original.

                          • Agree Agree x 2
                          • joemish

                            joemish Well-Known Member

                            Messages:
                            147
                            Likes Received:
                            65
                            Joined:
                            May 29, 2014
                            Location:
                            murfreesboro,Tn.
                            Local Time:
                            12:38 AM
                            Or you can just use a double ballast resistor that is recommended and i put it on both my cars. have to buy the double ballast resister separate does not come with a kit.

                          • Gary Jenkins

                            Gary Jenkins Active Member

                            Messages:
                            33
                            Likes Received:
                            5
                            Joined:
                            Jul 7, 2018
                            Location:
                            New Zealand
                            Local Time:
                            5:38 PM
                            There is a guy either here on B bodies or on a mopar FB site that makes a bracket that mounts the module onto the 2 bolt threads from the heater/fan box. looks nice n tidy

                          • boys3rt

                            boys3rt FBBO Gold Member FBBO Gold Member

                            Messages:
                            5
                            Likes Received:
                            0
                            Joined:
                            Oct 22, 2014
                            Location:
                            Massachusetts
                            Local Time:
                            1:38 AM

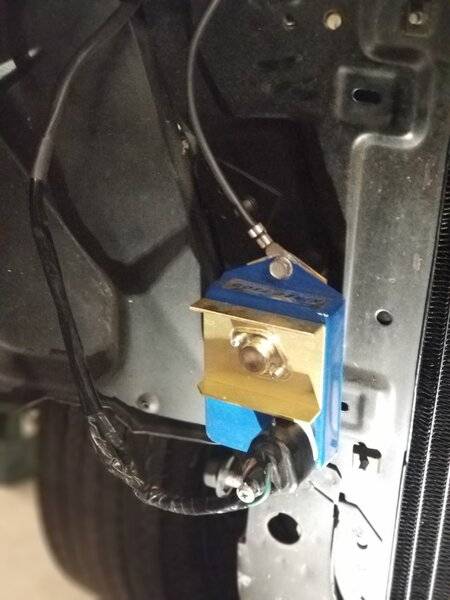

                            I mounted my box behind the grille passenger side on the radiator support. You do not need to drill any holes ! I did use a special bracket that was on newer cars that was bent in a way to stand off the box away from the mounting surface. For the wiring there is a small void where the support meets the fender that you can string the wires thru it and incorporate in the harness that feeds the washer bottle and horns. That harness runs along the inner fender and turns at the firewall. As stated earlier you need a good ground and there is one on the radiator support that you can add your ground from the control unit. In this case there is no heat impact from the motor or exhaust. Hope this helps! Should you have more questions let me know.

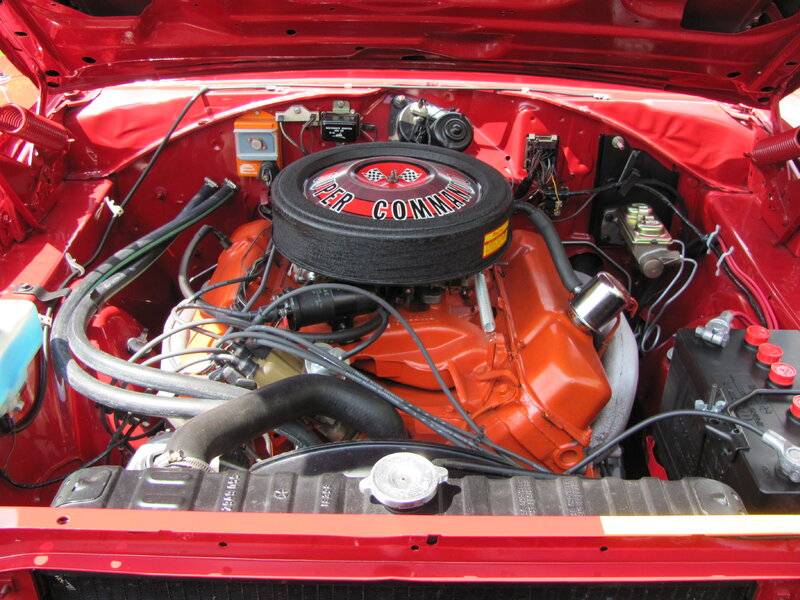

                            Control Box.jpg
