Nut in hole in Exhaust manifold

ronfikus 1

Member
Local time
9:11 AM
Joined
Nov 7, 2022
Messages
15
Reaction score
11
Location
Jacksonville

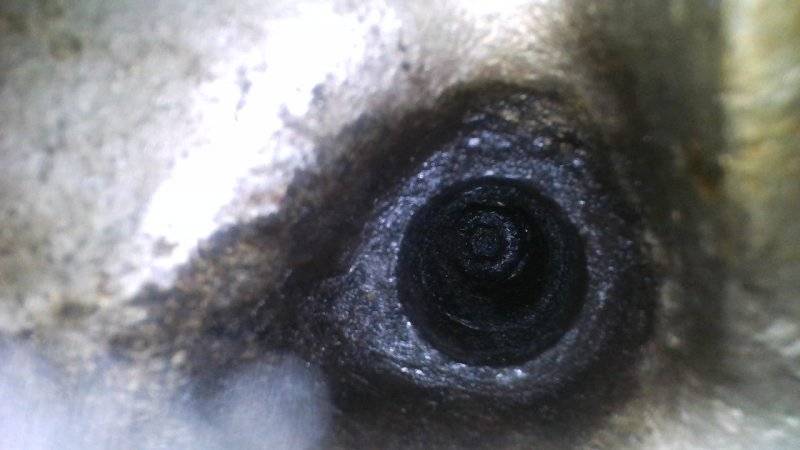

This is in the exhaust manifold hole What socket fits in there? Or is there a special tool I got this one that's being a pain

Manifold casting # 3671595-2
1972 Charger SE 400 engine



Dave6T4

Well-Known Member
Local time
9:11 AM
Joined
Dec 31, 2020
Messages
3,565
Reaction score
6,588
Location
Ontario, Canada
These deep holes on HP exhaust manifolds require a special long shouldered nut to fasten them to the cylinder head. It looks like a PO did not have this, and devised some other way to do it. The picture is not clear enough for me to figure out what is going on.


ronfikus 1

Member
Local time
9:11 AM
Joined
Nov 7, 2022
Messages
15
Reaction score
11
Location
Jacksonville
These deep holes on HP exhaust manifolds require a special long shouldered nut to fasten them to the cylinder head. It looks like a PO did not have this, and devised some other way to do it. The picture is not clear enough for me to figure out what is going on.
Yea I had all bolts but this last one I took this pic with a scope but you can clearly see the nut holding it on. I'm disassembling and cleaning as this car sat for 22 years


1 Wild R/T

Well-Known Member
Local time
6:11 AM
Joined
Jul 9, 2019
Messages
7,206
Reaction score
18,670
Location
California
These deep holes on HP exhaust manifolds require a special long shouldered nut to fasten them to the cylinder head. It looks like a PO did not have this, and devised some other way to do it. The picture is not clear enough for me to figure out what is going on.

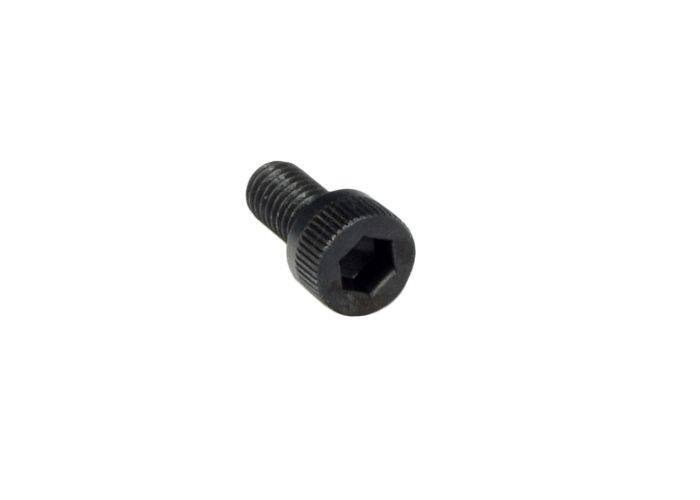

Looks like there's a socket head bolt in the hole....



Dave6T4

Well-Known Member
Local time
9:11 AM
Joined
Dec 31, 2020
Messages
3,565
Reaction score
6,588
Location
Ontario, Canada
Yeah, I kinda had that thought too. Looked at it again after your post, and agree. Not the right way to do it, but I can see how it could work, if one did not have the correct pieces.


ronfikus 1

Member
Local time
9:11 AM
Joined
Nov 7, 2022
Messages
15
Reaction score
11
Location
Jacksonville
Yeah, I kinda had that thought too. Looked at it again after your post, and agree. Not the right way to do it, but I can see how it could work, if one did not have the correct pieces.
Yea well I'm going to keep the manifolds after watching that dyno clip and I can assure you guys I will have the correct hardware thanks a million


Dave6T4

Well-Known Member
Local time
9:11 AM
Joined
Dec 31, 2020
Messages
3,565
Reaction score
6,588
Location
Ontario, Canada
The correct nuts can be bought through Mopar restoration parts places like Year One, Classic Industries, etc. They come in two lengths, depending on application.


69Bee

FBBO Gold Member
FBBO Gold Member
Local time
7:11 AM
Joined
Nov 17, 2009
Messages
3,968
Reaction score
3,725
Location
Whetstone, AZ
AMK Bolts... Bulk Fasteners

CHRYSLER - Engine - 396/454C-8063EXHAUST MANIFOLDS - 383/440STUDS, 3 SHORT & 2 L SLEEVE NUTS24$72
CHRYSLER - Engine - 396/454C-8065EXHAUST MANIFOLDS - 383/440STUDS, 1 SHORT & 2 L SLEEVE NUTS24$55


ronfikus 1

Member
Local time
9:11 AM
Joined
Nov 7, 2022
Messages
15
Reaction score
11
Location
Jacksonville
AMK Bolts... Bulk Fasteners

CHRYSLER - Engine - 396/454C-8063EXHAUST MANIFOLDS - 383/440STUDS, 3 SHORT & 2 L SLEEVE NUTS24$72
CHRYSLER - Engine - 396/454C-8065EXHAUST MANIFOLDS - 383/440STUDS, 1 SHORT & 2 L SLEEVE NUTS24$55
Notice it never mentions 400 motor I just got off the phone with Classic and they said they have no listing for a 400 Exhaust Manifold Fastners I orderd MN1501 and going to see if that works.


69Bee

FBBO Gold Member
FBBO Gold Member
Local time
7:11 AM
Joined
Nov 17, 2009
Messages
3,968
Reaction score
3,725
Location
Whetstone, AZ
Umm, 383 & 400 are the same... The bolt kits fit all big blocks, are USA made, proper finish, correct lengths and factory head markings.
