    Hey Guys,

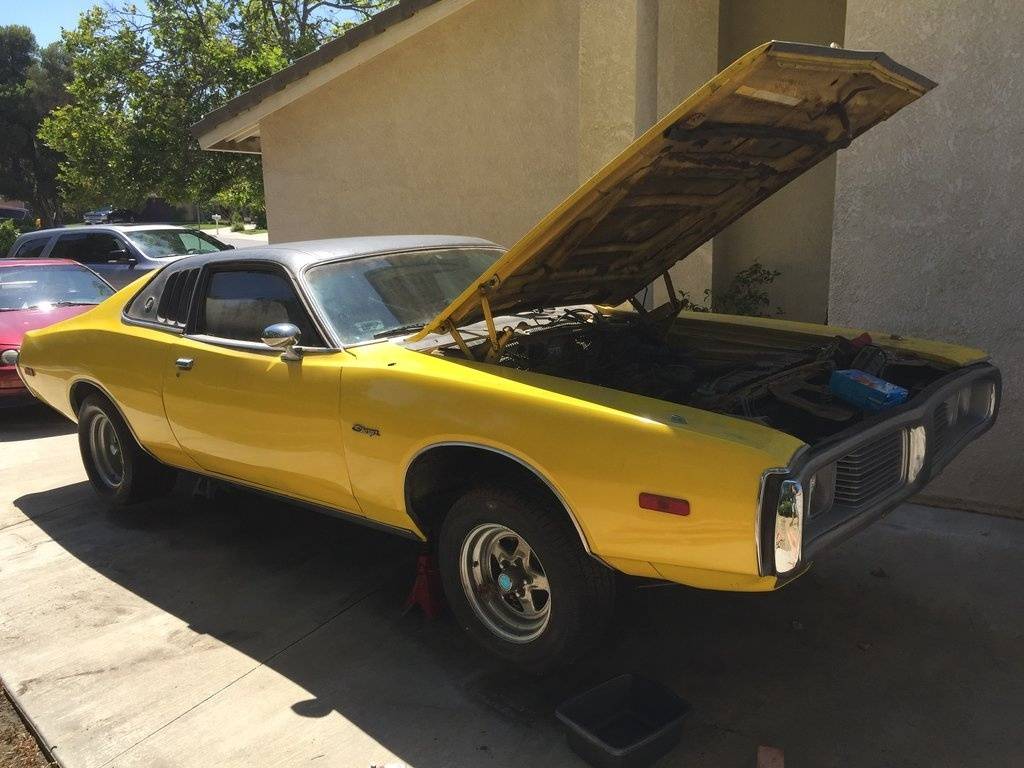

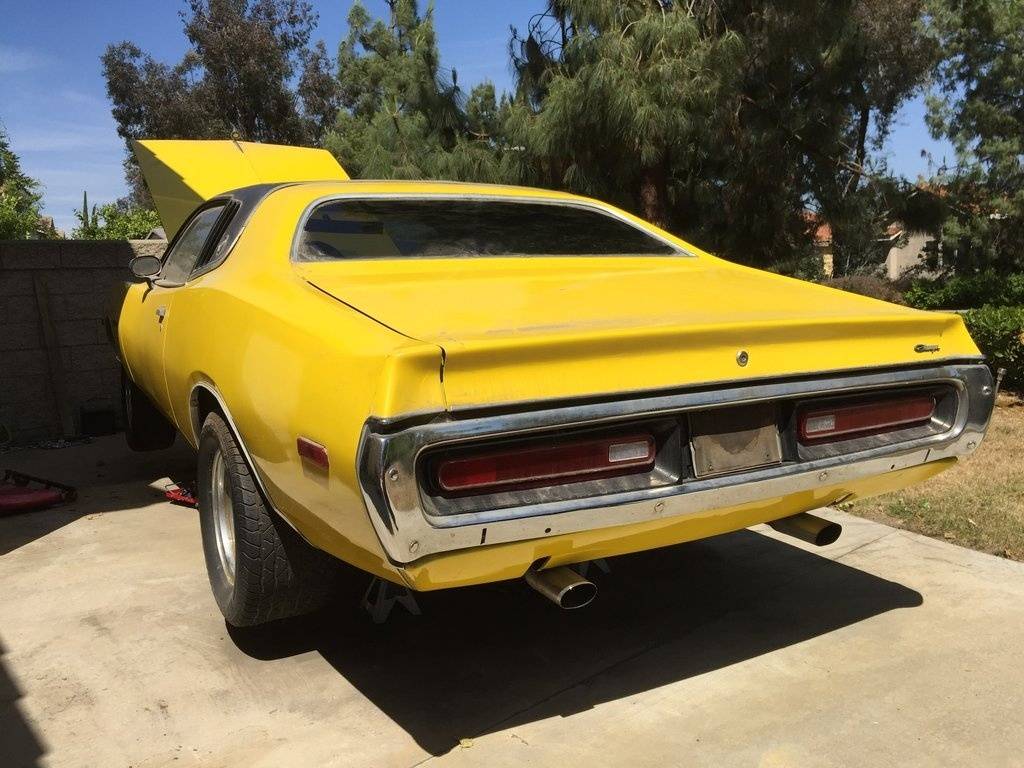

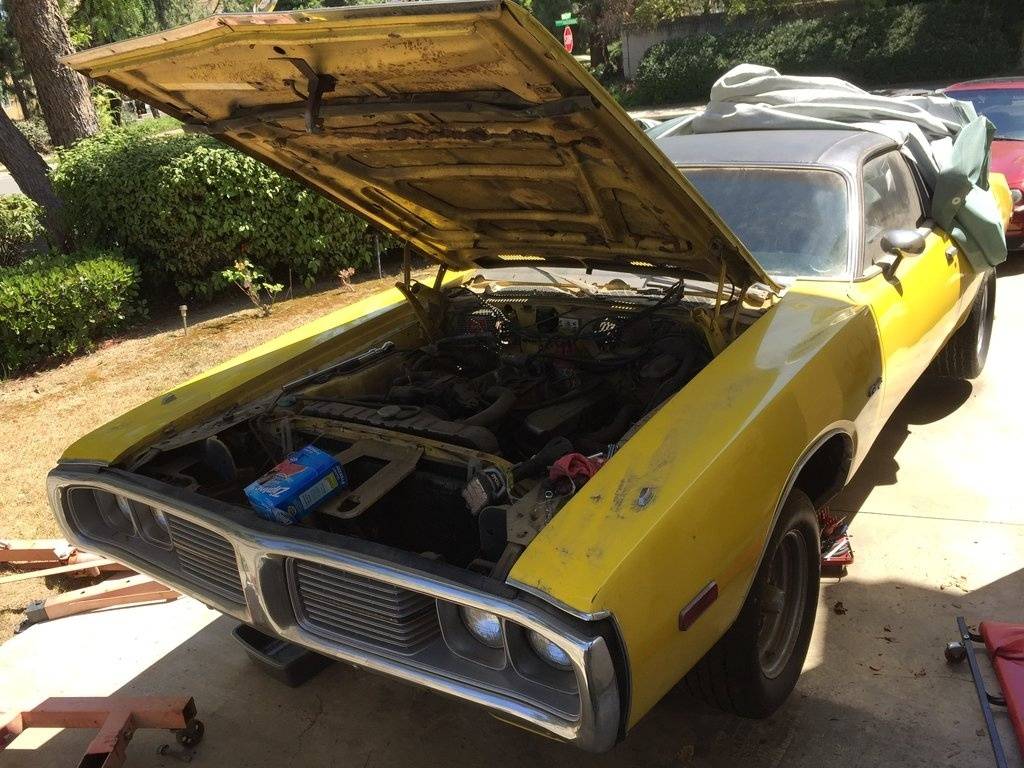

    Want to share my build and give a quick background story. My dad is the original owner who bought it a few weeks I was born. He is now 80yrs old but still living strong. This was my first car when I turned 16 and loved cruising through the high school parking lot turning head back then. It was the car that I took my wife for our first date. Since then I passed it on to my younger brother to carry the torch. He and I eventually moved on to modding import cars for track road course but now have circled back to give the charger the needed attention after sitting for years and rusting away. Here is me back in the day.
    It has the 318cid w/904 auto and bench seats. I did rebuild the engine long ago w/ .30 overbore, mild cams, hooker headers with magnaflow exhaust. It sounded great back then but now it's going under the knife to get a new heart. 01cba49e2d1cd07929101f8a98bddde1d0f878c739.jpg 01520e98ac241aaa322765ab838f396f70a4c33a43.jpg 014dae1b8588467a39fcf542abb5dc39607ad023e4.jpg 01582b5608548de5f6973ccd28098e019dc1d5e0de.jpg

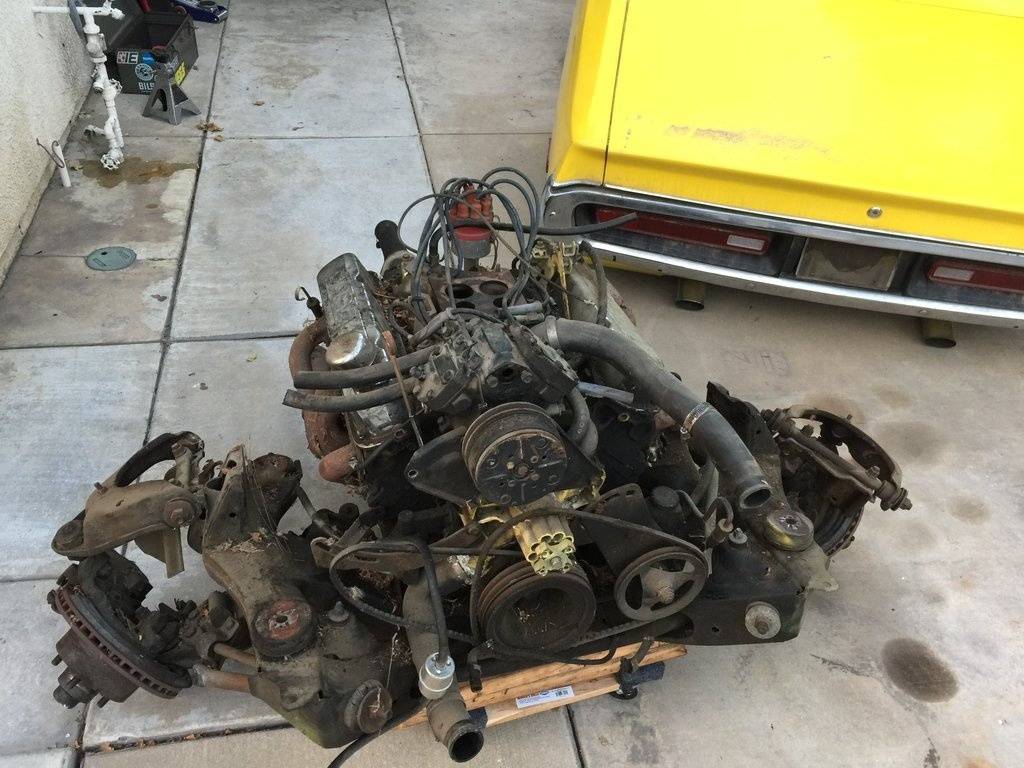

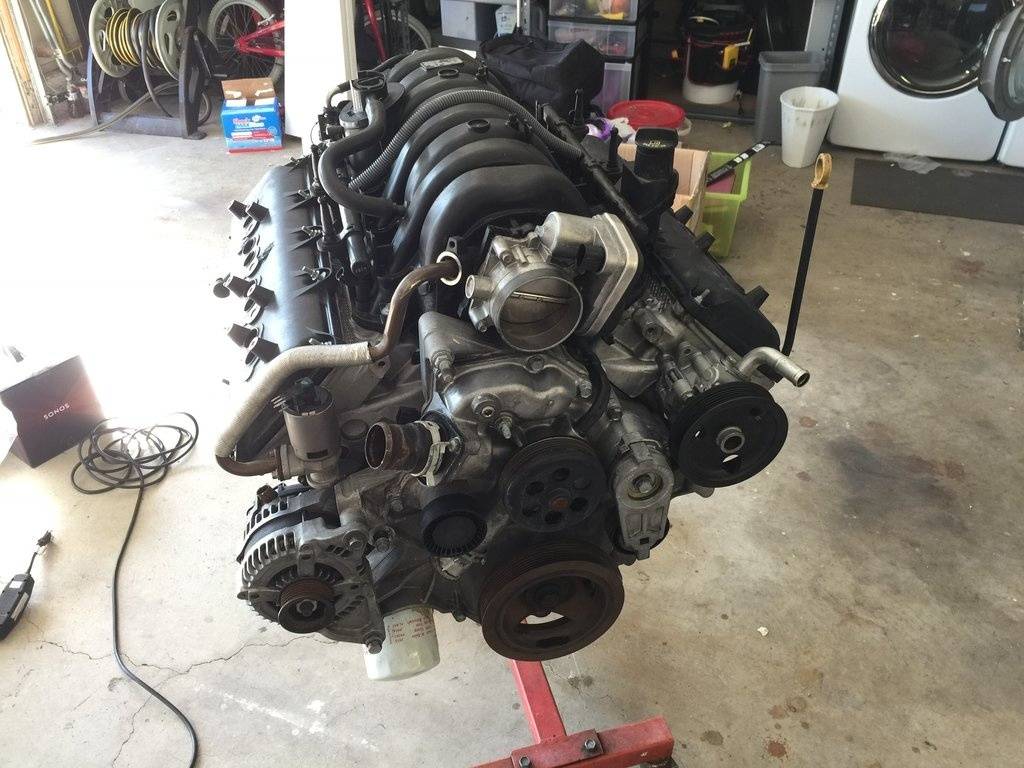

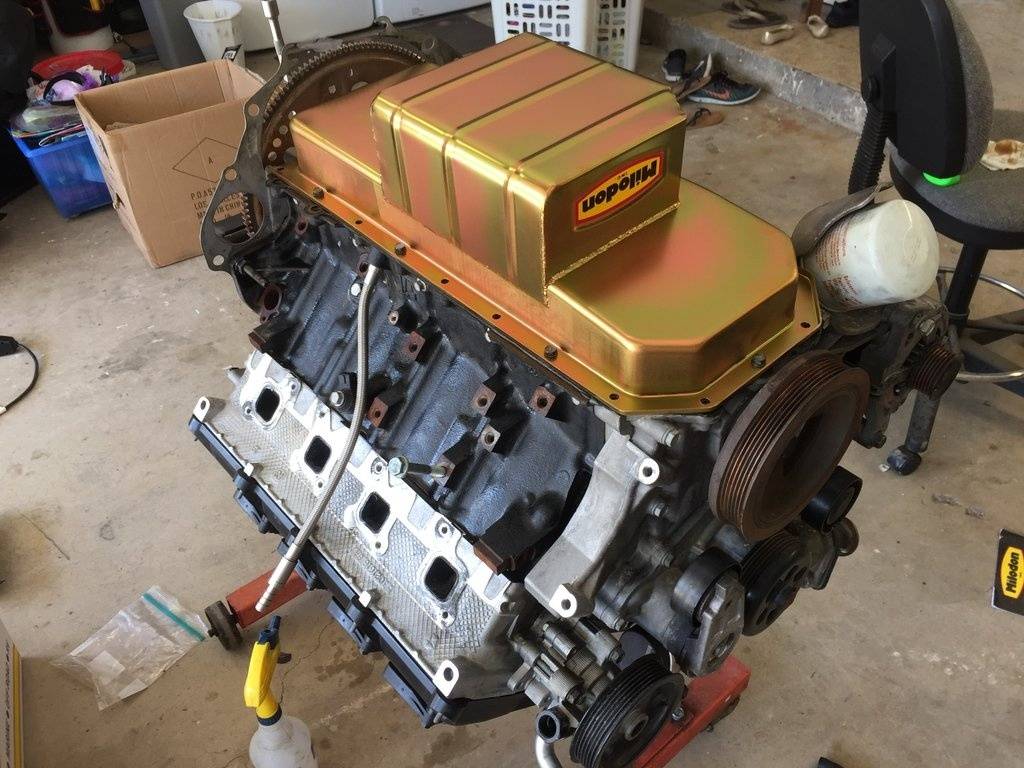

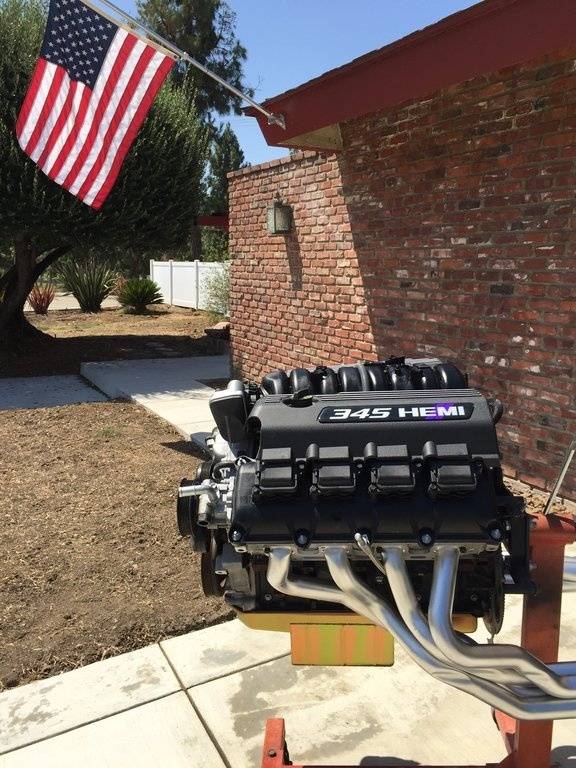

    Here is the new heart that's going in....
    018ebe4056c471b7f92a28944cf59db3b91a3310de.jpg 01041e12dd126438e61ee6564ee99a95ebe5984398.jpg 019add0eb995dfd33758f1a65044aa897178f54402.jpg

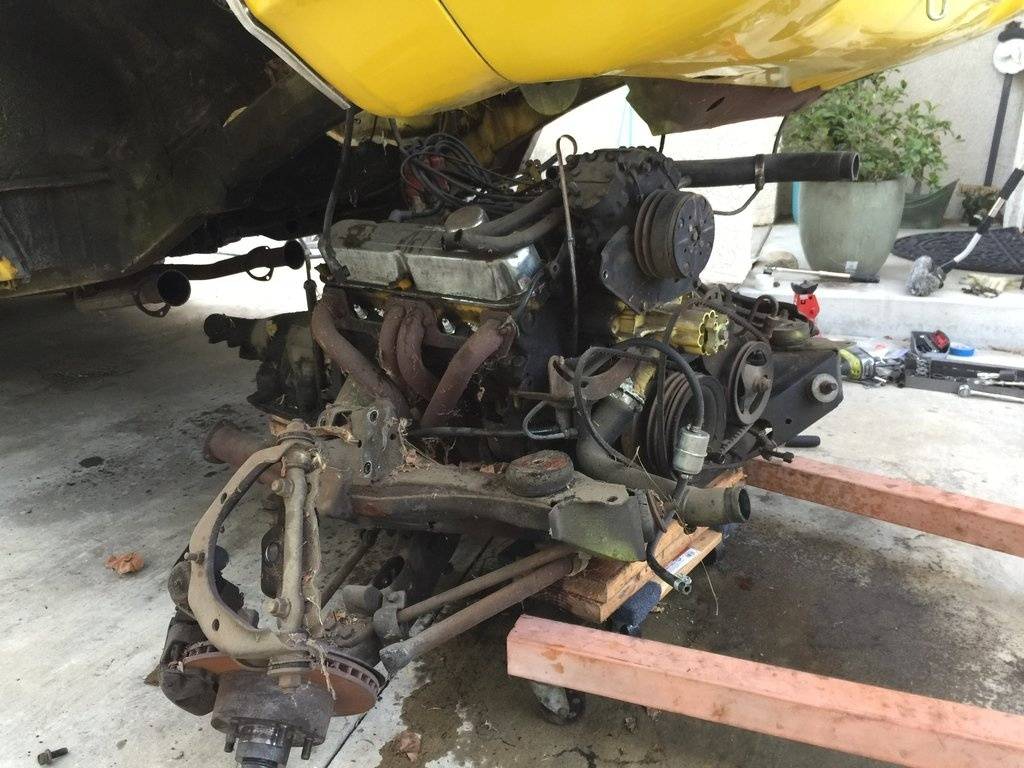

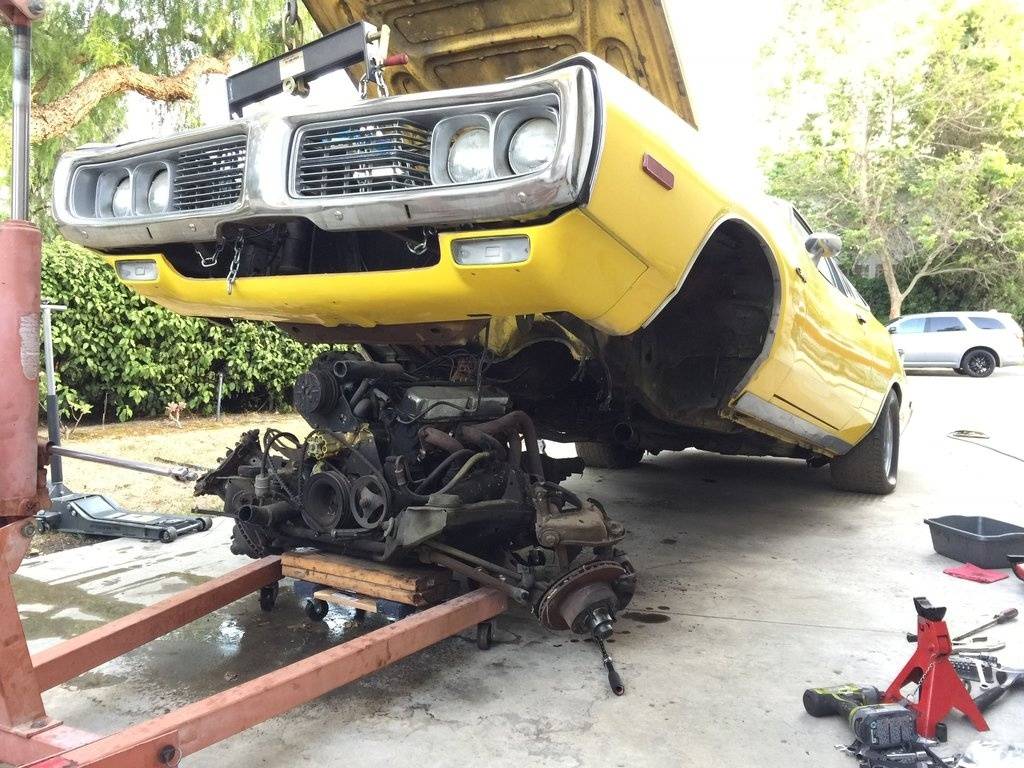

    More parts coming in so stay tuned..... 01c6e828617fe43e59af67afd0c6f6c6d219e49597.jpg 01687f796826d973bc31e482e9d07288652f4d1a9a.jpg

    • Like Like x 6
    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • Car Nut

      Car Nut Well-Known Member

      Messages:
      33,109
      Likes Received:
      78002
      Joined:
      Dec 6, 2012
      Location:
      Zombieland
      Local Time:
      10:24 PM
      :welcome: aboard!

      Nice looking Charger!

      • Like Like x 2
      • Agree Agree x 1
      • Z-Man

        Z-Man FBBO Gold Member FBBO Gold Member

        Messages:
        583
        Likes Received:
        341
        Joined:
        Jan 1, 2017
        Location:
        Milltown WI.
        Local Time:
        11:24 PM
        Sharp car! Welcome from Minnesota.

        • Like Like x 1
        • Triple Black 73

          Triple Black 73 Well-Known Member

          Messages:
          378
          Likes Received:
          163
          Joined:
          May 26, 2016
          Location:
          Atlanta, Ga
          Local Time:
          12:24 AM
          Nice!

        • drobertson

          drobertson Well-Known Member

          Messages:
          1,184
          Likes Received:
          1079
          Joined:
          Nov 15, 2014
          Location:
          Wyoming
          Local Time:
          10:24 PM
          Looks like a good car to start with! What are your plans for it besides the hemi?

        • 4shizzy

          4shizzy FBBO Gold Member FBBO Gold Member

          Messages:
          10
          Likes Received:
          13
          Joined:
          Sep 4, 2017
          Location:
          Orange County, CA
          Local Time:
          9:24 PM
          I have the MagnumForce K-member and suspension on order. It should be here in 2 weeks. That was a hefty purchase! The biggest challenge is opening up the trans tunnel to fit the 545rfe tranny. I'll then convert the bench seat to bucket and do the floor shifter conversion. I do have some rust underneath the vynl top so body repair and then paint job. Still deciding what color scheme. I'll more than likely paint the bumpers to match. It'll take some time but luckily I have a brother to split the costs!

          • Like Like x 1
          • drobertson

            drobertson Well-Known Member

            Messages:
            1,184
            Likes Received:
            1079
            Joined:
            Nov 15, 2014
            Location:
            Wyoming
            Local Time:
            10:24 PM
            Well, if you want Chrome bumpers, AMD just announced they'll be making 73-4 Charger front and rear bumpers.

            • Like Like x 1
            • oldbee

              oldbee FBBO Gold Member FBBO Gold Member

              Messages:
              7,853
              Likes Received:
              7563
              Joined:
              Oct 15, 2011
              Location:
              NE Ohio
              Local Time:
              12:24 AM
              Another great story--Welcome.

              • Like Like x 1
              • 4shizzy

                4shizzy FBBO Gold Member FBBO Gold Member

                Messages:
                10
                Likes Received:
                13
                Joined:
                Sep 4, 2017
                Location:
                Orange County, CA
                Local Time:
                9:24 PM
                Sorry all it's been awhile since I've updated this thread. Life stuff just get's in the way! And also other car projects! lol. I have my daily turbo'd converted VW R32 that takes up a lot of my time as well!

                Anyways, back to the real American fun! Over a year ago we ordered the Magnumforce suspension kit and it took a long while to get built and shipped. Seems like they just build to order. The kit is very well made and quality welds. I opted for un-powder coated as we want to customize the finish. Not sure what color yet! The Viking coilovers and Wilwood brakes are very sexy!

                When we got the kit we wanted to test fit everything before we powder coated in K-member. This kit does require you to drill out the subframe to insert your bolt sleeve and bolt to secure the frame rails. The bolt sleeve needs to be welded in which I'll get to later. We drilled the holes and mounted the frame rails which also also has the upper control arm mounts. When test fitting a lot of the mounting points didn't align which required me to send back some parts for MF to fix and remake which they did and sent other updated parts without problems.

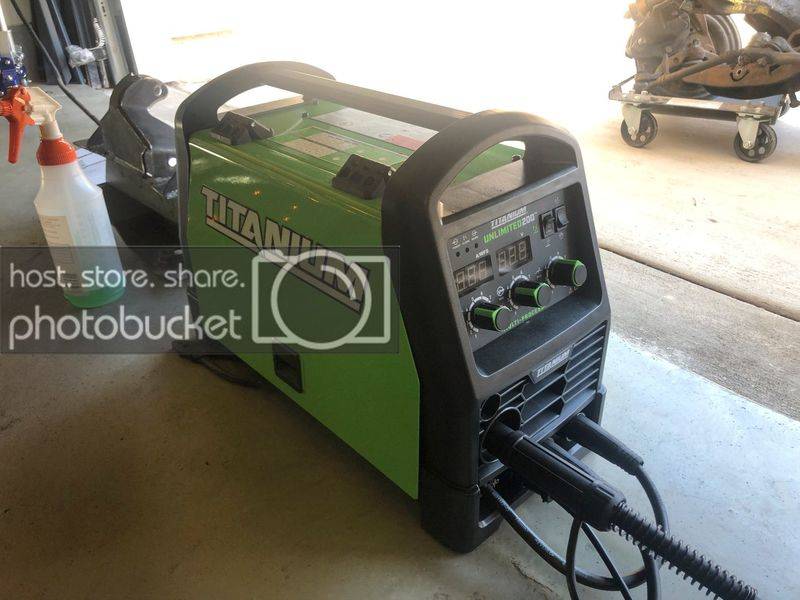

                After getting the parts back, things were looking good! However welding in the sleeves created a delay as I don't know how to weld and was waiting for a coworker to help weld them in. After almost a year of delays and schedule conflict with my coworker, I decided to man-up and buy a welder to do it myself! lol!

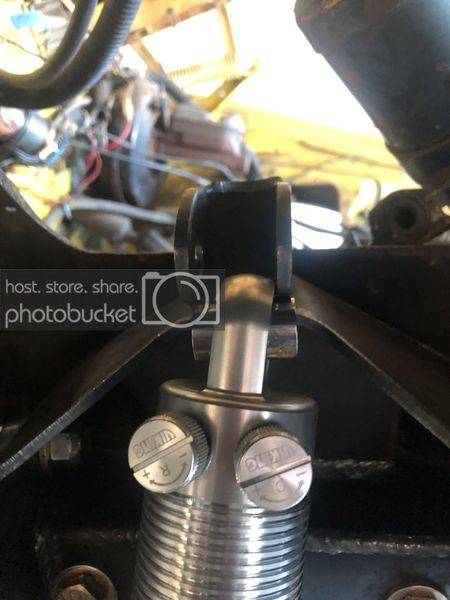

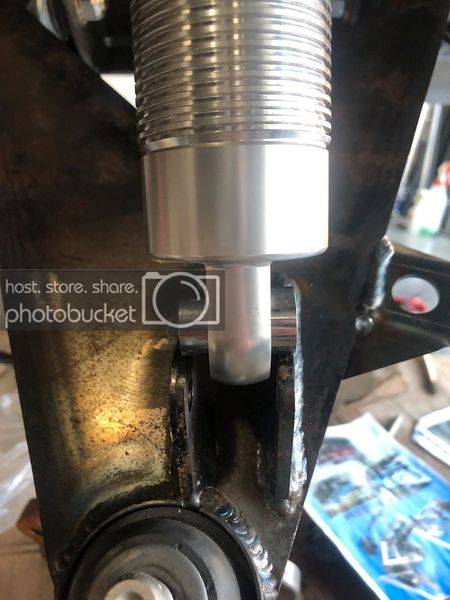

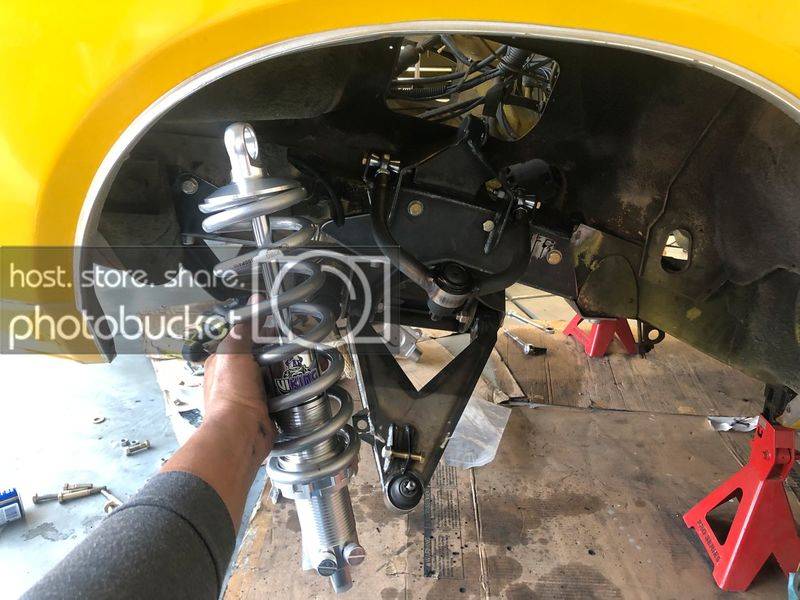

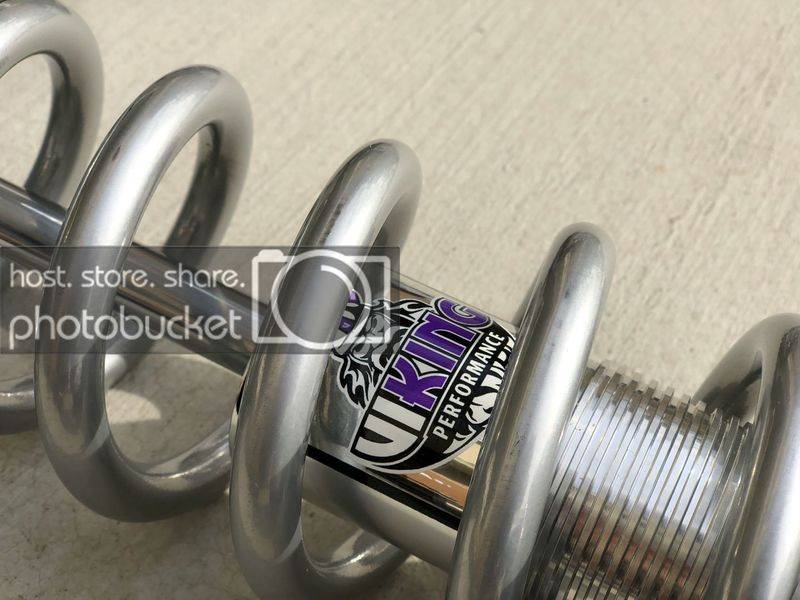

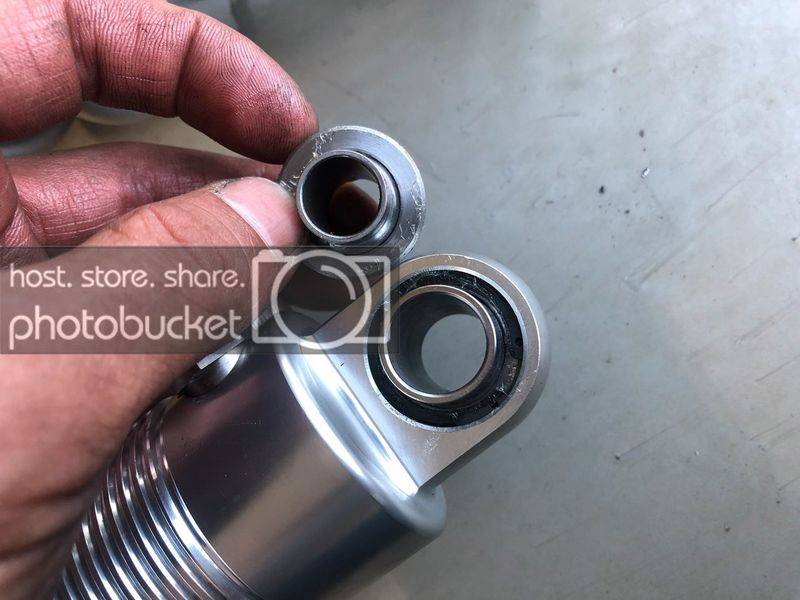

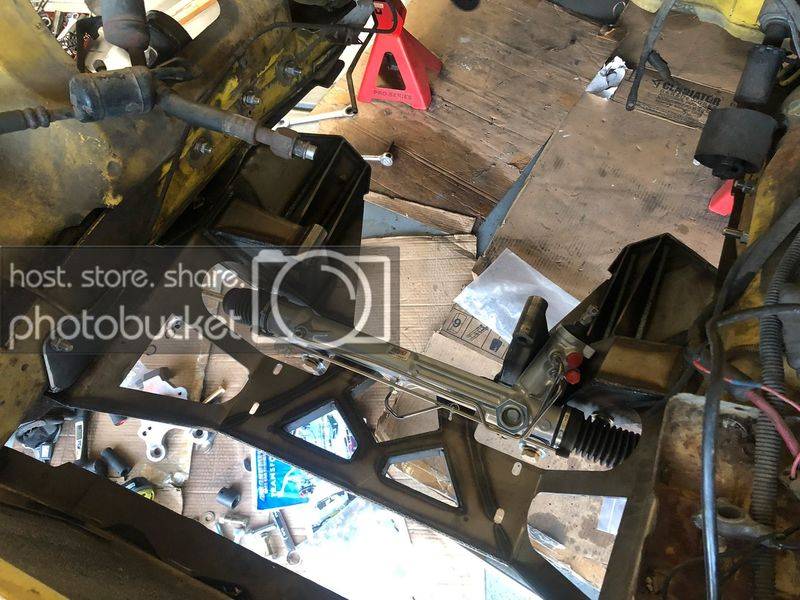

                Once we got the K-member bolted in things we're smooth sailing till we hit another snag! When we were installing the Viking coilovers, the bolt inserts they gave us were the wrong size!

                These coilovers were shipped directly from Viking so they sent the wrong size inserts. I had MF work with Viking to send us new inserts which I just received. That's where we're at! Need to make time to finish the test fit!

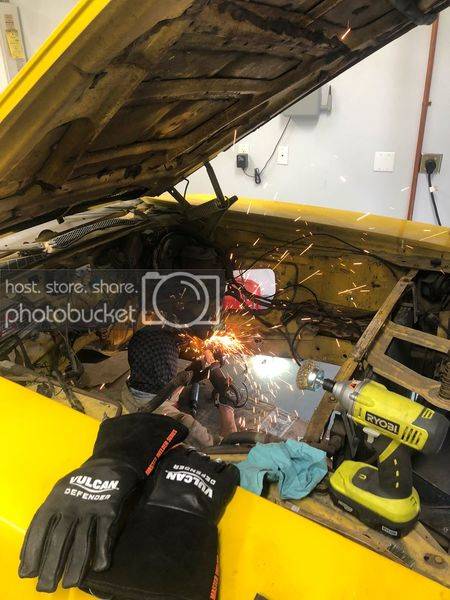

                Once we finish test fitting the suspension, we need to drop in the engine and trans to see what modifications we need to do for the trans tunnel as we need to cut and enlarge! more fun stuff to come!

                • Like Like x 2
                • Dennis H

                  Dennis H FBBO Gold Member FBBO Gold Member

                  Messages:
                  13,503
                  Likes Received:
                  16076
                  Joined:
                  Jul 11, 2010
                  Location:
                  San Jose
                  Local Time:
                  11:24 PM
                  Great story. Big project. Welcome.

                  • Thanks! Thanks! x 1
                  • Agree Agree x 1
                  • 4shizzy

                    4shizzy FBBO Gold Member FBBO Gold Member

                    Messages:
                    10
                    Likes Received:
                    13
                    Joined:
                    Sep 4, 2017
                    Location:
                    Orange County, CA
                    Local Time:
                    9:24 PM
                    And BTW... Photobuckt sux a$$ now. What you guys using to host your pics?

                  • Charger72

                    Charger72 Well-Known Member

                    Messages:
                    367
                    Likes Received:
                    197
                    Joined:
                    Mar 13, 2009
                    Location:
                    Oakville, Ontario, CANADA
                    Local Time:
                    12:24 AM
                  • 4shizzy

                    4shizzy FBBO Gold Member FBBO Gold Member

                    Messages:
                    10
                    Likes Received:
                    13
                    Joined:
                    Sep 4, 2017
                    Location:
                    Orange County, CA
                    Local Time:
                    9:24 PM
                  • 4shizzy

                    4shizzy FBBO Gold Member FBBO Gold Member

                    Messages:
                    10
                    Likes Received:
                    13
                    Joined:
                    Sep 4, 2017
                    Location:
                    Orange County, CA
                    Local Time:
                    9:24 PM
                    Now I’m in search for a radiator for this hemi swap. Bouchillon has one for 70-72 but not sure if it works for 73. Does anyone know the difference if this could work? Or ant other options?

                  • CudaChick1968

                    CudaChick1968 The Mistress of Metal FBBO Sponsor

                    Messages:
                    1,301
                    Likes Received:
                    2865
                    Joined:
                    Jan 18, 2009
                    Location:
                    Greenfield, Tennessee 38230
                    Local Time:
                    11:24 PM
                    Very cool build!

                    • Thanks! Thanks! x 1
                    • 1972GY8SE

                      1972GY8SE Well-Known Member

                      Messages:
                      457
                      Likes Received:
                      624
                      Joined:
                      Jun 25, 2016
                      Location:
                      Rancho Cucamonga, CA.
                      Local Time:
                      9:24 PM
                      Nice build, you got some trick parts going in that car.
                      Just curious, why are you using a image hosting service?
                      thanks.

                      • Thanks! Thanks! x 1
                      • 4shizzy

                        4shizzy FBBO Gold Member FBBO Gold Member

                        Messages:
                        10
                        Likes Received:
                        13
                        Joined:
                        Sep 4, 2017
                        Location:
                        Orange County, CA
                        Local Time:
                        9:24 PM
                        I guess I’m used to it since I use it for other forums. It was a good way to organize my photos online but now photobucket is terrible with their watermark. I’ll just upload directly here from now on.

                        • Thanks! Thanks! x 1
                        • 4shizzy

                          4shizzy FBBO Gold Member FBBO Gold Member

                          Messages:
                          10
                          Likes Received:
                          13
                          Joined:
                          Sep 4, 2017
                          Location:
                          Orange County, CA
                          Local Time:
                          9:24 PM

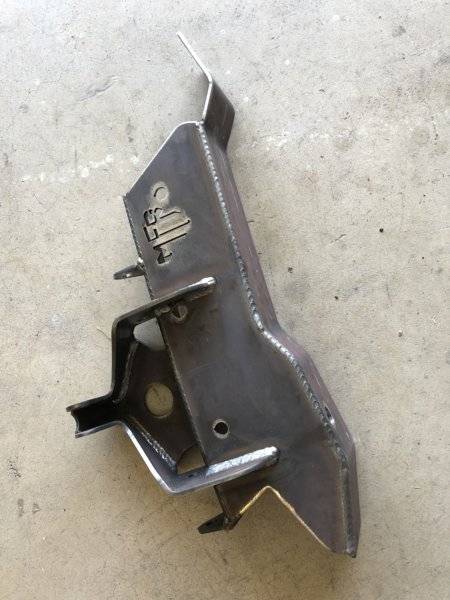

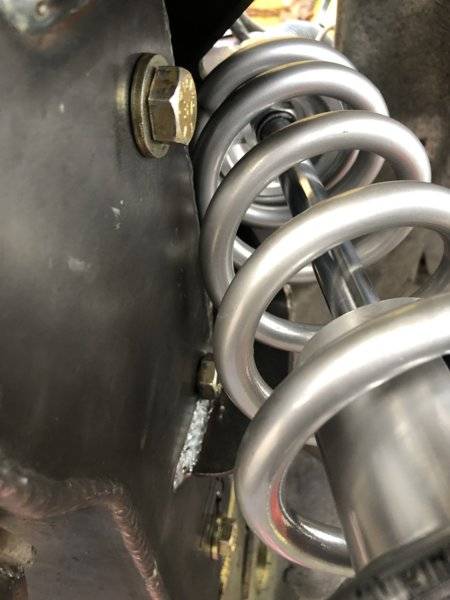

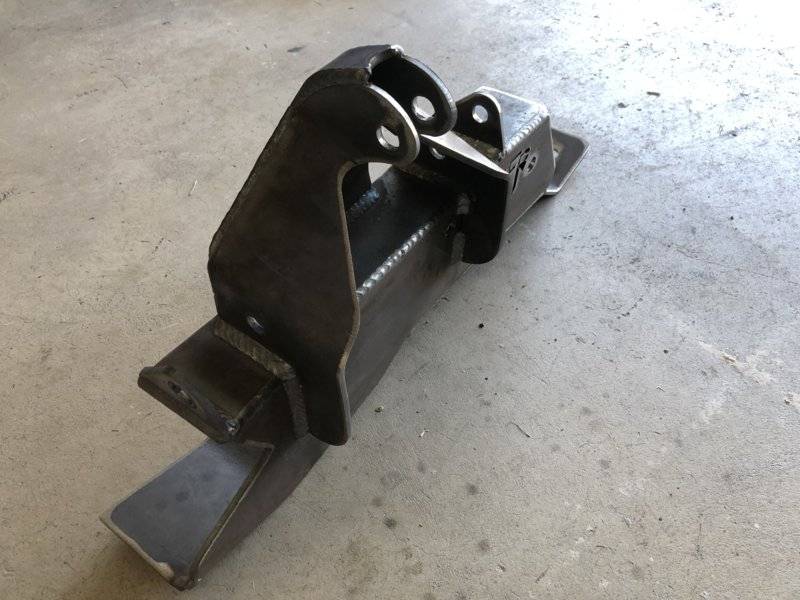

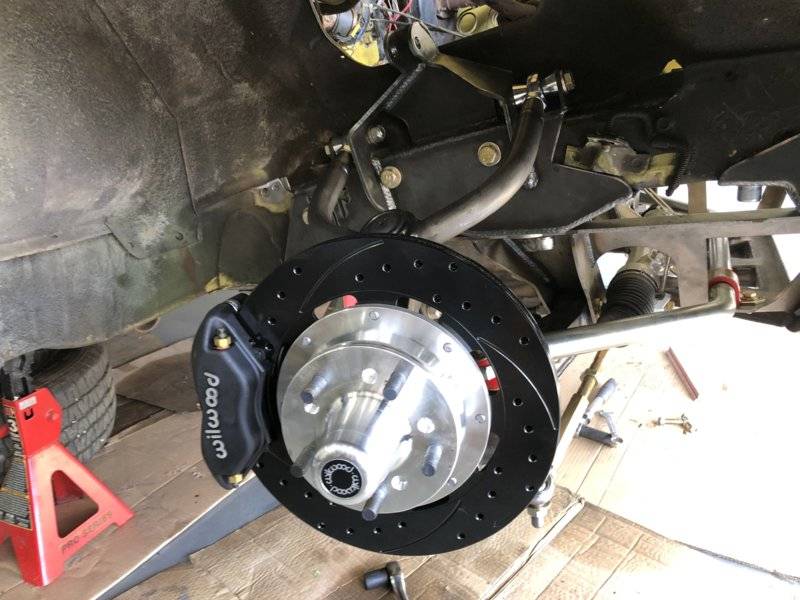

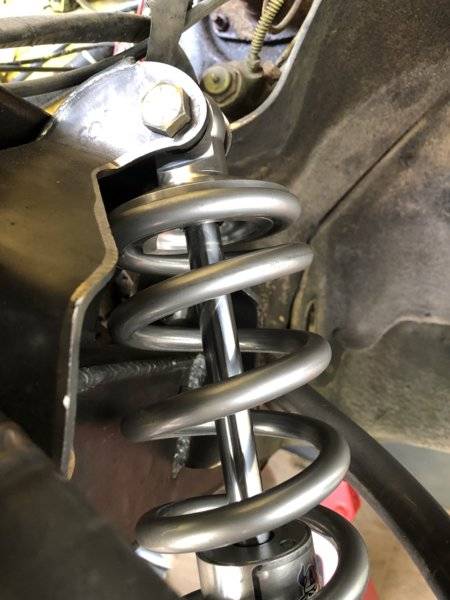

                          A quick update. We hit another snag with the magnum force upper control arm mounts. The shock mount geometry allows the coil overs to hit the frame. Had MF remake the upper mount and need to install.

                          70FA7AF4-8958-4385-92B9-BBE0400CF3D8.jpeg 51AF8F39-2B32-4011-BA83-3ED0E73536A1.jpeg FA837E6D-F809-4B14-8802-F6E88186691F.jpeg 073E8393-56F5-4788-8424-7CF3BF9749AF.jpeg 0D7BE439-69FF-45BF-BF05-35C744AC4F87.jpeg
